Basic Specifications
Application
Cleaning, Detergent, Cosmetics, Drinks, Oil, Vegetable, Fruit
Type
Filling and Sealing Machine
Forming Function
Filling, Seal
Packaging Material
Plastic
Packaging Speed
120-150 Bags/Min
Air Pressure
0.5-0.7MPa/Cm2
Specification
6500mm × 1500mm× 1950mm
Packaging & Delivery
Package Size
6500.00cm * 1500.00cm * 1950.00cm
Package Gross Weight
4500.000kg
Transport Package
Wooden Box
Product Overview
This advanced machinery is strictly designed in compliance with GMP standards, specifically for four-side sealing packaging. The machine integrates bag forming, product loading, batch number printing, four-side sealing, tear notch creation, cutting, and finished product conveying—all completed in one seamless operation.
Key Features
-
✓
Intuitive Control: Human-Machine Interface (HMI) for easy operation and monitoring.
-
✓
Stability: Fully servo motor-driven for precise and stable bag length control.
-
✓
Accuracy: Automatic left-right alignment and front-back photoelectric registration.
-
✓
Thermal Control: Six temperature control zones ensure optimal sealing performance.
-
✓
High Speed: Seven servo motors ensure high-speed, high-precision continuous operation.
-
✓
Automation: PLC programmable logic controller for a fully systematic production line.

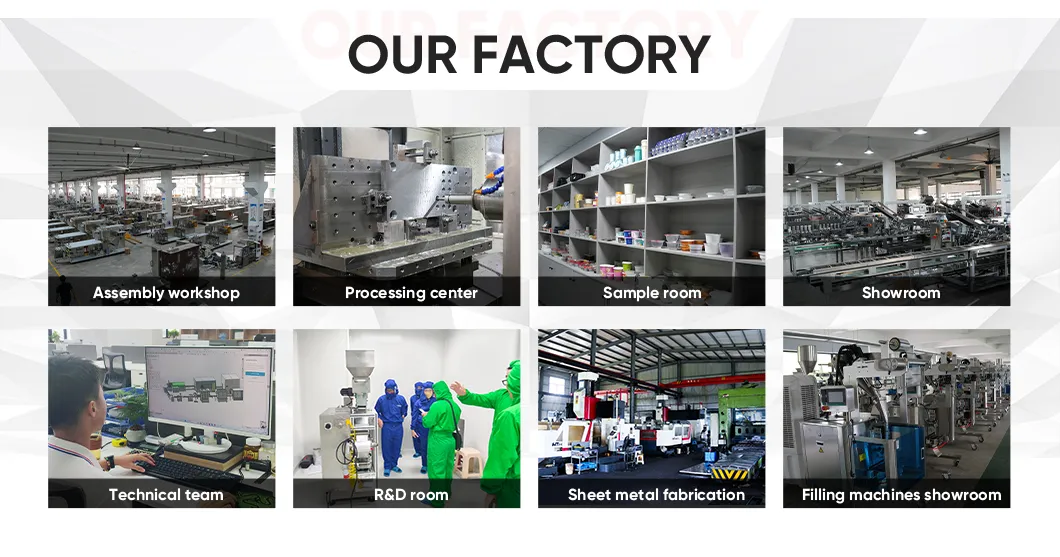

Manufacturing Excellence
Based in an advanced manufacturing hub, our enterprise specializes in developing, manufacturing, and selling liquid filling machinery. We offer mature solutions in 5 main categories: BFS, bottle liquid filling, squeeze tube, Cup, and sachet. All machines are CE certified and meet international GMP standards, exported to more than 50 countries and regions.
Global Presence & Service
Exhibition & Certification
Frequently Asked Questions
What industries can use this four-side sealing machine?
This machine is highly versatile and ideal for the pharmaceutical, food, chemical, and cosmetic industries. It is specifically designed for products requiring high-standard four-side sealing, such as medical swabs, IV catheter dressings, and various liquid sachets.
Does the machine comply with international safety standards?
Yes, all our machinery is strictly designed and manufactured in compliance with GMP standards and has been granted CE certification, ensuring safety and quality for global markets.
How many bags can the machine produce per minute?
The machine is capable of a high-speed production range of 120 to 150 bags per minute, depending on the product specifications and material type.
Can I customize the machine for specific product shapes?
Absolutely. The machine features flexible product loading settings and our technical team can design custom filling heads and product pack molds to accommodate different shapes and requirements.
What types of liquids can be processed by your filling machines?
Our machines can handle a wide range of viscosities, including thin liquids, fluids, pastes, and oils. We provide tailored solutions based on your specific filling material.
Is the machine easy for operators to control?
Yes, it is equipped with a user-friendly Human-Machine Interface (HMI) and a PLC programmable logic controller, making the operation fully automated, systematic, and easy to monitor.
