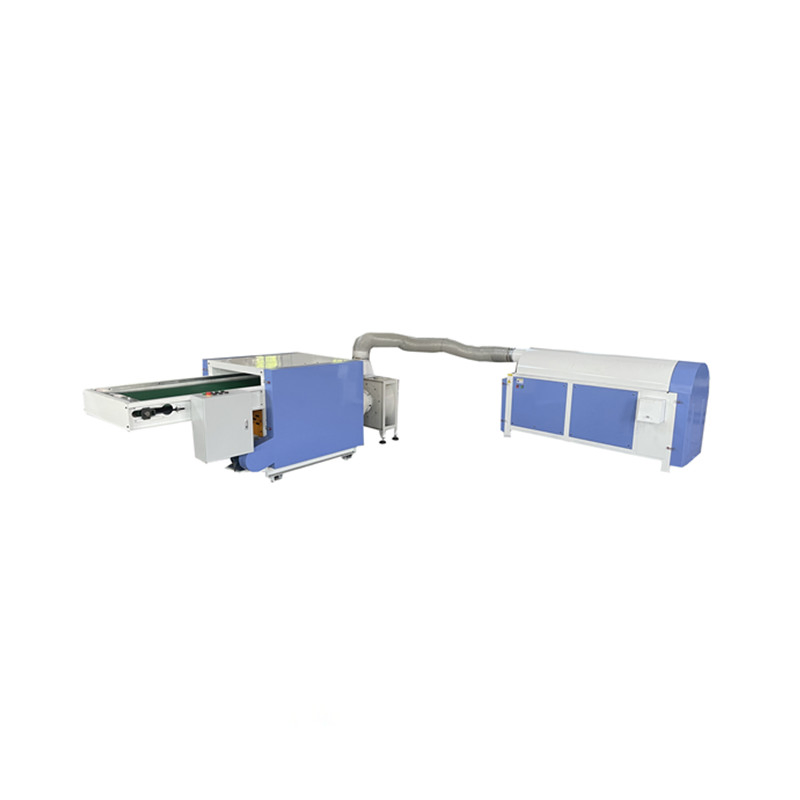

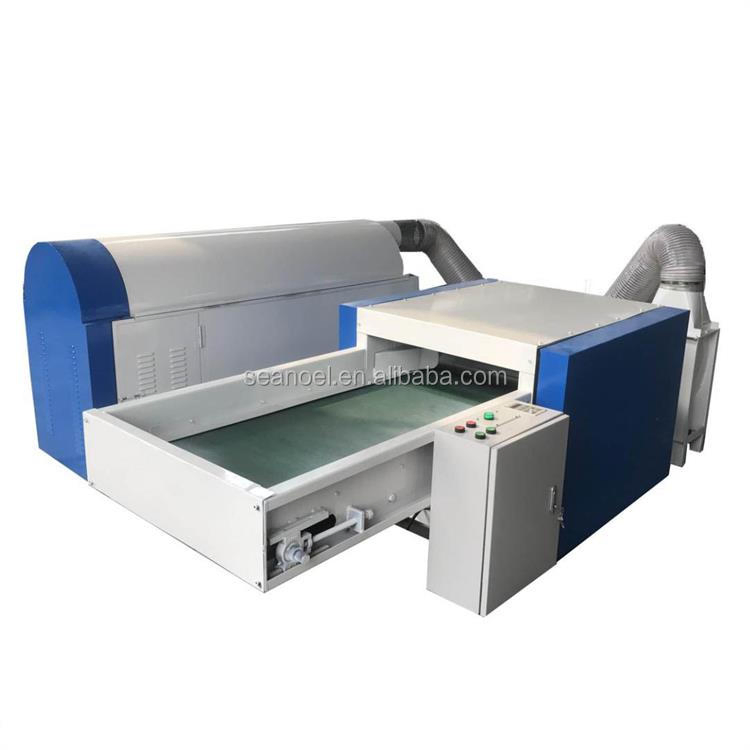

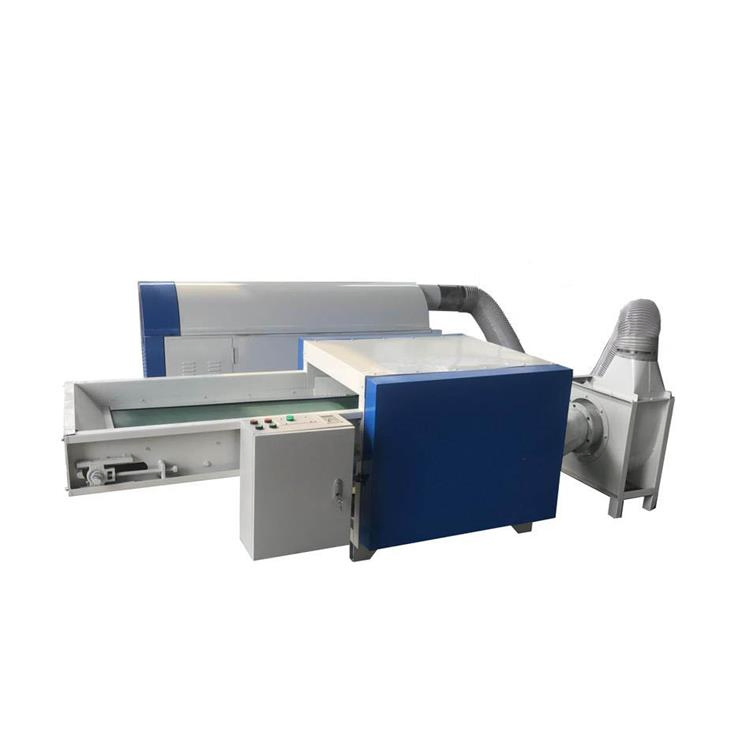

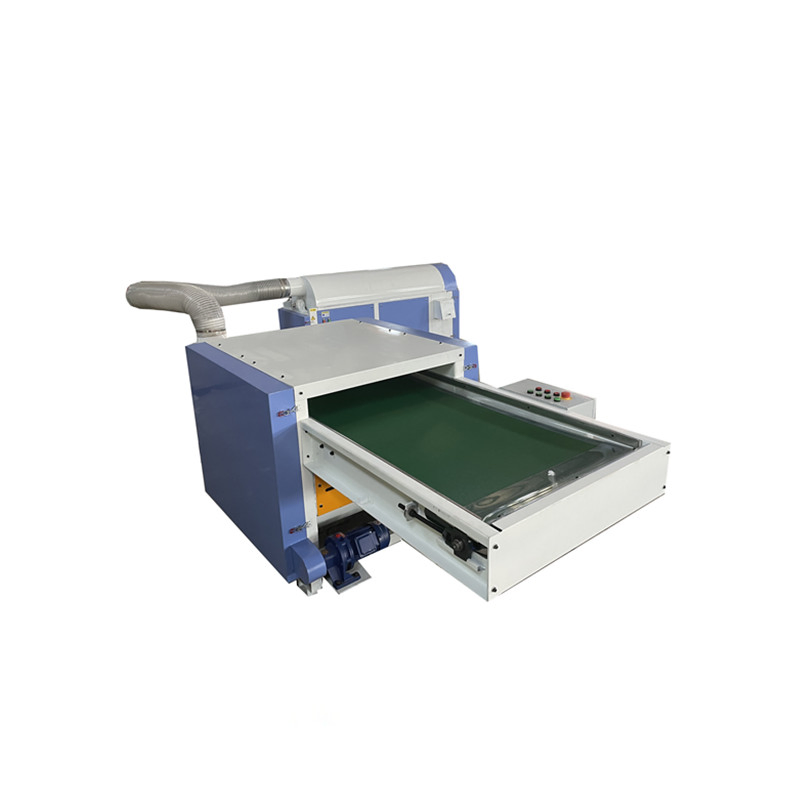

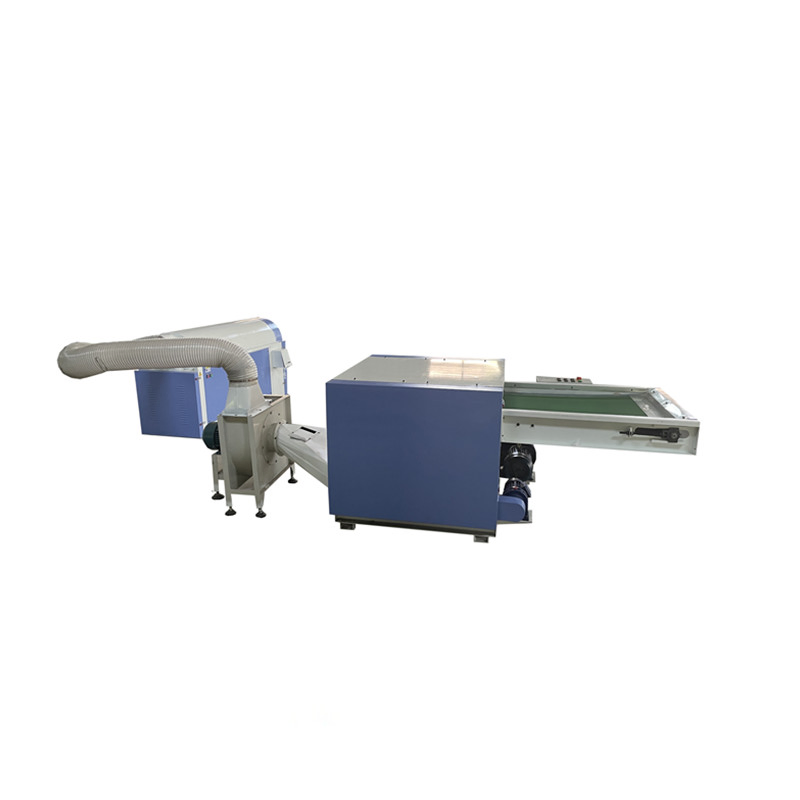

Polyester Fiber Making Machines Absorbent Cotton Machine Ball Fiber Sleeping Pillow Shredding Machine

Customization: Available
Voltage: 220V
Power Source: Electric

Product Description

Basic Information
Model NO.
SN-BF150
Automatic Grade
Automatic
Warranty
1 year
Name
Fiber Ball Machine
Ball Size
2-20mm Adjustable
Outlet Type
Gravity Induction
Capacity
100-150kg/H
Suitable Material
7D*52mm
Function
Twist The Fiber Into Balls
Application
Filling Pillow Cushion
Advantage
Full, Round and More Elastic
Transport Package
Wooden Box
Production Capacity
20 Sets Per Month
Fiber Ball Making Machine Features
Fiber Ball Machine Header
  • Opening tight polyester fiber into loose state, twisting loose fiber into balls.
  • Ball size is adjustable from 2 to 20 MM.
  • Outlet gravity regulation: by adjusting the pressure at the outlet, the fiber balls can stay inside the machine longer to become smaller, fuller, and rounder.
  • Ideal as a filler for pillows, cushions, and other products to significantly increase elasticity.
  • The fiber feeding direction is perpendicular to the rubbing direction, ensuring a ball formation rate of up to 100%.
Technical Specs Divider
Machine Structure Machine Size Weight Power Output
Opening Machine 1800*960*960MM 550KG 4.5KW 300KG/H
Feeding Fan 800*800*1000MM 60KG 2.2KW /
Ball Making Machine 1600*600*1200MM 600KG 11KW 100-150KG/H
Warranty & Service
  • 1. All parts are guaranteed one year for non-human-made damage.
  • 2. After one year, all parts are provided at cost without profit.
  • 3. Professional consultation available 12 hours every working day to answer your questions.
  • 4. Production pictures and videos are available at any time during manufacturing.
  • 5. Technical engineering support available 10 hours every working day for correct machine operation.
  • 6. Comprehensive machine installation, user's guide, and maintenance manuals provided.
  • Product Showcase
    Fiber Ball Machine Detail

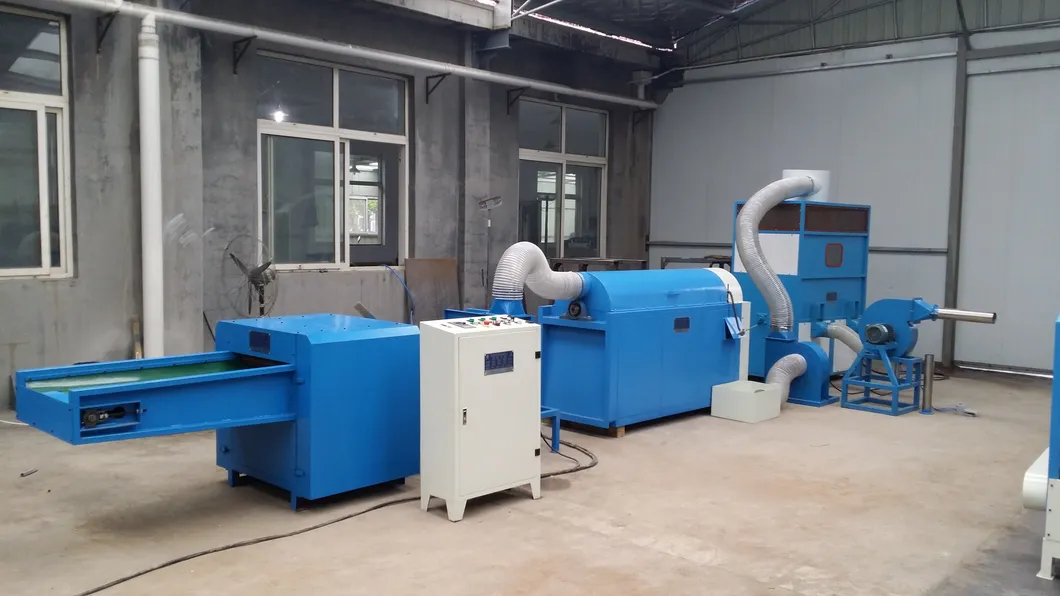

    Machine Components
    Fiber Ball Sample 1
    Fiber Ball Sample 2

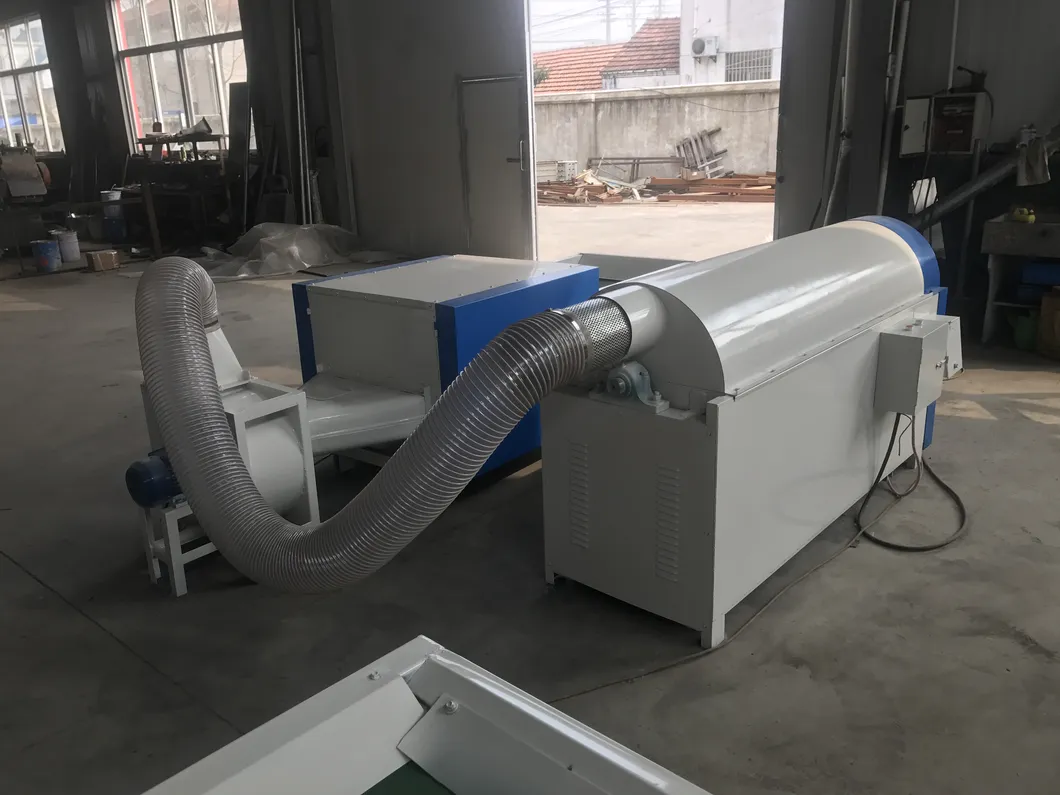

    Fiber Ball Sample 3

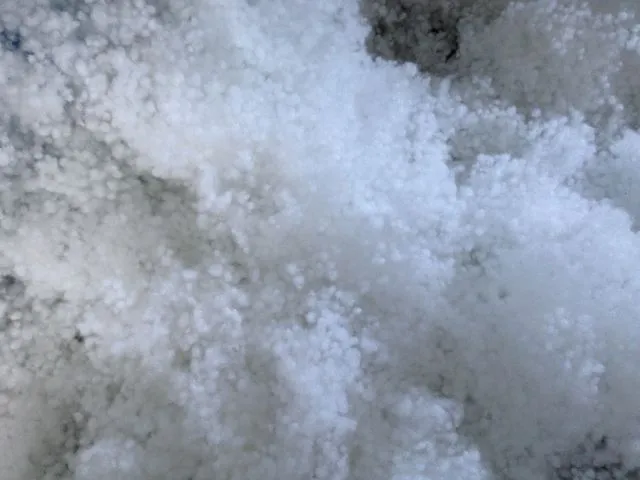

    Production View 1
    Production View 2

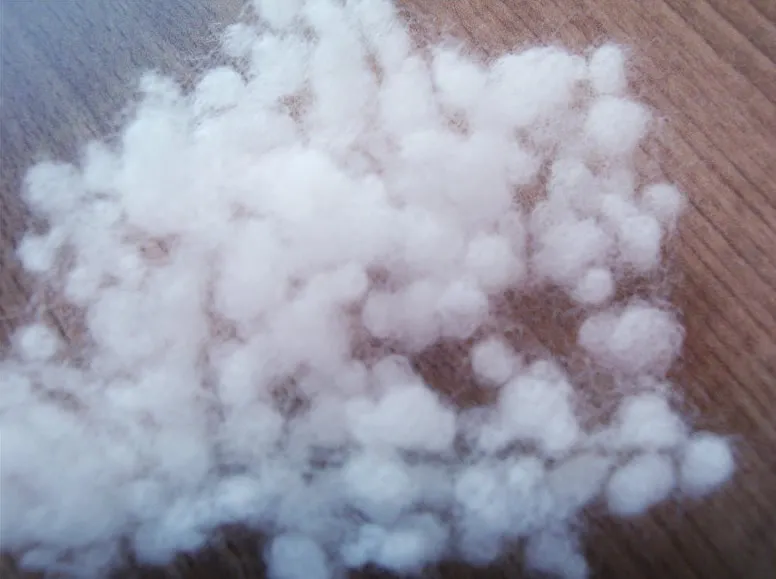

    Production View 3

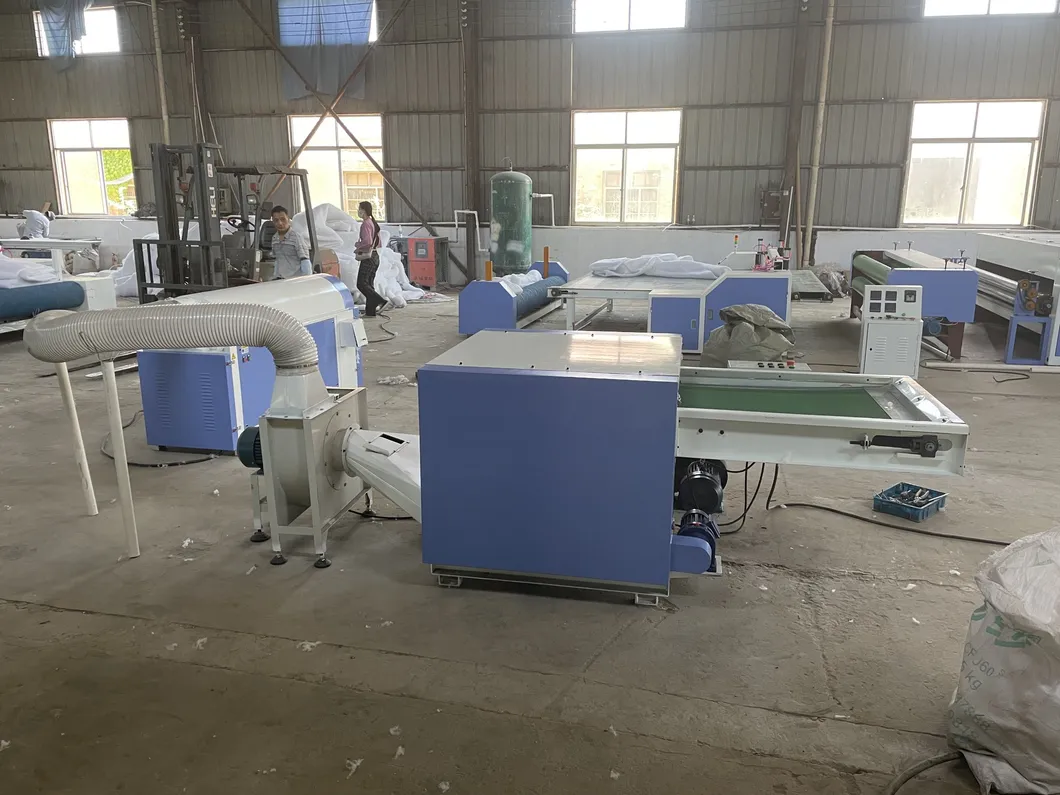

    Machine Setup

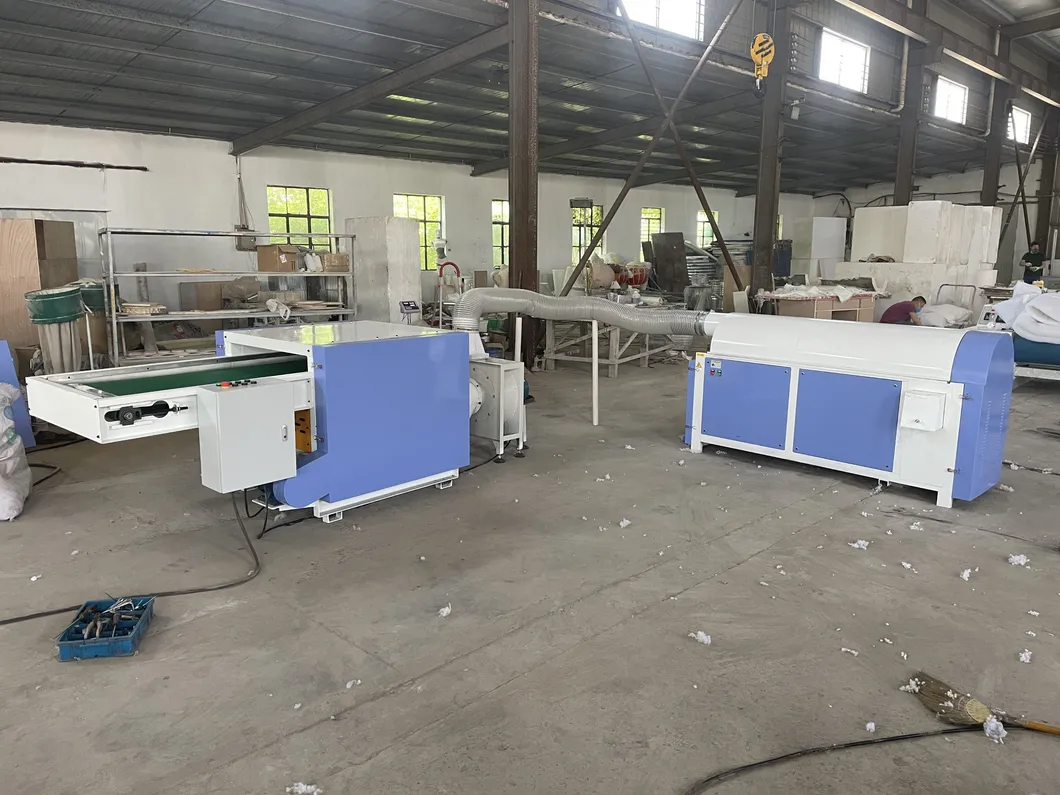

    Finished Product
    Dimension Diagram
    Internal Structure
    Final Assembly
    Frequently Asked Questions
    What is the warranty and after-sales service policy?
    We provide a one-year warranty. If any part is damaged within this period (non-human factor), we provide replacements free of charge. We also offer lifetime service and online guidance within 12 hours.
    How experienced is the technical support team?
    Our engineers have nearly 20 years of experience in home textile machinery. They are available online eight hours every day to provide professional guidance before and after your purchase.
    Is the ball size adjustable for different products?
    Yes, the fiber ball size is fully adjustable from 2mm to 20mm. By regulating the outlet gravity and pressure, you can customize the size, fullness, and roundness of the balls.
    What kind of materials are suitable for this machine?
    The machine is specifically designed for 7D*52mm polyester fiber, which is commonly used for filling pillows and cushions.
    What is the production capacity of the SN-BF150?
    The capacity ranges from 100kg to 150kg per hour, depending on the material settings and the desired size of the fiber balls.
    Why should we trust your equipment?
    We are a long-standing family business group dedicated to this field. Our reputation is built on never being absent for after-sales service and growing together with our global customers.
