Product Description

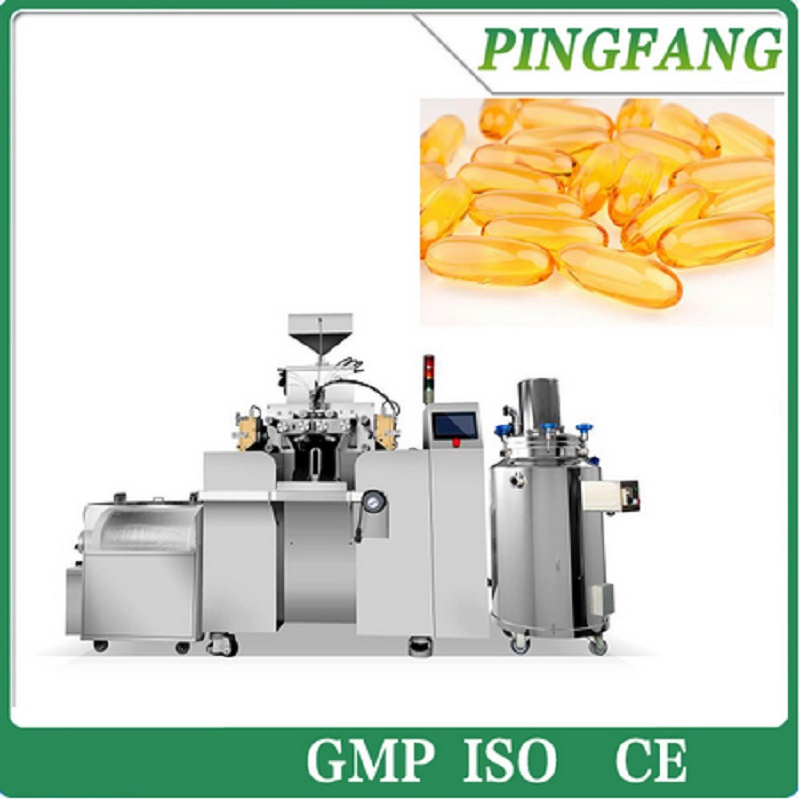

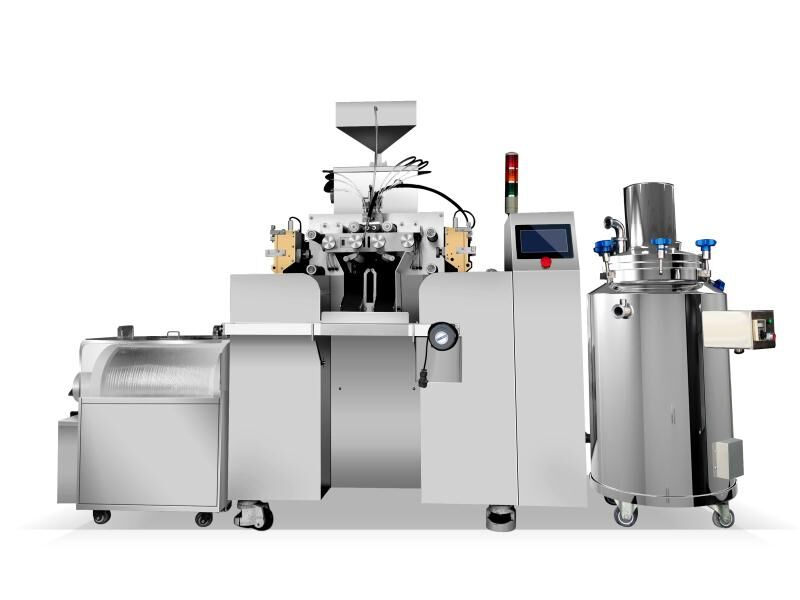

Pharmaceutical Filling Packing Making Soft Gel Gelatin Capsule Softgel Encapsulation Machine
⚙️
HTSYS-5 soft capsule machine is mainly used for laboratory and research institutions capsule drug product development trial, may be used as pharmaceutical, health care products factory, food factory test equipment, aircraft using a variety of automatic control technology, simple operation, function stable and reliable; Machine meet GMP standards, models small, functional, superior performance, compact structure.
Main Features
❄️
Cold System: Integrated cooling fan, low energy consumption, convenient installation, and high temperature accuracy.
🔬
Lab Optimization: Suitable for small laboratories, low noise, high accuracy (Loading error is less than ± 2%), reduces raw material waste for repeated experiments.
⚡

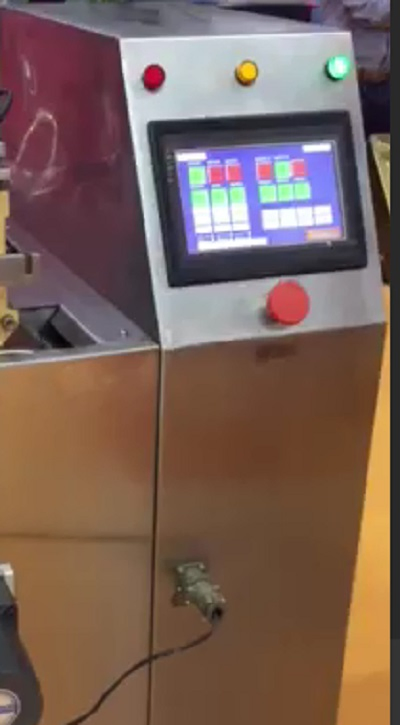

Control System: Adopts 50HZ frequency control, roll-mode speed 0 ~ 2.5rpm, 2-plunger feed, single plunger feed rate 0 ~ 1.5ml.
| Roller die size | 64 × 75mm |
| Die roller speed: | 0-2rpm |
| Charge for a single plunger | 0-1.5(ml) |
| Main motor power | 1.5kw |
| Machine power | 11kw |
| Power supply | 380V 50HZ |
| Over dimension | 620X660X1310mm |
| Weight | 400kg |
Frequently Asked Questions
What is the main application of the HTSYS-5 machine?
It is primarily designed for laboratory use and research institutions for the development of soft gel capsule products, and can also be used as test equipment for pharmaceutical and food factories.
Does this machine comply with industrial standards?
Yes, the machine fully meets GMP standards with a compact structure and superior performance suitable for professional environments.
What is the filling accuracy of the encapsulation machine?
The machine offers high precision with a loading error of less than ± 2%, which significantly minimizes raw material waste during experiments.
What are the power requirements for operation?
The standard power supply required is 380V 50HZ, with a total machine power of 11kw and a main motor power of 1.5kw.
Is the machine easy to install and operate?
Yes, it features an integrated cooling fan for convenient installation and utilizes automatic control technology to ensure simple and stable operation.
What is the production capacity?
As it is a laboratory-scale model, the production capacity is approximately 20 units per month for manufacturing and high-precision testing.
