Blister packing machine is suitable for packaging eye-mark, medical, cream, medicine, cosmetics, food, chemical products, such as single-dose liquid syrup, olive oil, ketchup, jam, butter, chocolate sauce, honey, perfume, lotion, cosmetic, essential oil, fertilizer, pesticide, etc.
The blister packing machine handles automatic plastic ampoule forming, liquid filling, sealing, and cutting. The final product sample is finished automatically with high efficiency.

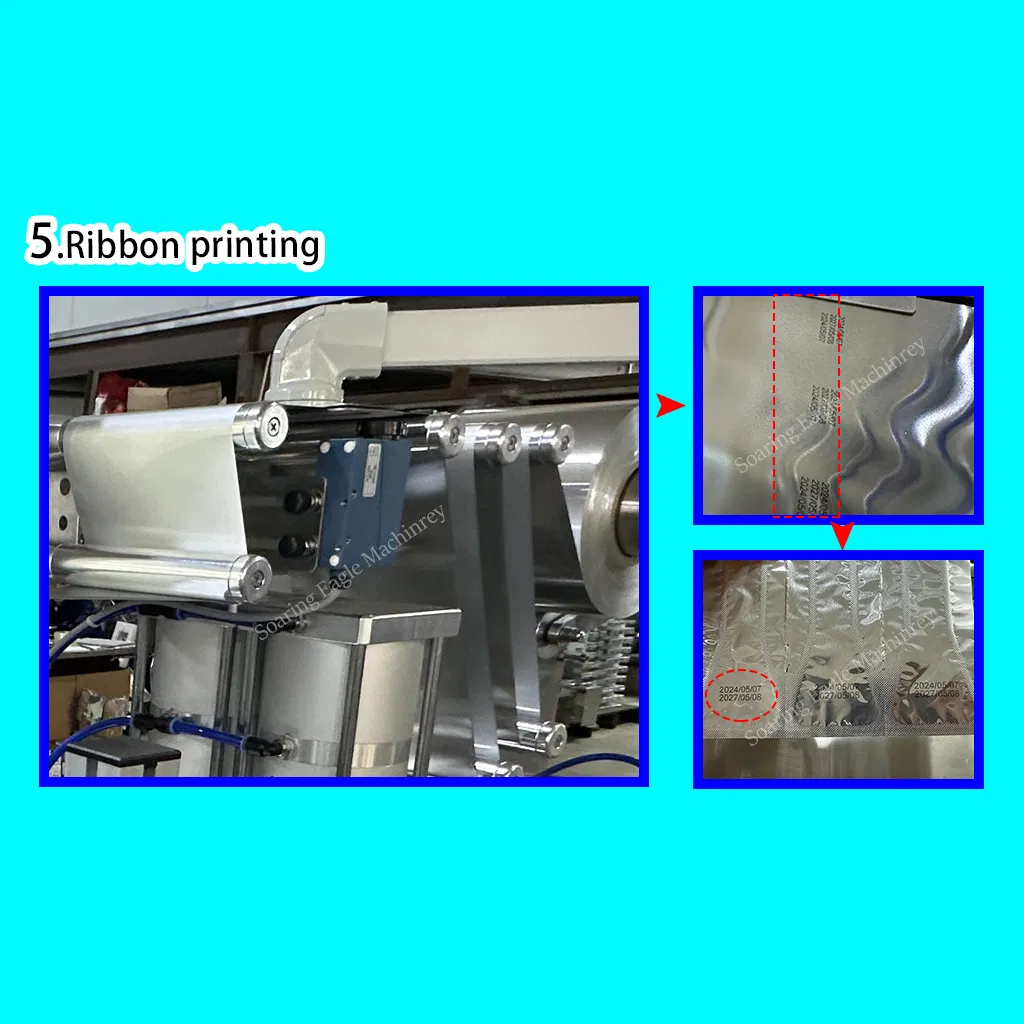

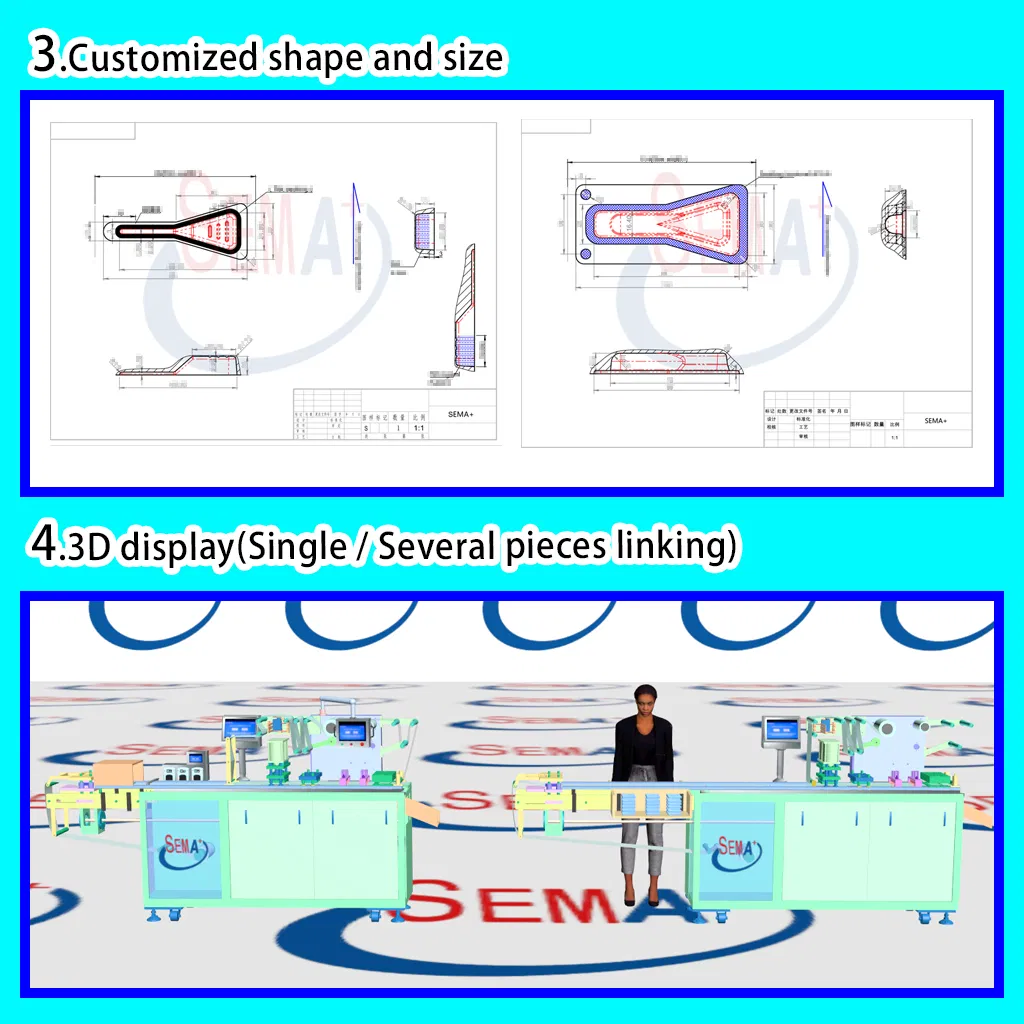

Features include easy tear line making and date embossing. OEM/ODM custom designs for the shape and size of the blister product are available. It utilizes PLC control with a touch screen English operation system. Each machine carries a CE certificate.
| Model | DPP-140 |
| Cutting Frequency | 10-35 times/min |
| Packing Film Width | 150mm |
| Max Forming Depth | 25mm or Customized |
| Max Forming Area | 145*110mm |
| Air Pressure | 0.6-0.8MA |
| Total Power Supply | 380V 50Hz, 8.5KW |
| PVC Hard Film | (0.15-0.5)*250mm |
| PTP Aluminum Film | (0.02-0.035)*250mm |
| Dialysis Paper | 50-100g*250mm |
| Mould Cooling | Tap Water or Recycling Water |
| Overall Dimension (L*W*H) | 2315*635*1405mm |
| Machine Weight | 820kg |
