| Model NO. | DS-100 |
| Automatic Grade | Automatic |
| Type | Filling and Sealing Machine |
| Product Name | Automatic Cartoning Machine |
| Packing Speed | Max.70 PCS/Min |
| Control System | PLC |
| Package Size | 3800.00cm * 1500.00cm * 1800.00cm |
| Gross Weight | 2000.000kg |

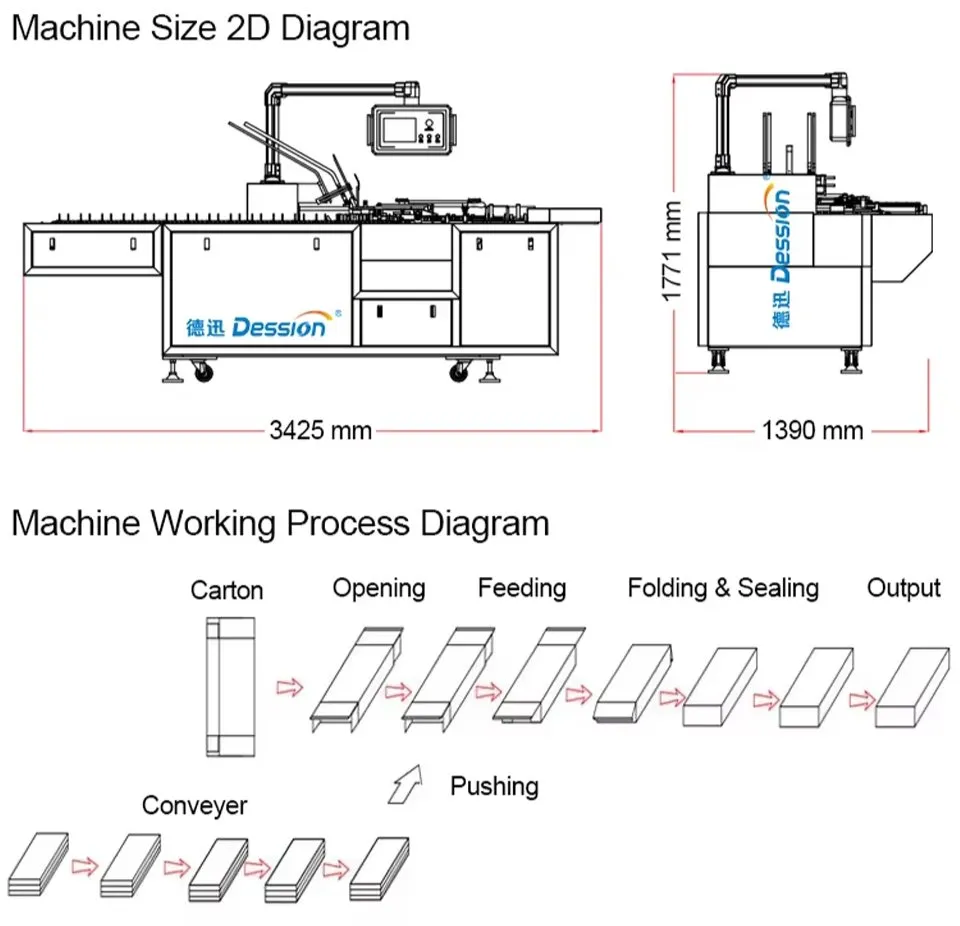

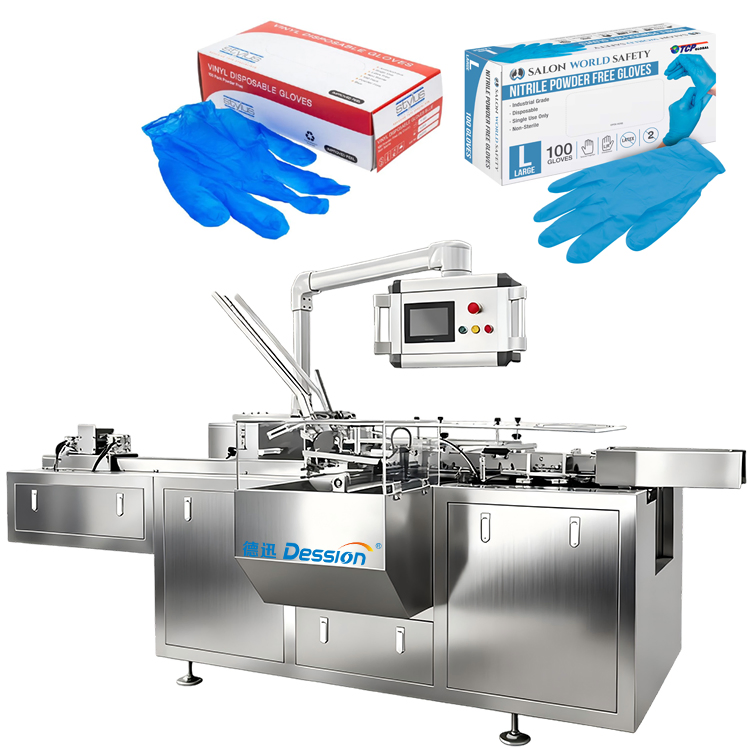

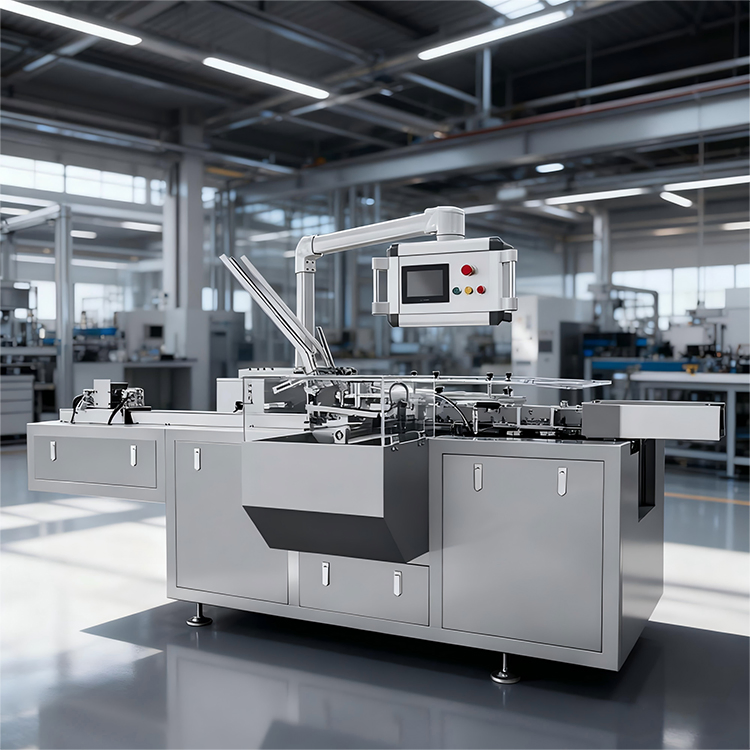

Our Automatic Cartoning Machine is automatic horizontal type continuous operation equipment. It is the integrated high–tech products of electro mechanics, totally corresponding to the GMP demands. This machine is designed for versatile industries requiring precision and efficiency in packaging.
| Model | DS-100 | DS-120 | DS-250 |
|---|---|---|---|
| Packing Speed | 40~70 boxes/min | 30~50 boxes/min | 30~50 boxes/min |
| Box Size (L) | 60~220mm | 80~250mm | 150~320mm |
| Box Size (W) | 20~125mm | 100~160mm | 100~180mm |
| Box Size (H) | 15~60mm | 40~90mm | 90~110mm |
| Power | 4.5KW | 5.5KW | 6.5KW |

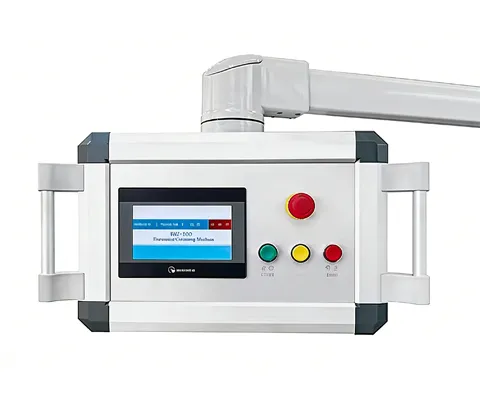

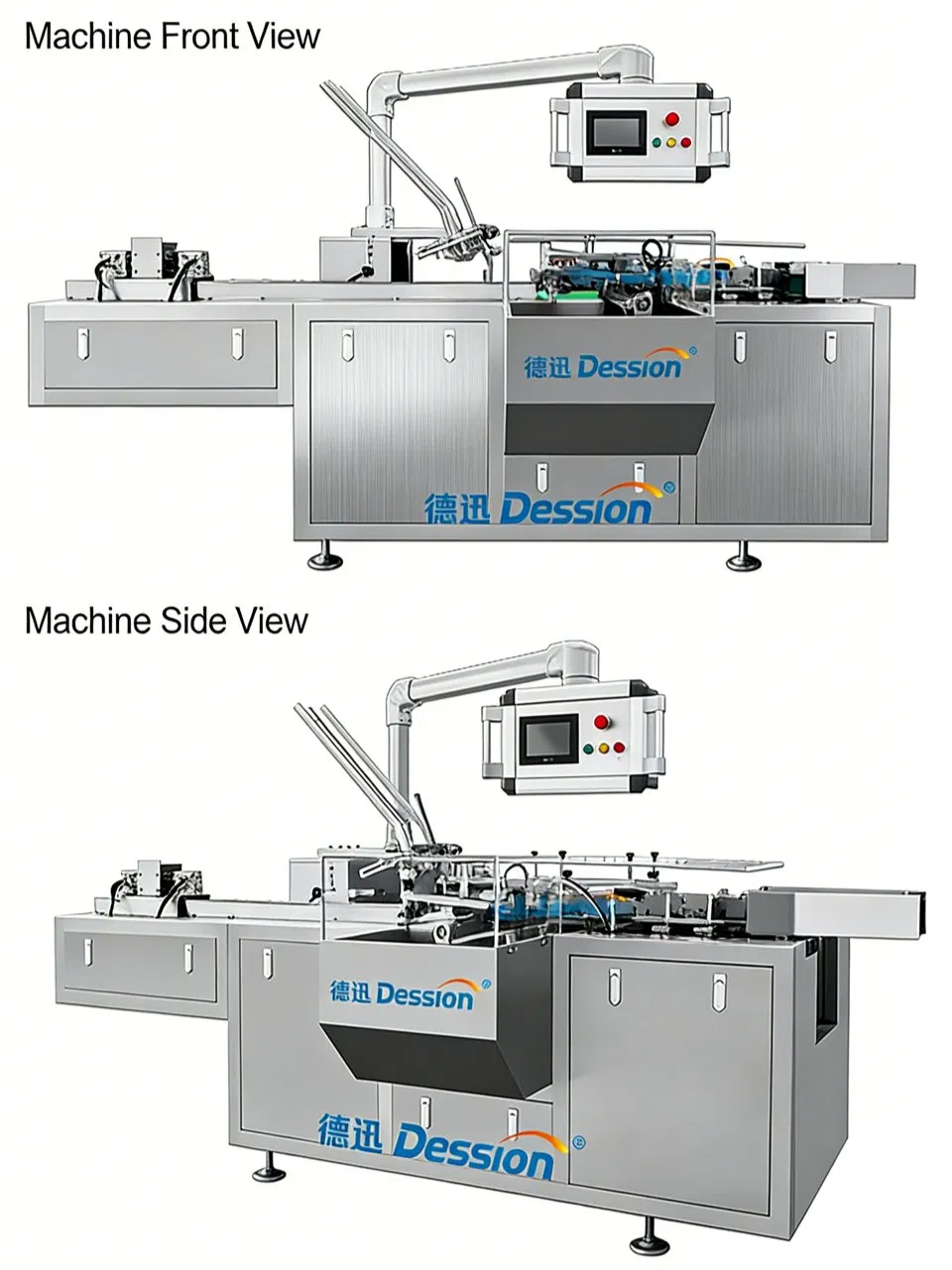

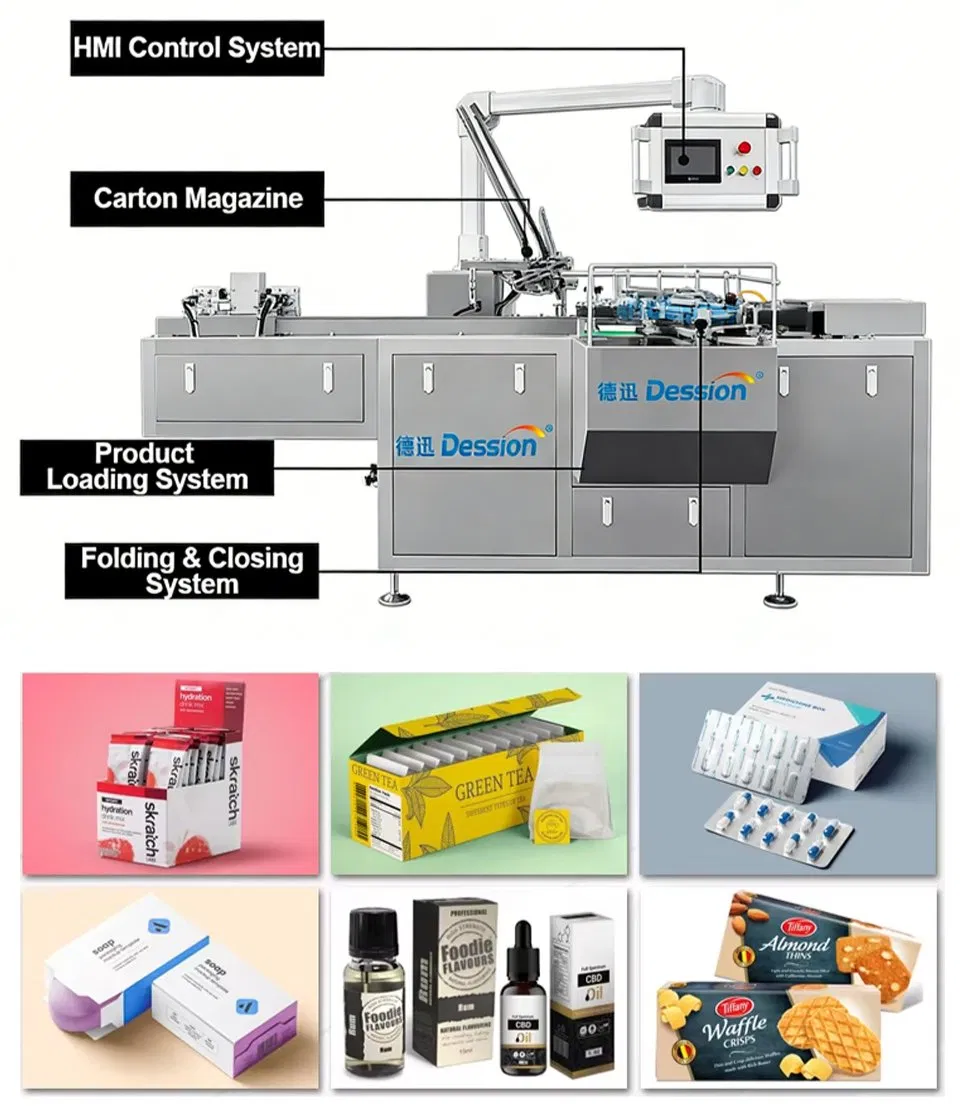

Operational hub with touchscreen + buttons. It controls parameters, monitors status with fault alerts, and logs metrics for easy troubleshooting.

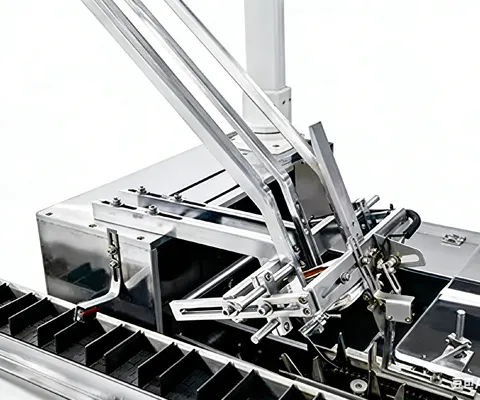

Dedicated storage and feeding unit that holds stacked flat cartons, ensuring a continuous supply to support consistent production speed.

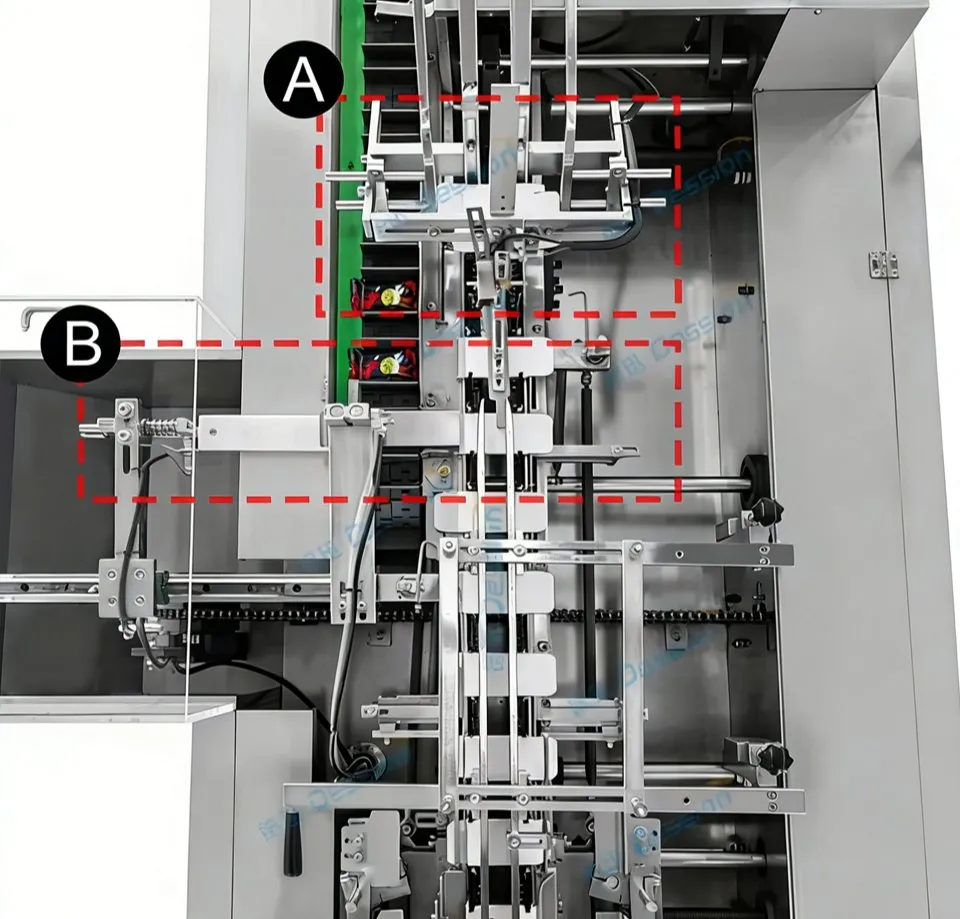

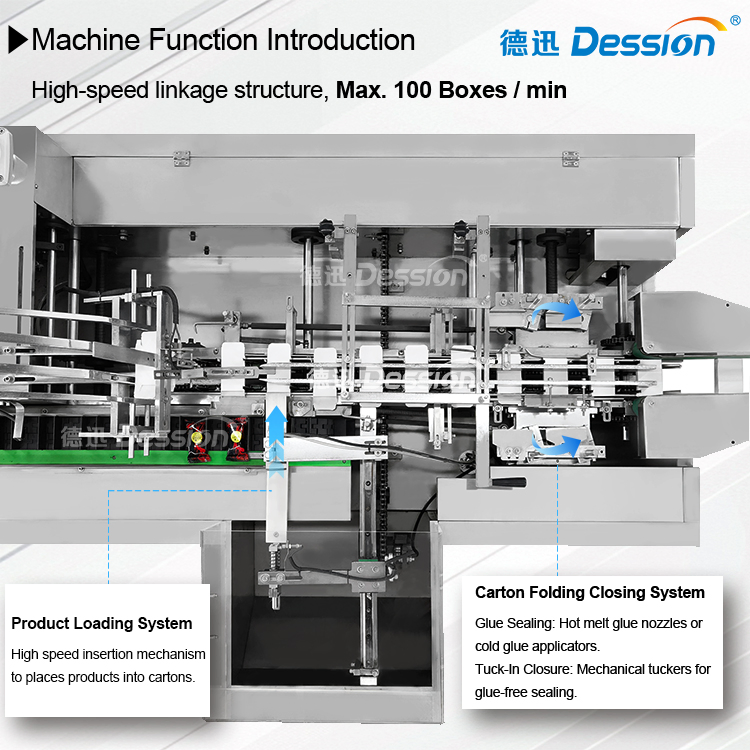

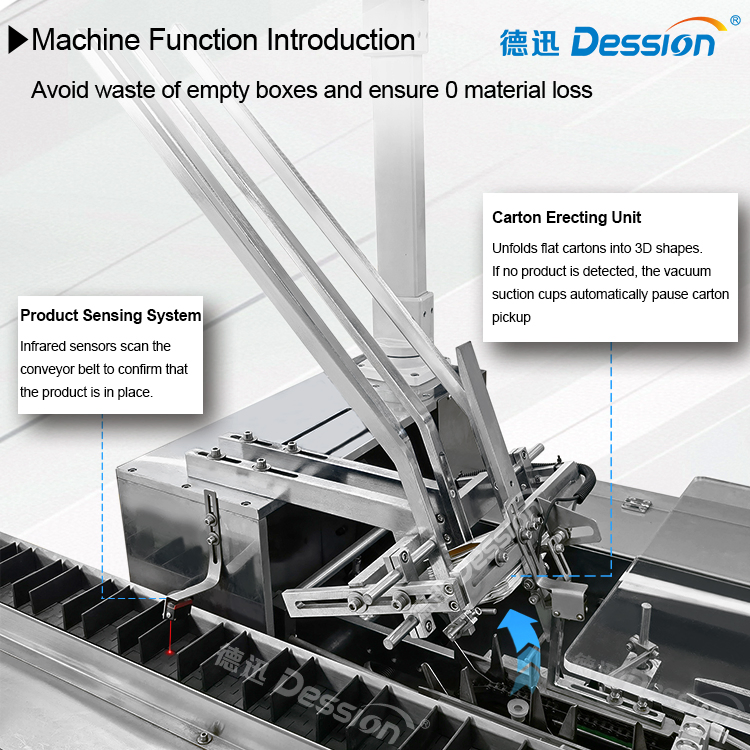

Includes Vacuum suction cup erecting unit and pusher plates for high-speed insertion of standardized products.

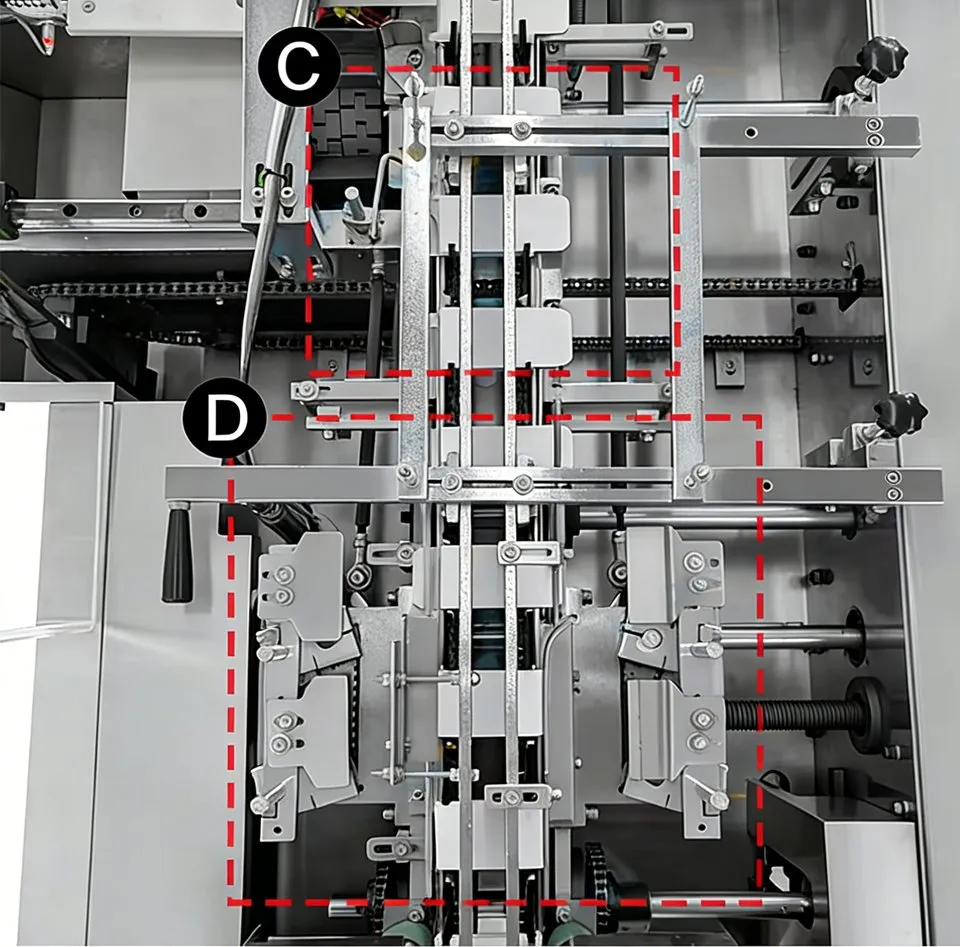

Equipped with flap folding units and sealing mechanisms (Glue or Tuck-in closure) for a perfect finish.

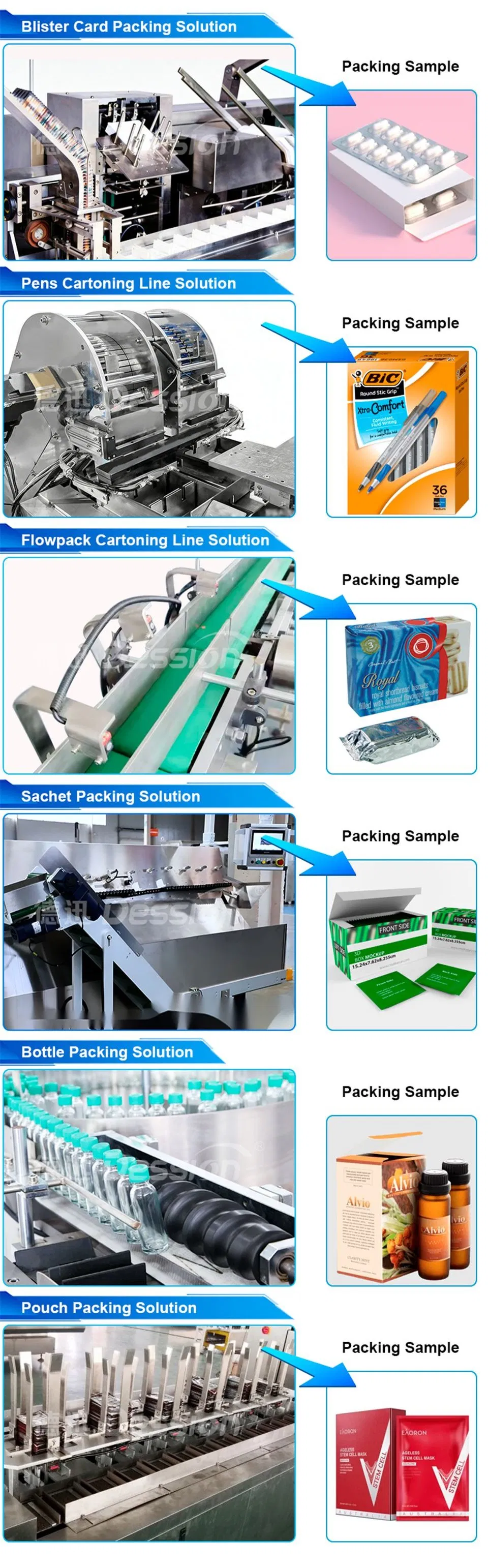

As a professional factory, we provide customized solutions for food, daily necessities, hardware, and more, tailored to specific product characteristics and market demands.

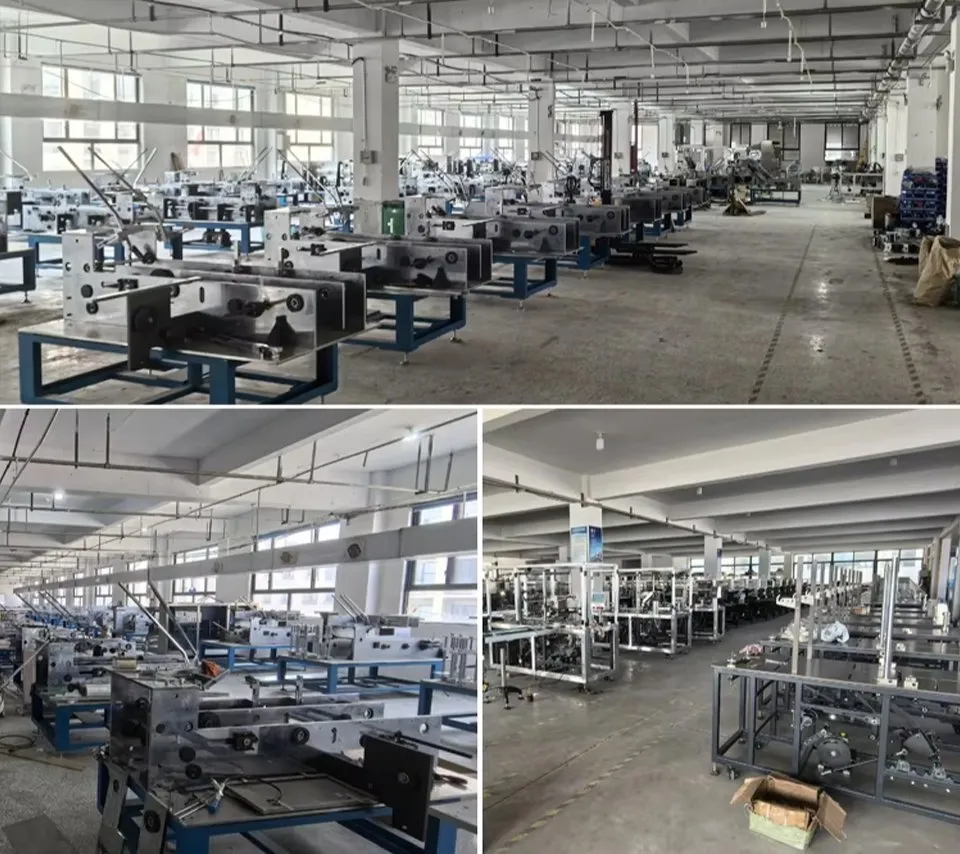

We are a modern packaging equipment solution provider integrating R&D, production, and sales for over 10 years. All equipment holds CE and ROHS certificates to ensure quality.
We provide complete installation manuals and videos. Our engineers offer life-time machine support with a 24-hour response guarantee for any technical issues.
With experience in over 100 countries, especially in European and American markets, our machines have earned wide praise for reliability and performance.
