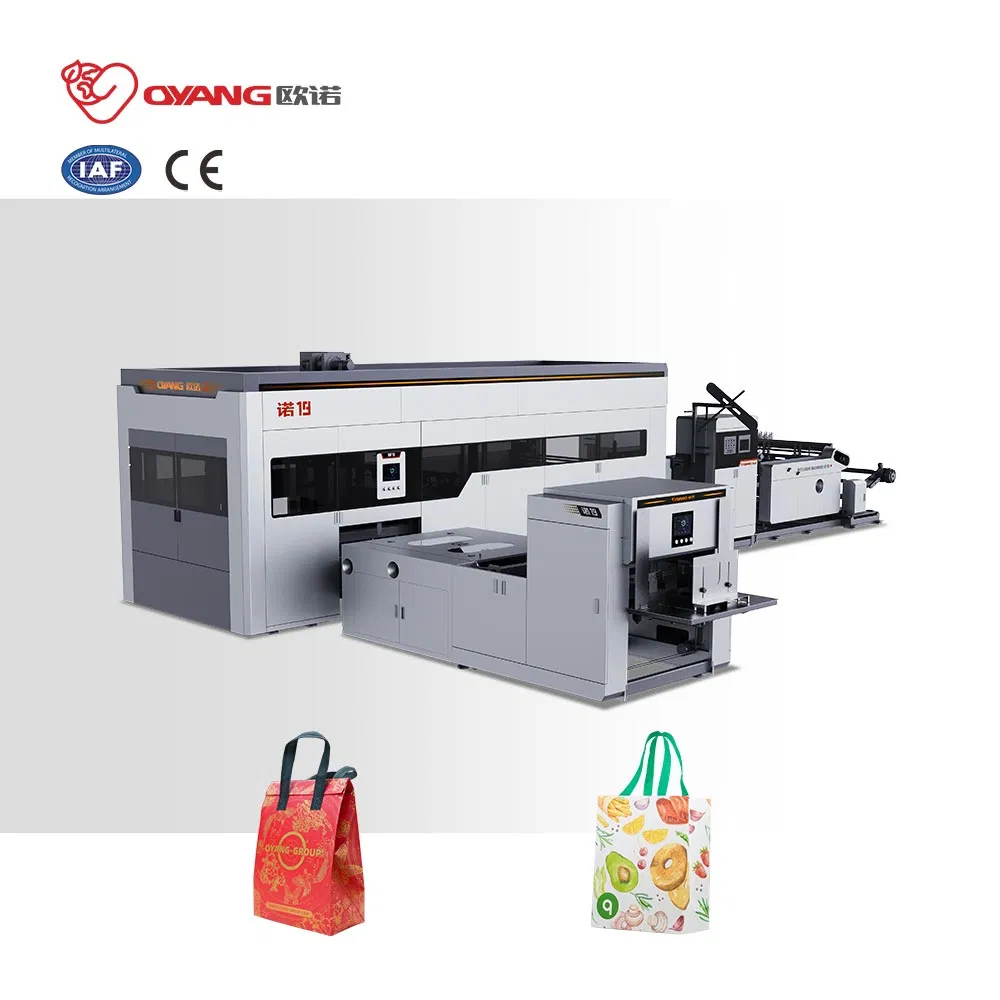

Non-Woven Zipper Fabric Tote Date Covering Protection Reusable Bags Product Making Machine

Customization: Available
After-sales Service: Overseas Engineering Team Technical Support
Warranty: 1 Year

Product Description

Basic Specification
Model NO.
19
Product Line
Nonwoven Bag Making Machine
Voltage
220V 50Hz
Speed
80-100PCS/Min
Seals Mode
Side Seals
Machine Type
Bag Forming Machine
Technical Parameters
Model No. 19
Size Range Gusset 80-220 mm
Width 100-500 mm
Height 180-450 mm
Handle 370-600 mm
GSM of Nonwoven Fabric 70~120 g/m² (nonwoven) / 70~140 g/m² (laminated)
Total Power (Rated/Usage) 63 kw / 45 kw
Air Consumption 1345 L/min (1.0Mpa)
Overall Size 11240x6372x2562 mm
Product Visuals

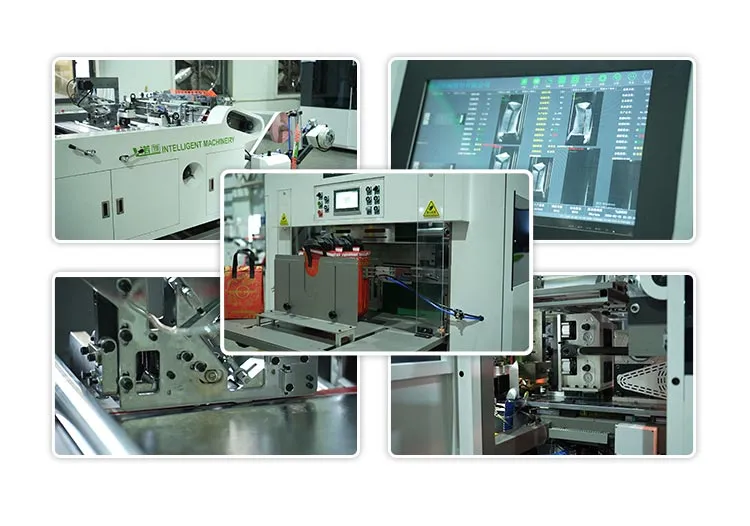

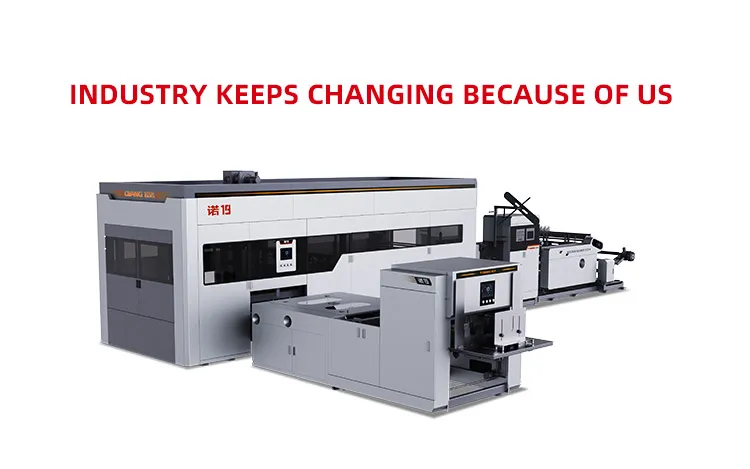

Machine Overview Machine Detail
Frequently Asked Questions
QHow long will the technical engineer take to reach our facility?
Our after-sales specialist will contact you to confirm the final schedule based on your reasonable request.
QWhat is the duration for installation and training?
We typically complete the installation and necessary operator training within 7 to 10 days.
QWhat is the warranty period for this machine?
All machines come with a one-year guarantee, starting from the date the installation is completed.
QHow are broken parts handled during the warranty period?
We will provide express delivery for free replacement parts during the valid warranty period.
QHow is technical support handled after the warranty expires?
We continue to provide services after the first year; however, a standard technician daily rate will apply.
QHow do we solve operational problems after the engineer leaves?
Our after-sales department consists of experienced engineers who can provide solution videos based on your specific description of any problem.
