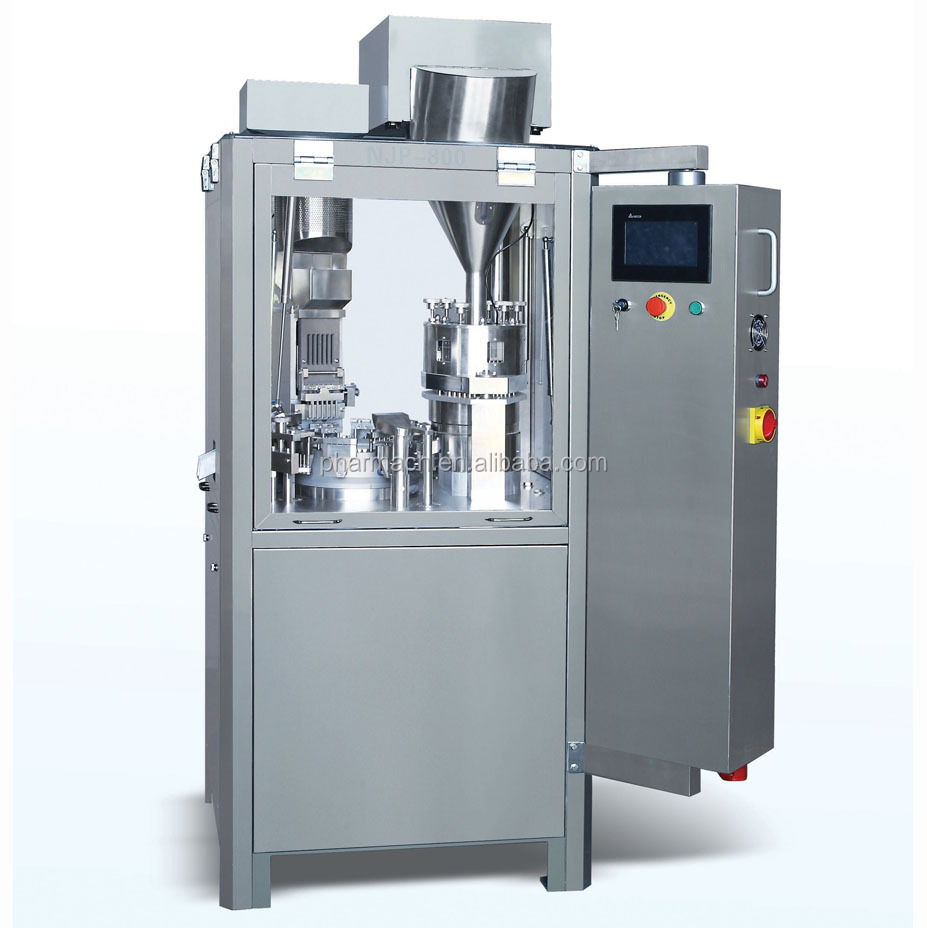

Njp-800 Fully Automatic Hard Gelatin Pharmaceutical Powder Liquid Capsule Filling Machine

1 / 5

Njp-800 Fully Automatic Hard Gelatin Pharmaceutical Powder Liquid Capsule Filling Machine

Customization:	Available
After-sales Service:	Engineers Available to Service Machinery Overseas, Online Support,video Technical Support
Certification:	CE

Send Inquiry

Product Description

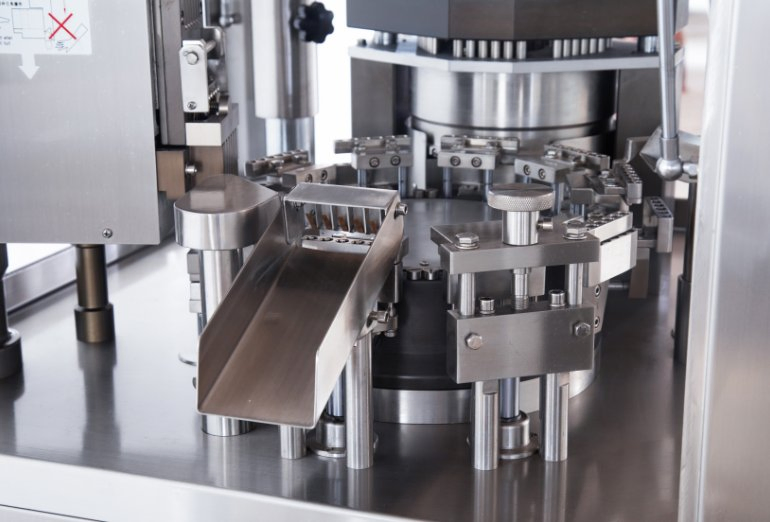

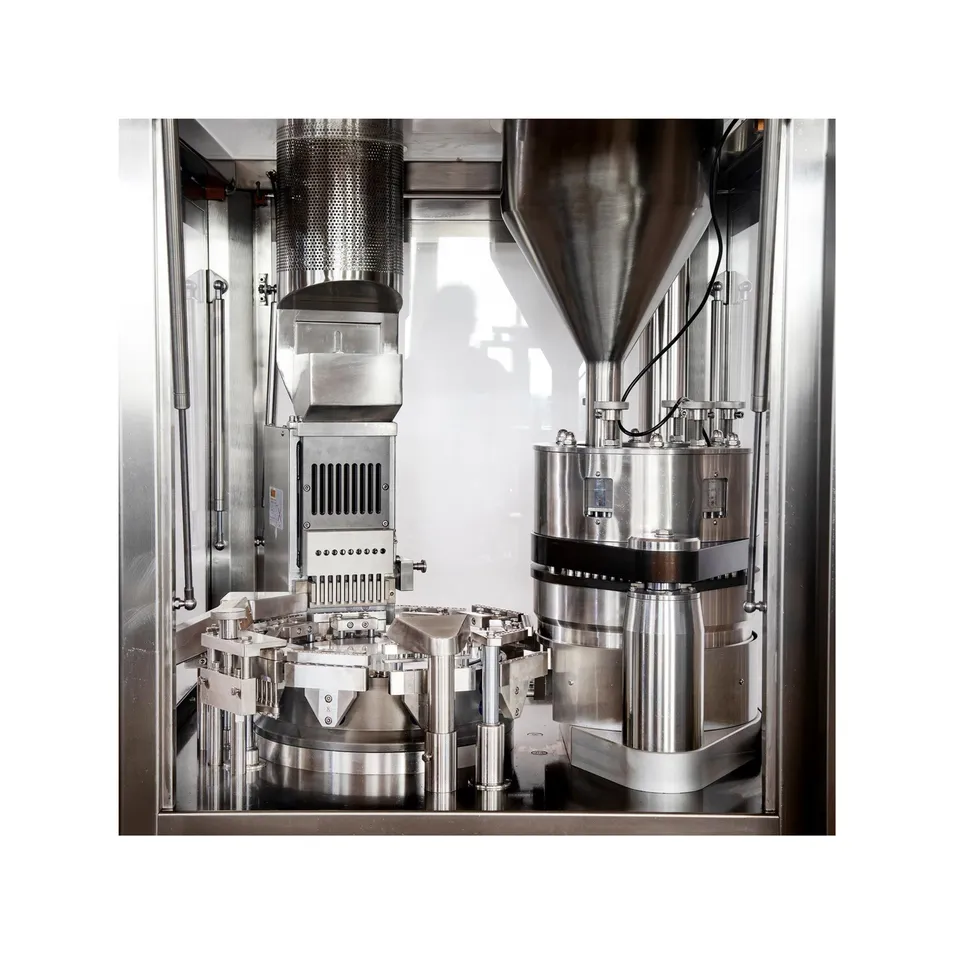

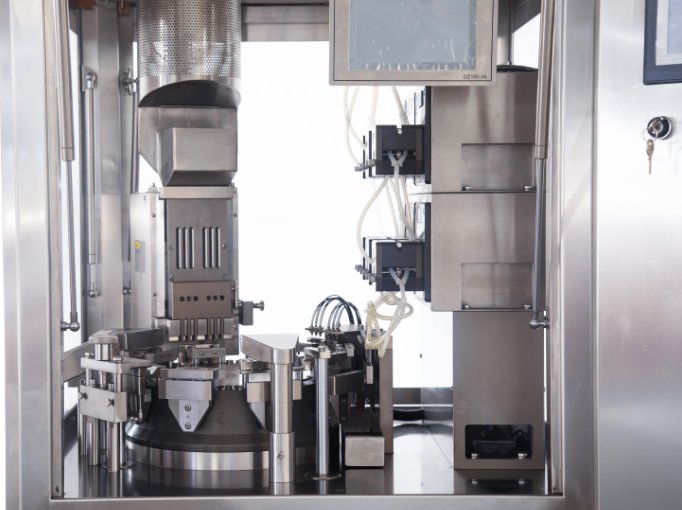

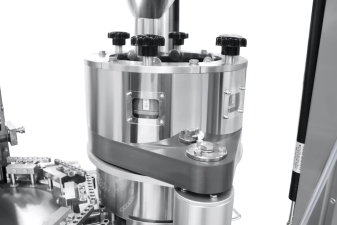

NJP800 Fully Automatic Hard Capsule Filling Machine

Capacity: 800pcs/min

📋Basic Specifications

Model NO.	NJP-800	Condition	New
Fill Range	≤49ml	Filling Principle	Auger Filling
Main Material	Aluminum, Stainless Steel (SS304)	Voltage	380V / 220V
Suitable Capsule	Size 000, 00, 0, 1, 2, 3, 4, 5	Capacity	800 PCS/Min
Filling Precision	≤±3 %	Warranty	1 Year

⚙️Product Description

Summary:

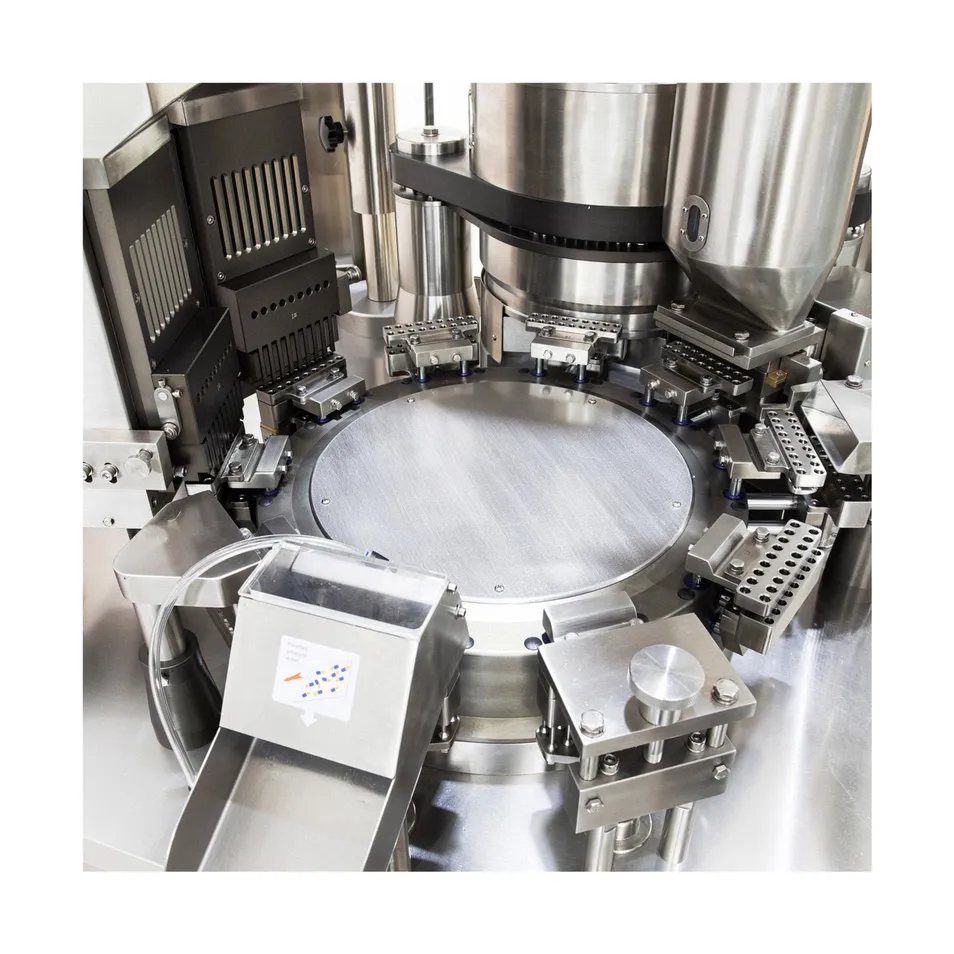

This model is an intermittent motion and hole plate type filling full automatic capsule filling equipment. It adopts optimization design for meeting the characteristics of medicine and the requirement of GMP.

Key Features:
Compact mechanism, small volume, lower noise, precision filling dosage, multi-function, and stable running. Functions include: capsule feeding, separating, powder filling, rejecting, locking, and discharge.

📊Technical Parameters

Model	NJP800
Max capacity	800 capsules/min
Electrical source	AC 380V/ 220V, 50/60Hz, 3 phase
Motor power	2.5kw
Overall size	930×790×1930mm
Weight	800kg

📦Main Products

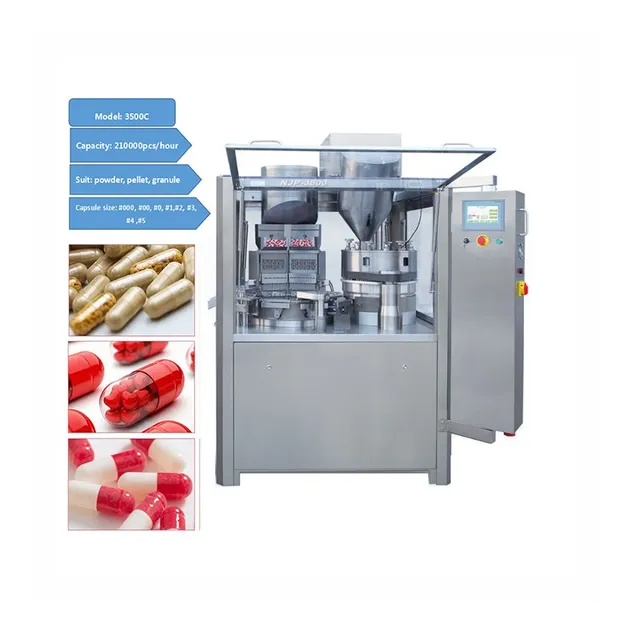

Fully automatic Capsule filling machine

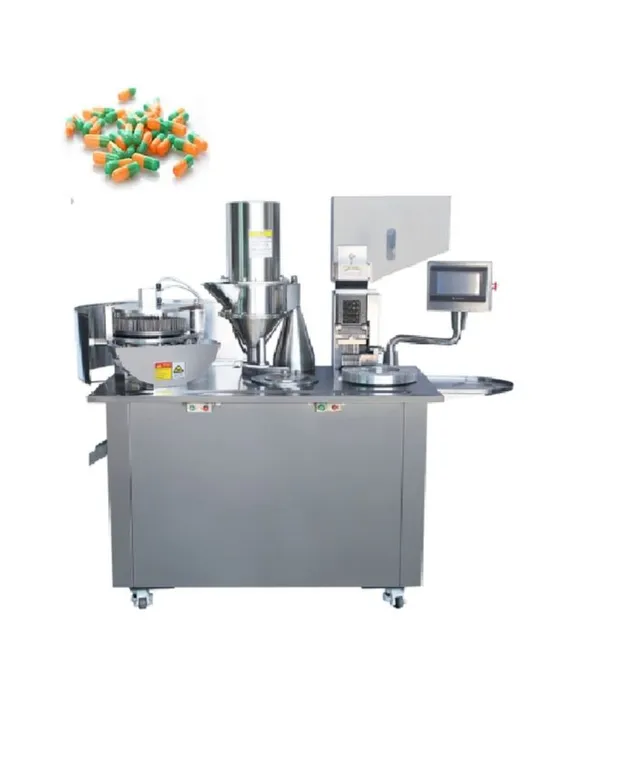

Semi automatic capsule filling machine

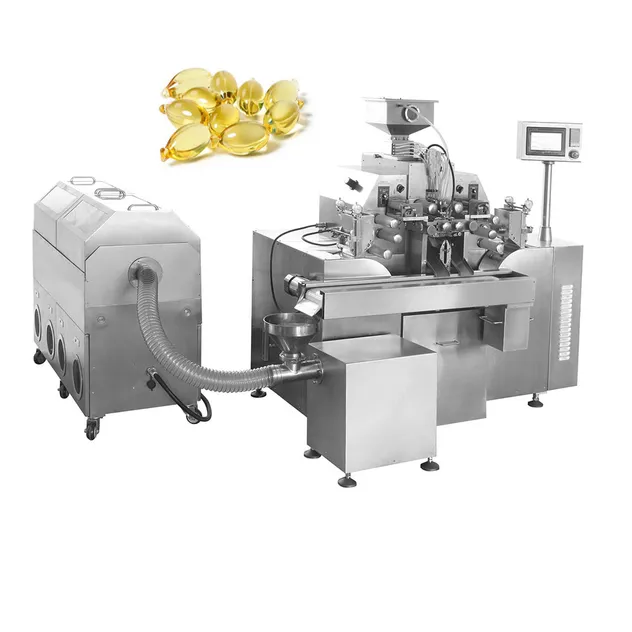

Softgel capsule making machine

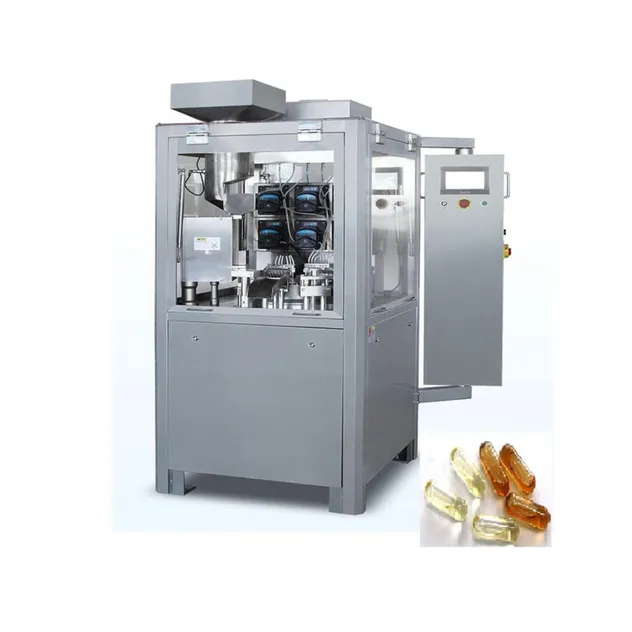

Oil hard capsule filling machine

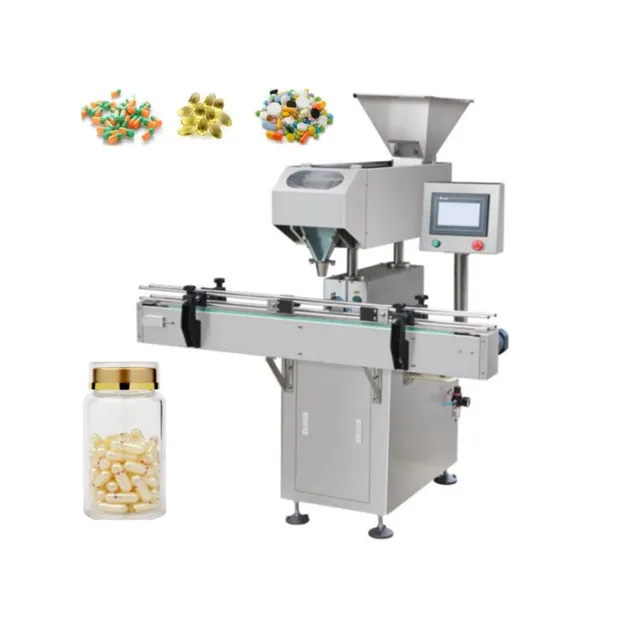

Capsule tablet counting machine

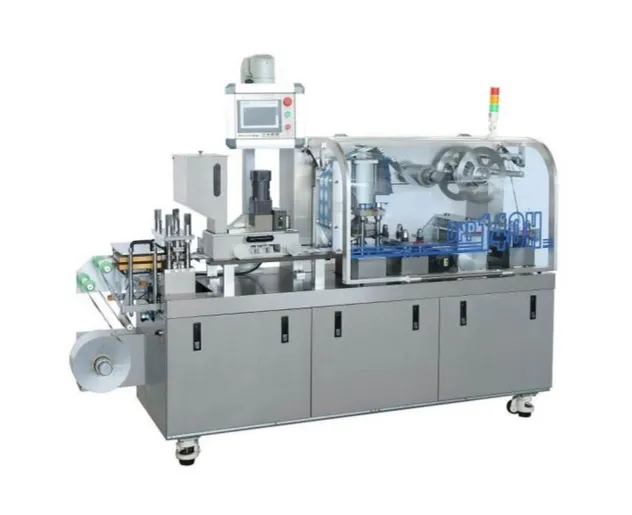

Blister packing machine

📜Certifications

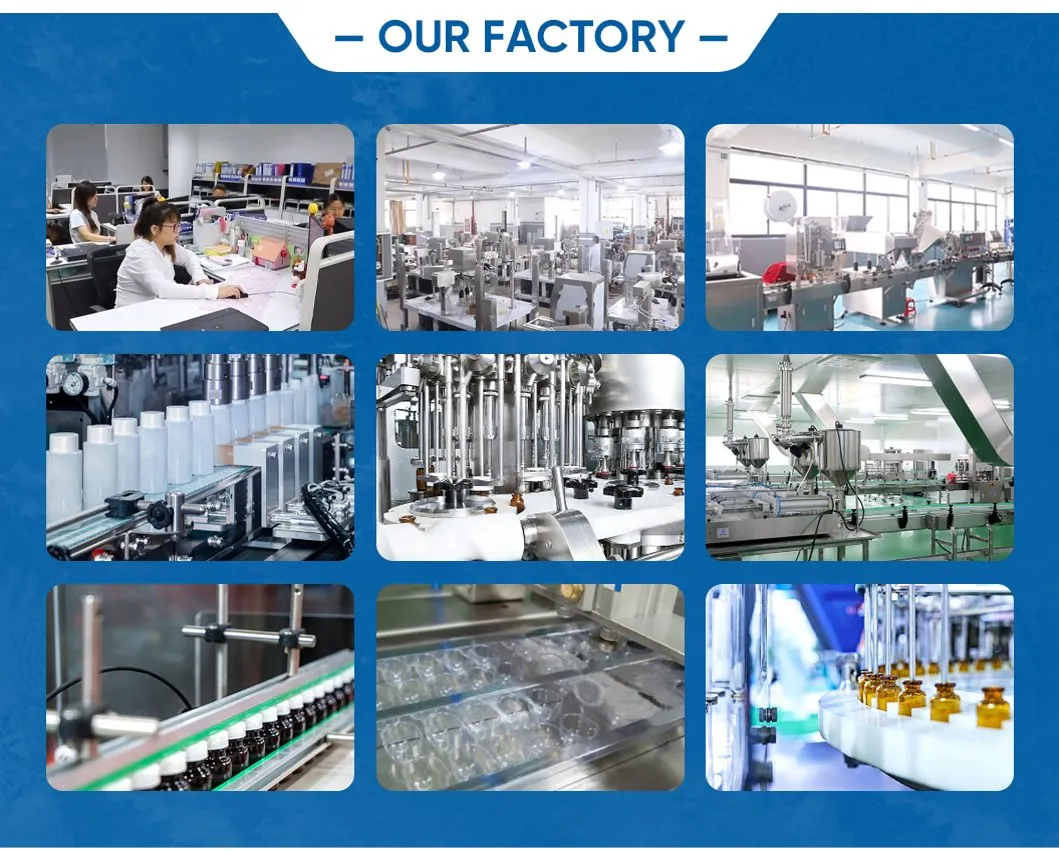

🏢Company Advantage & Exhibition

❓Frequently Asked Questions

1. What is the production capacity of the NJP-800?

The NJP-800 model has a maximum capacity of 800 capsules per minute, making it ideal for medium-scale pharmaceutical and health food production.

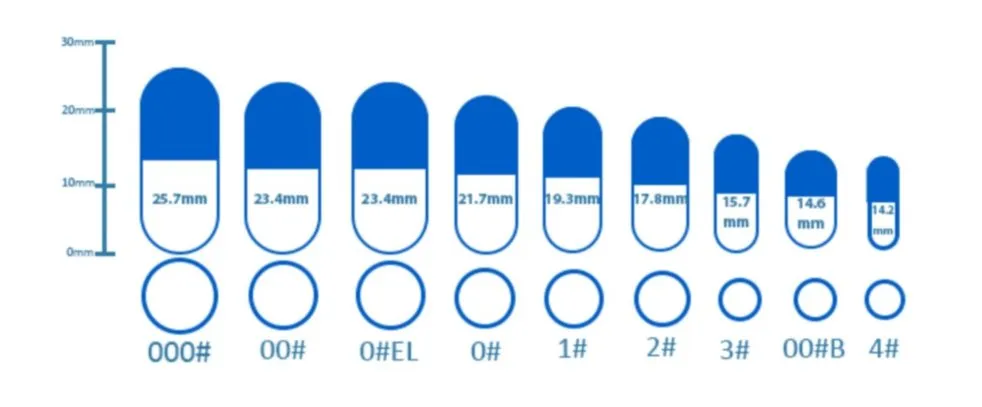

2. Which capsule sizes can this machine fill?

It is compatible with standard hard capsule sizes 00, 0, 1, 2, 3, 4, and 5. Custom molds for size 000 are also available upon request.

3. What types of materials can be filled using this equipment?

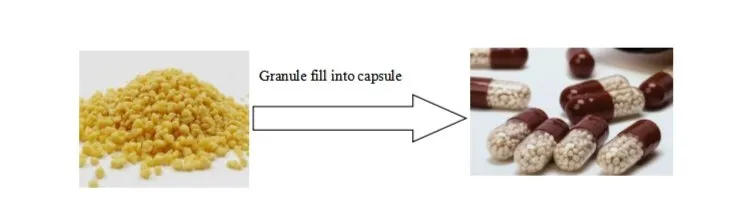

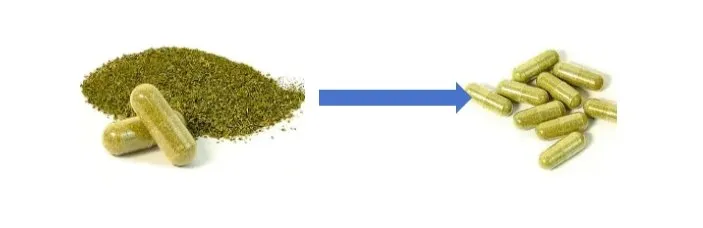

This machine is versatile and can fill pellets (40-80 mesh), powders, and oil-based products into hard gelatin capsules.

4. Does the machine meet GMP standards?

Yes, the machine is designed with SS304 stainless steel and aluminum materials, featuring an optimized design to meet strict GMP requirements for pharmaceutical production.

5. What is the filling precision of the NJP-800?

For dosages more than 300mg, the filling precision is within ≤±3%, ensuring consistent dosage for every capsule.

6. What is the warranty period for this equipment?

The machine comes with a 1-year warranty covering manufacturing defects and operational stability.
