| Model NO. | NJP-2500C | Customized | Customized |
| Fill Range | ≤49ml | Filling Principle | Auger Filling |
| Machine Type | Capsule Filling Machine | Main Material | Carbon Steel, Cast Iron, Stainless Steel |
| Voltage | 380/220V 50/60Hz | Warranty | 1 Year |
| Capacity | 150,000 Capsules/Hour | Capsule Size | 00#-5# Hard Capsules a-E and EL Type |
| Filling Percentage | More Than 95% | Total Power | 6.45kw |
| Noise(Dba) | Less Than 75dB | Filling Type | Power, Pellets, Tablet |
| Net Weight | 1300 Kg | Overall Size | 1150X1050X1970mm |

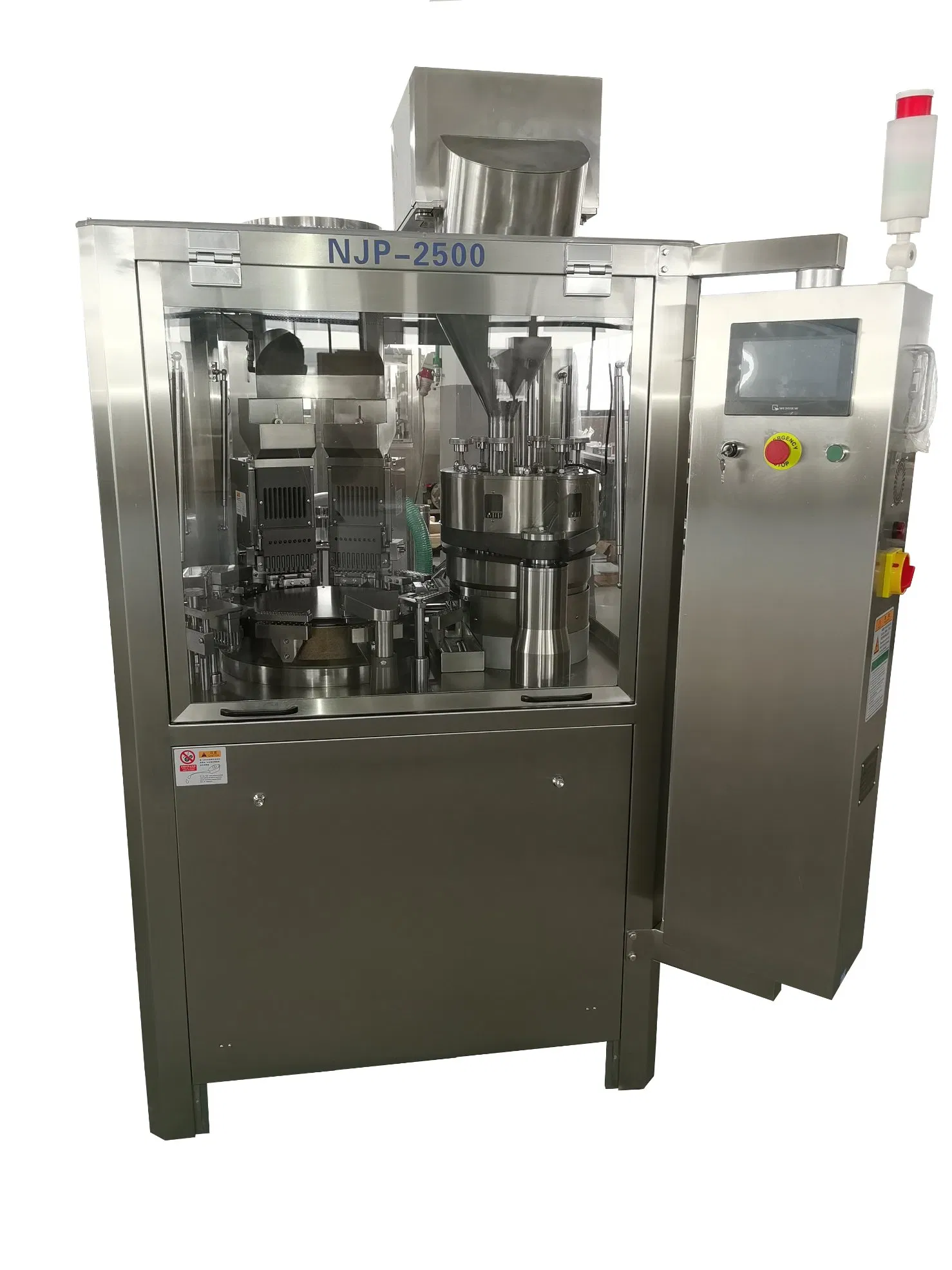

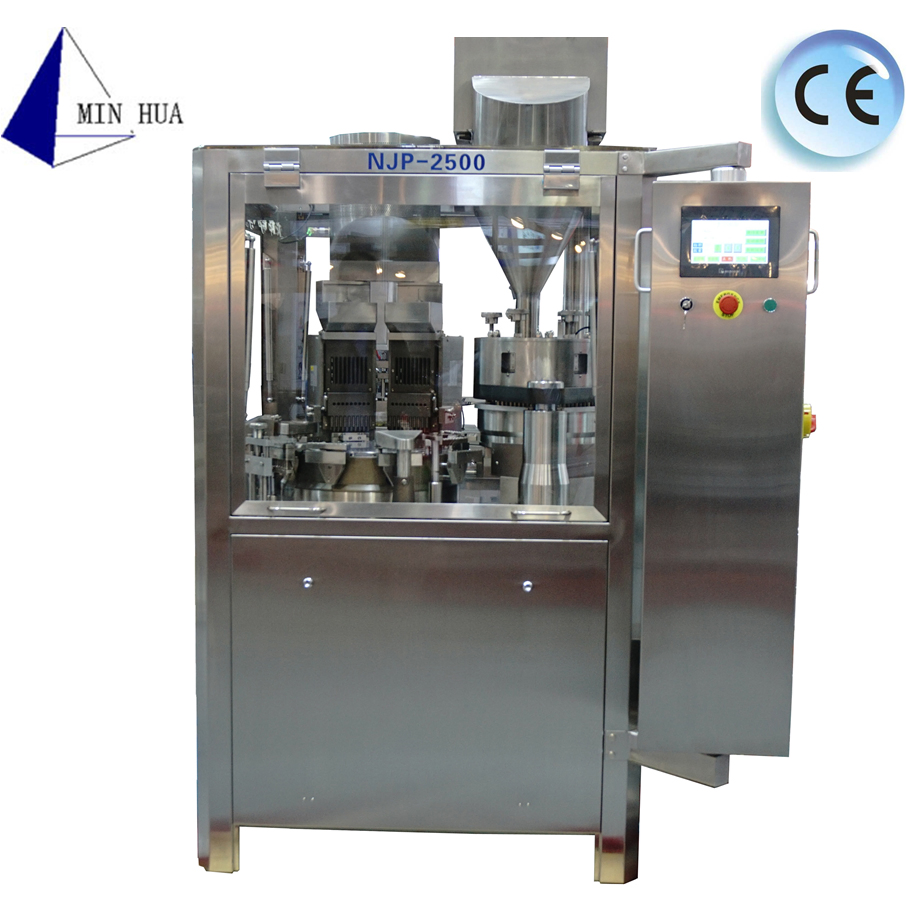

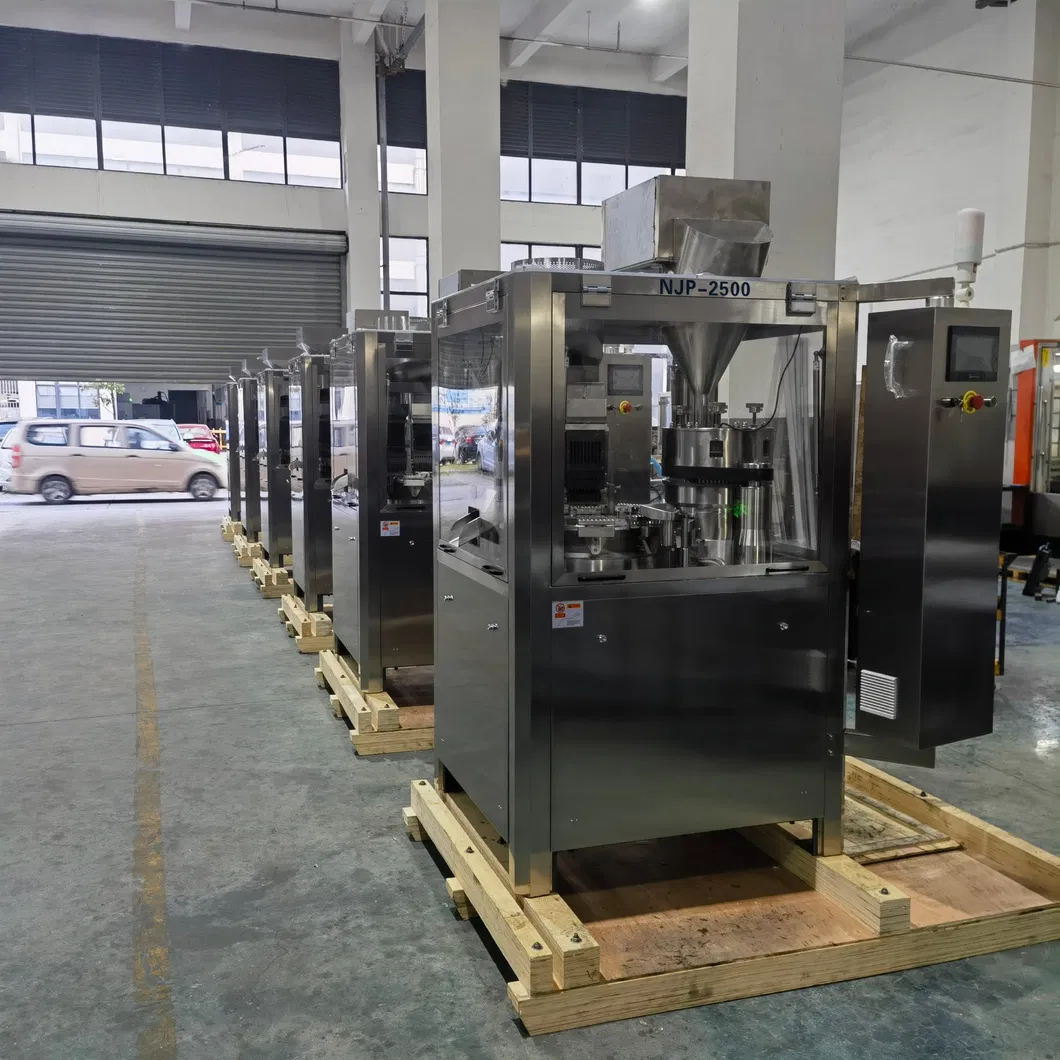

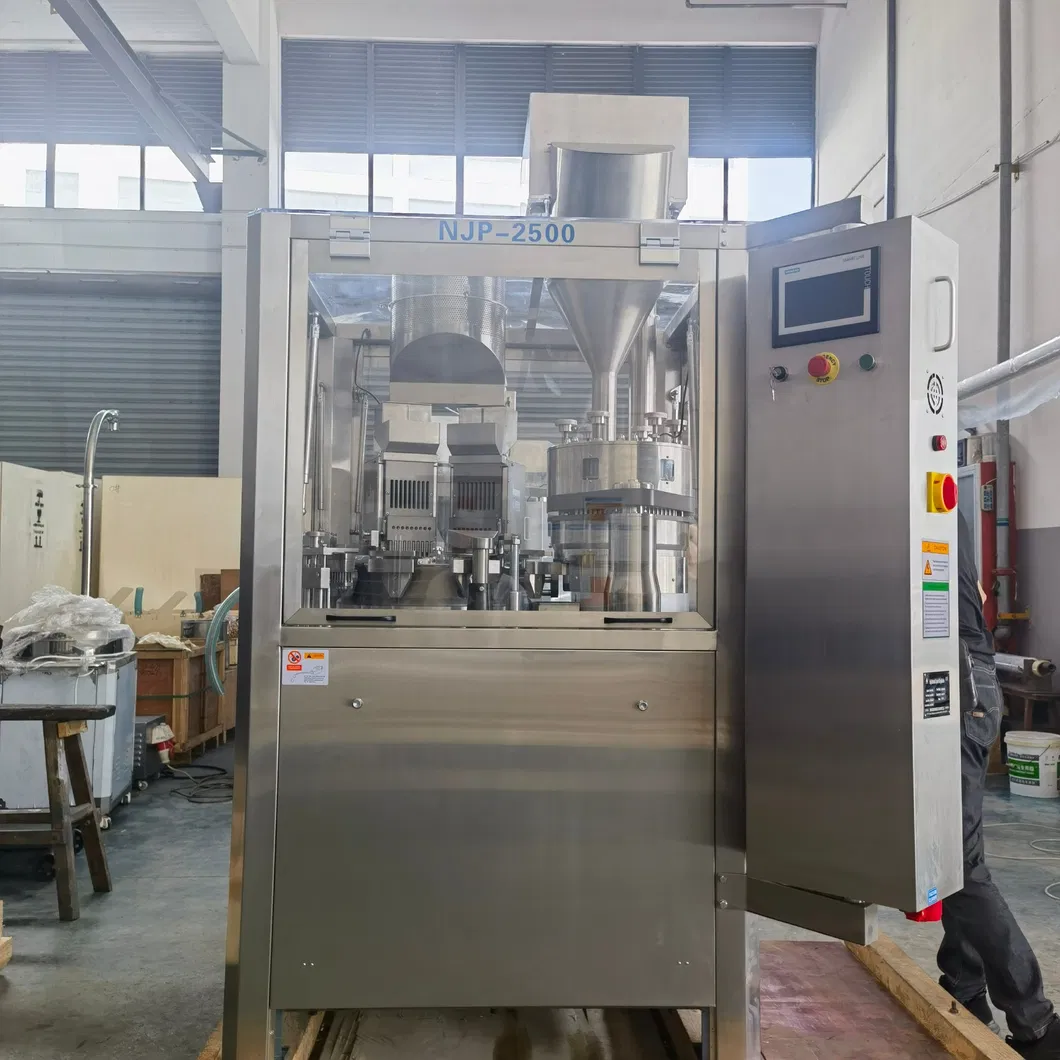

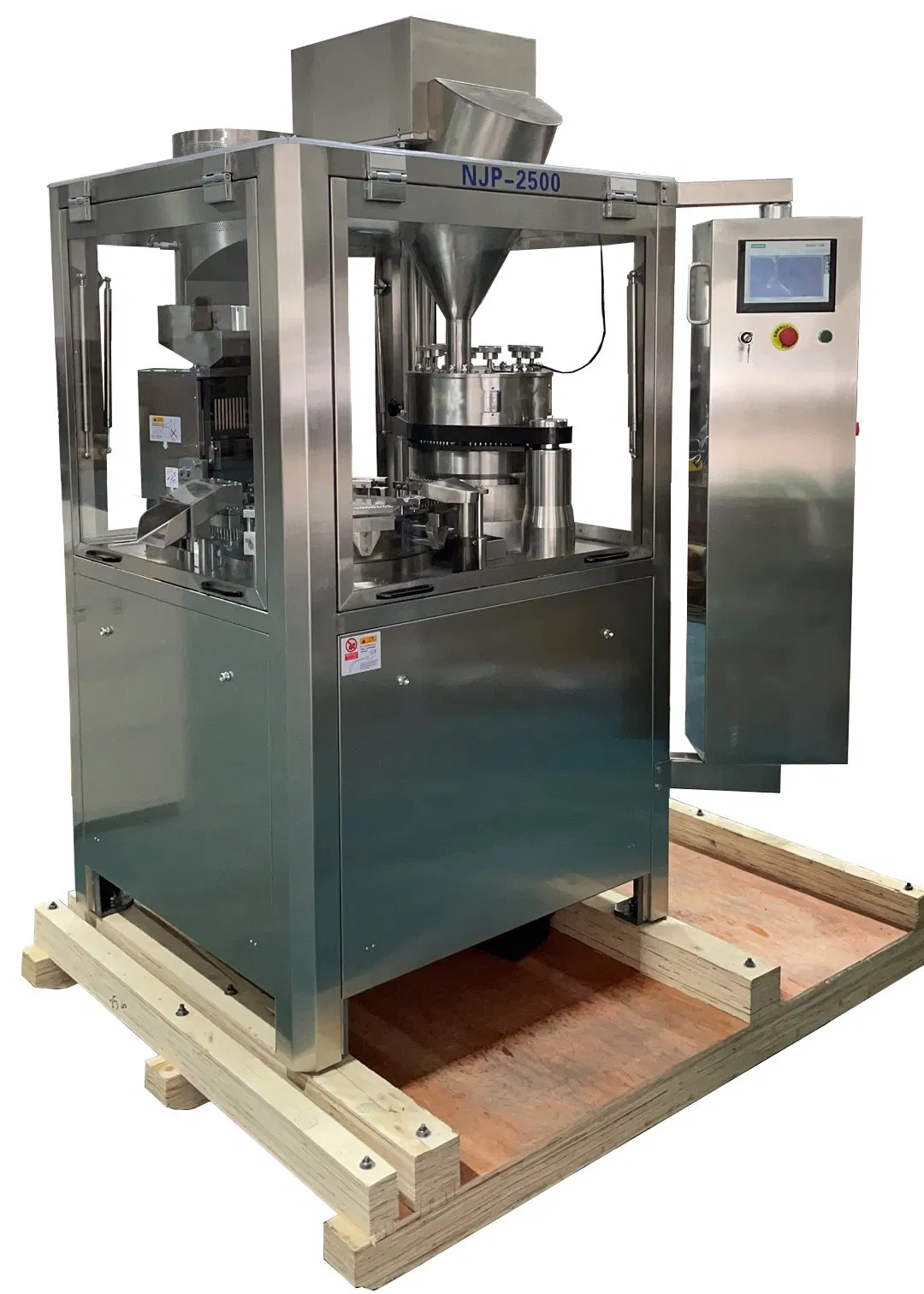

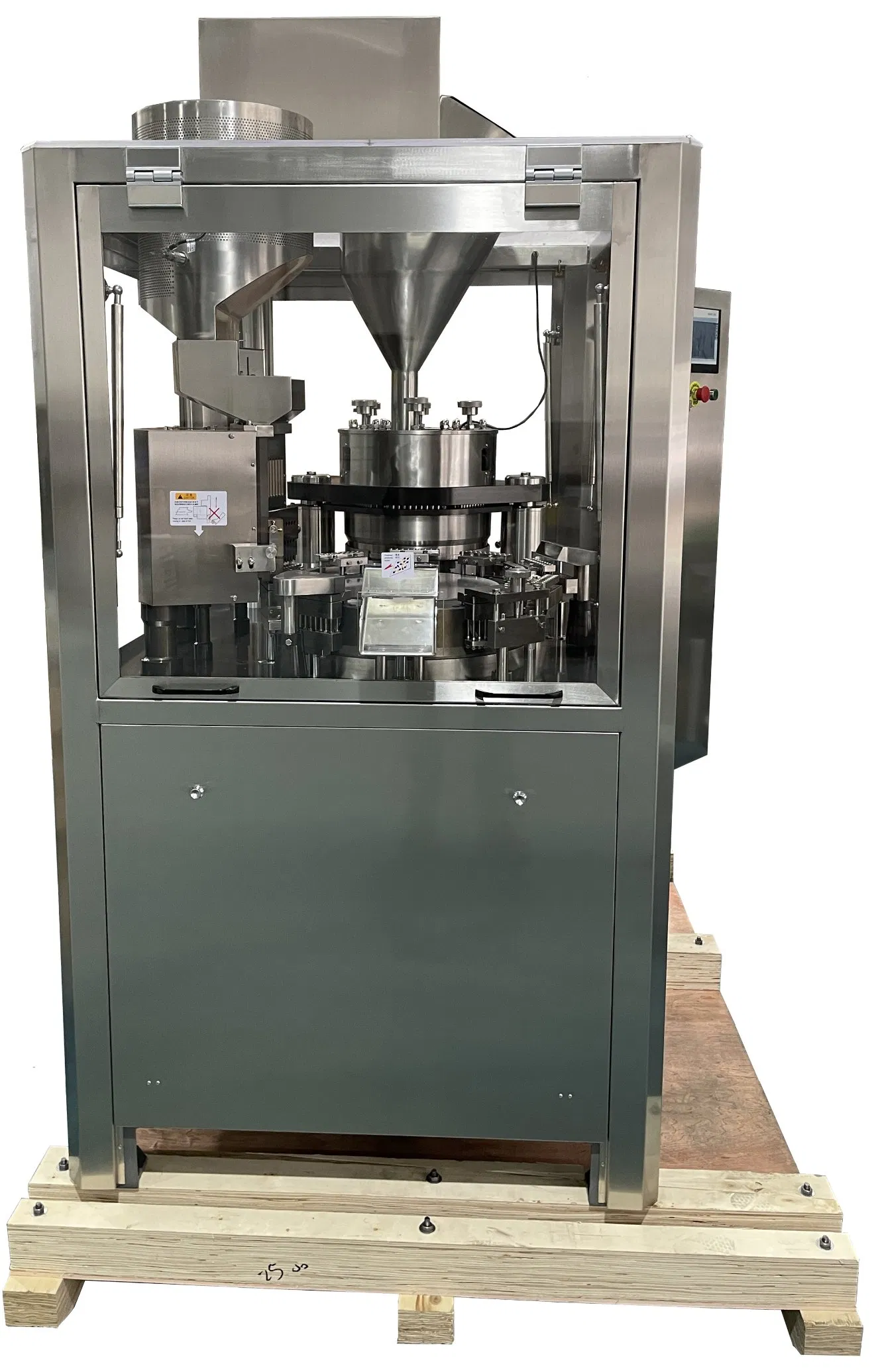

The machine is an intermittent motion and hole plate type filling fully automatic capsule filling equipment. It adopts optimization design combined the characteristics of medicine and the requirement of GMP, it has the characteristics of compact mechanism, small volume, lower noise, precision filling dosage, multi-function, running stably etc.

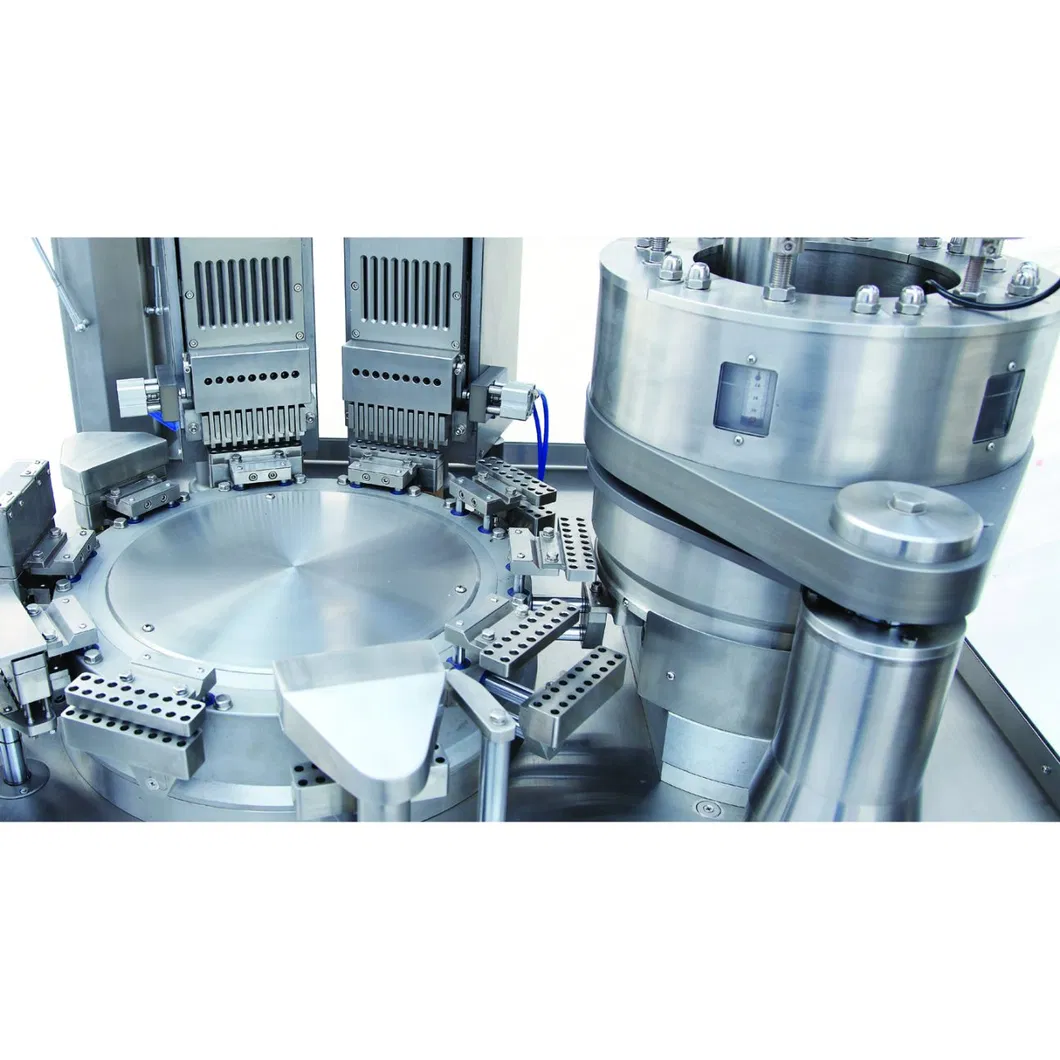

It can finish the following motion at same time: capsule feeding, capsule separating, powder filling, capsule rejecting, capsule locking, finished capsule discharge and module cleaning etc. This machine is designed to meet volume-production needs, increasing the lifting mechanism that is easy to clean, saving cost and manpower.
| Output | 150,000 capsules/hour |
| Suitable Capsule Size | 00#---5# safe capsule A---E |
| Filling Percentage | ≥99.5% |
| Compressed Air | 0.06m³/min 0.3 Mpa |
| Working Temperature | 21ºC±3ºC |
| Workshop Height | Manual: ≥2.6m, Vacuum: ≥2.8m |
| Control System | PLC control, Variable frequency speed regulation |
| Material | High quality stainless steel for contact parts |
Established in 2010, the company is a professional manufacturer and supplier of pharmaceutical and chemical machinery. We specialize in tablet press machines, capsule filling machines, liquid filling machines, and full production lines. Our facility is ISO and CE certified, backed by professional technical engineers.
We have the capabilities to design and develop many types of machinery and provide personalized customized services. We believe that quality of product is the soul of a company, providing strict quality control and thoughtful customer service worldwide.
