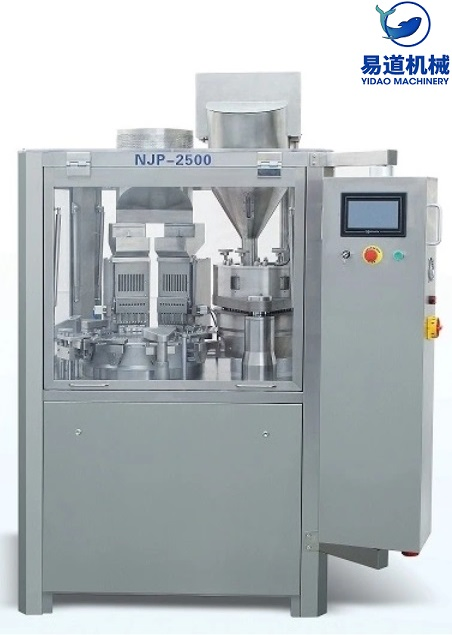

Njp-2500 Njp Series Automatic Capsule Filling Machine
Njp-2500 Njp Series Automatic Capsule Filling Machine
Njp-2500 Njp Series Automatic Capsule Filling Machine
Njp-2500 Njp Series Automatic Capsule Filling Machine
Njp-2500 Njp Series Automatic Capsule Filling Machine
1 / 5
Njp-2500 Njp Series Automatic Capsule Filling Machine
Njp-2500 Njp Series Automatic Capsule Filling Machine
Njp-2500 Njp Series Automatic Capsule Filling Machine
Njp-2500 Njp Series Automatic Capsule Filling Machine
Njp-2500 Njp Series Automatic Capsule Filling Machine

Njp-2500 Njp Series Automatic Capsule Filling Machine

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
NJP-2500
Type
Weighing-type Filling Machine
Automatic Grade
Automatic
Material Type
Powder
Filling Valve Head
Multi-Head
Dosing Device
Plunger
Structure
Rotary
Packaging Material
Plastic
Specification
720*680*1700mm
Origin
China
NJP Series Automatic Capsule Filling Machine

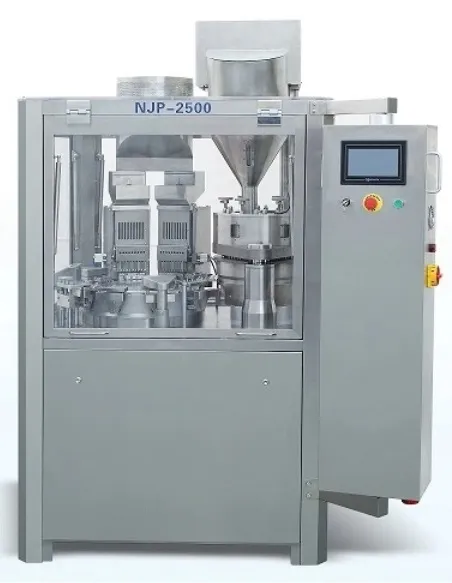

NJP-2500 Automatic Capsule Filling Machine

Product Advantages

Independently developed internal design of the die turntable using original Japanese linear bearings for higher accuracy and longer life.
Enhanced lower cam design with a pressure atomizing oil pump to maintain lubrication and reduce component wear.
One-way movement design for upper and lower modules featuring imported double-lip polyurethane sealing rings.
Intuitive control panel with eye-catching display and stepless variable frequency speed regulation.
Three-dimensional adjustment mechanism based on the lower plane of the measuring plate for uniform gaps and accurate loading.
Equipped with human-machine safety protection and automatic shutdown for material shortage.
Integrated air blowing and gas suction to ensure clean mold holes and improved operation probability.
Dual sprocket drive system for independent indexing boxes, reducing operating pressure and minimizing fault rates.
Machine Specifications & Parameters
Model NJP-1200 NJP-2500 NJP-3500 NJP-3800 NJP-7500
Output (PCS/H) 12000 24000 36000 48000 60000
Capsule sizes 00#~4# 00#~4# 00#~5# 00#~5# 00#~5#
Total power 3.32kw 3.32kw 4.9kw 4.9kw 5.75kw
Net weight 700kg 700kg 800kg 800kg 900kg
Dimension (mm) 720×680×1700 720×680×1700 930×790×1930 930×790×1930 1020×860×1970
Machine Details & Manufacturing

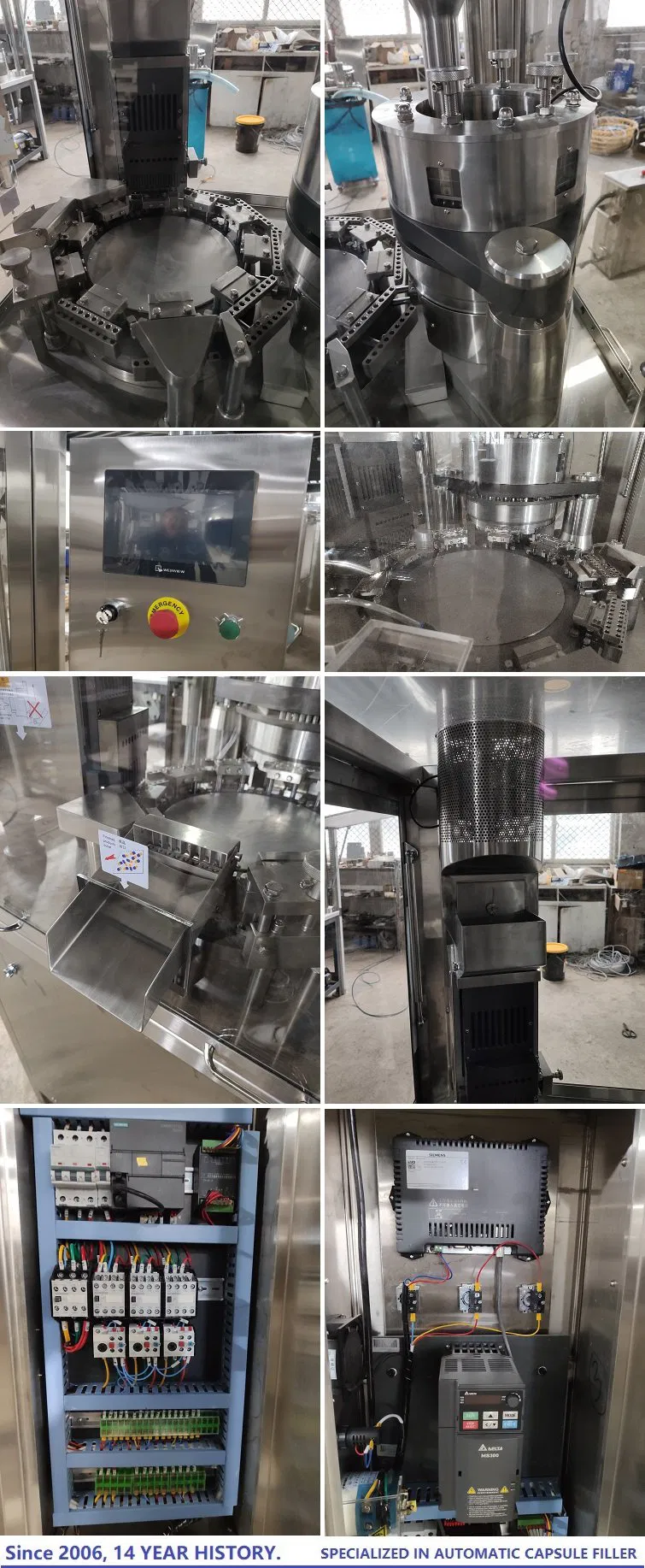

Machine Details

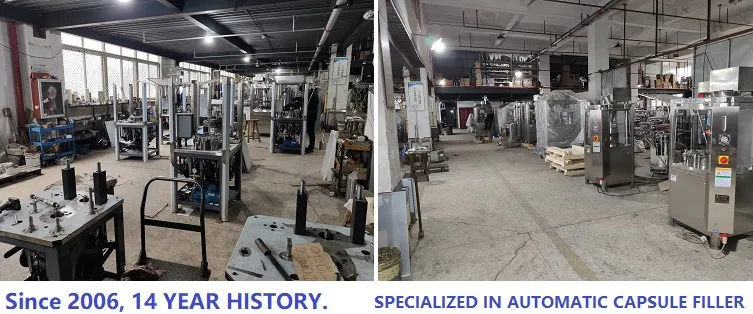

Factory Tour
Export Packaging

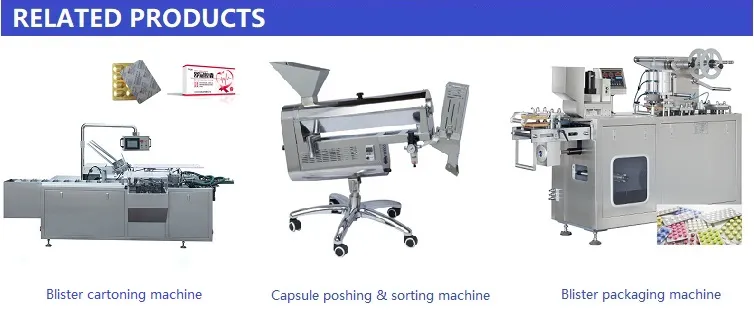

Production Line
Frequently Asked Questions
What is the production capacity of the NJP-2500 model?
The NJP-2500 model has a production output of 24,000 pieces per hour, making it suitable for medium-scale pharmaceutical and supplement production.
What capsule sizes can this machine accommodate?
The NJP-2500 and NJP-1200 models support capsule sizes from 00# to 4#, including safety capsules A to E. Larger models like the NJP-7500 can handle up to size 5#.
What kind of warranty and after-sales service do you provide?
We offer a one-year quality warranty. For quality-related issues not caused by artificial factors, we provide free replacement parts. On-site technical service is available upon request.
What is the standard lead time for an order?
The standard lead time is approximately 25 to 30 days from the date of order confirmation and advance payment.
How is the equipment packaged for international shipping?
All machines are packed in export-standard wooden cases to ensure maximum protection during sea or air transport.
What materials is the machine capable of filling?
This equipment is specifically designed as a weighing-type filling machine for powder materials, utilizing a plunger-style dosing device for high precision.
