| Type | Multi-Function Packaging Machine |
| Driven Type | Pneumatic & Electric |
| Packaging Material | Paper, Plastic |
| Condition | New |
| Machine Material | 304 Stainless Steel |
| Warranty | 1 Year |
| Key Selling Points | High-Accuracy |
| Packaging Type | Bags, Capsule, Film, Foil, Pouch |
| Dimension(L*W*H) | 7000*1300*1870mm |
| Voltage | 380V 50Hz |
| Certification | CE ISO9001 |
| Packing Material | Pet, PP, PVC Film, Aluminium Foil |
| Production Capacity | 50 Piece/Pieces Per Year |

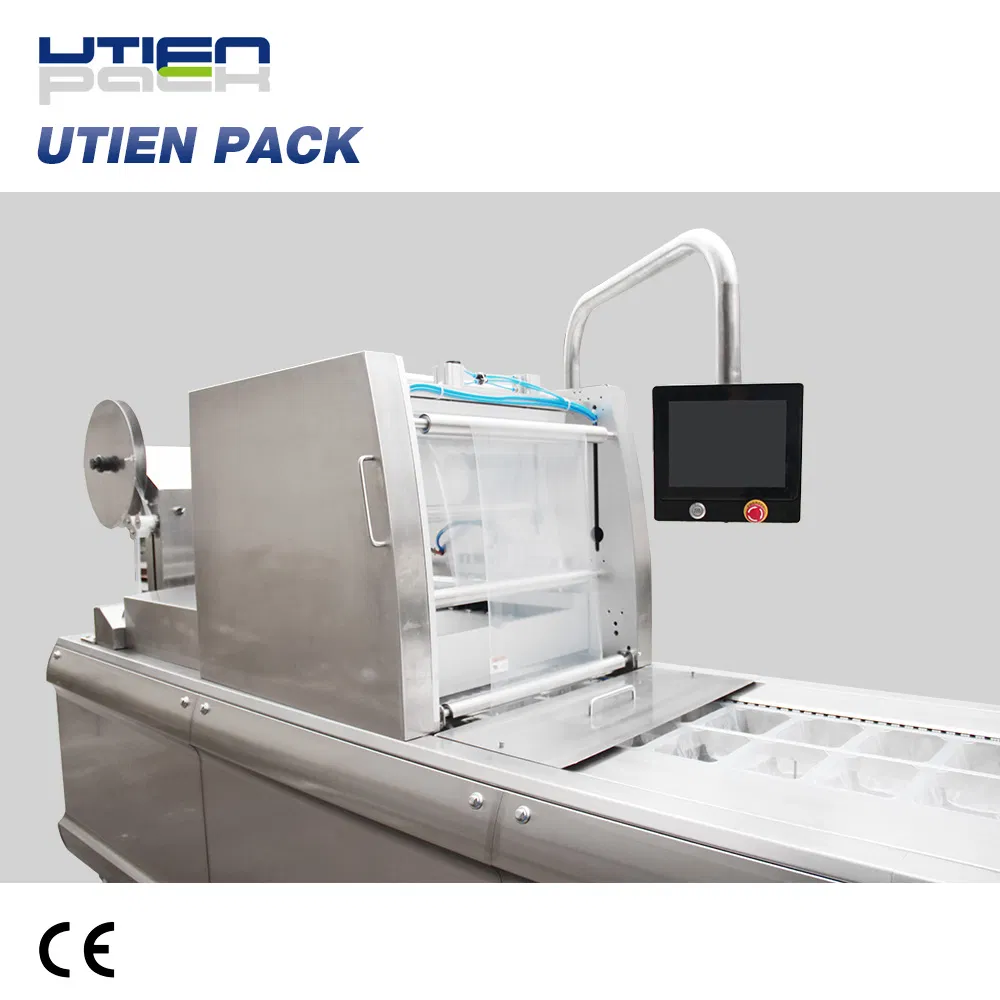

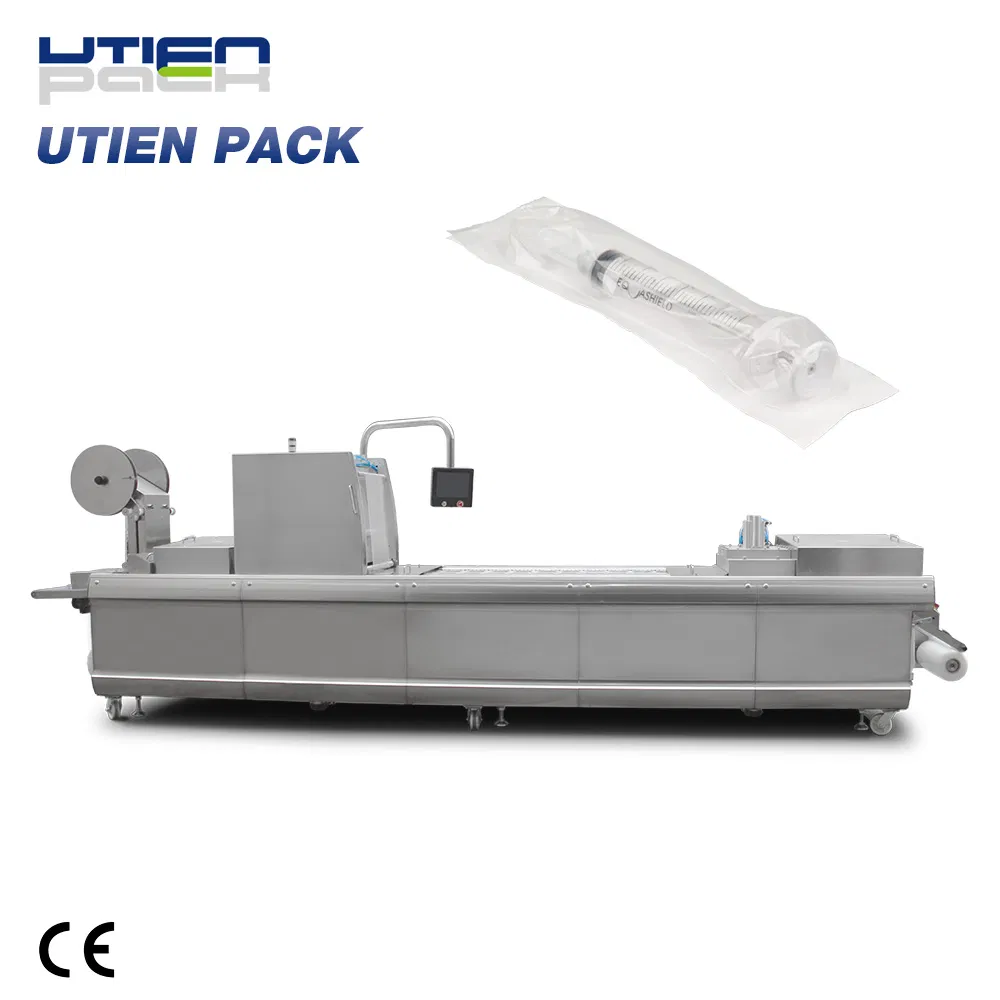

Automatic Medical Packaging Machine:
Currently, vacuum packaging is widely applied to the medical industry. It offers an unparalleled combination of hygiene and cleanliness presentation, enabling medical treatments and retailers to offer customers the highest quality products available.

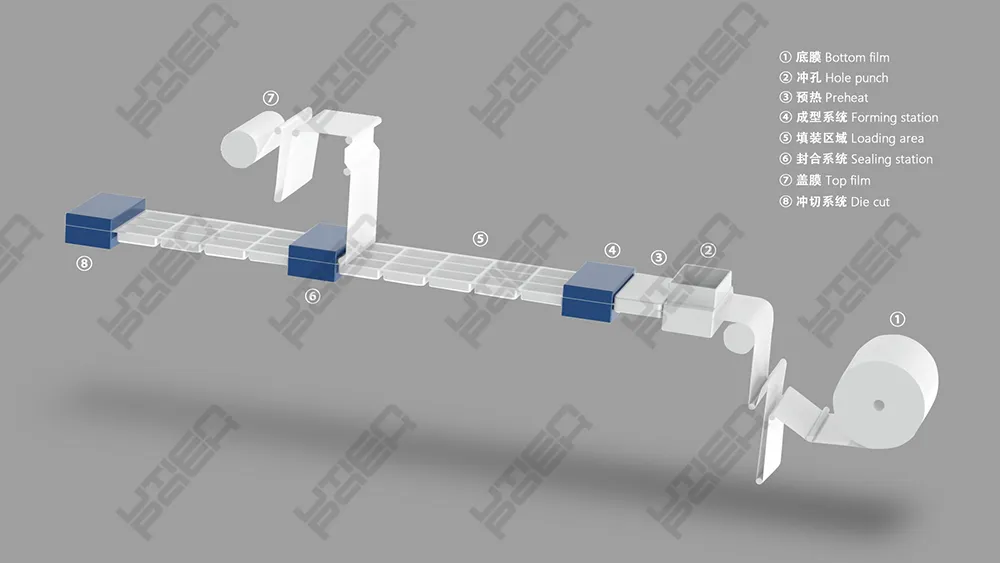

Our machine is capable of performing the entire process from package forming, vacuum-sealing, and cutting to final output. With innovative technology, it helps increase capacity, lower costs, and makes products more sanitary and appealing.

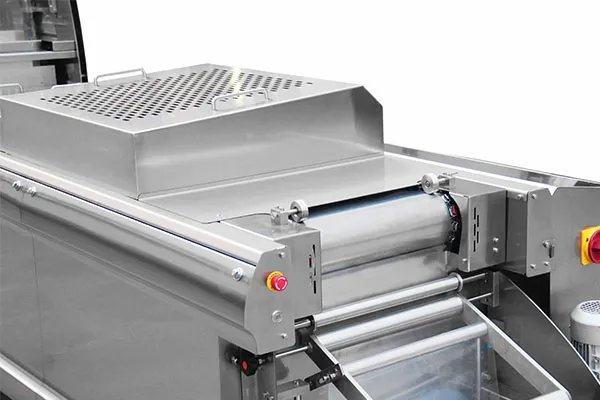

Safety is our top concern. Many sensors are installed under covers, inside doors, and removable parts to ensure the machine auto-stops when open.

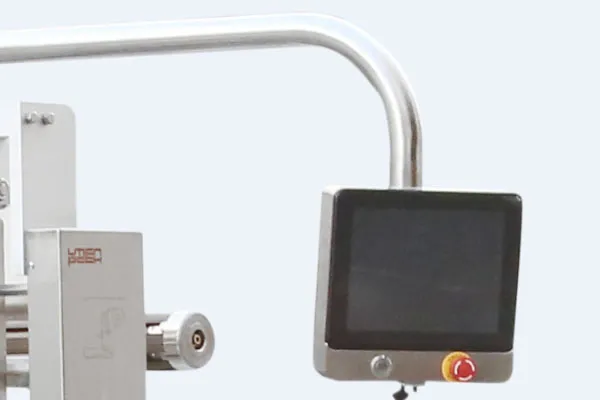

The machine is fully automatic from package forming to final product output, controlled by a 10'' PLC touch screen.
| Machine Parameters | |
|---|---|
| Speed | 6-8 Cycles/min |
| Forming Depth | ≤120mm |
| Film Widths | ≤520mm |
| Bottom Film Details | |
| Material | Sealable PE/PA Multi-layer Co-extruded Film |
| Thickness | ≥300um |
| Key Components | |
| Vacuum Pump | BUSCH (Germany) |
| Electrical Components | Schneider (France) |
| Pneumatic Components | SMC (Japan) |
| PLC & Servo Motor | DELTA (Taiwan) |
1. WARRANTY
12 months warranty for the whole machine (excluding wearable parts like silicone plates and heating elements).
2. INFORMATION & SUPPORT
Online guidance, engineering services, and installation/tuning services are available.
3. CUSTOM DESIGN
Package design services and machine function customization are provided based on customer requests.
