Customization: Available
After-sales Service: on Line
Warranty: 12 Months
Send Inquiry

Product Description

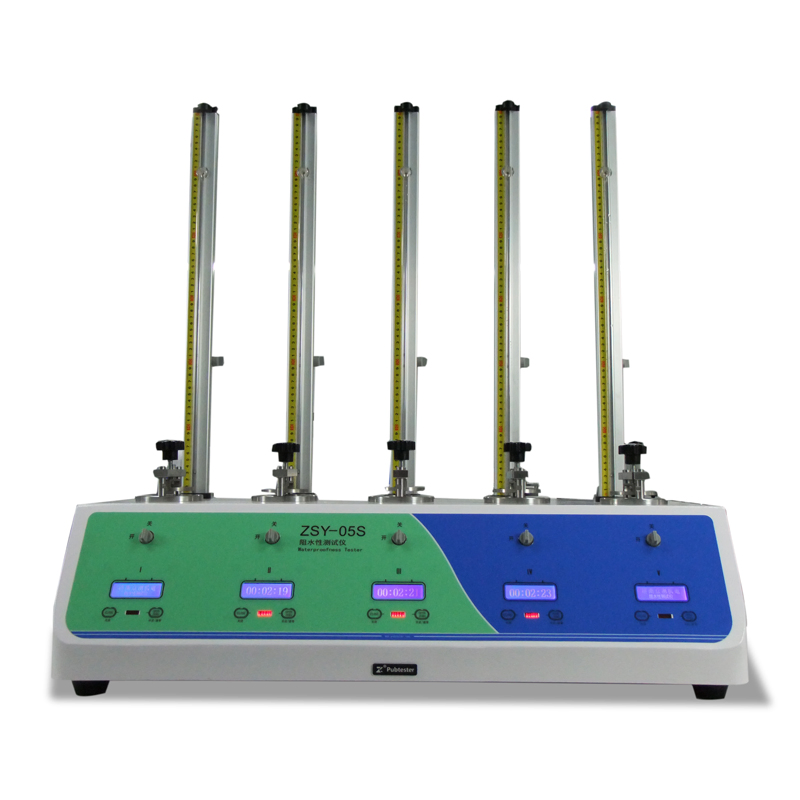

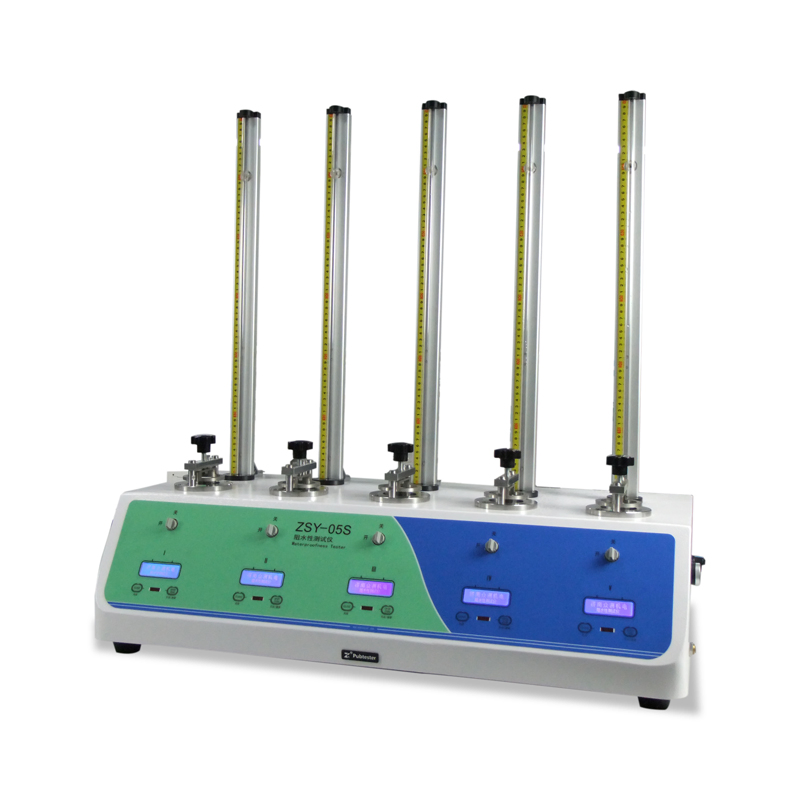

Multi-Station Primary Wound Dressings Combined Materials Waterproofness Test Machine

(5-Station Configuration)

The ZSY-05 Primary Wound Dressings Combined Materials Waterproofness Test Machine is professionally designed for evaluating the waterproof performance of primary wound dressings, including band-aids, bandages, medical tapes, coated paper, and non-woven or composite materials of various specifications. Featuring automatic timing and automated watering, this instrument is the premier choice for material manufacturers and quality inspection agencies.

Basic Information
Model NO.
ZSY-05
Hydrostatic Pressure
0-600mm
Control Valve
Electronic Valve
Pressure Withstanding
0~999 min
Stations
5-Station Independent
Overflow Port Switch
5PCS Independent
Environment Temp
15°C - 50°C
Production Capacity
10 Sets/Quarter
Technical Features
  • 5-station design: Allows for simultaneous or separate testing of multiple samples.
  • Automatic watering system: Independent or simultaneous watering control for efficiency.
  • 500mm overflow mechanism: Ensures precise water level maintenance and test accuracy.
  • High-precision sampling chip: Guarantees real-time data performance and reliable results.
  • Safety protections: Includes over-voltage safety and power-down memory for system stability.
  • Intelligent Alerts: Integrated indicator light system for status monitoring.
  • Microcomputer control: Fully automated water filling and pressurization process.
Applications
Basic Application Extended Application
Non-Woven materials Any shape and state of band-aids, bandages, medical adhesives, non-woven fabrics, and various composite materials.
Medical Bandages
Technical Specifications
Specifications ZSY-05S Details
Hydrostatic Pressure0-600mm
Control ValveElectronic Valve
Pressure Withstanding Time0~999
Stations5-station independent
Drainage WayUnified
Timer5pcs
Overflow Port Switch5pcs independent
Fixture5pcs
Environment Temperature15ºC-50ºC
HumidityMax 80%, no water condensed
Instrument Dimension500mm(L) * 200mm(W) * 750mm(H)
Net Weight5kg
Power SupplyAC 220V 50Hz
Standard ComplianceEN 13726-3, YY0471.3
Product Display

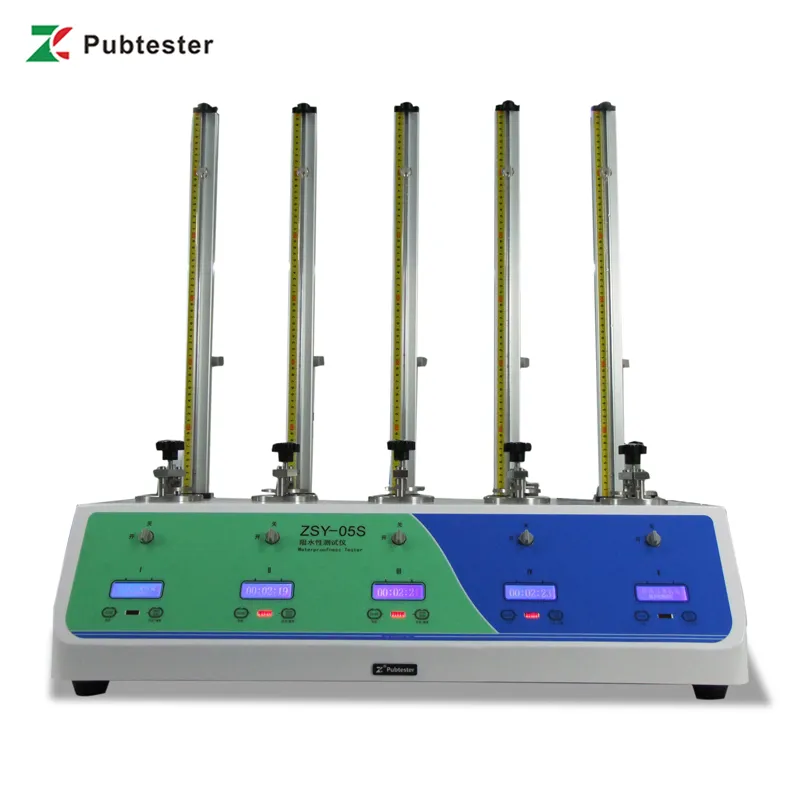

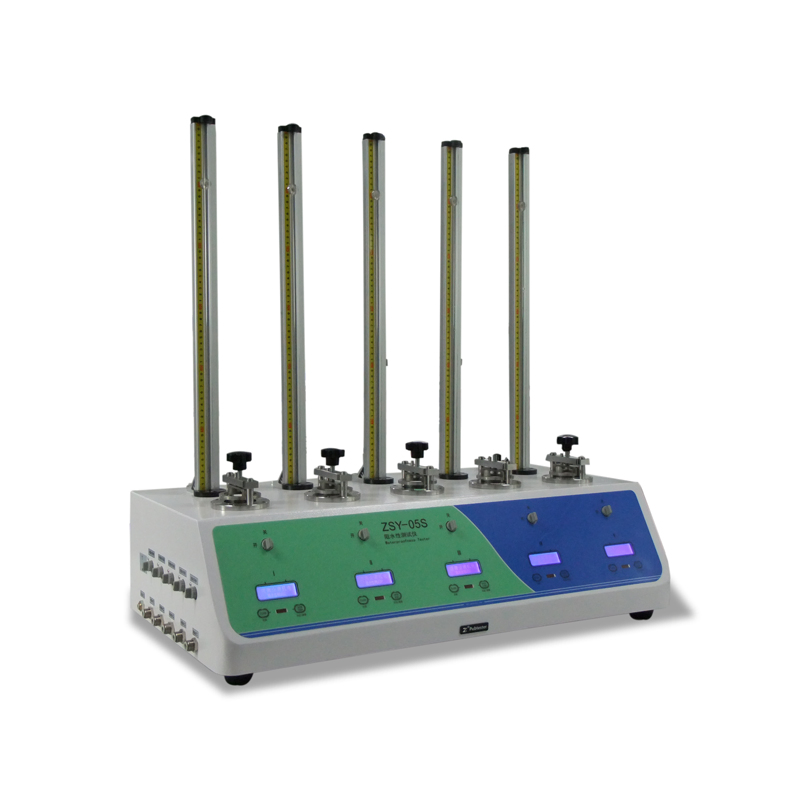

Waterproofness Test Machine Main View
Test Machine Detail 1
Test Machine Detail 2
Test Machine Detail 3
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a manufacturer and trading combo specializing in material testing instruments for plastic packaging, medical devices, protective clothing, and pharmaceutical packaging.
Do you have any certification for the equipment?
Yes, we have obtained CE certification, ISO 9001, and IPMS management system certificates. We also hold 18 utility model patents and 4 software copyrights.
What are the installation requirements?
The user manual provides detailed installation requirements. We also advise on necessary power supply, space, temperature, and humidity conditions in advance.
How do you handle after-sales service?
We conduct thorough inspections before delivery. If issues arise, we provide remote support to resolve failures. We promise to respond within 24 hours and provide solutions within 2 working days.
What is the warranty policy?
Our warranty is 12 months with lifelong support. After the warranty period, users only need to cover material costs and shipping charges for repairs.
How long is the typical delivery time?
For standard machines, delivery takes 3-5 working days. For customized equipment, the timeline is approximately 30 days.
