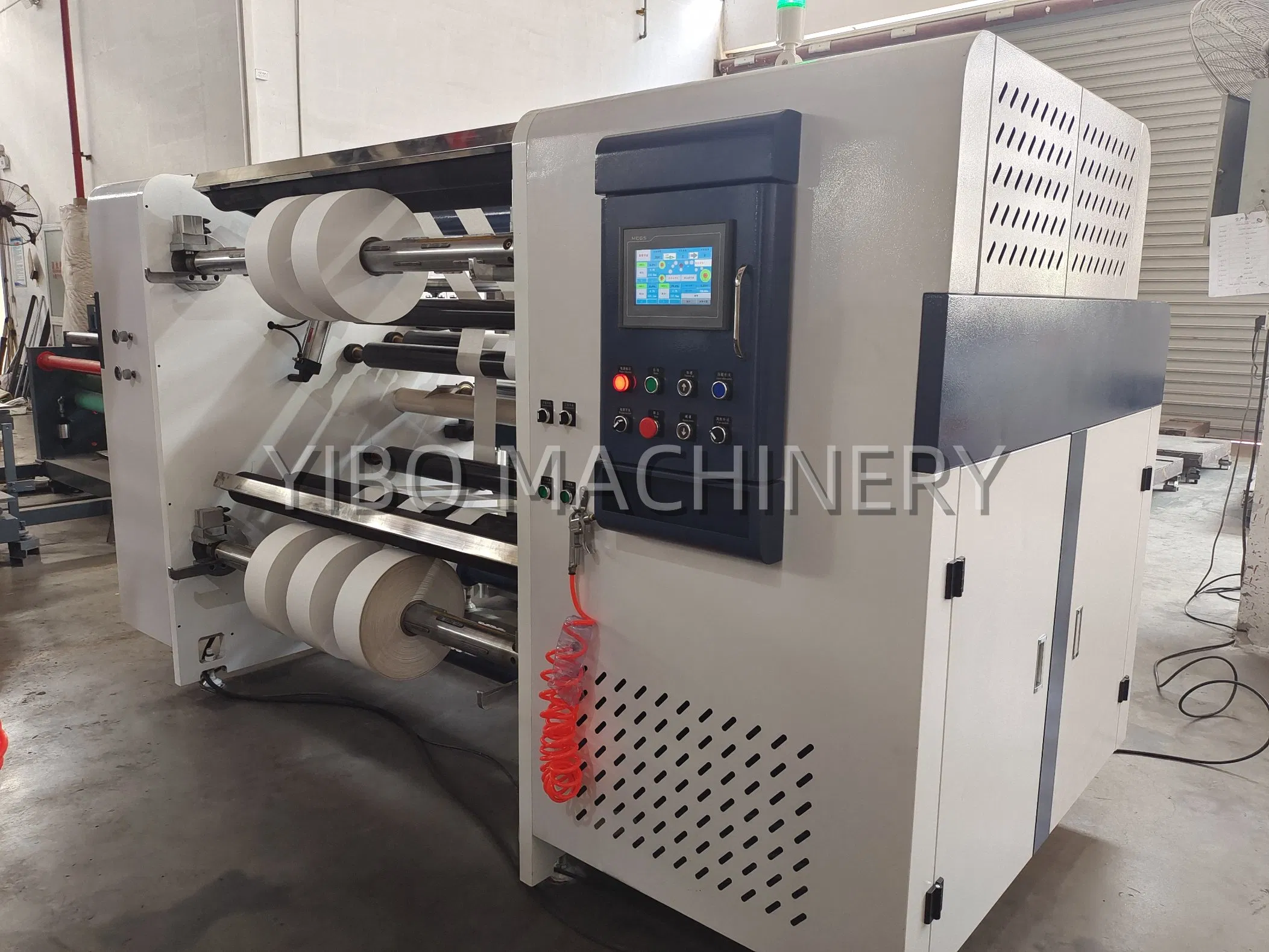

China Products. Paper Craft Roll Adhesive Label Cup Bag Fabric Silicon Jumbo Lamination Box Sticker Nonwoven Ticket Thermal Paper Tape Slitting Machine

Customization: Available
After-sales Service: Online
Warranty: One Year

Product Description

Basic Info.

Model NO.YB-CApplicationMachinery & Hardware
TypeHigh-Speed Slitting MachineWork MethodRound Knife Cutting
StructureFrame PartPackagingFilm
ClassificationBOPP PE Pet FilmMax Width1100-2000mm
Speed200m/MinPower13.5kw
Precision0.5mmAir Shaft3inch
Unwinder Diameter1200mmRewinder Diameter600-800mm
Knife TypeRound Knife / Straight KnifeHS Code8479899990

Product Description

This slitting machine is specifically designed for BOPP, PET, CPP, PVC, paper, and other roll materials. It efficiently handles material trimming and slitting during the production process to meet diverse industrial requirements.

Performance and Features

DC motor drive for smooth operation during acceleration (Frequency control optional).
Integrated automatic meter counting and alarm functions.
A/B air shaft structure for convenient loading and unloading.
Photoelectric automatic error correction system for precision cutting of irregular materials.
Equipped with a flat knife slitting scrap automatic discharge device.
Manual feeding system with standard 3-inch air shafts.

Technical Parameters

Slitting Width1100mm - 2000mm
Material Thickness20g - 300g/m²
Max Unwinding Diameterφ1200mm
Max Rewinding Diameterφ800mm
Correction Accuracy±0.5mm
Slitting Precision±0.5mm
Working Speed10 - 200m/min
Total Power5.5kw + 7.5kw
Model YB-B1100mm YB-B1300mm YB-B1500mm YB-B1600mm
Max Width1100mm1300mm1500mm1600mm
Unwinder Diameter1200mm1200mm1200mm1200mm
Rewinder Diameter800mm800mm800mm800mm

Detailed Photos

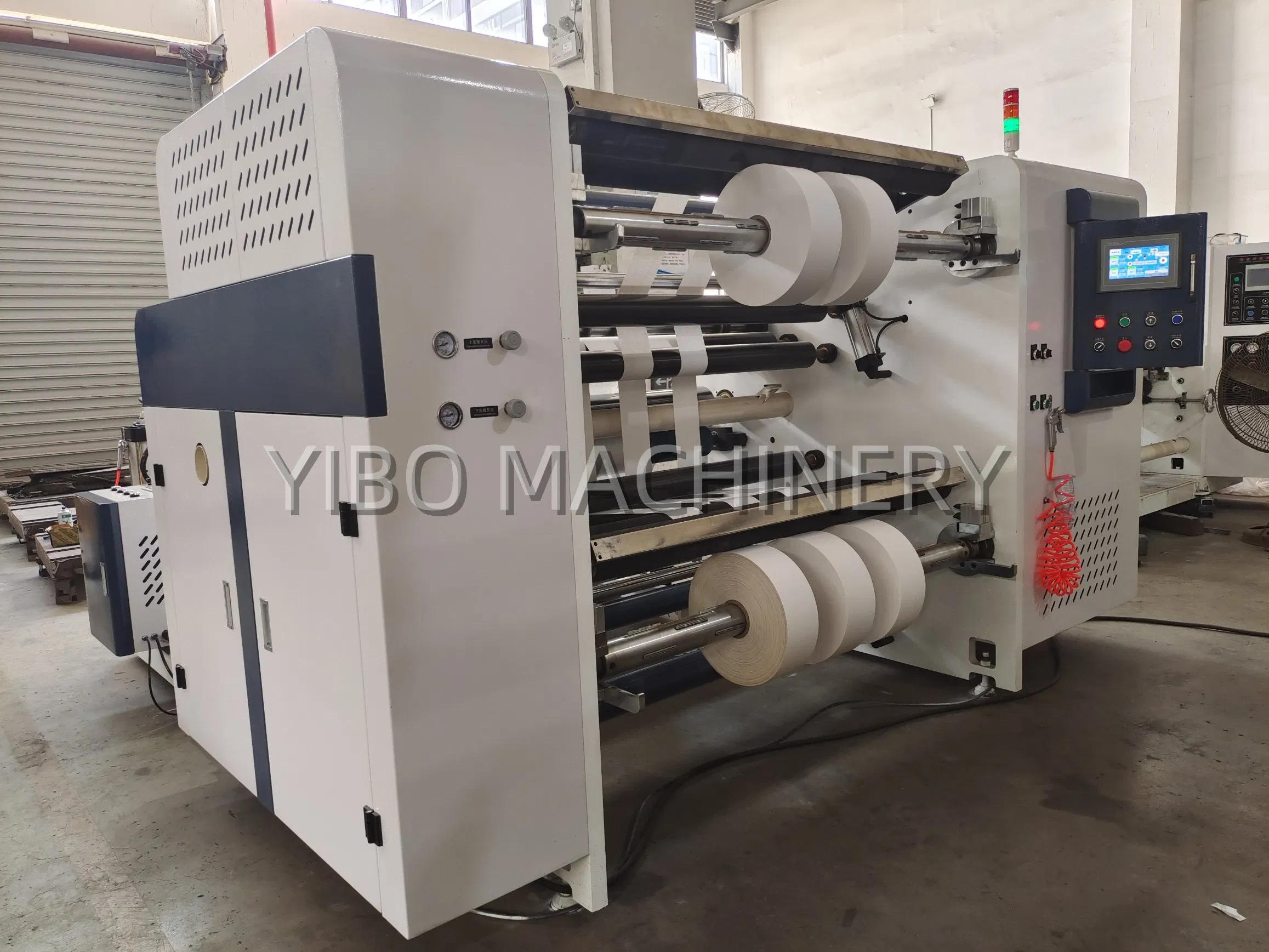

Slitting Machine Detail 1

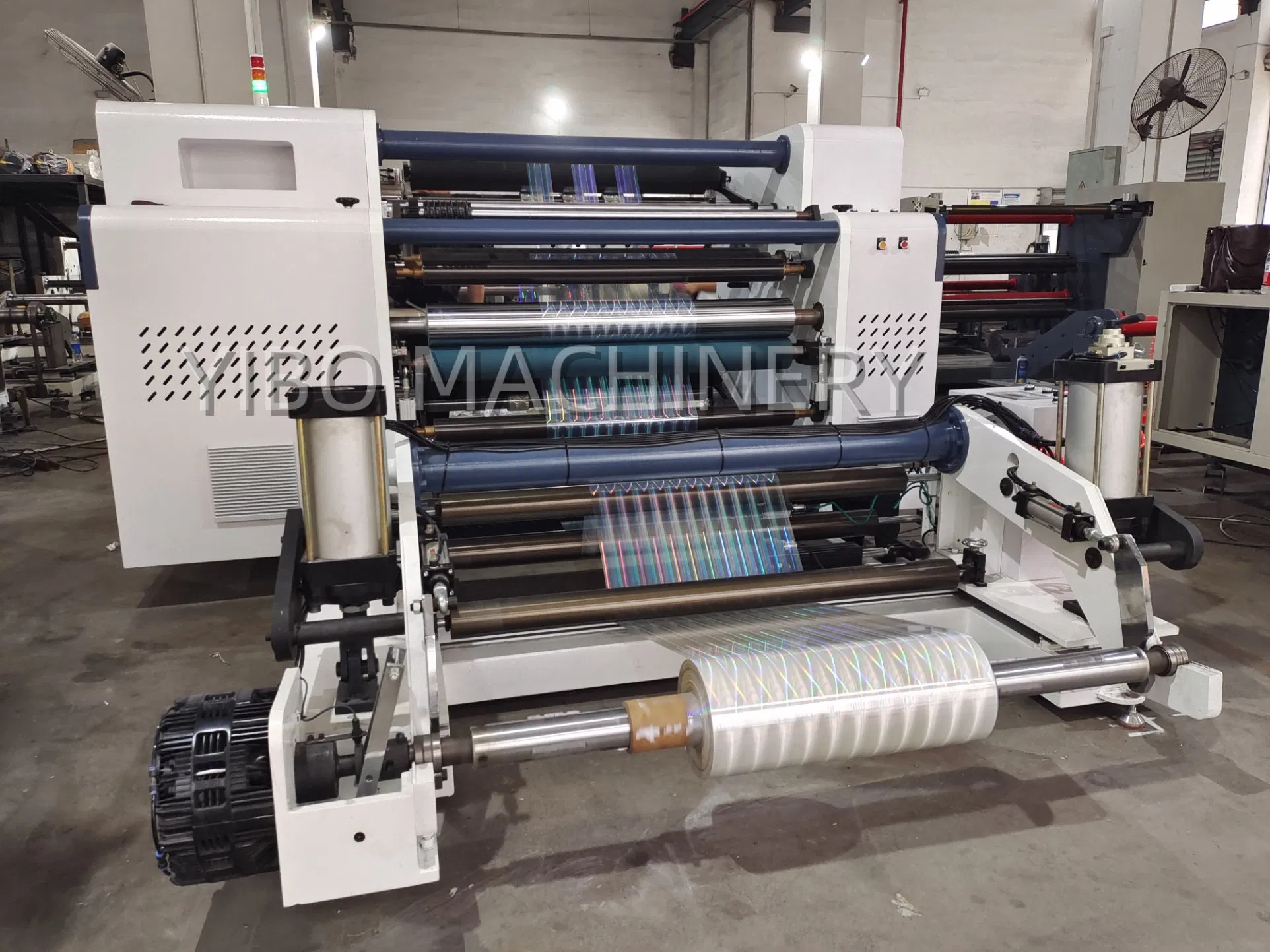

Slitting Machine Detail 2

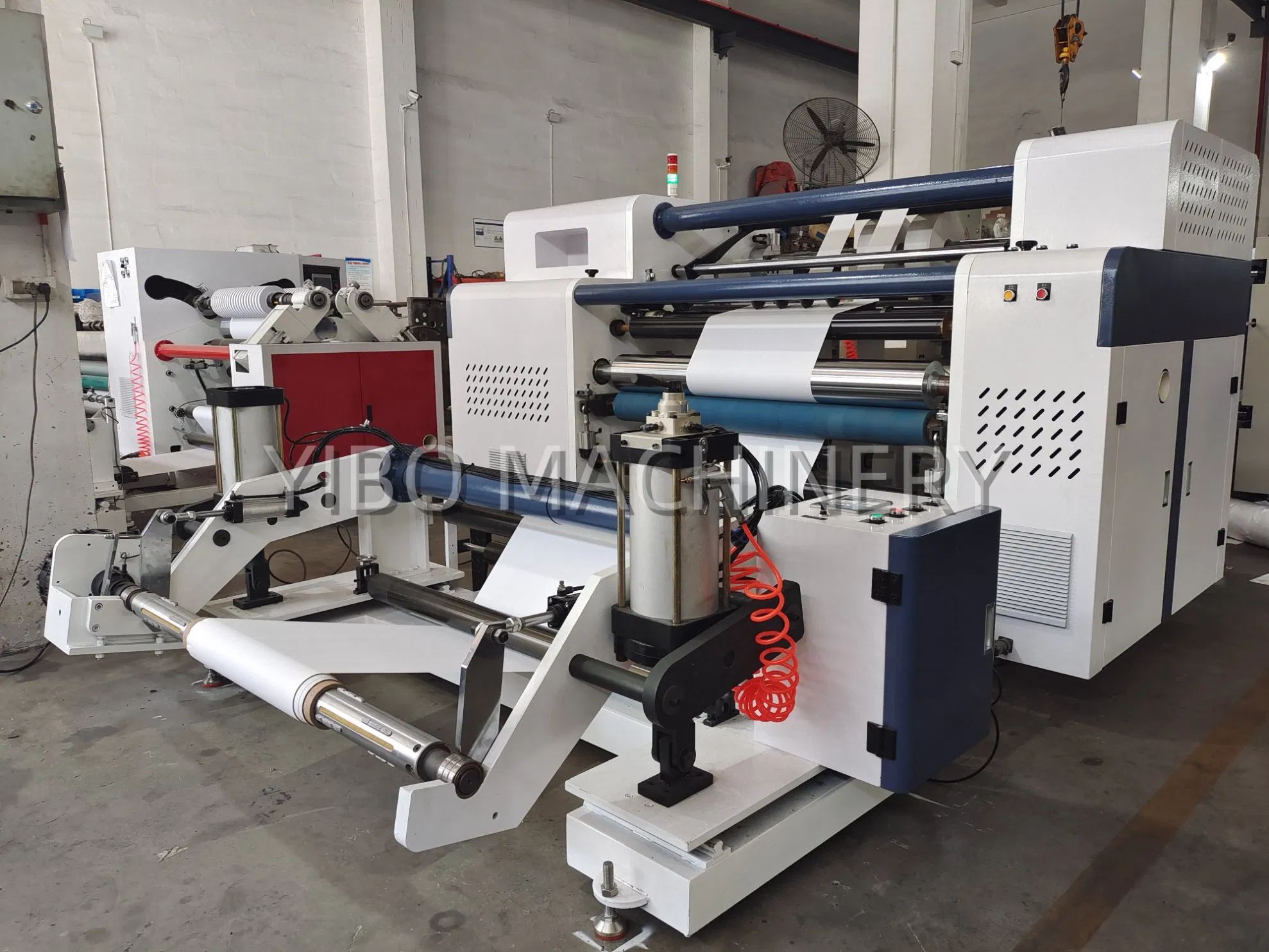

Slitting Machine Full View

Certifications

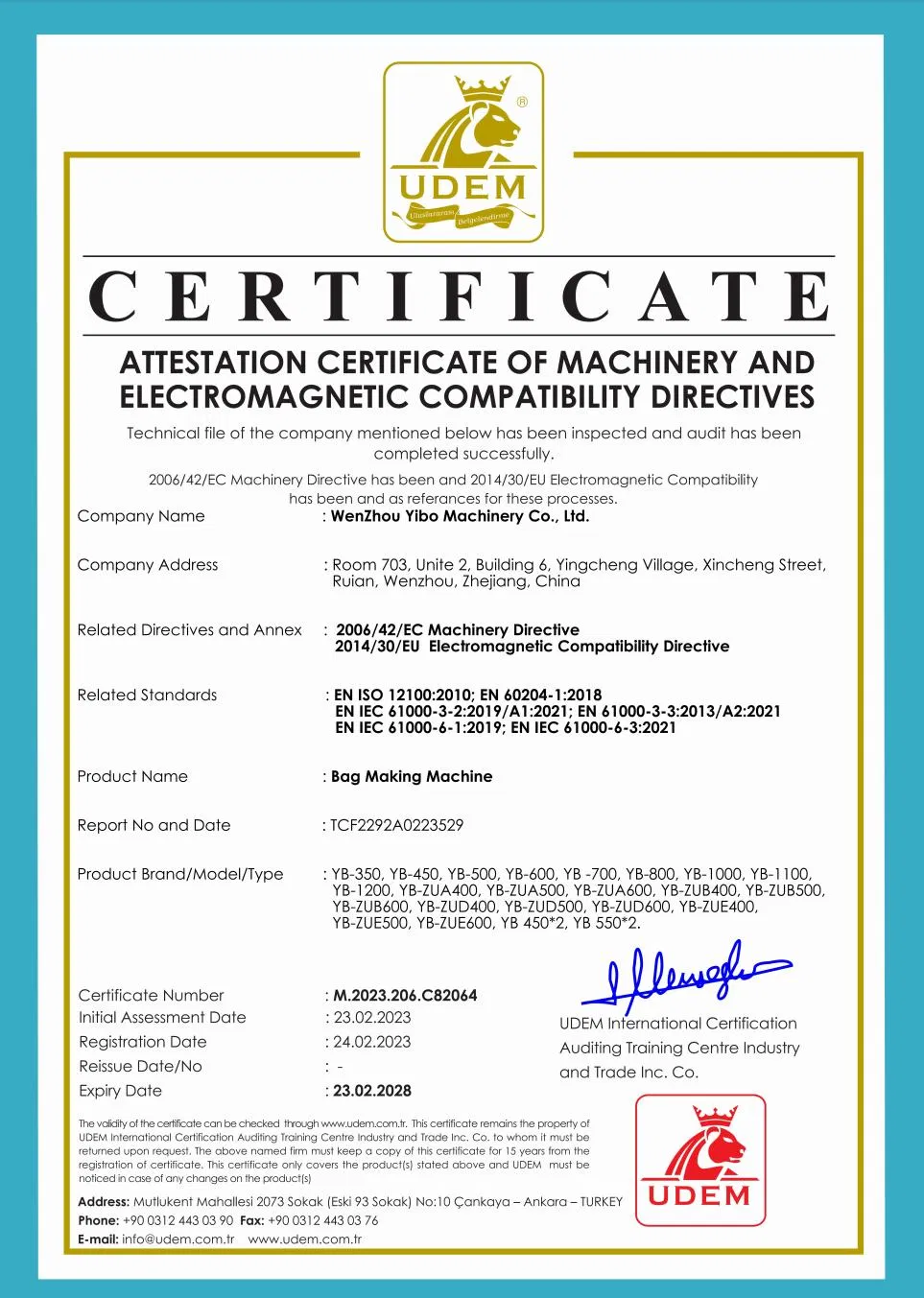

Certification 1
Certification 2

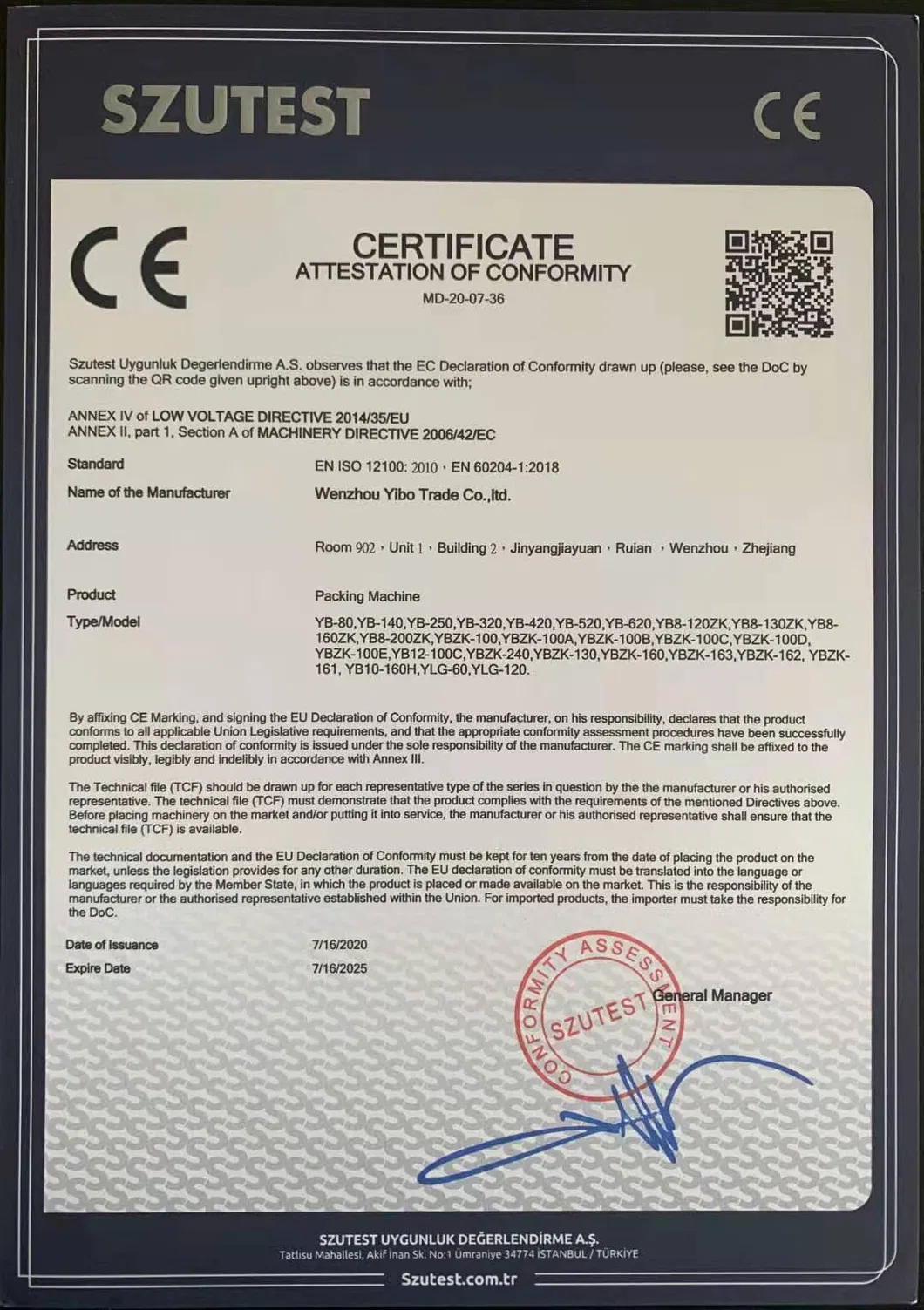

Certification 3

Packaging & Shipping

Package Size1200.00cm * 799.00cm * 500.00cm
Gross Weight700.000kg
ProtectionAnti-corrosion oil and plastic film wrap

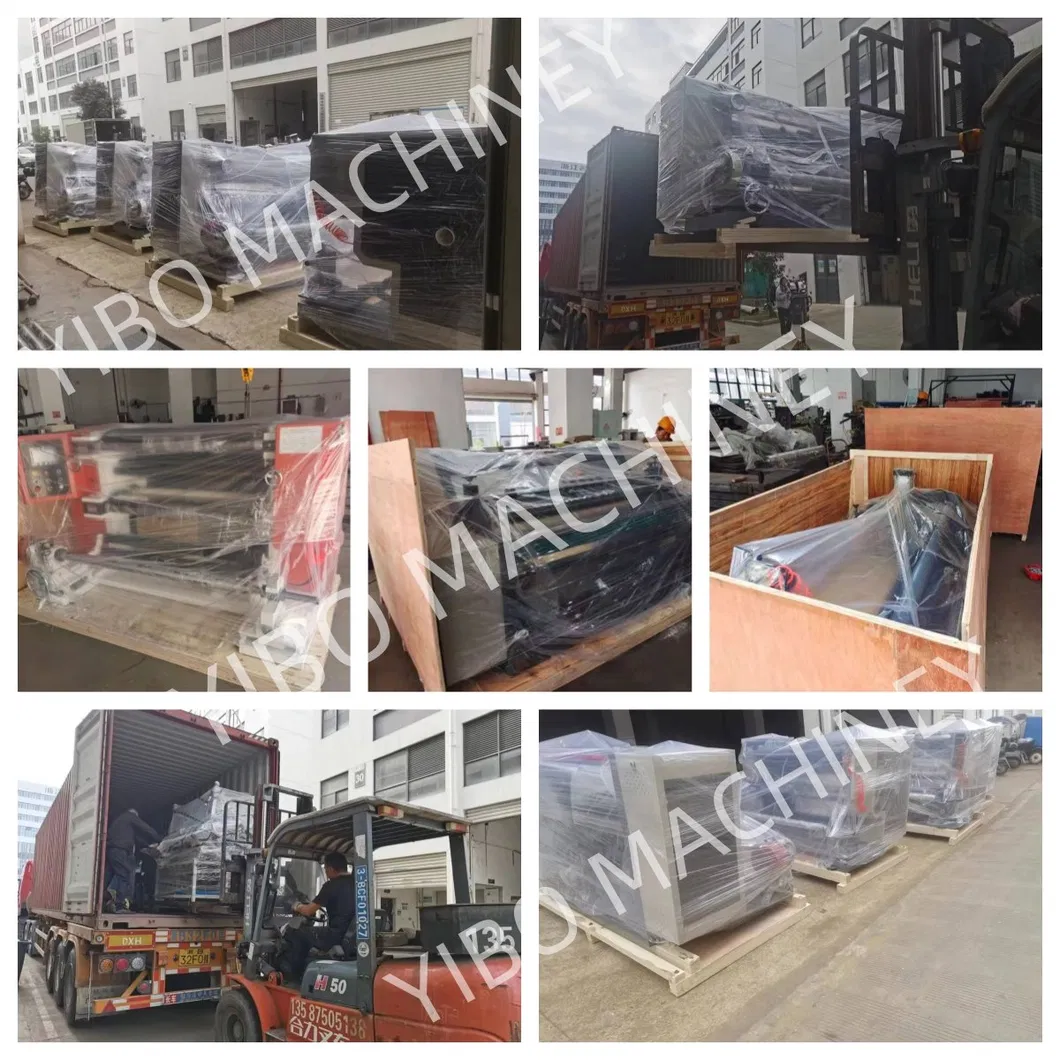

Packaging Process

Global Clients

Client Cooperation

Frequently Asked Questions

Where is your factory located?
Our factory is located in China. We provide convenient pick-up services from the nearest airport or train station for all visiting customers.
What is the standard delivery time?
Our standard delivery time is usually 30-45 days. For urgent requirements, we can expedite production to deliver within approximately 10 days.
What is your warranty policy?
We offer an 18-month warranty on all products and provide lifetime maintenance. Replacement parts for manufacturing defects are free during the warranty period.
How are the machines packaged for transport?
Machines are treated with anti-corrosion oil and wrapped in plastic film. Optional wooden box packaging is available upon request.
Do you provide on-site installation services?
Yes, our engineers are available for international installation and training. The buyer is responsible for travel expenses, accommodation, and a daily service fee.
What are the accepted payment terms?
We accept various payment methods including Telegraphic Transfer (T/T), Letter of Credit (L/C), and Western Union.
