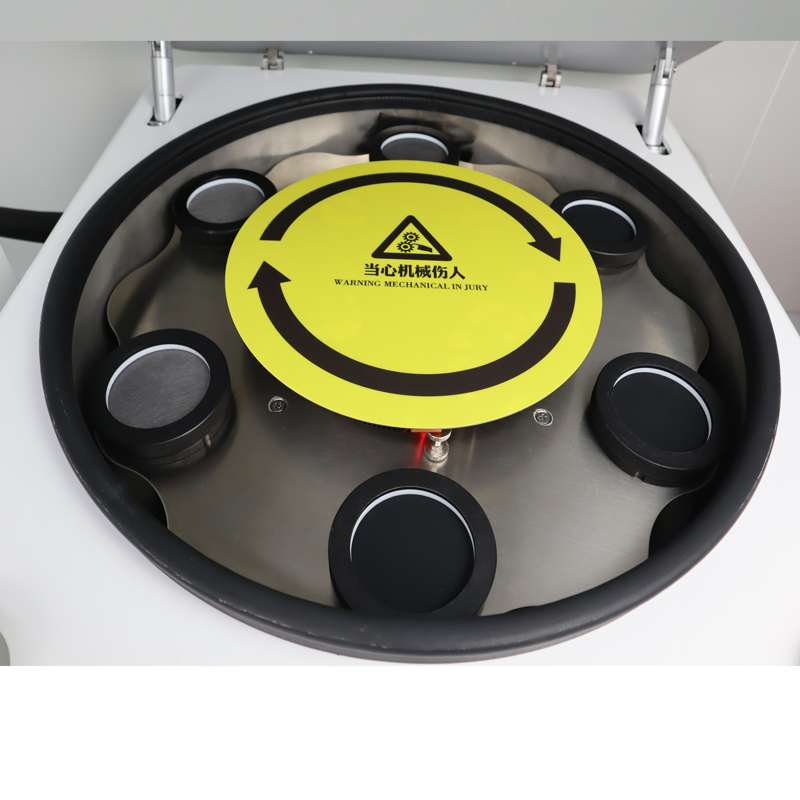

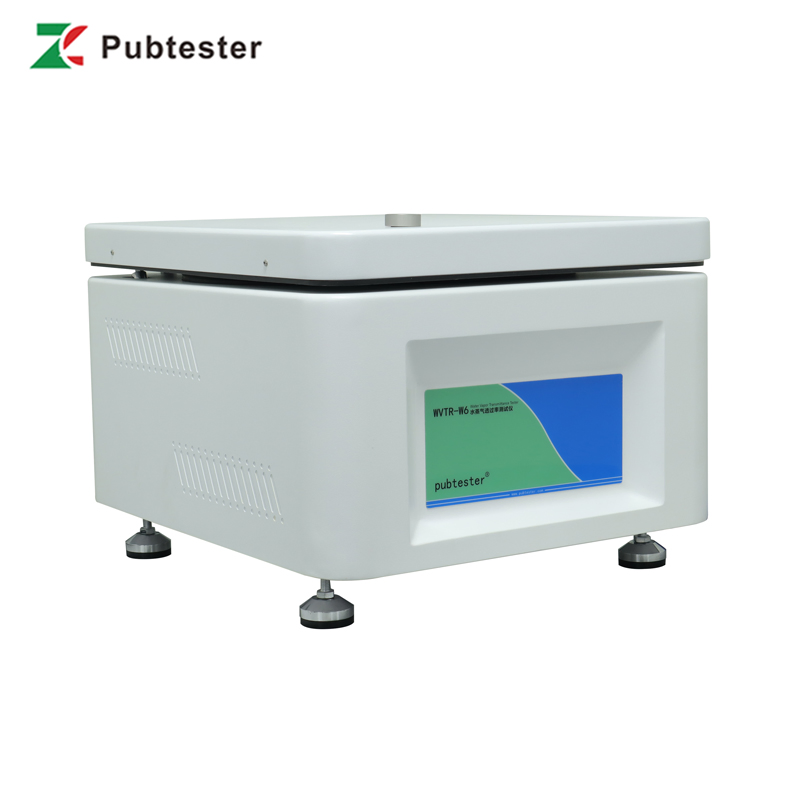

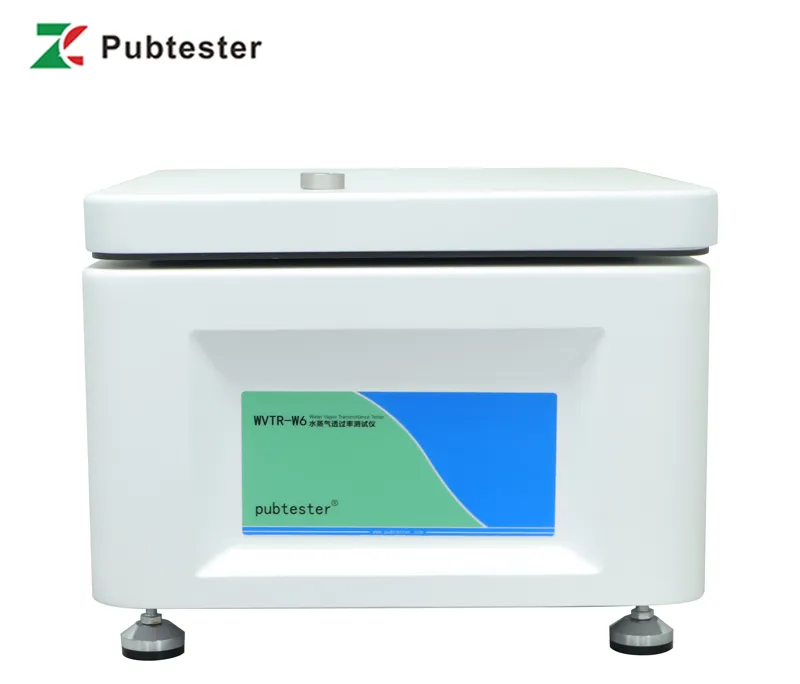

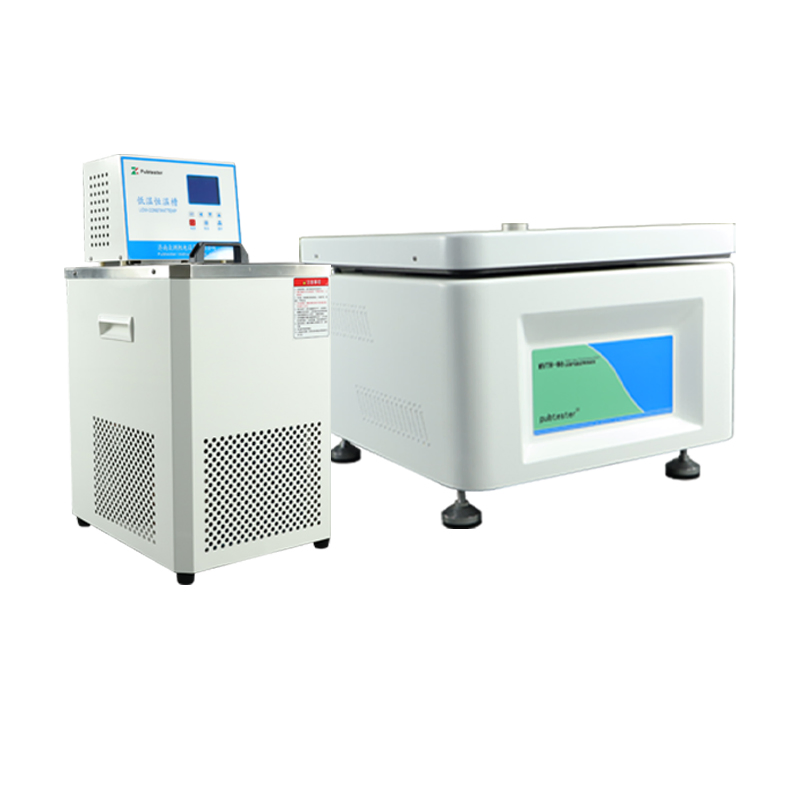

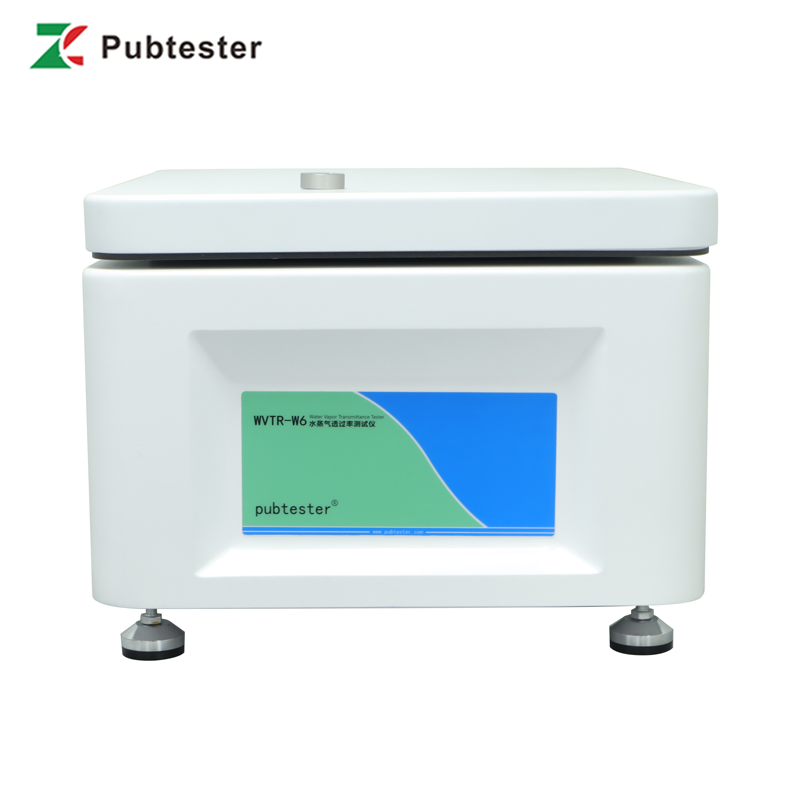

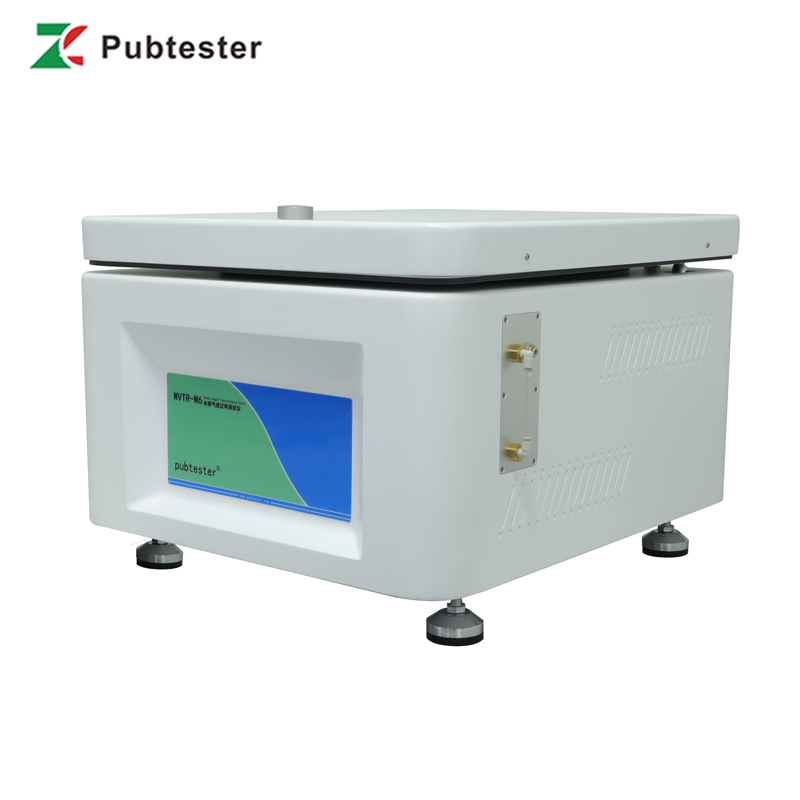

The WVTR-W6 Moisture vapour transmission rate (MTVR) test machine for primary wound dressings, based on the Gravimetric method, provides a wide range and high efficiency water vapor transmission rate testing experience for low, medium and high water vapor barrier materials. It is suitable for the measurement of water vapor transmission rate of various materials such as plastic film, composite film, medical treatment, construction, etc.
| Category | Material Type | Application Details |
|---|---|---|
| Basic | Film & Sheeting | Plastic films, composite films, aluminum foil, PP, PVC, and PVDC sheeting. |
| Textiles | Non-woven fabrics, diapers, and sanitation products. | |
| Paper Board | Aluminum coated paper for cigarettes and paper-plastic composites. | |
| Extended | Medical & Skin | Artificial skin, aseptic wound protecting films, and medical plasters. |
| Cosmetic & Paint | Water vapor permeability testing for cosmetics and various paint films. | |
| Industrial | LCD displays, solar back-sheets, and biodegradable films. |
| Specifications | WVTR-W1 | WVTR-W3 | WVTR-W6 |
|---|---|---|---|
| Test Range (Water) | 0.1~10,000 g/m²·24h | 0.1~10,000 g/m²·24h | 0.1~10,000 g/m²·24h |
| Number of Specimens | Single | 1~3 | 1~6 |
| Test Accuracy | 0.01 g/m²·24h | ||
| Temperature Range | 5ºC ~ 95ºC | ||
| Humidity Range | 10%RH ~ 98%RH | ||
| Test Area | 33 cm² | ||
