Modern Capsule Filling Machine
Modern Capsule Filling Machine
Modern Capsule Filling Machine
Modern Capsule Filling Machine
Modern Capsule Filling Machine
1 / 5
Modern Capsule Filling Machine
Modern Capsule Filling Machine
Modern Capsule Filling Machine
Modern Capsule Filling Machine
Modern Capsule Filling Machine

Modern Capsule Filling Machine

Customization: Available
Warranty: 1 Year
Njp Series: 800-3800
Send Inquiry

Product Description

Basic Information
Model NO.
From NJP-800 to 3800
Type
Pharmaceutical Packaging Machinery
Dosage Form
Capsule
Precision
Normal Precision
Certification
CE, ISO
Voltage
380V
Condition
New
Package
Fumigation Free Wooden Case
Capacity
350 Sets/Annually
HS Code
84223090
Product Features
01
Good-looking appearance, exquisite workmanship, ease of operation, and simplicity of use.
02
Integrated filling seat and measuring plate design prevents deviation, avoids friction between rods, and significantly enhances machine lifespan and precision.
03
Automatic elimination of ineligible capsules; medicine can be recycled and reused, greatly improving economic efficiency.
04
Convenient dismantling and cleaning; interchangeable moulds across various models (800/1000/1200-3200) to meet diverse capacity requirements.

The machine is designed based on advanced automatic capsule filling technology from domestic and international standards. Featuring high technology and exclusive performance, it is an ideal equipment for the pharmaceutical industry in full compliance with GMP requirements. It utilizes a PLC programmable controller, stepless frequency inverter, and touch screen interface. The system includes automatic alarms and shut-down protocols for faults or material shortage, ensuring safe and efficient operation.

Technical Specifications
Model NJP-400 NJP-800 NJP-1000 NJP-1200 NJP-2000 NJP-3200
Filling dosage Powder, Pellets, Tablet Powder, Pellets, Tablet Powder, Pellets, Tablet Powder, Pellets, Tablet Powder, Pellets, Tablet Powder, Pellets, Tablet
Capsule size 00# -5# / A-E 00# -5# / A-E 00# -5# / A-E 00# -5# / A-E 00# -5# / A-E 00# -5# / A-E
Max. output 24,000 48,000 60,000 72,000 120,000 192,000
Power 380V 2KW 380V 2KW 380V 3KW 380V 3KW 380V 3.7KW 380V 2KW
Noise index < 80dBA < 80dBA < 80dBA < 80dBA < 80dBA < 80dBA
Dimension (mm) 930×780×1900 970×820×1900 970×820×1900 970×820×1900 1100×1000×2000 1300×1080×2100
Product Display

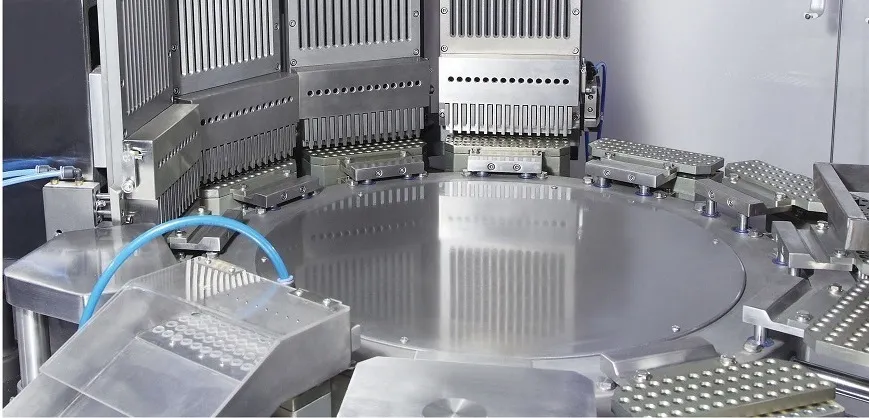

Capsule Filling Machine Overview

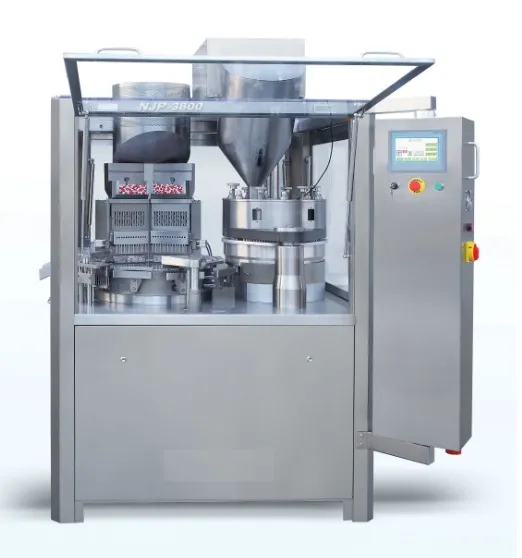

Machine Detail View

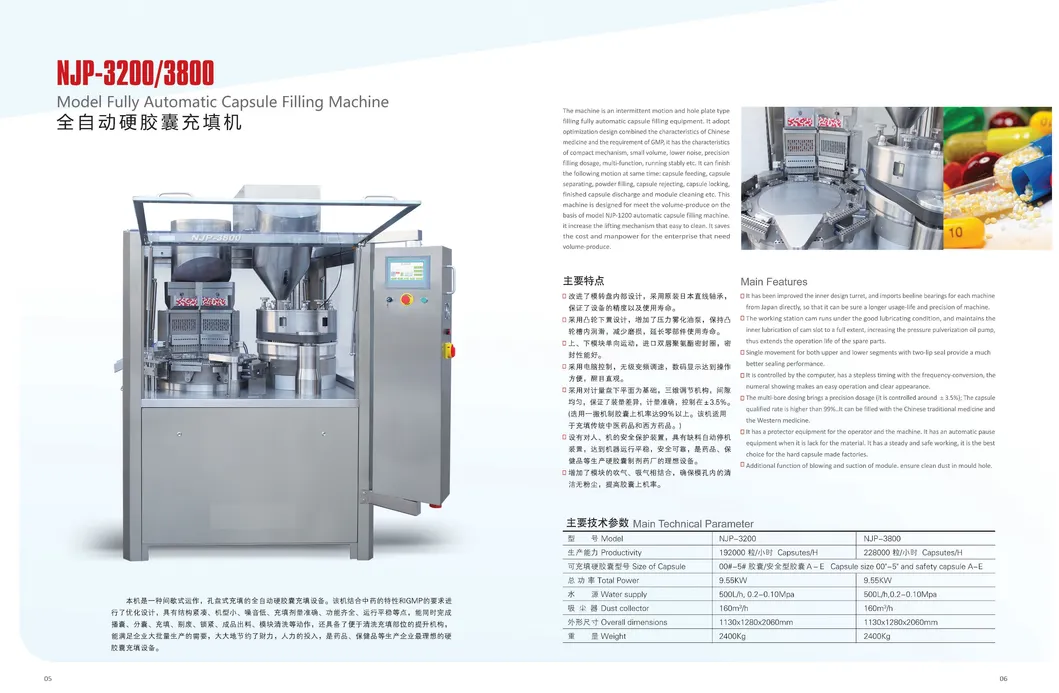

Internal Mechanism
Technical Layout
Component Diagram
Frequently Asked Questions
Q1: What types of dosage forms can this machine handle?
The NJP series is versatile and can fill capsules with powder, pellets, or tablets depending on your production needs.
Q2: Is the machine compliant with international pharmaceutical standards?
Yes, the equipment is designed and manufactured in full compliance with GMP requirements and carries CE and ISO certifications.
Q3: How does the machine ensure minimal material waste?
It features an automatic elimination system for ineligible capsules. The medicine within these capsules can then be recycled and reused, maximizing economic efficiency.
Q4: Can the machine's capacity be adjusted for different production scales?
Yes, the moulds are designed to be interchangeable across different models (e.g., 800, 1000, and 1200-3200 models) to meet varying output requirements.
Q5: What kind of control system does the NJP series use?
The machine utilizes a PLC programmable controller, stepless frequency inverter, and a user-friendly touch screen interface for parameter setting and data monitoring.
Q6: What happens if there is a fault or material shortage?
The machine is equipped with an automatic alarm and shutdown function that triggers if there is a fault or lack of material, ensuring safety and preventing damage.
