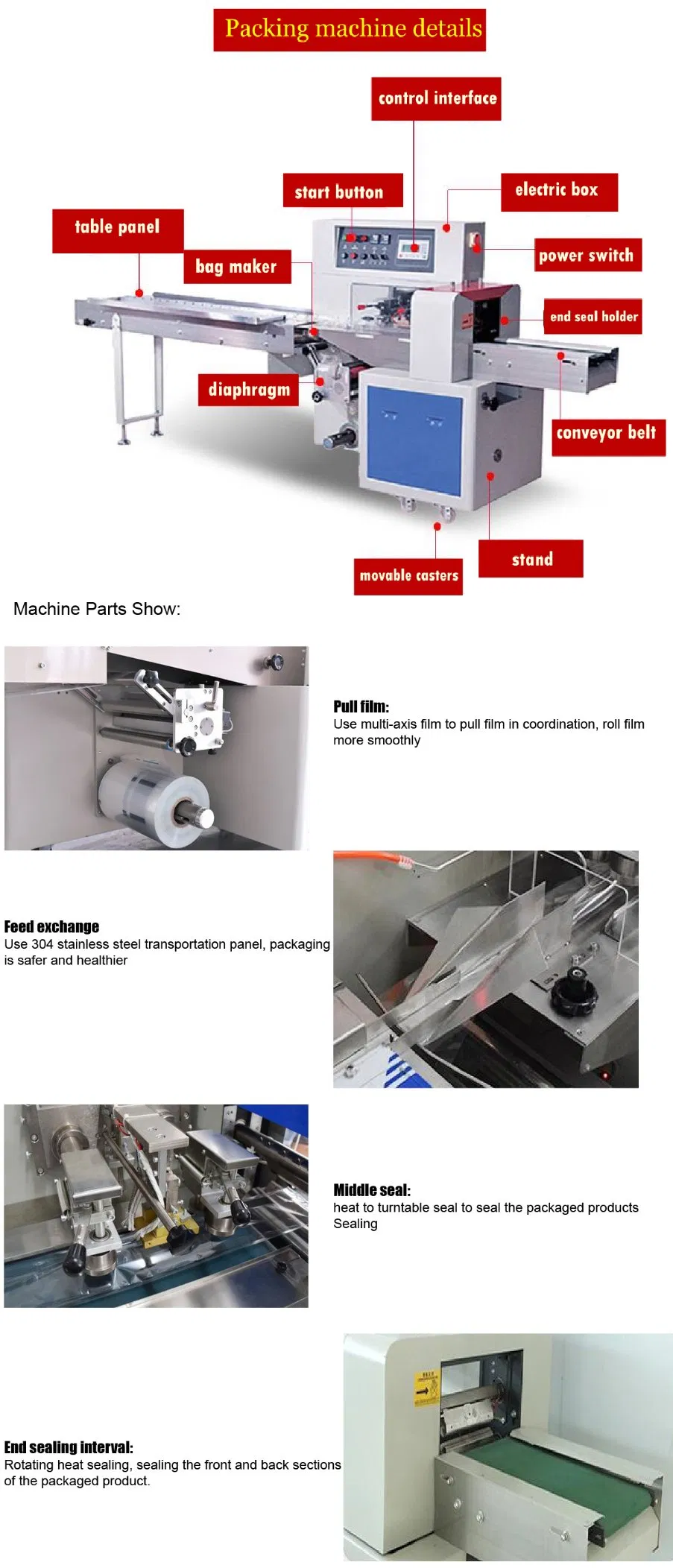

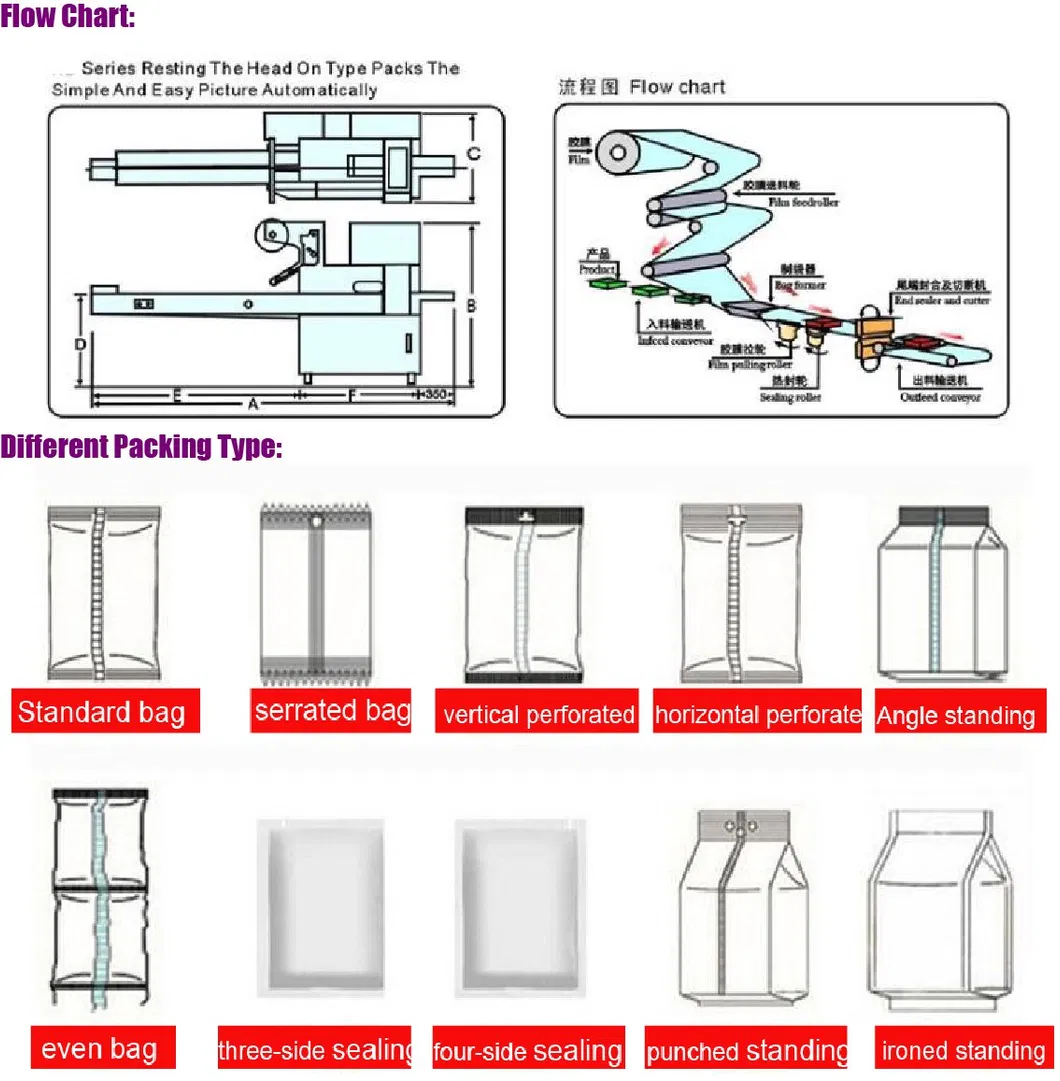

This machine is a horizontal form fill seal machine designed for packaging various regular objects such as biscuits, chocolates, bread, medical cotton rolls, drugs, and industrial parts. Controlled by a high-performance PLC system, it supports multi-language settings and handles the entire process including bag forming, metering, filling, sealing, and cutting.
| Item | Component Name | Brand | Model/Spec | Qty |
|---|---|---|---|---|
| 1 | Double frequency conversion | Panasonic (Japan) | - | 2 |
| 2 | Touch Screen | Taiwan Wiluntong | TK6070I | 1 |
| 3 | Temperature Meter | Yatai | NG-6401V-3 | 2 |
| 4 | Electric Eye | Yatai | NGJ-612 | 1 |
| 5 | Encoder | Changchun Rongde | E38S-8G12-21C | 1 |
| 6 | Switching Power Supply | MeanWell | NES-15-24 | 1 |
| 7 | PLC | Panasonic (Japan) | - | 1 |
| Model | HR450 |
| Width of Bag | 80-210mm |
| Length of Bag | Variable based on product |
| Product Max Height | 80mm |
| Packing Speed | 40~80 packs per minute |
| Reel Film Diameter | 320mm |
| Machine Size | 4020*700*1400mm |

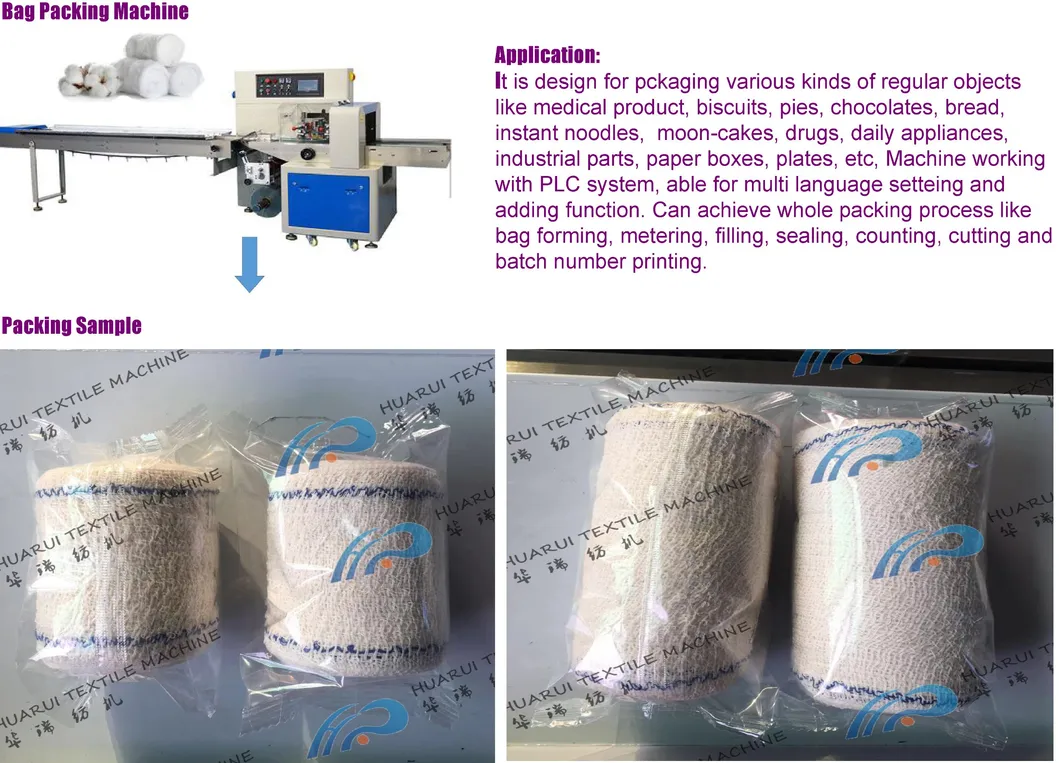

It is designed for regular solid objects including medical cotton rolls, bandages, gauze, biscuits, industrial parts, and paper boxes.
The packaging speed ranges from 40 to 80 packs per minute, depending on the product size and material.
Yes, the machine features dual frequency conversion control, allowing bag length to be set and cut in one step via the touch screen interface.
We provide 24-hour technical support through email, phone calls, and video consultations, along with a 12-month warranty including free spare parts.
The standard voltage is 380V/50Hz 3-phase, but it can be customized according to your local power supply requirements.
Yes, the machine material is Stainless Steel 304, which is durable and suitable for medical and food-related packaging.
