Standard Configuration:
| Model | FM-320 | FM-420 |
|---|---|---|
| Die cutting speed | 70m/min | 70m/min |
| Working width | 0-320mm | 0-420mm |
| Max unwinding diameter | 500mm | 500mm |
| Max winding diameter | 480mm | 480mm |
| Die Cut Length | 178-470mm (7" - 18.5") | 178-470mm (7" - 18.5") |
| Machine size | 1.57m x 1.02m x 1.61m | 1.57m x 1.12m x 1.61m |
| Machine weight | 1200kgs | 1800kgs |
| Voltage | 220V 50HZ | 220V 50HZ |
Core Capabilities:
Other Product Lines:

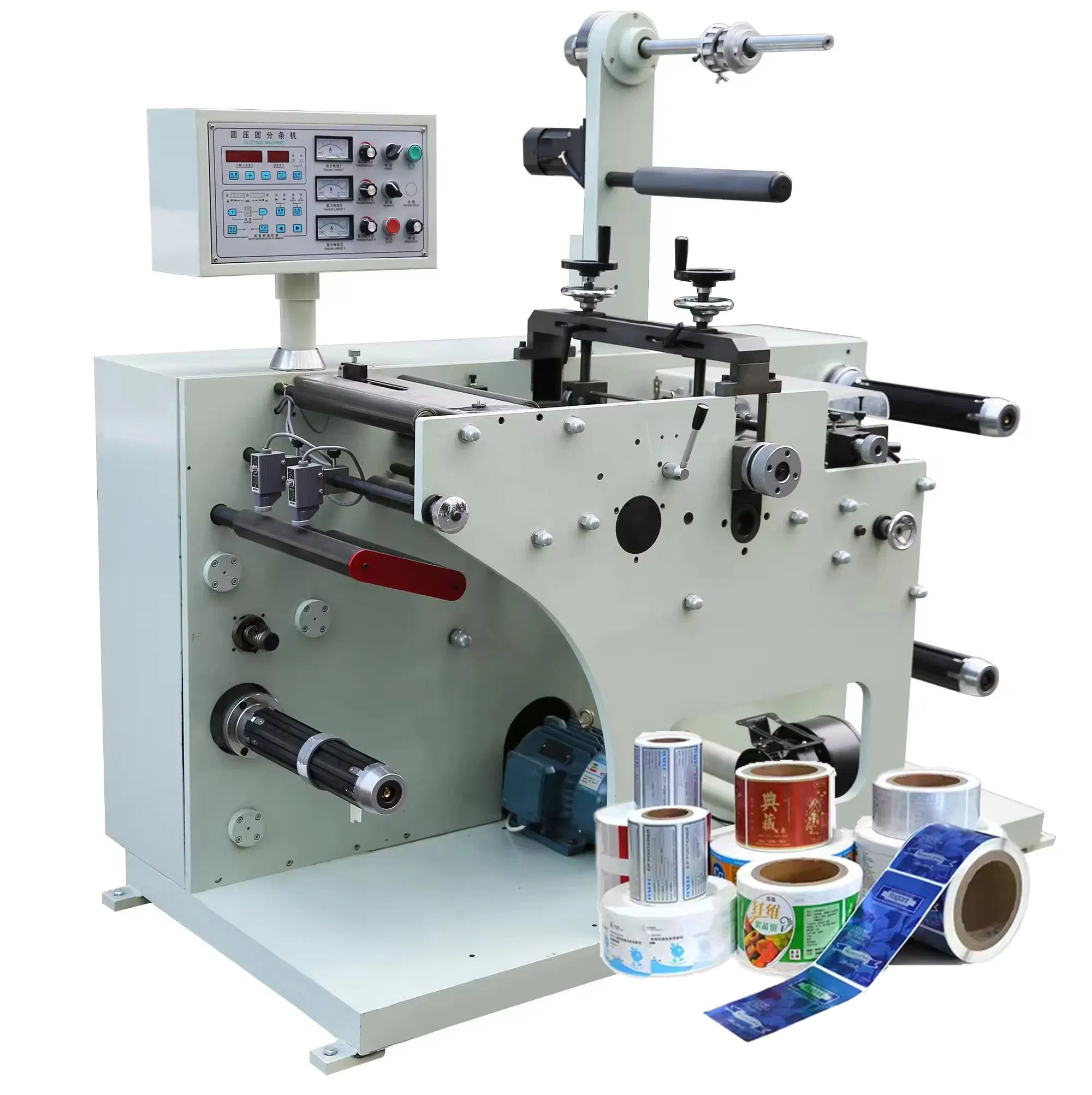

The machine is versatile and suitable for self-adhesive labels, paper, various films (PET, PC, PE), non-woven fabrics, foam, double-sided tape, and metal foils like copper and aluminum.

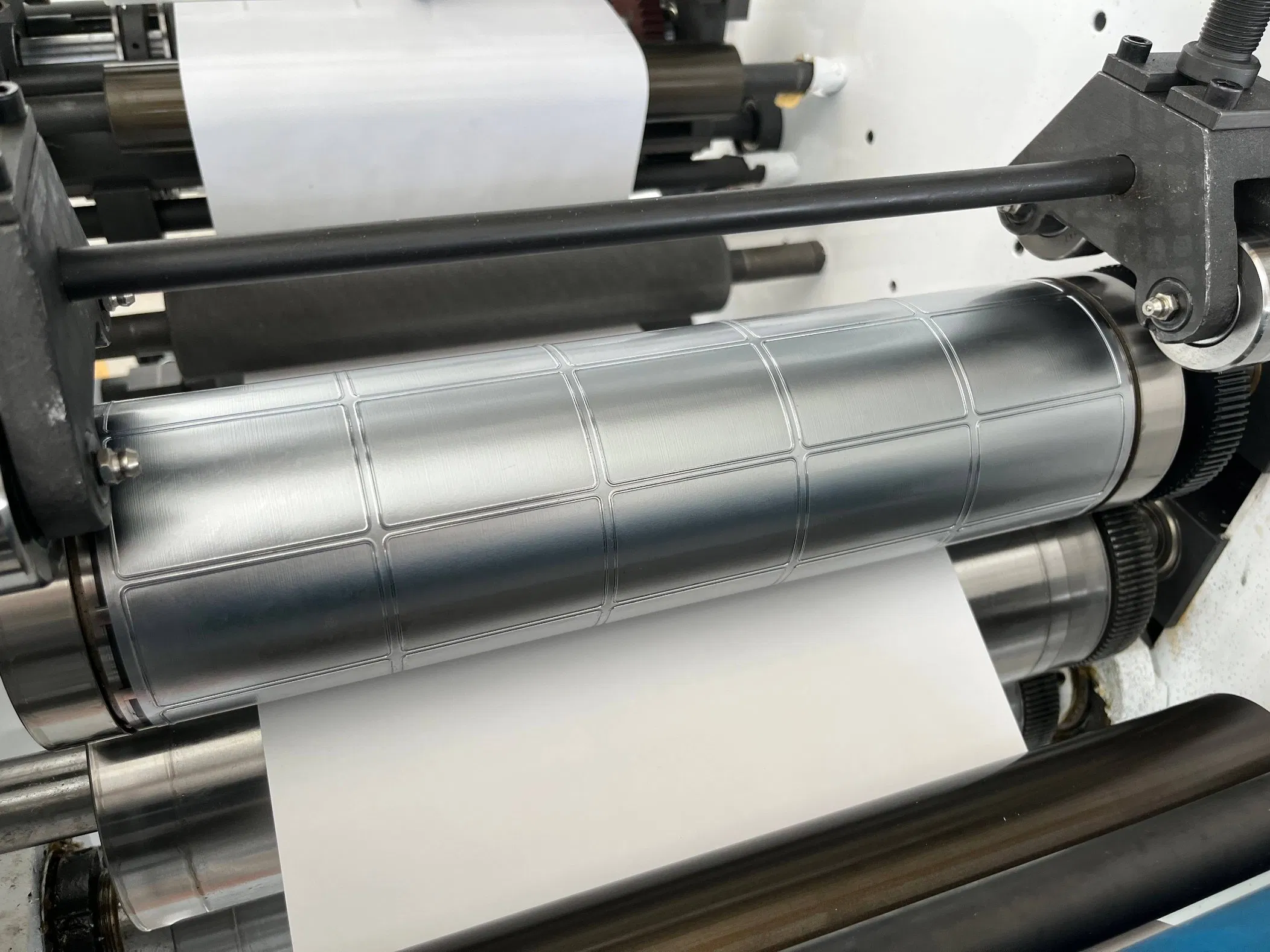

Both the FM-320 and FM-420 models feature a high die-cutting speed of up to 70 meters per minute, ensuring efficient production.
The primary difference is the working width. The FM-320 handles materials up to 320mm wide, while the FM-420 supports up to 420mm. There are also variations in machine weight and dimensions to accommodate the wider format.

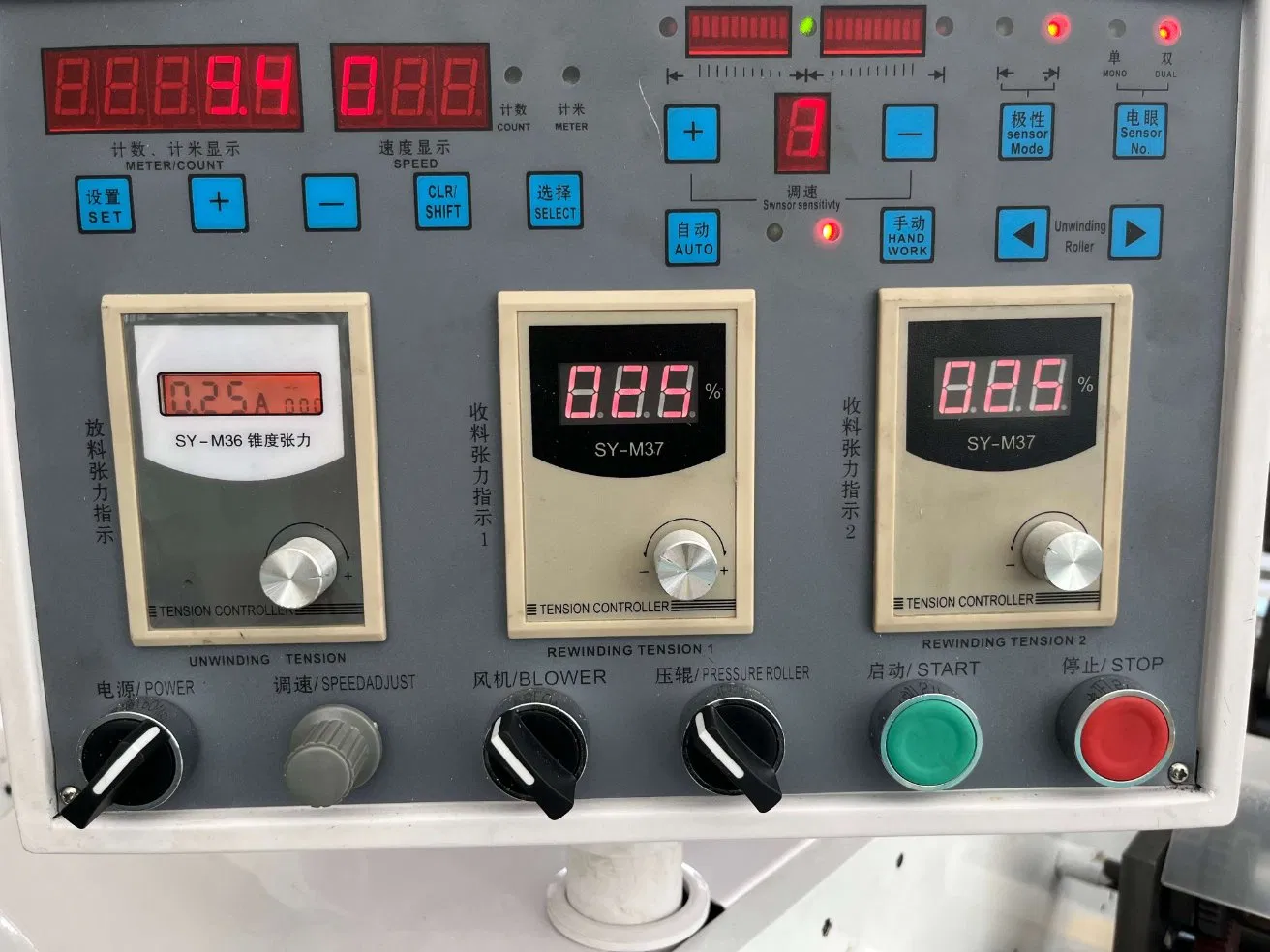

Yes, the machine is computerized and fully automatic, featuring high-precision register systems and photoelectric eyes for automatic deviation correction.

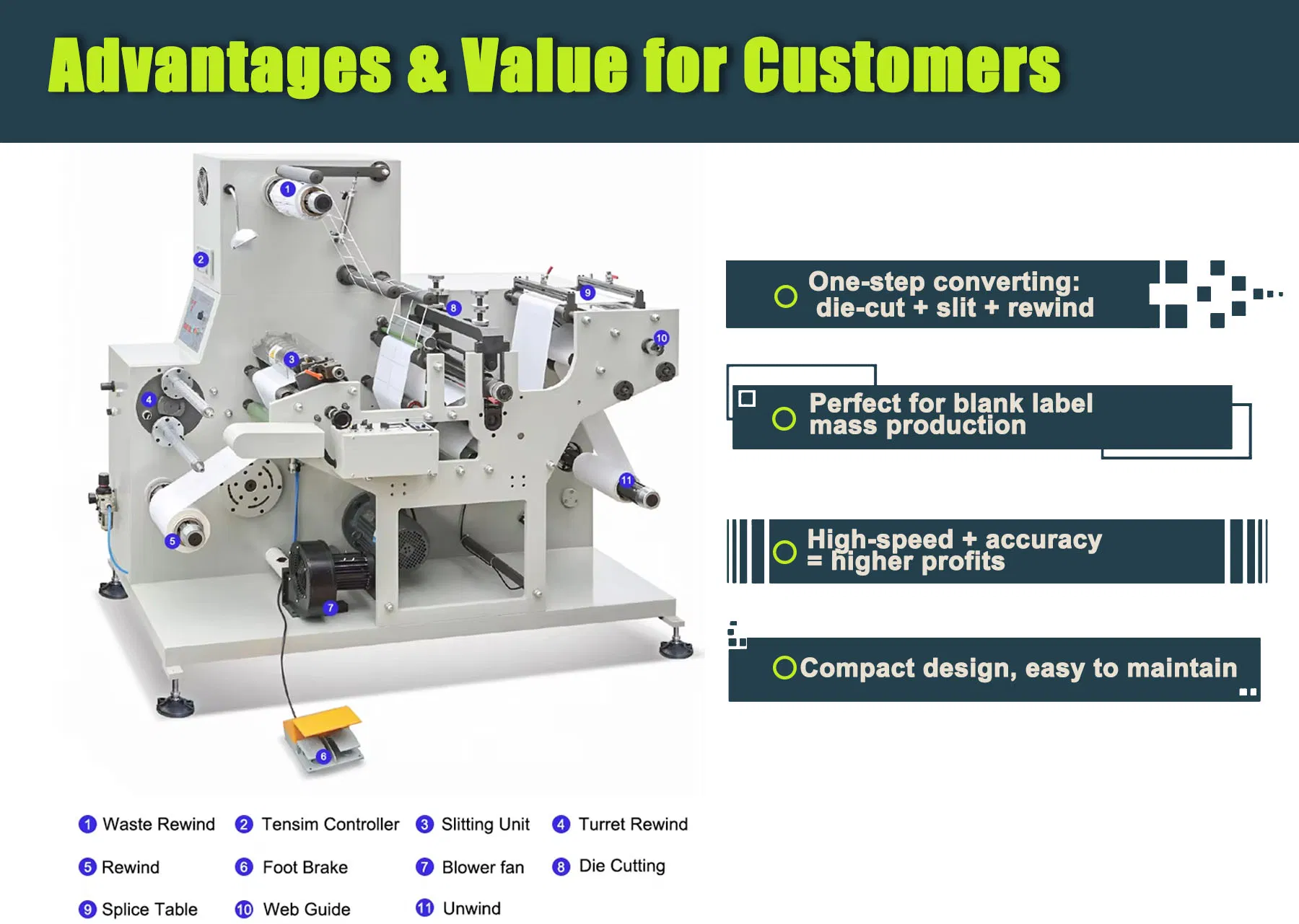

Absolutely. The system integrates web printing, die-cutting, waste discharge, and slitting into a single process for maximum efficiency.
It is widely utilized in the printing, packaging, 3C electronics, leather, clothing, and plastic manufacturing industries due to its precision and versatility.
