Medical Heat Sealing Sterilization Pouch for Packaging Medical Products Mask Surgical Gown Package Pouch Making Machine

Customization:	Available
After-sales Service:	3year
Warranty:	1year

Basic Specifications

Product Line

1

Lines

2

Voltage

380V

Seals Mode

Trilateral Seals

Speed

High

Continuous-Rolled

Yes

Sealing & Cutting

Heat-Sealing Heat-Cutting

Machine Type

Bag Forming Machine

Type

Plastic Bag Making Machine

Max. Diameter of Roll

φ 600mm

Max. Width of Roll

850mm

Max. Production Speed

160PCS/Min

Total Power

35kw

Weight of Machine

4000kg

Overall Dimension

9000*1800*1870mm

Origin

China

Product Description

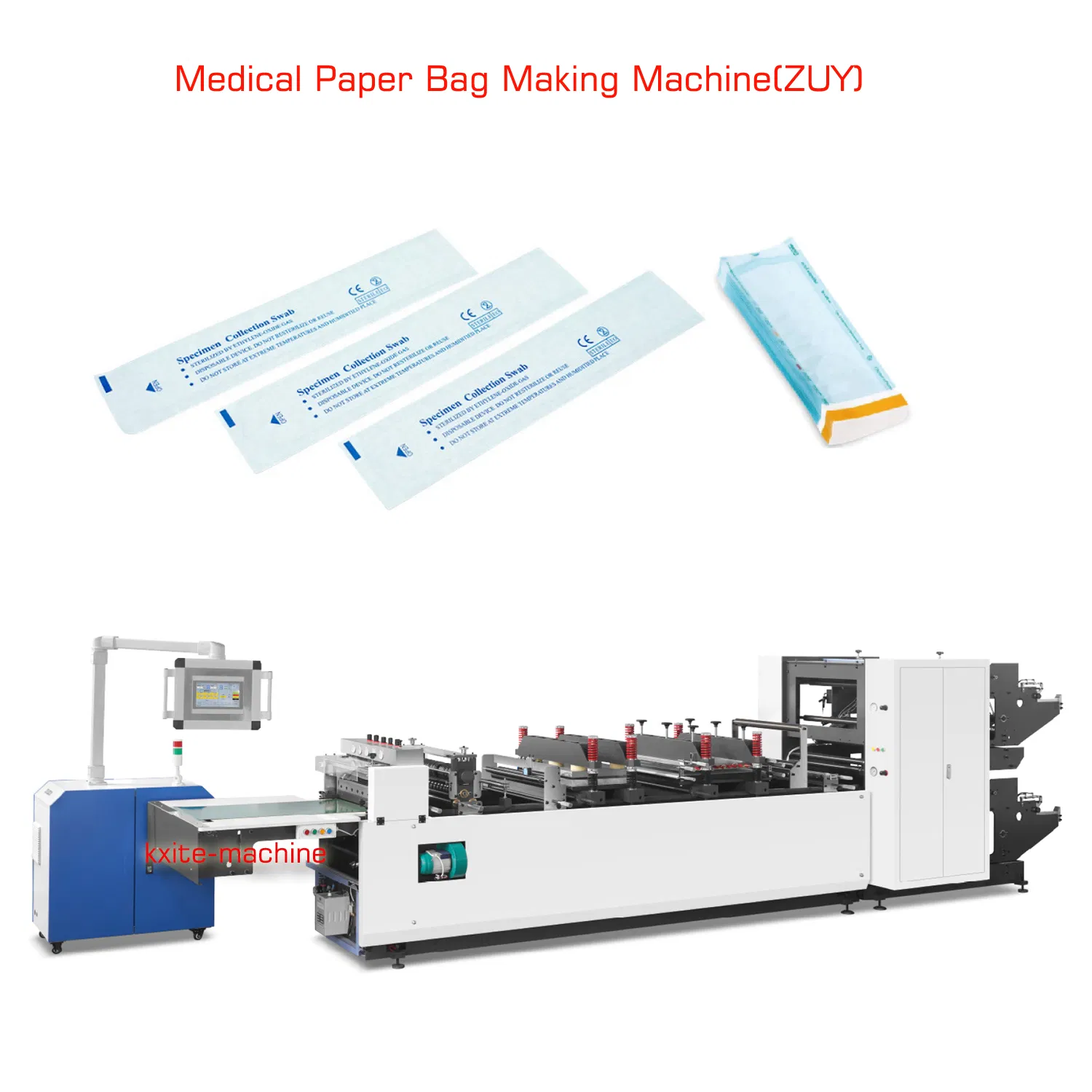

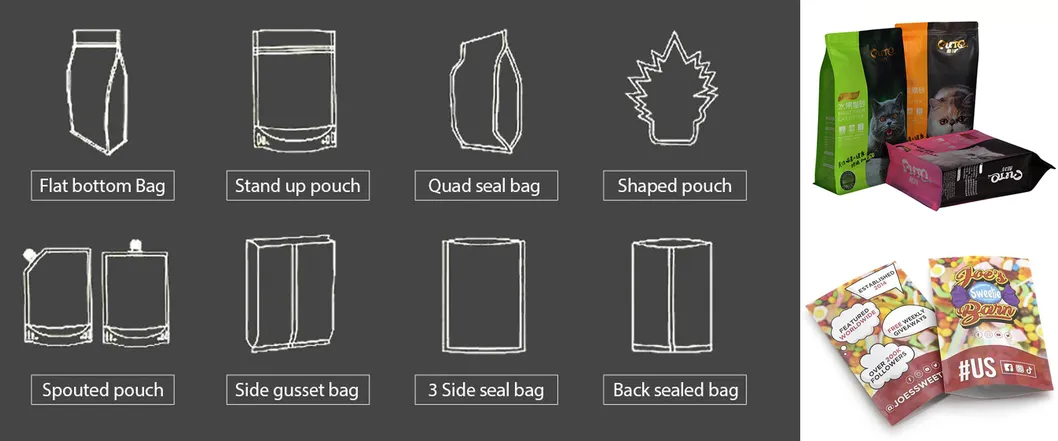

With such characteristics as reasonable structure, easy operation and high automatic, this machine is suitable for producing three side sealing pouch from various plastic, paper-plastic, and paper-paper laminated material.

PERFORMANCE AND CHARACTERISTICS:

Whole machine controlled by central PLC control system with man-machine interface for stable performance.

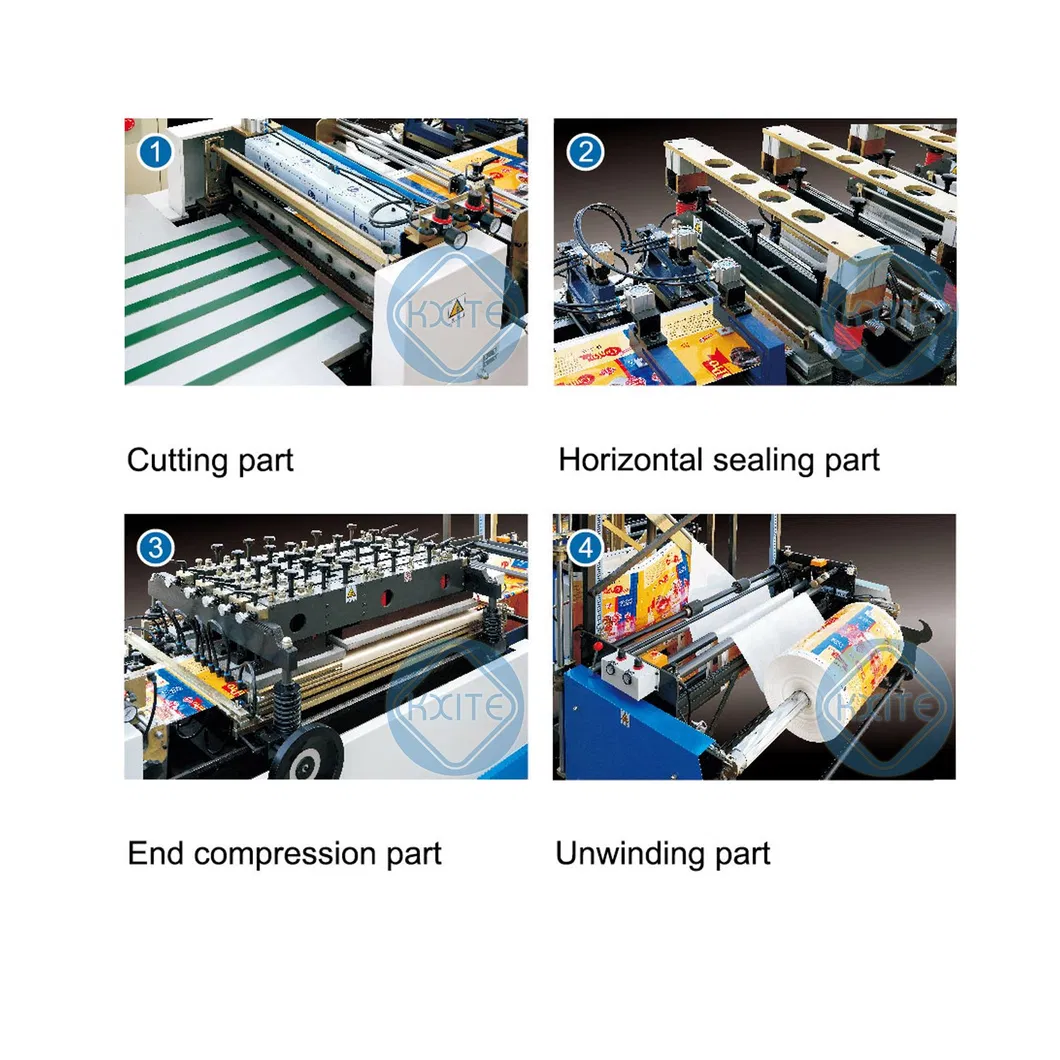

Constant auto-tension control for unwinding and LPC edge alignment.
Imported double servo-motor material dragging control system.
Main motor for up-down sealing and pressing equipped with inverter.
PID for sealing bar temperature adjustment with centralized setting.
Equipped with Pneumatic multi-function auto punching device and static eliminator.
Temperature adjustment range: 0 ~ 300°C.
Advanced counter: quantity, batch accumulation, and pre-set available.
Operation Method: length fixation control and/or photocell tracking control.

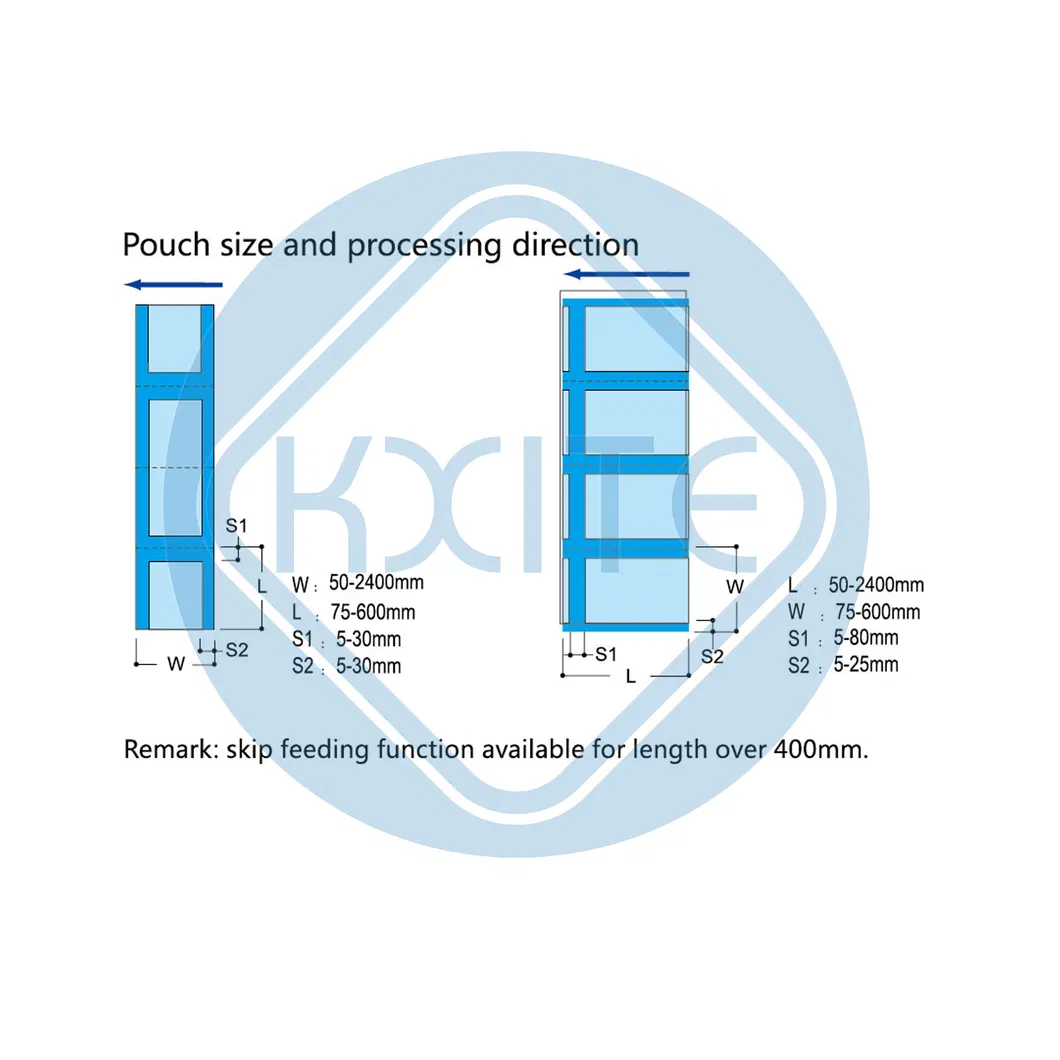

Material Skip Feeding: one to six times available.

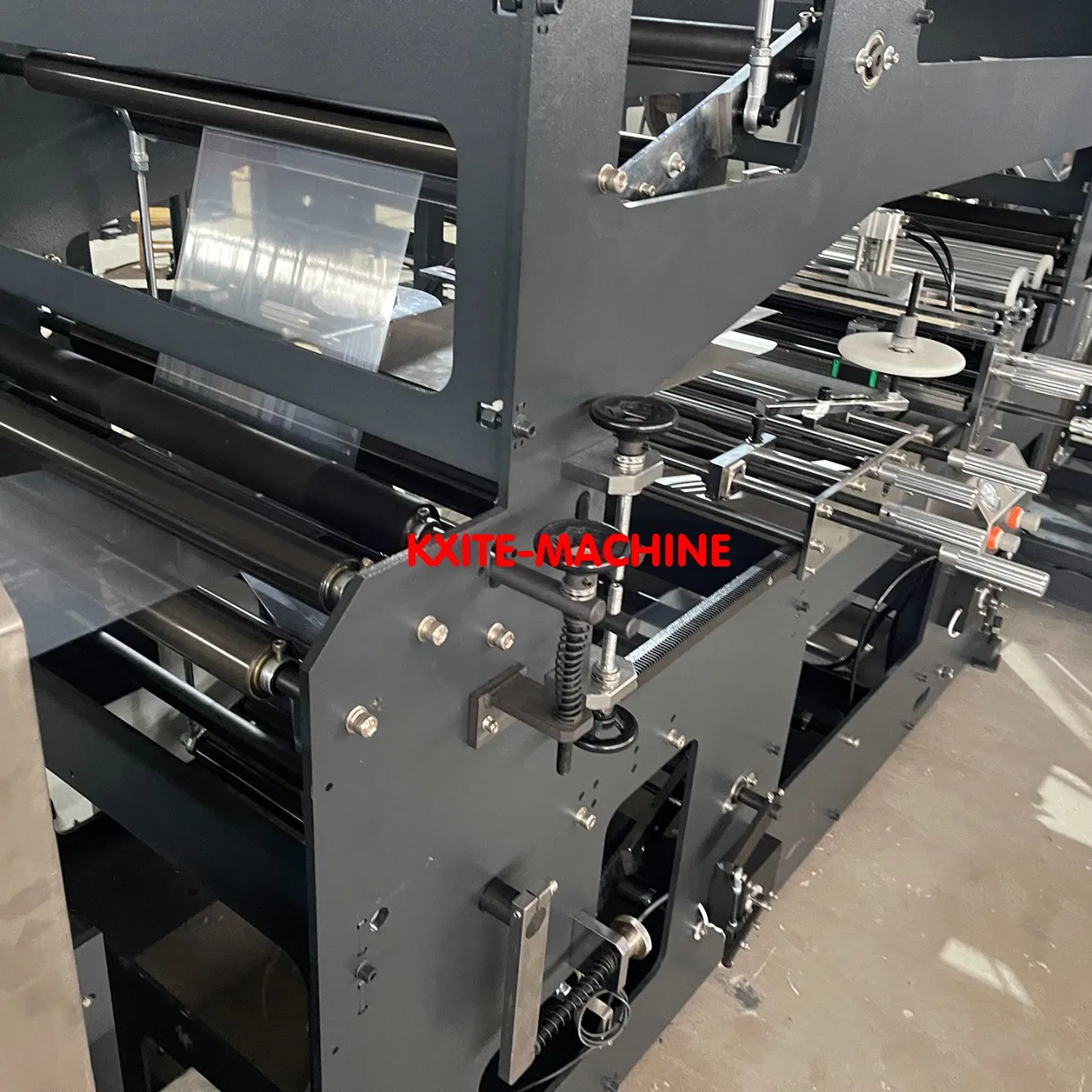

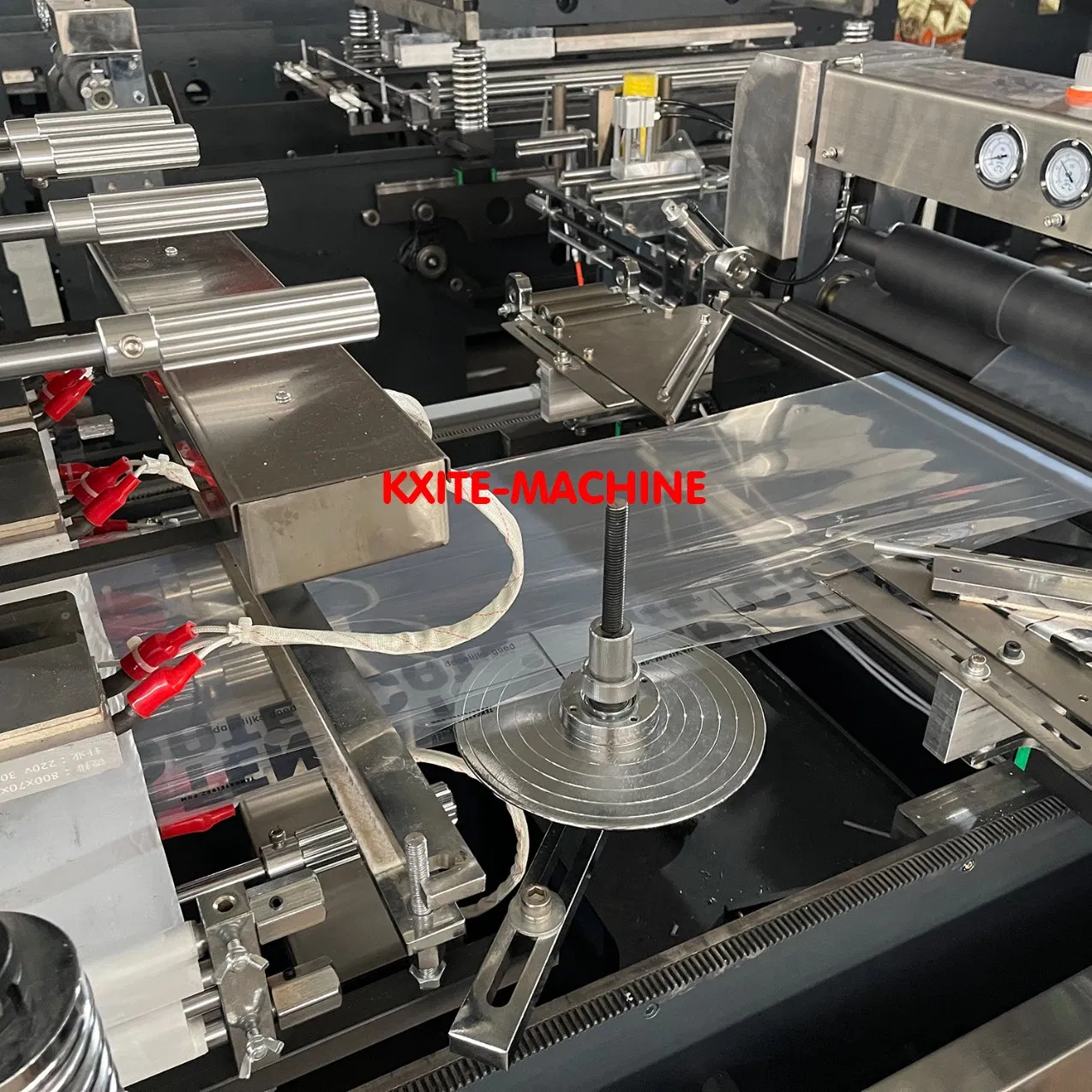

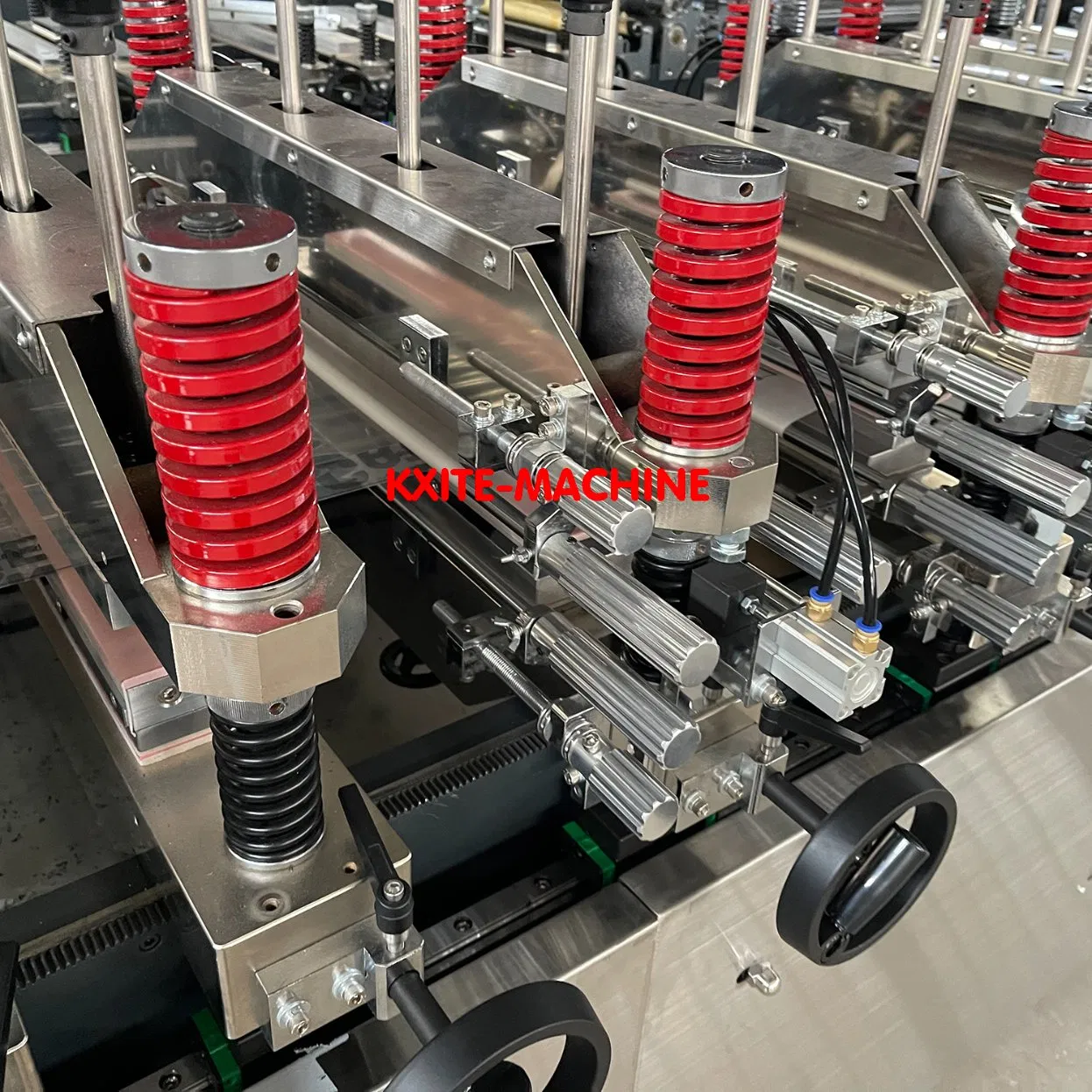

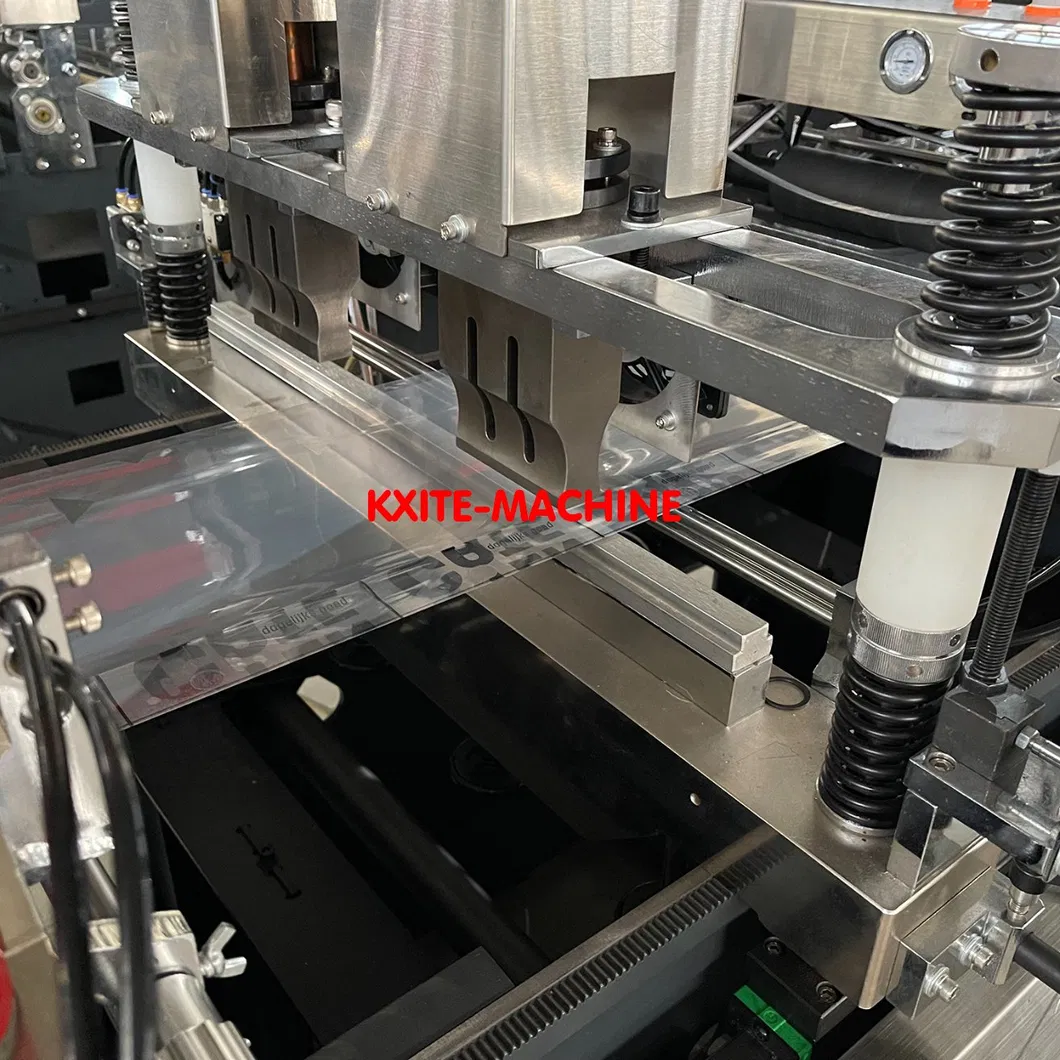

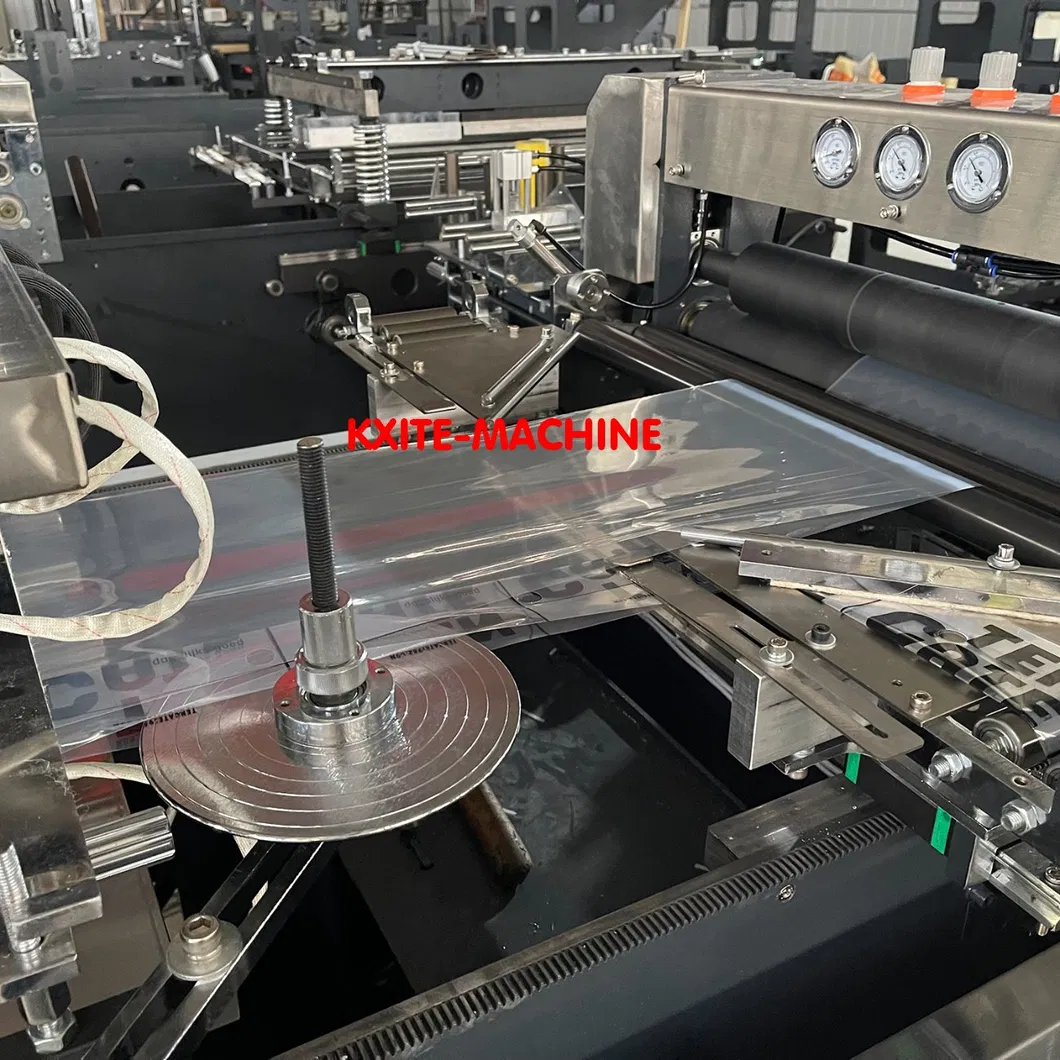

Detailed Photos

Product Parameters

Specifications	Model: Type A	Model: Type B
Max. Diameter of Roll	φ 600mm	φ 600mm
Max. Width of Roll	850mm	1250mm
Max. Speed	160PCS/min	160PCS/min
Max. Mechanical Speed	40m/min	40m/min
Total Power	35Kw	45Kw
Weight of Machine	4000kg	5000kg
Overall Dimension	9000 x 1800 x 1870mm	9000 x 2000 x 1870mm

Note: Real operation speed varies due to pouch shape, material, and size. We reserve the right to supply improved products without advance notice.

Packaging & Shipping

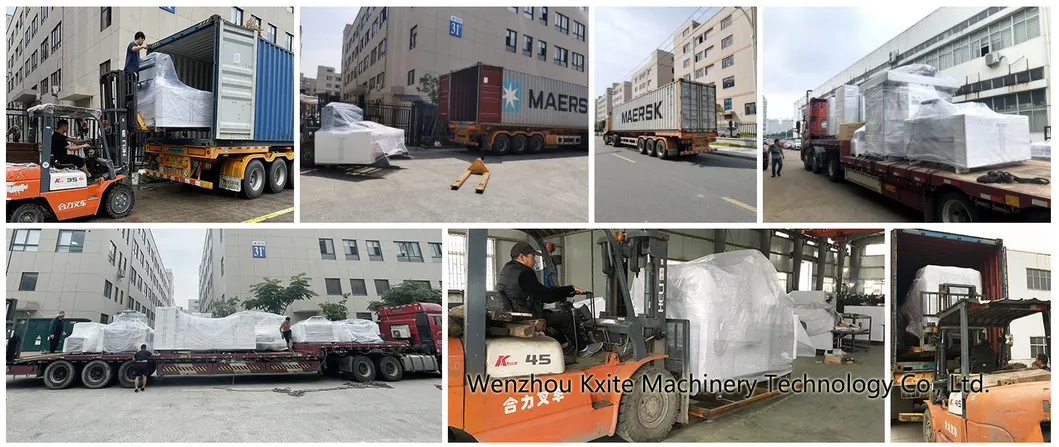

Before shipping, equipment is packed using strict vacuum sealing plus a secure bottom tray (wooden or steel) to ensure safety during transit.

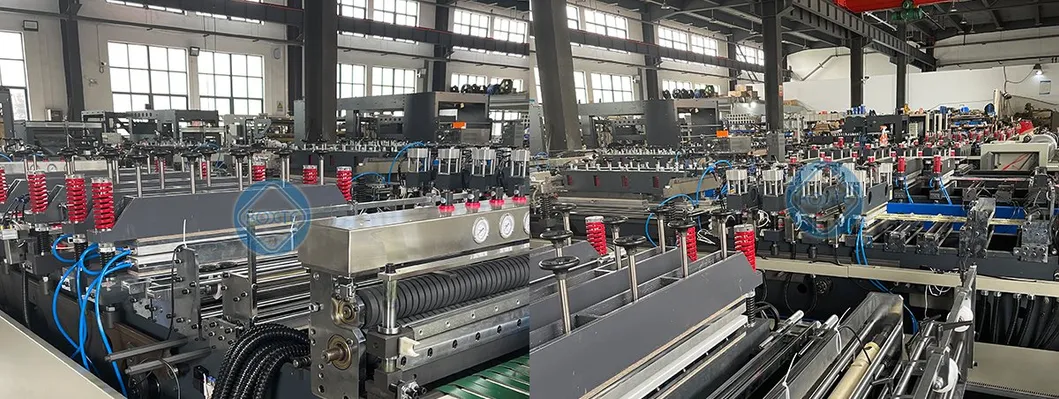

Company Profile

Our facility is committed to the development and production of environmentally friendly bag making equipment. We provide professional technical consultation, installation, commissioning, and training services. As a global manufacturer, we prioritize innovation across R&D, parts procurement, and quality inspection to meet diverse customer needs.

Frequently Asked Questions

How do you provide technical guidance?

For customers requiring non-standard equipment, our technical team communicates specific requirements to evaluate feasibility and production costs, providing tailored solutions.

What is the standard delivery time?

Standard machines are generally delivered within 60 working days after deposit. Non-standard or customized machines typically require about 90 working days.

How is product quality tested?

We employ a strict inspection process, including internal component checks, external quality audits, and full machine testing to ensure all technical production requirements are met.

What is the warranty period for the machinery?

The product warranty period is one year. We also provide lifetime maintenance services, including spare parts supply and remote technical assistance.

How do you handle maintenance and support?

We provide regular contact regarding machine maintenance. For technical issues, our after-sales department responds within 24 hours to coordinate repairs or dispatch personnel if needed.

What are the common payment terms?

Typically, a 30% advance payment is required after signing the contract, with the remaining balance due before delivery after the factory accepts the final machine build.
