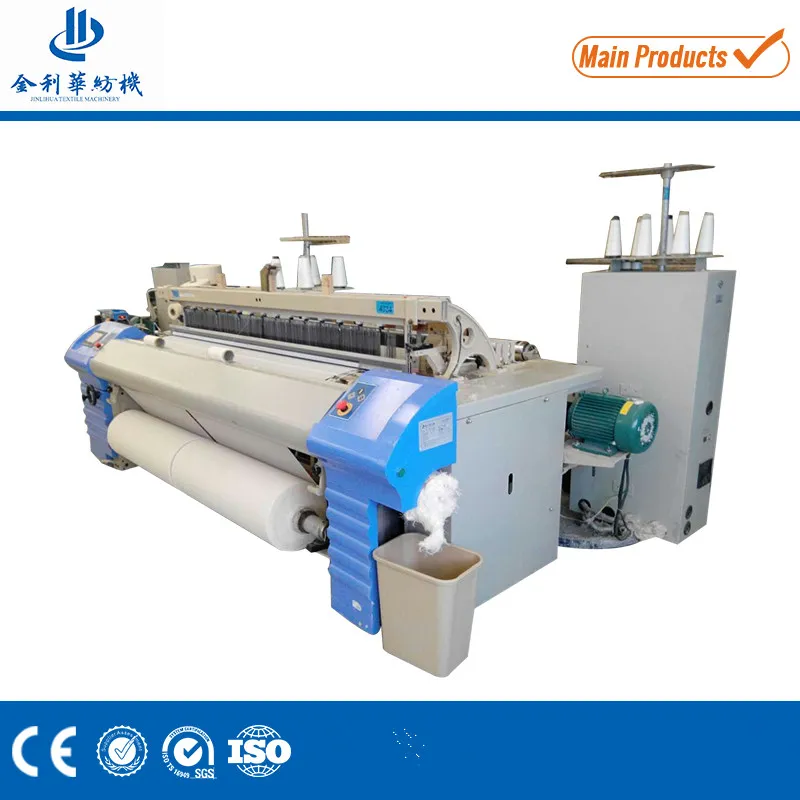

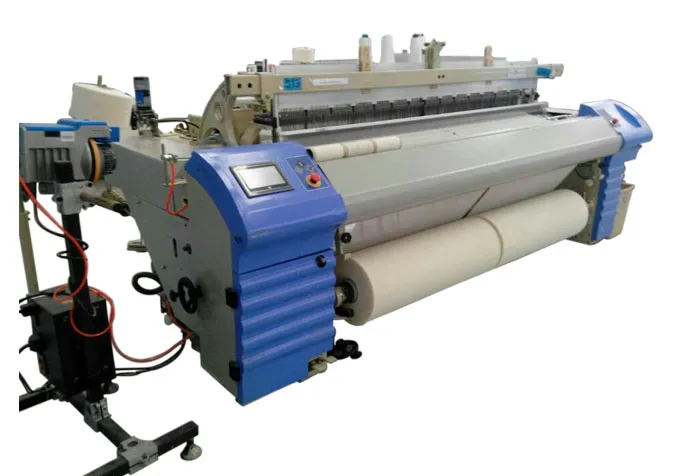

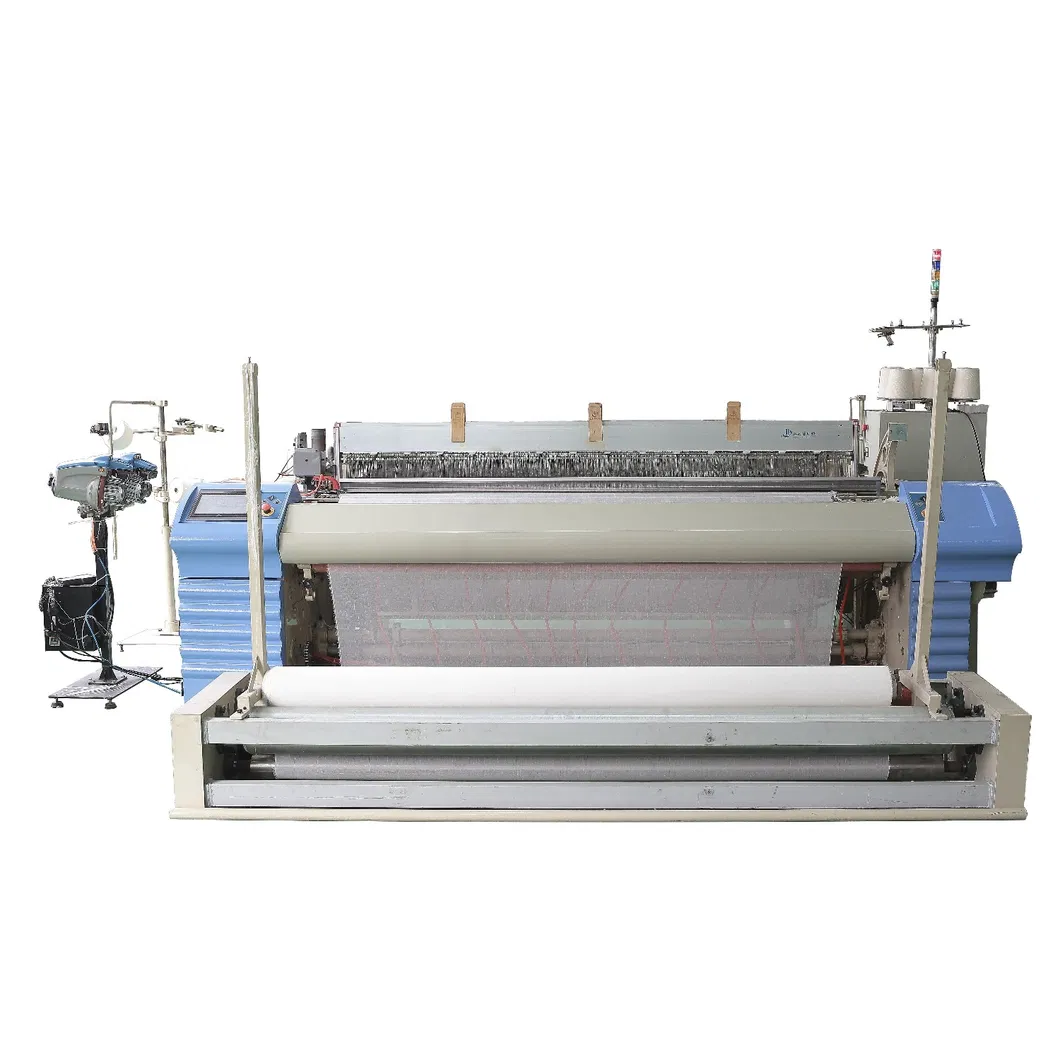

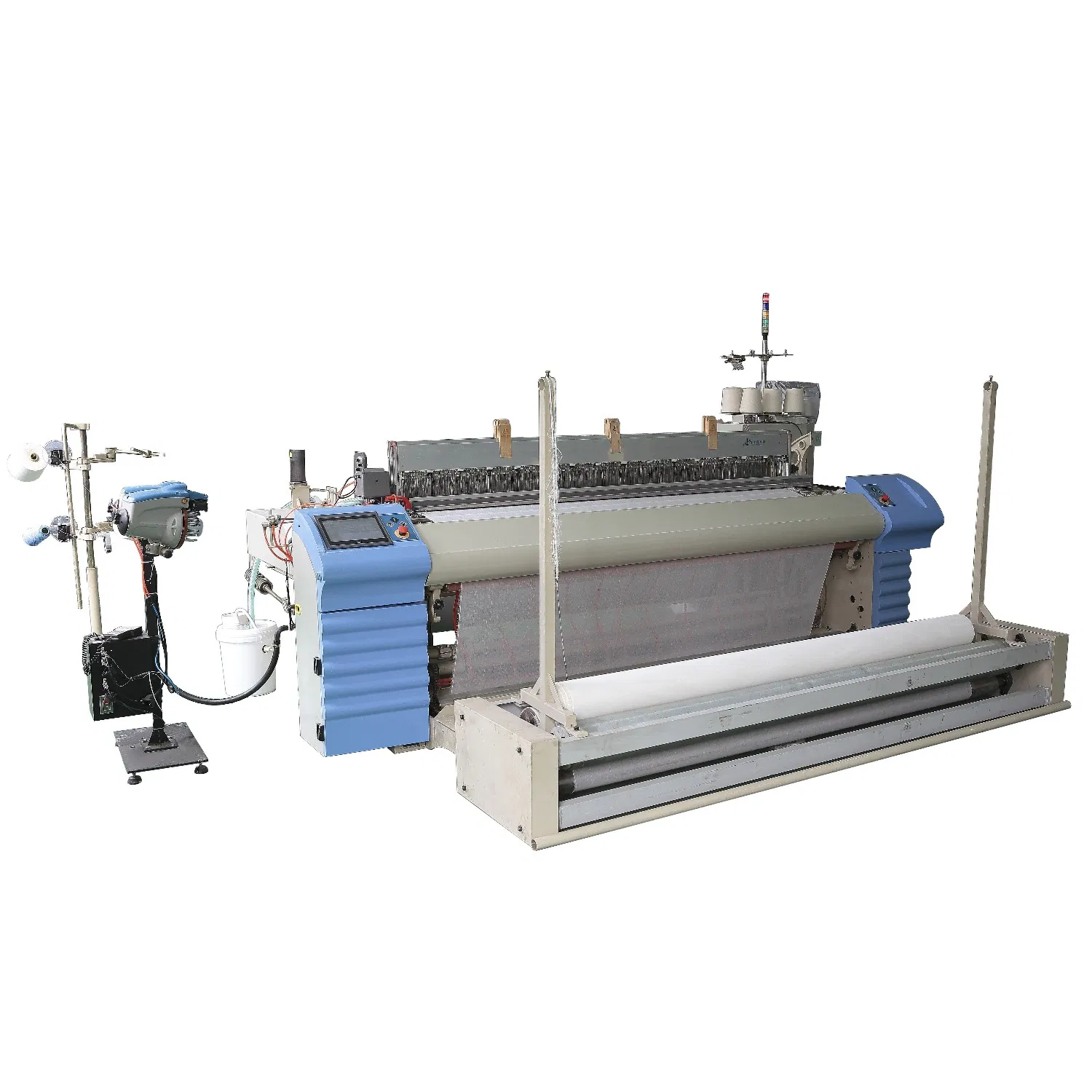

JLH425 medical gauze weaving machine is designed specially for making medical gauze bandage fabric, optimized for the later process of making bandage rolls and bandage slices. It is the leading choice for the medical gauze industry with low power cost and high output.

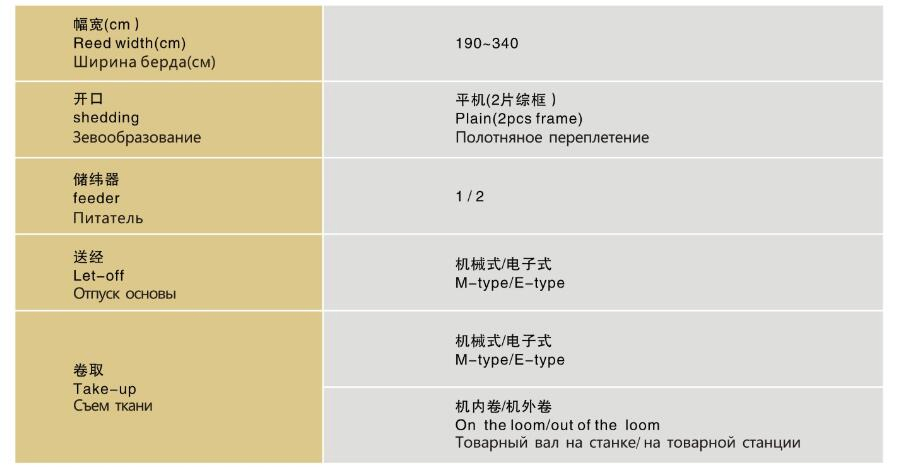

| Specification | Details |
|---|---|
| Reed Width | 190cm, 210cm, 230cm, 260cm, 280cm, 320cm, 340cm, 360cm |
| Feeder | Electronic feeder |
| Nozzle | Single nozzle, double nozzle |
| Shedding | Plain |
| Frame | 2pcs / 4pcs |
| Let-off / Take-up | Mechanical or Electronic Type |
| Edge Type | Selvage edge / Tuck-in selvage (closed edge) |
| Gauze Fabric Type | Cotton Yarn Count (S) | Density (PPI) | Width (Inch) | Production (m/day) |
|---|---|---|---|---|
| 40 x 40 | 26x18 | 36"-134" | 730 - 1200 | One/Two Lane |
| 40 x 40 | 16x14 | 36"-134" | 940 - 1530 | One/Two Lane |
| 32 x 32 | 31x21 | 36"-134" | 620 - 1020 | One/Two Lane |
| 10 x 10 | 40x20 | 36"-108" | 650 - 900 | One/Two Lane |
Established in 1973, we are a dedicated manufacturer and exporter of air jet looms and medical gauze production lines. Our vision is centered on Win-Win cooperation and collective development.
