Product Description

Basic Information
Model NO.
ALT-DJ2500
Automatic Grade
Automatic
Certification
CE, ISO9001: 2000
Customized
Customized
Condition
New
After-sales Service
1 Year
Machine Length
25000mm
Power
50kw
Trademark
ALT
Production Capacity
20m/Min
Product Description

Medical Nonwoven Adhesive Tape Drape Making and Folding Machine with Superior Adhesion and Durability

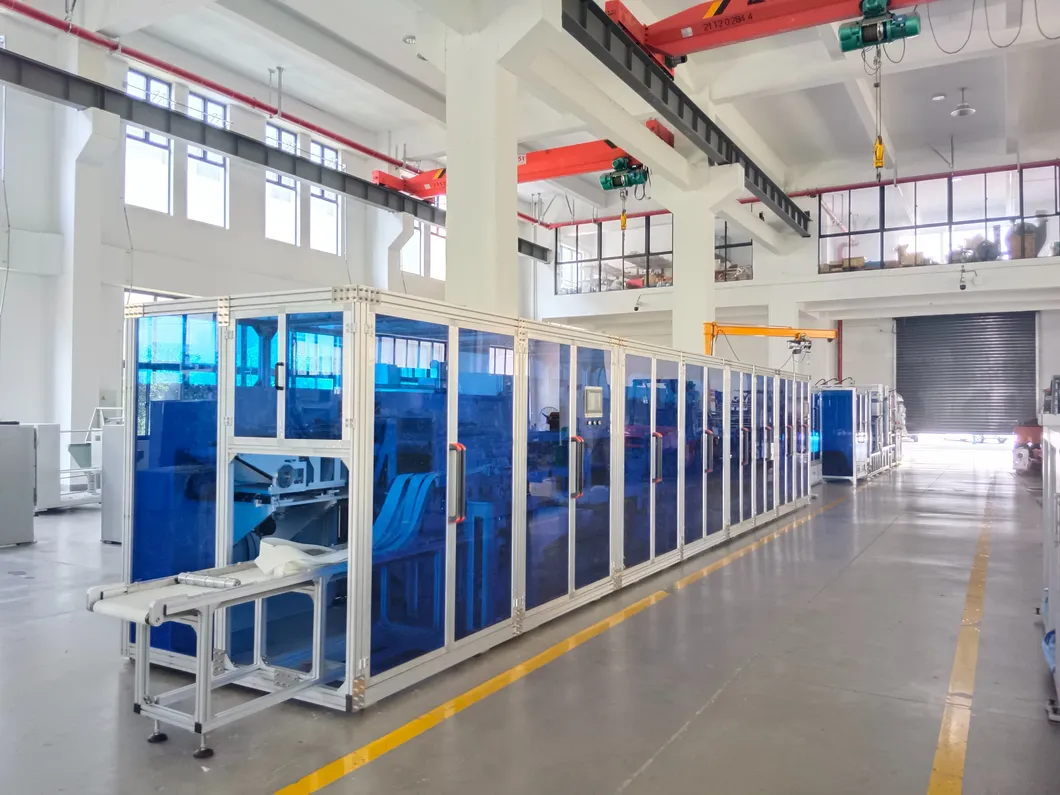

Medical Drape Making Machine 1

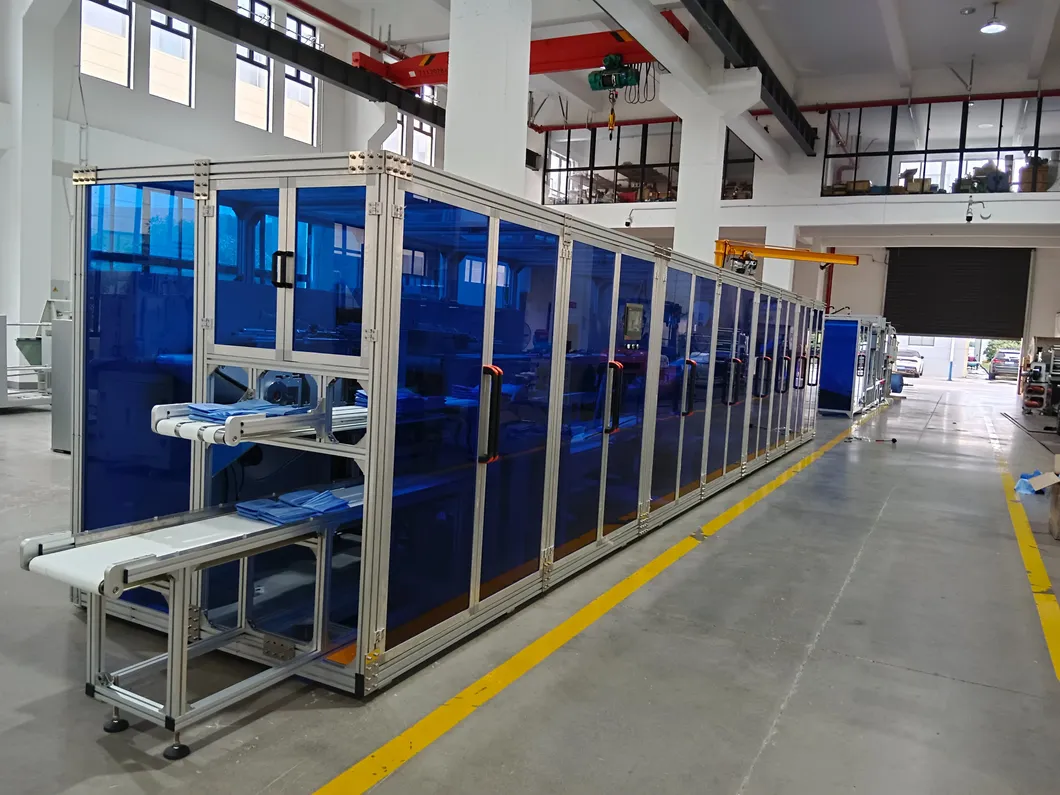

Medical Drape Making Machine 2
📏
Material Width: ≤2000mm
✂️
Cutting Length: 1000-2000mm
🔄
Folding Method: Vertical & Horizontal (Ω Shape)
⭕
Nonwoven Diameter: ≤1100mm
Medical Drape Making Machine 3

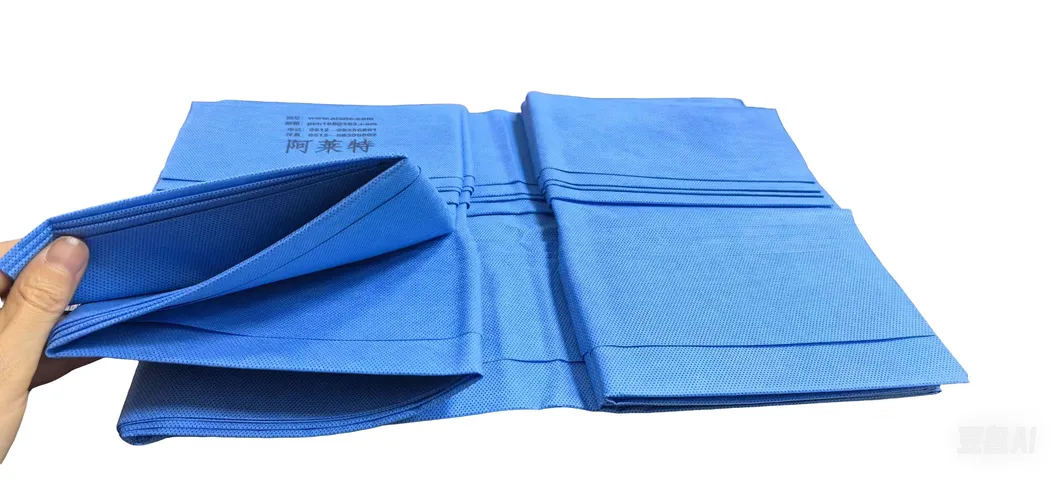

Medical Drape Making Machine 4
Technical Parameters
Power Supply Voltage380V 50HZ
Total Power50 KW
Production Speed0-30 meters per minute
Overall Dimensions25000 * 3000 * 2350mm
Total Weight18000kg
Main Configuration
Servo Motors
23 Sets (Delta)
Servo Reducer
23 Sets (Newstar/Yingkelun)
Motion Controller
Delta System
Touch Screen
Delta Interface
Glue Machine
1 Professional Set
Electrical Appliances
Delixi Brand
Inkjet Printer
1 Set Included
Static Eliminator
2 Units Installed
Safety Cover
201 Stainless Steel
Rack Structure
Channel Steel Welding
Frequently Asked Questions
What is the maximum production speed of the ALT-DJ2500?
The machine operates at a high efficiency with a speed range of 0 to 30 meters per minute, with a standard production capacity of 20m/min.
Which certifications does this medical nonwoven machine hold?
The machine is fully compliant with international standards, holding both CE and ISO9001: 2000 certifications.
What folding methods are supported for the medical drapes?
It supports both vertical and horizontal folding using the "Ω" (Omega) folding method to ensure medical-grade precision.
What are the power and voltage requirements?
The machine requires a 380V 50HZ power supply and has a total power consumption of 50 KW.
What key components are used in the machine's configuration?
The machine features 23 Delta servo motors, Delta motion controllers, and touch screens, along with Delixi electrical appliances for high reliability.
What kind of after-sales support is provided?
We provide a 1-year after-sales service period to ensure the smooth operation and maintenance of the equipment.
