Disposable Medical IV Catheter Fixation Dressing Manufacturing Machine

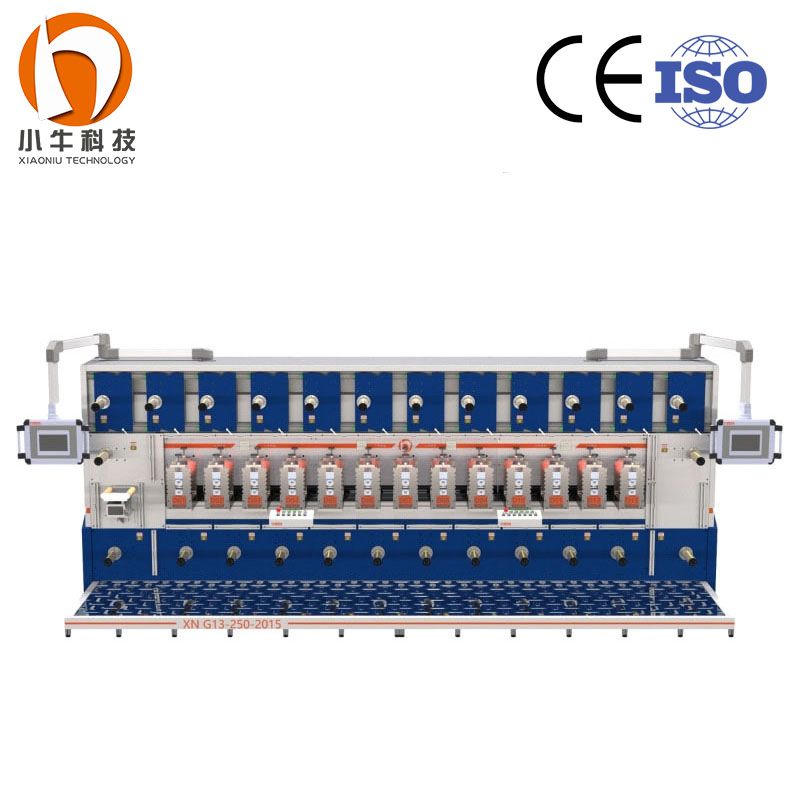

This equipment is a 13-station rotary die-cutting machine. Each station and feed shaft are driven by a servo motor, operating as independent individuals or a synchronized system. It is suitable for various pressing, die cutting, and transfer production needs, incorporating functions such as synchronous/asynchronous movement, constant tension, and intelligent automation.

Basic Specifications

Model NO.

XN13

Species

Rotary Die-Cutting Machine

Automatic Grade

Automatic

Cutting Precision

±0.1mm

PLC

Omron

Drive Motor

Servo

Power

32.5kw

Productivity

High Productivity

Applications & Functions

Industry Usage

Medical Consumables: IV dressings, catheter securement, etc.
3C Electronics: Dust-proof and EMI shielding materials.
Automotive Electronics: High-precision components.
New Energy: Advanced flexible substrate processing.

Core Functions

Automatic Target Tracking, Dual System Operation, Material Breaking Alarm, Constant Tension Control, and System Failure Monitoring.

Technical Advantages

High Efficiency: Continuous roll cutting at 5-60m/min.
Stable Precision: Consistent ±0.1mm precision processing.
Multi-station Design: Integrated multi-process compounding.
Material Adaptability: Suitable for all flexible substrates.
Intelligent Control: Full-auto operation with smart tension and deviation control.
Power-off Memory: Smart adjustment and asynchronous processing memory.

Product Gallery

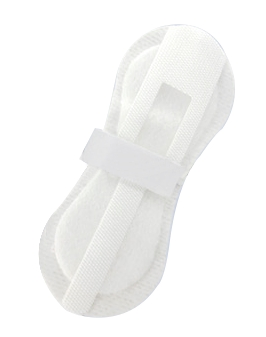

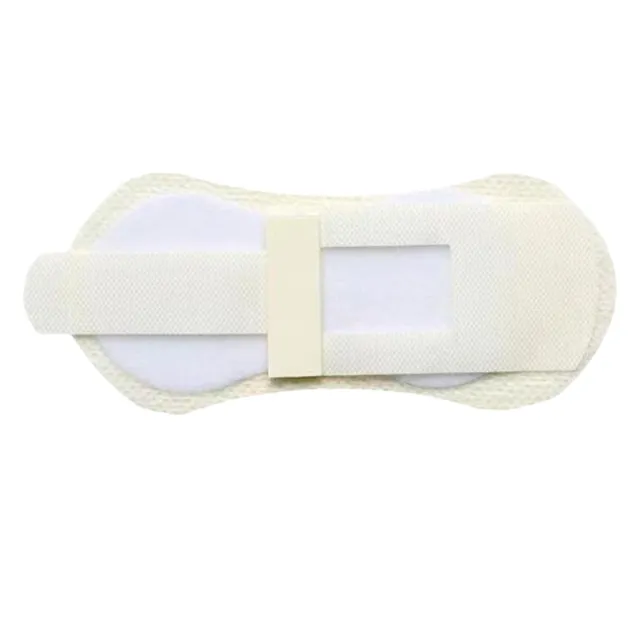

Catheter fixation dressings

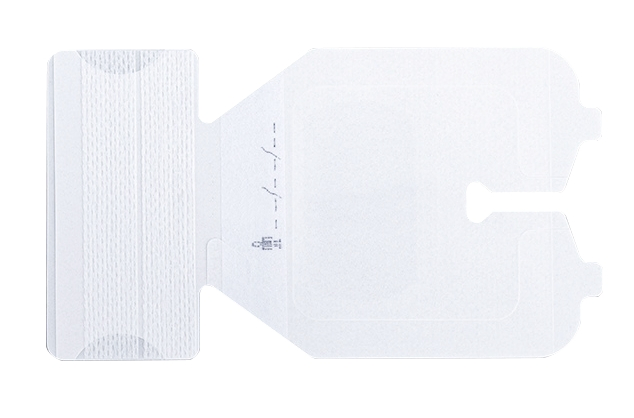

I.V. dressing

Acne patches

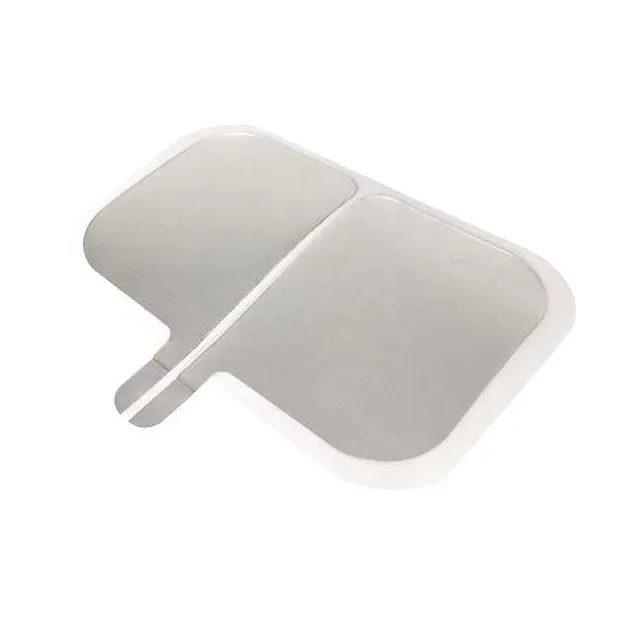

ESU pads

Infusion dressing

Hydrocolloid dressing

Technical Specifications

Power (KW)	32.5kw
Working Voltage (V)	AC380 (Customizable)
Feeding Width (mm)	250mm or 350mm
Max. Diameter (mm)	400mm
Die Cutting Precision (mm)	±0.1mm
Max Speed	60m/min

Machine Details & Components

Equipment Delivery

About the Technology

We are a professional manufacturer of multi-station die-cutting machines, specializing in high-precision equipment such as rotary die-cutting machines and high-speed medical dressing machines for over 15 years. As an integrated solution provider, we hold dozens of national patents and CE certification, ensuring accurate and professional automated production lines for global clients.

Service & Support

Standard Warranty: 1 year comprehensive coverage.
Global Support: 24/7 technical assistance and prompt spare parts supply.
Training: On-site or remote operation and maintenance training.
Customization: R&D team can customize machines according to specific requirements.
Engineers: Professional engineers dispatched for debugging and training.

Frequently Asked Questions (FAQ)

1. What materials can this rotary die-cutting machine process? The machine is designed for all flexible substrates, including medical non-wovens, stickers, EMI shielding materials, and foam.

2. How accurate is the cutting process? The machine achieves a high precision of ±0.1mm, ensuring stable and consistent processing for sensitive medical products.

3. Can one machine produce different types of products? Yes, the modular design allows for changing die cutters or adding stations. For machines with 8+ stations, a double-system design can even produce two different products simultaneously.

4. What is the typical production speed? The machine supports continuous roll cutting with an efficient speed range of 5 to 60 meters per minute.

5. What kind of control system does the equipment use? It utilizes a high-end OMRON PLC servo control system for intelligent tension and deviation management.

6. Is technical training provided after purchase? Yes, we provide both on-site and remote training for operation and maintenance, along with engineer dispatch for initial debugging.
