Medical Securement IV Catheter Fixation Dressings Rotary Die Cutting Machine

1 / 5

Medical Securement IV Catheter Fixation Dressings Rotary Die Cutting Machine

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

Disposable Medical IV Catheter Fixation Dressing Manufacturing Machine

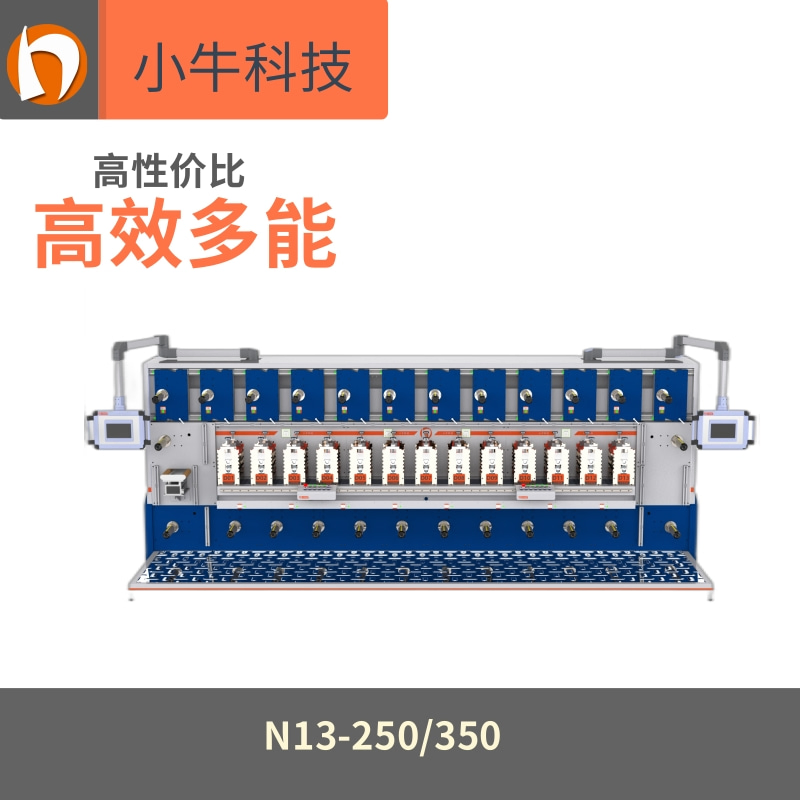

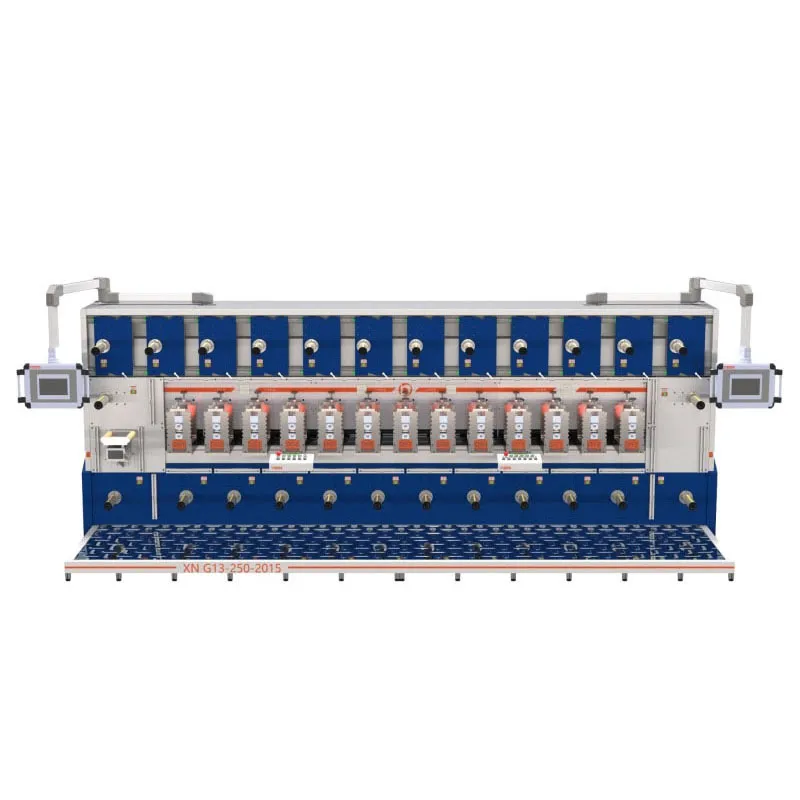

This equipment is a high-performance 13-station rotary die-cutting machine. Each station and feed shaft are driven by independent servo motors, allowing them to function as individual units or work in perfect synchronization. It is designed for high-precision pressing, die cutting, and transfer processes, featuring intelligent tension control and asynchronous processing capabilities.

📊 Basic Specifications

Model NO.

N13-250

Species

Rotary Die-Cutting Machine

Automatic Grade

Automatic / Computerized

Cutting Precision

±0.1 mm

Power

30kw

Feed Width

250mm / 350mm (Customized)

PLC Brand

Omron

Application

Medical Dressings, EMI Shielding, Stickers

⚙️ Key Advantages

✔ High Efficiency: Continuous roll cutting at 5-60m/min.
✔ Precision: Stable ±0.1mm accuracy for consistent processing.
✔ Multi-Station: Integrated compounding of multiple processes in one run.
✔ Intelligence: Smart tension control and power-off memory functions.

🔍 Equipment Details

🩹 Medical Consumables Production

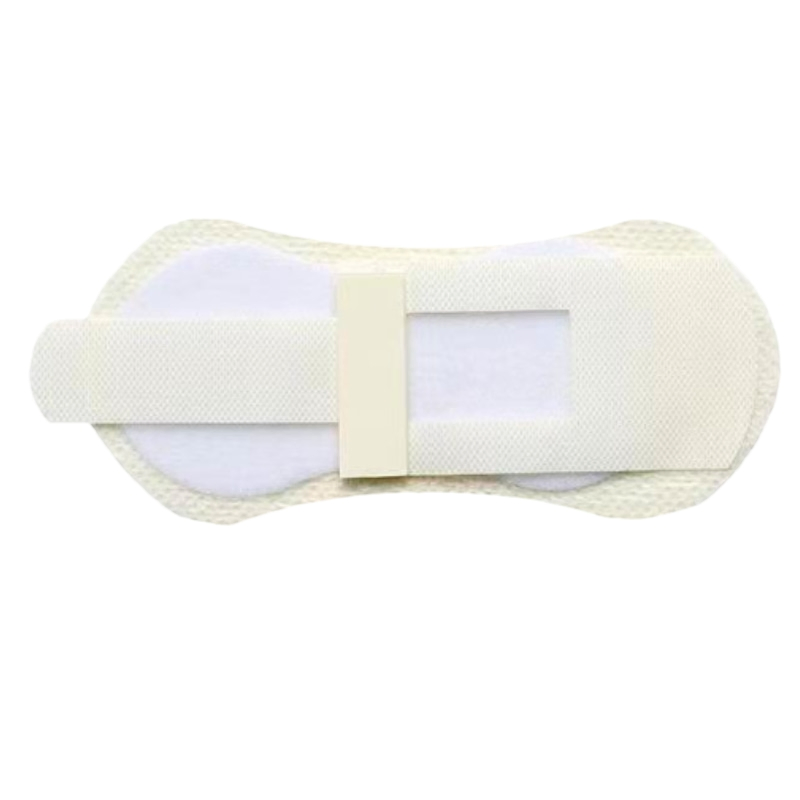

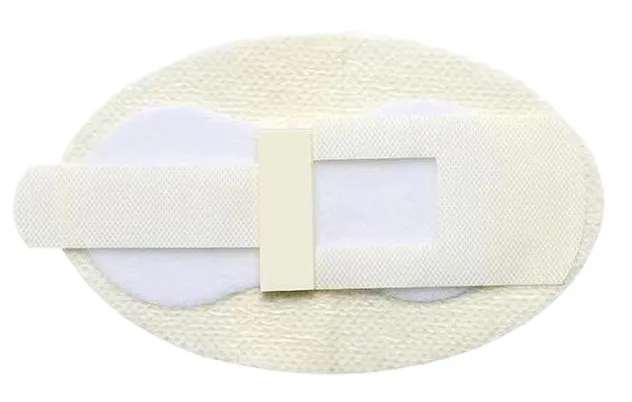

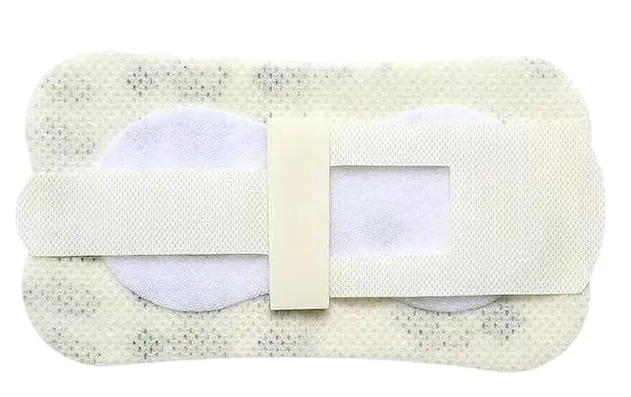

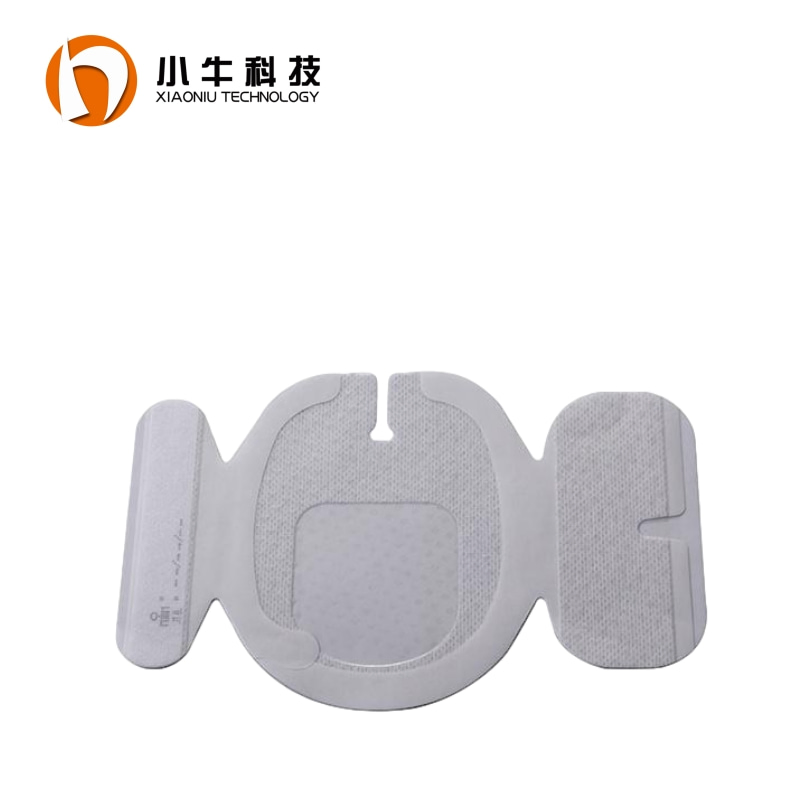

Catheter Fixation

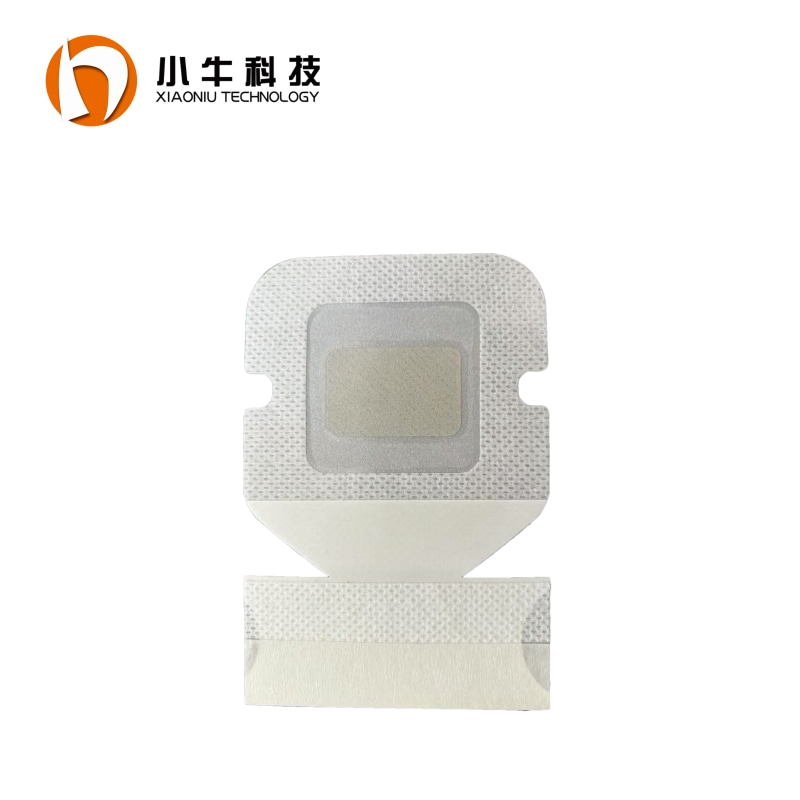

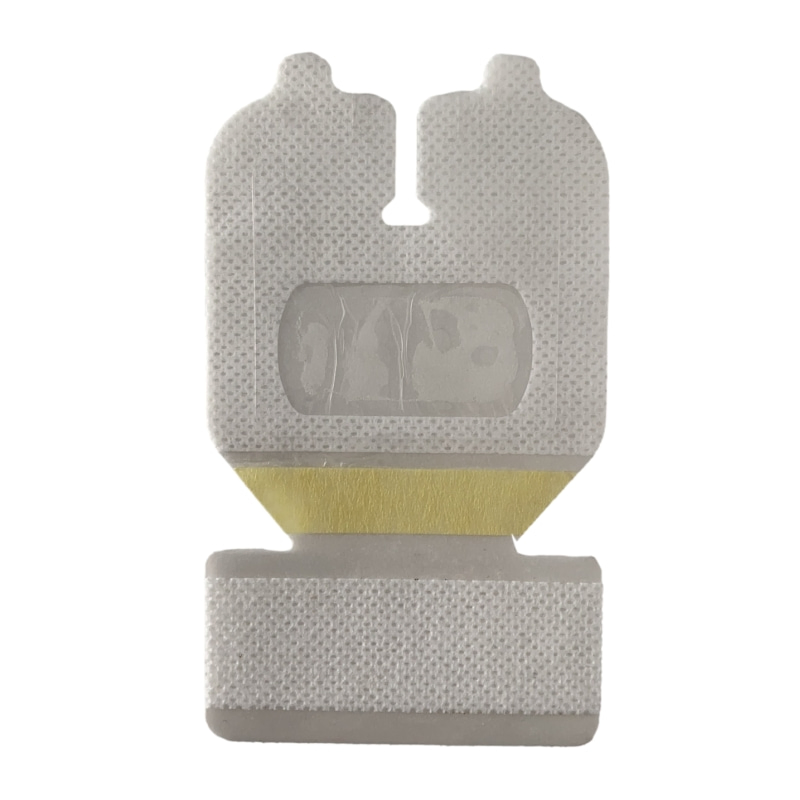

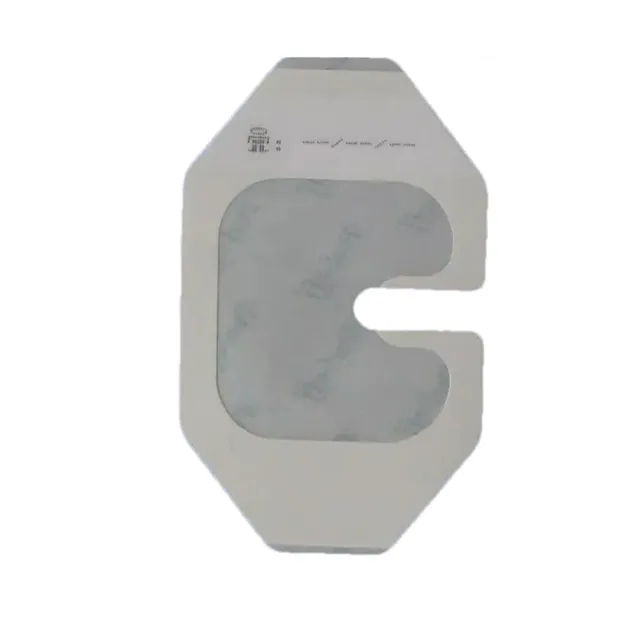

I.V. Dressing

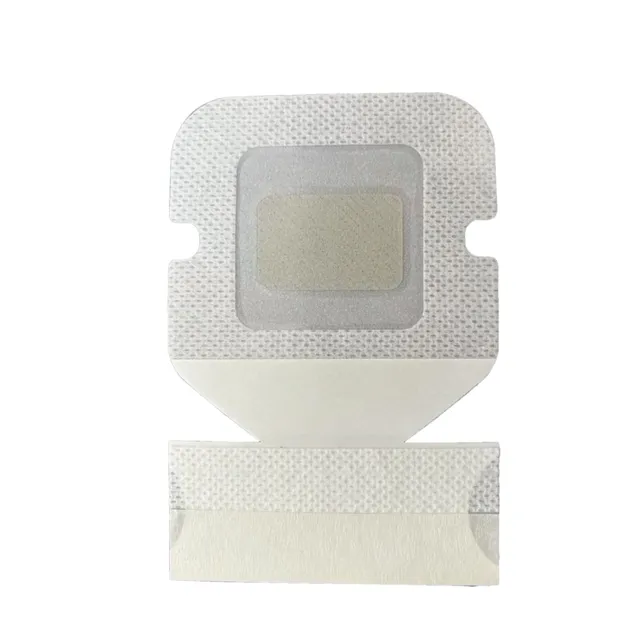

Acne Patches

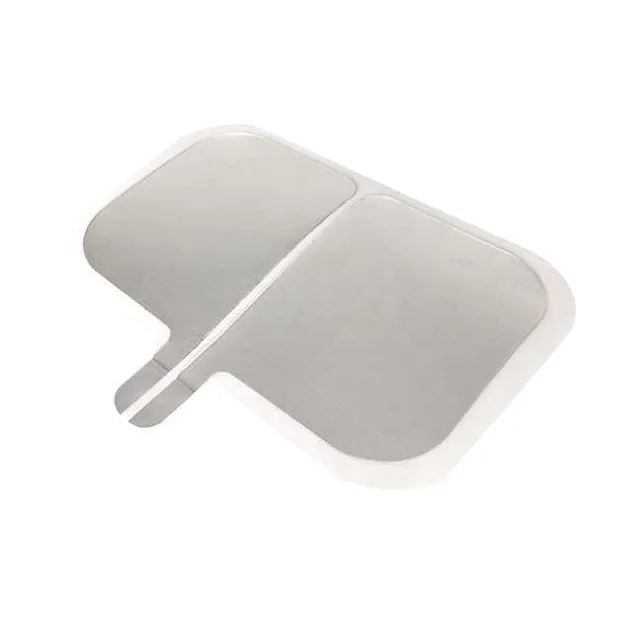

ESU Pads

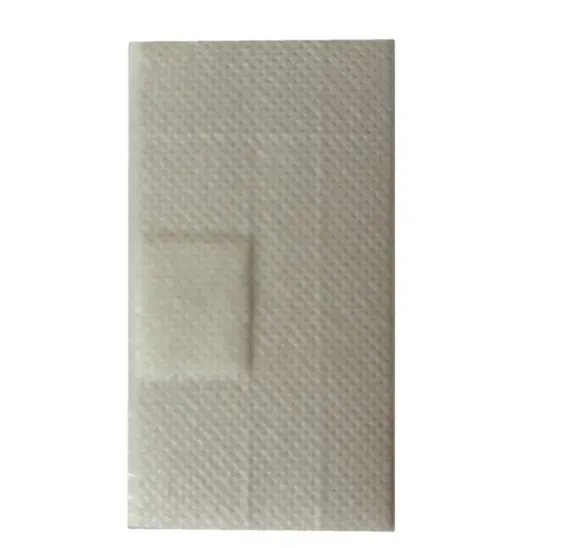

Infusion Dressing

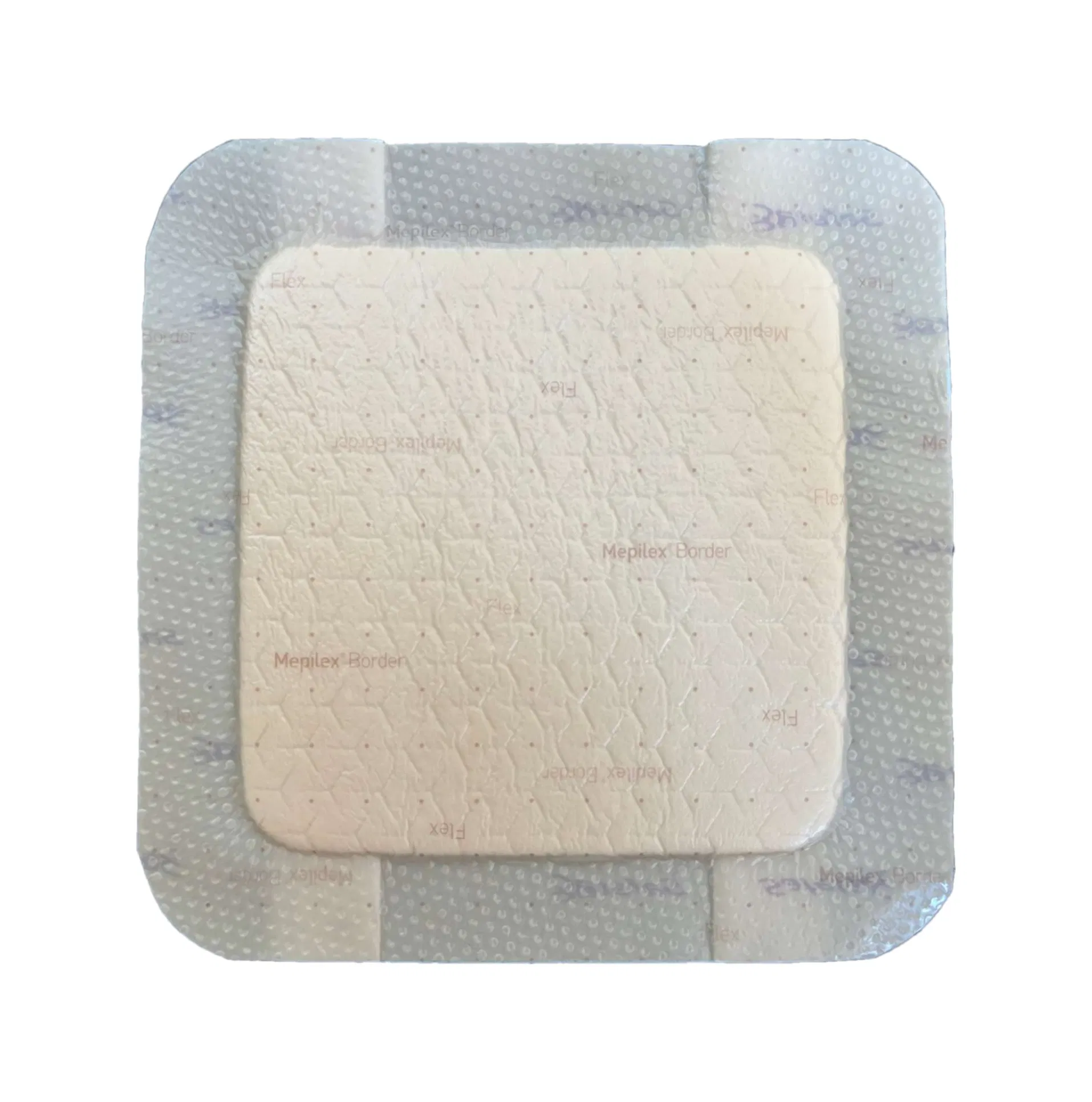

Hydrocolloid Dressing

🧱 Core Components & Electronics

Main Parts

Electronics System

Working Stations

🚚 Packaging & Delivery

📋 Technical Specifications

Power (KW)	30kw
Working Voltage (V)	AC380 (Customized Available)
Feeding Width (mm)	250mm or 350mm
Max. Web Diameter (mm)	400mm
Die Cutting Precision	±0.1 mm
Maximum Speed	60 m/min

🏢 Professional Manufacturing

Our company is a professional manufacturer specializing in multi-station die-cutting machines with over 15 years of industry experience. We provide integrated solutions for automated production lines, including rotary die-cutting and high-speed medical dressing machines. As a certified High-tech Enterprise, we hold dozens of national patents and CE certification.

Frequently Asked Questions

1. What materials can this machine process? The machine is compatible with a wide range of flexible substrates, including medical dressings, foam, transparent films, electrode pads, and 3C electronic shielding materials.

2. How accurate is the die-cutting process? The machine achieves a high precision of ±0.1mm, ensuring stable and consistent processing for sensitive medical and electronic components.

3. Can the machine be customized for specific products? Yes. The modular design allows for adding or removing stations, changing die cutters, and adjusting the feeding width (e.g., 250mm or 350mm) to suit your production requirements.

4. What is the standard production speed? The machine offers high efficiency with a continuous roll cutting speed ranging from 5 to 60 meters per minute.

5. What kind of after-sales service is provided? We offer a 1-year standard warranty, 24/7 global technical assistance, and on-site training for operation and maintenance. Engineers can be dispatched for setup and debugging.

6. Does the machine support multi-process production? Yes, the multi-station design enables integrated multi-process compounding, such as combining die-cutting with printing or packaging in a single automated line.
