Comprehensive Medical Dressing Making Machine for IV Dressings and Catheters

1 / 5

Comprehensive Medical Dressing Making Machine for IV Dressings and Catheters

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

Medical Dressing Adhesive Wound Dressing Packaging Laminating Rotary Die Cutting Machine

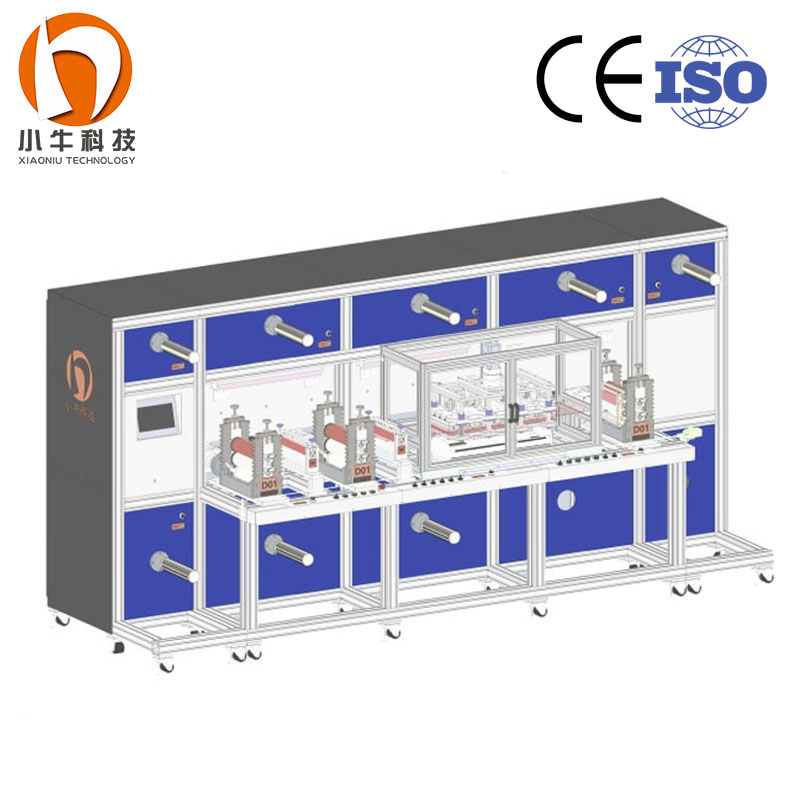

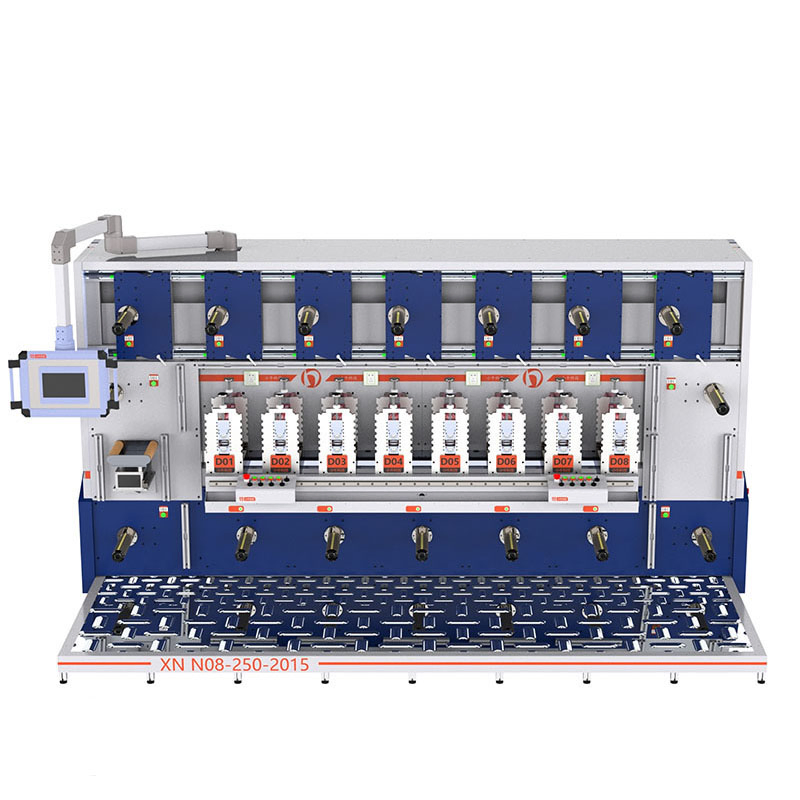

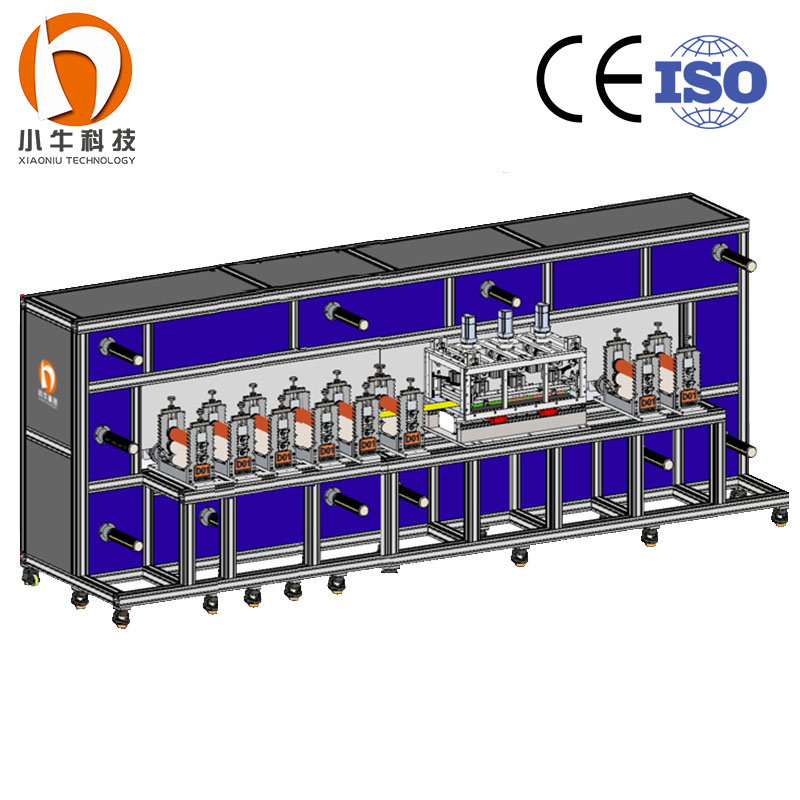

This 8-station rotary die-cutting machine features servo motor-driven stations and feed shafts, enabling independent operation and seamless integration for pressing, die cutting, and transfer. It supports synchronous, asynchronous, speed ratio, and constant tension functions, offering a fully automatic, intelligent solution.

Applications

Rotary die-cutting machines are vital for high-precision, mass production of flexible materials, widely used in:

✓Medical consumables

✓3C electronics

✓Automotive electronics

✓Packaging & printing

✓New energy and daily consumer goods

Main Functions

01Synchronous

02Asynchronous

03Automatic Target Tracking

04Dual System

05Asynchronous Target Tracking

06Count

07System Failure Monitoring

08Material Breaking Alarm

09Constant Tension

Technical Advantages

▶

★Continuous roll cutting at 5-60m/min for high efficiency

★±0.1mm precision ensures stable, consistent processing

★Multi-station design integrates multi-process compounding

★Adapts widely to all flexible substrates

★Fully automatic with intelligent tension & deviation control

★Smart adjustment with asynchronous processing & power-off memory

Finished Products

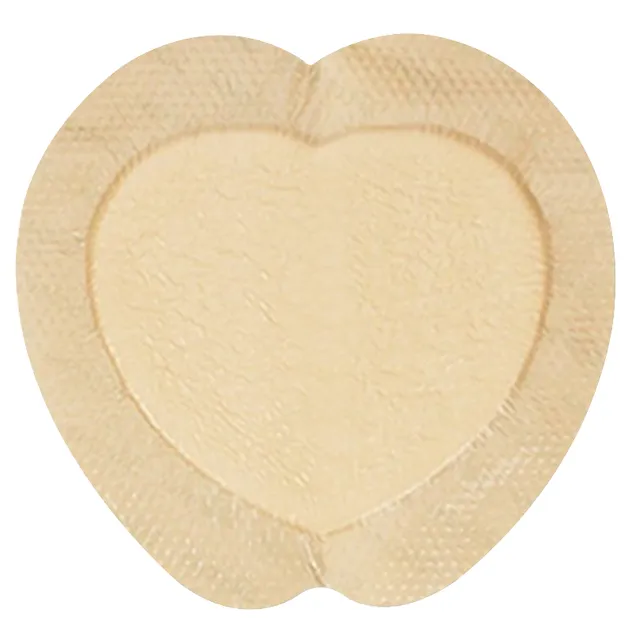

Foam dressings

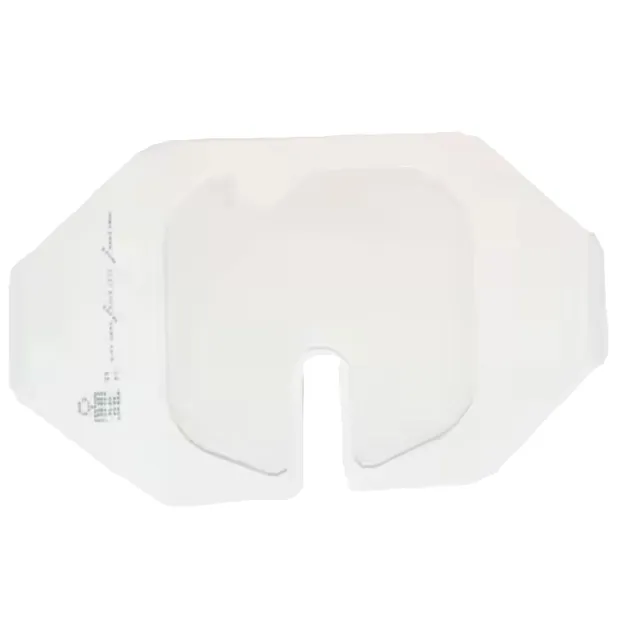

I.V. dressings

Acne patches

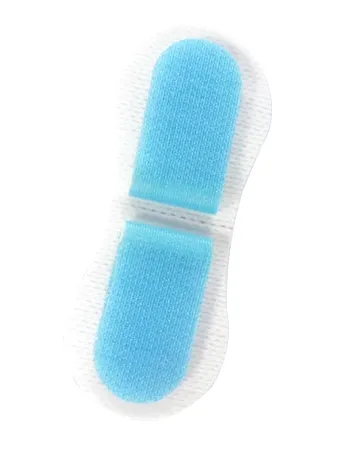

Catheter fixation dressings

Infusion dressings

Hydrocolloid dressings

Technical Specifications

Parameter	Detail
Model NO.	XN8
Species	Rotary Die-Cutting Machine
Power	20kw
Working Voltage	AC380V / Customized
Feeding Width	250mm / 350mm / Customized
Web Max. Dia	400mm
Cutting Precision	±0.1mm
Max Speed	60m/min
Drive Motor	Servo
PLC System	Omron

Key Components & Manufacturing

Main Parts

Electronics

Workstations

Equipment Delivery

After Sales Service

■

Standard Warranty: 1 year.

■

Global Support: 24/7 technical assistance and spare parts supply.

■

Training: Comprehensive on-site or remote operation and maintenance training.

Frequently Asked Questions

1. What materials can this rotary die-cutting machine process?

The machine is designed for various flexible substrates, including medical consumables (dressings, acne patches), 3C electronic components, EMI shielding materials, and adhesive products.

2. What is the cutting precision and speed of the machine?

The machine offers high precision with a tolerance of ±0.1mm. It can operate at adjustable speeds ranging from 5 to 60 meters per minute, depending on the material and process.

3. Can I produce multiple products on a single machine?

Yes. Due to its modular design, you can share one machine for multiple products by adding stations or changing die cutters. Machines with 8+ workstations also feature a dual-system design for simultaneous production.

4. Is the machine easy to adjust for different designs?

The machine uses a PLC servo control system (Omron) and features intelligent adjustment with asynchronous processing and power-off memory, making it highly flexible and easy to reconfigure.

5. What kind of technical support do you provide after purchase?

We provide a one-year warranty, lifelong paid maintenance, and overseas service. Our engineers are available for onsite training, debugging, and 24/7 remote technical assistance.

6. How long is the typical delivery time?

Standard equipment is typically delivered within 20 days after the design approval and configuration confirmation.
