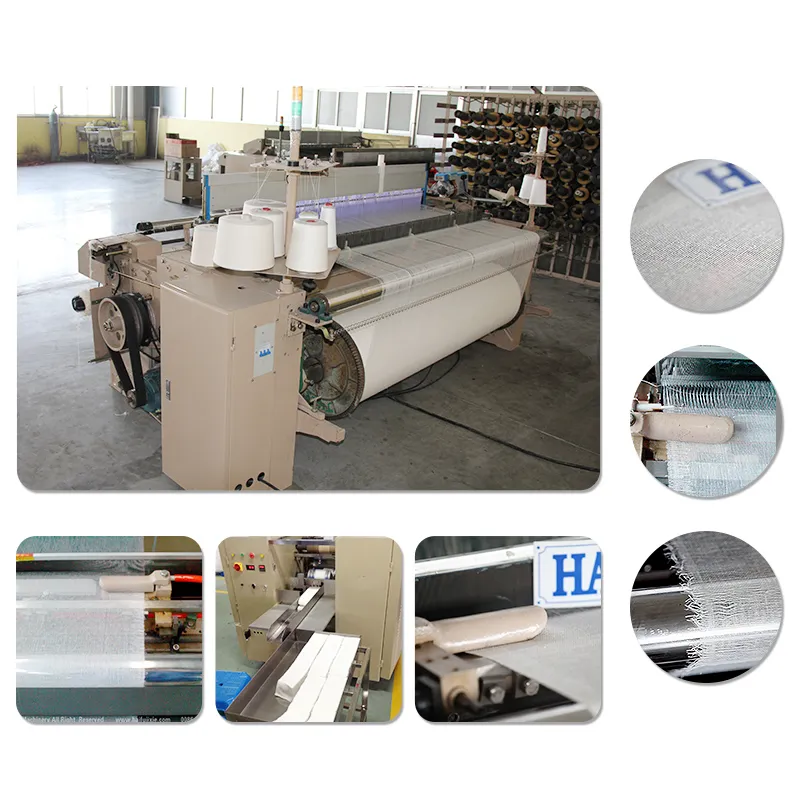

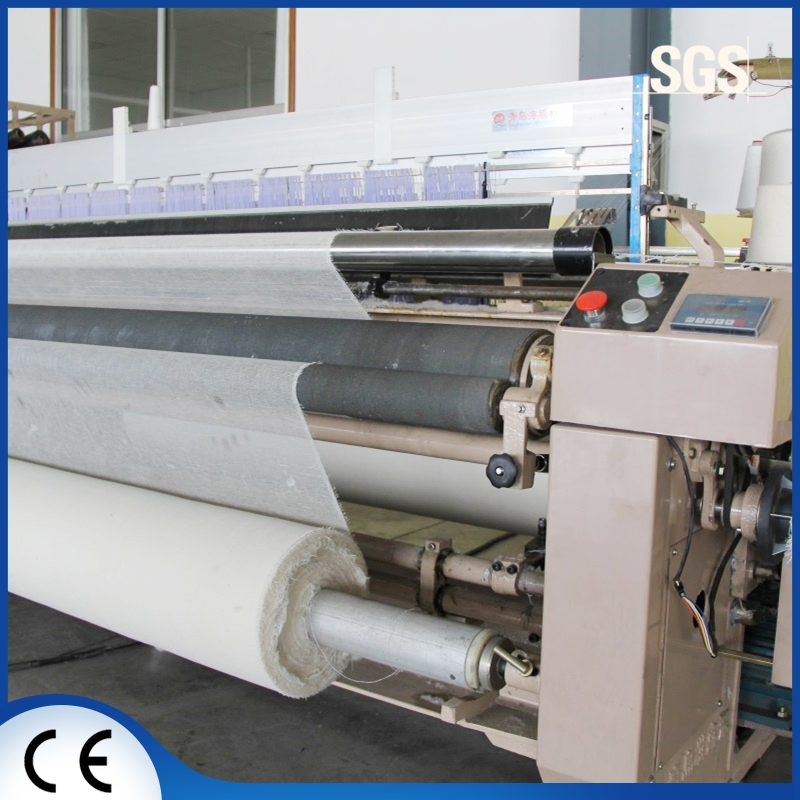

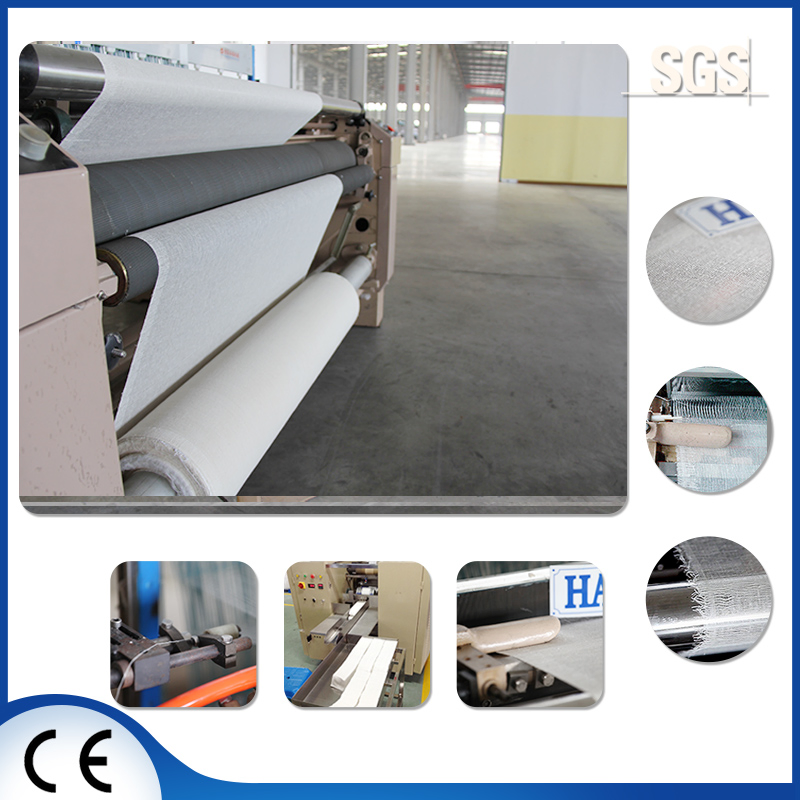

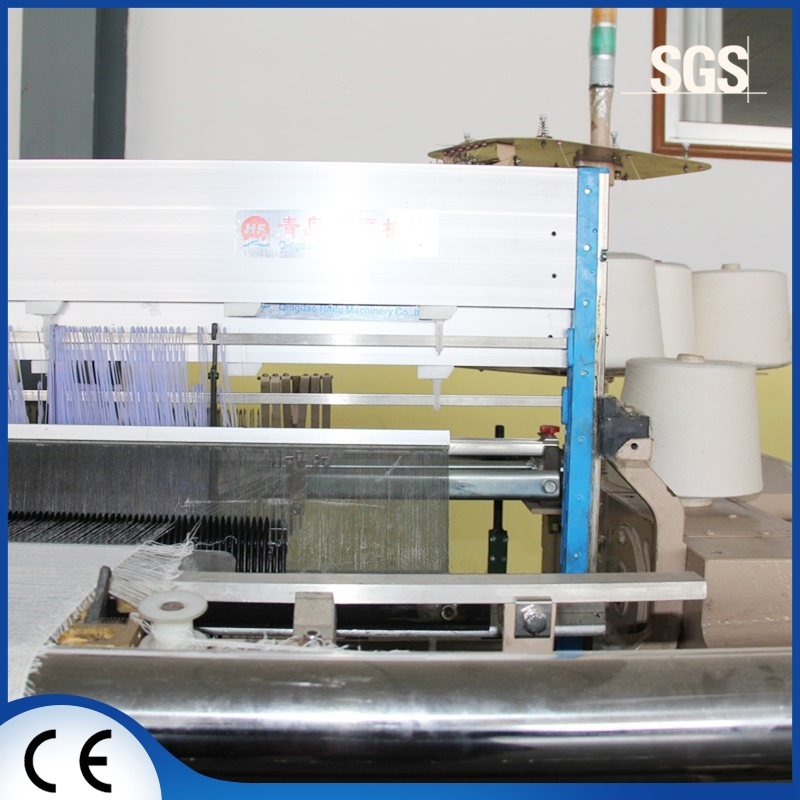

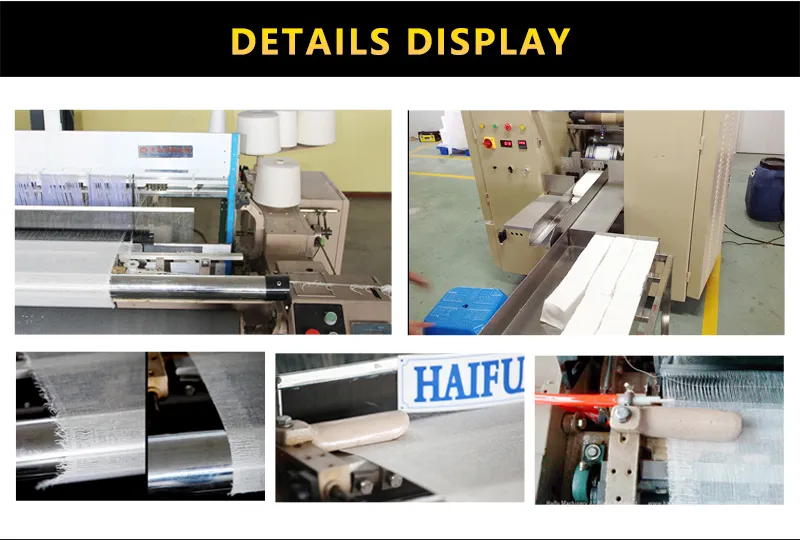

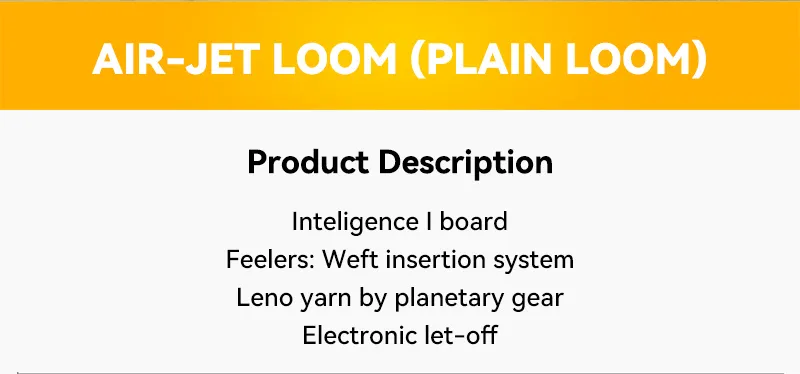

Technical Information of Air Jet Loom
| Working range | short yarn: Ne 120-Ne 2.5 (20dtex-300dtex) |
| Reed width | Nominal: 190; Useful Reeding width; 0-60cm |
| Weft selection | Double color, single color |
| Motor | Super motor with 2.7kw-3.7kw |
| Weft picking | Electronic main nozzle + assistant nozzles + profile reed |
| Shedding | Negative cam machine (8 heddle frames) or Dobby (2-16 frames) |
| Let-off | Electronic (ELO) let-off; Flange dia: 800mm |
| Take-up | Mechanical or Electronic (25-205 pieces/inch) |
| Beating | Short lever four lever beating machine |
| Lubrication | Oil bath for main drive, centralized lubrication for rest |
| Control System | Microcomputer controlled, four-color lamp display |
The machinery has been supplied world wide with approximately 89,000 sets delivered. The focus is on providing high-quality machines where quality is always insured. Machines are currently operational in various regions including Mexico, India, Turkmenistan, and Pakistan, meeting high satisfaction levels for production requirements.
