Customization: Available
Automatic Grade: Automatic
Working Width: Depends
Send Inquiry

Product Description

📋 Basic Information
Model NO.
DF-241-1860
Material
Yarn
Voltage
380V
Load Capacity
Depends
Certification
CE, ISO9001: 2000
Warranty
1 Year
Customized
Available
Condition
New
After-sales
Life-Time Service
Material Grade
SS316L
Gauze Layer
1-3 Reels
Machine Diameter
1860mm
Origin
China
Capacity
10000 PCS/Year
⚙️ Product Description
Machine Name: Medical gauze bleaching line

This professional production line is mainly used for bleaching woven gauze, integrating both desizing and bleaching processes. As a customized solution, we design the line according to specific site requirements and production needs.

  • LD-991-220 type swing arm coiling machine
  • LD-220 type reversing machine
  • LD-1 type horizontal cooker Bleaching machine
  • LD-55 type gauze vacuum suction machine
  • LD992-220 type horizontal drum dryer
  • LD-2R-220 type pressurized light tracking roll Machine
  • LD-220 type slitting and rolling machine (Finished product)
📊 Technical Specifications
No. Component Detailed Specifications
1Vertical tankBody material SS316L, diameter φ1200-1860, thickness 5-8mm, height 1800-3000mm
2Cover sealRubber seal, with pressure lock system
3Cover open wayAir cylinder opening
4Safety deviceSafety valve, pressure gauge and Hammer Opening Cover Auxiliary
5Water systemSingle water inlet and double outlet system, high temperature discharge function
6CapacityGauze diameter 1050mm
7Heating wayInside coil pipe heating, rapid heating ≥3ºC/min (steam pressure ≥0.6Mpa)
8Dosing system1 Dosing tank with new type stirring motor, reverse-flow mixing system
9Dosing pump1 centrifugal pump 2.2kw
🖼️ Equipment Gallery

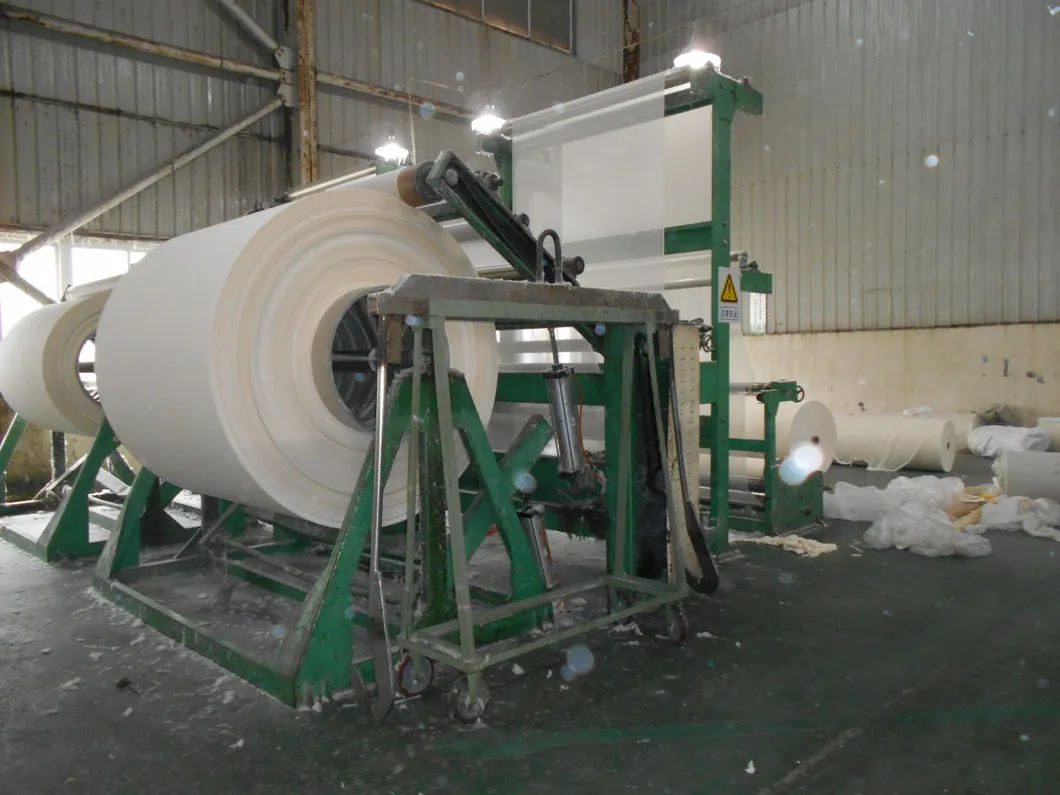

Gauze rolling machine
Gauze Rolling Machine

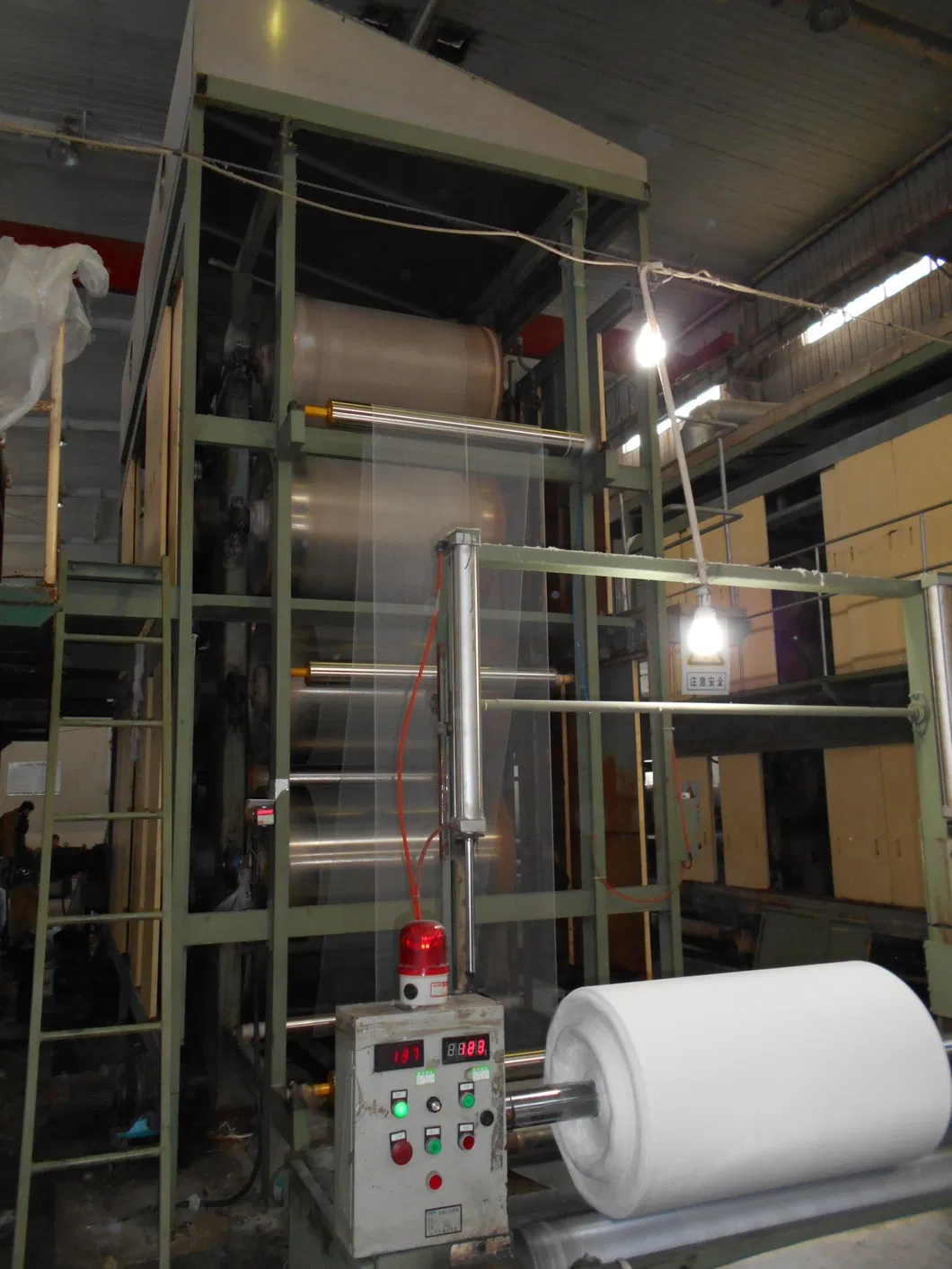

Gauze drying machine
Gauze Drying Machine

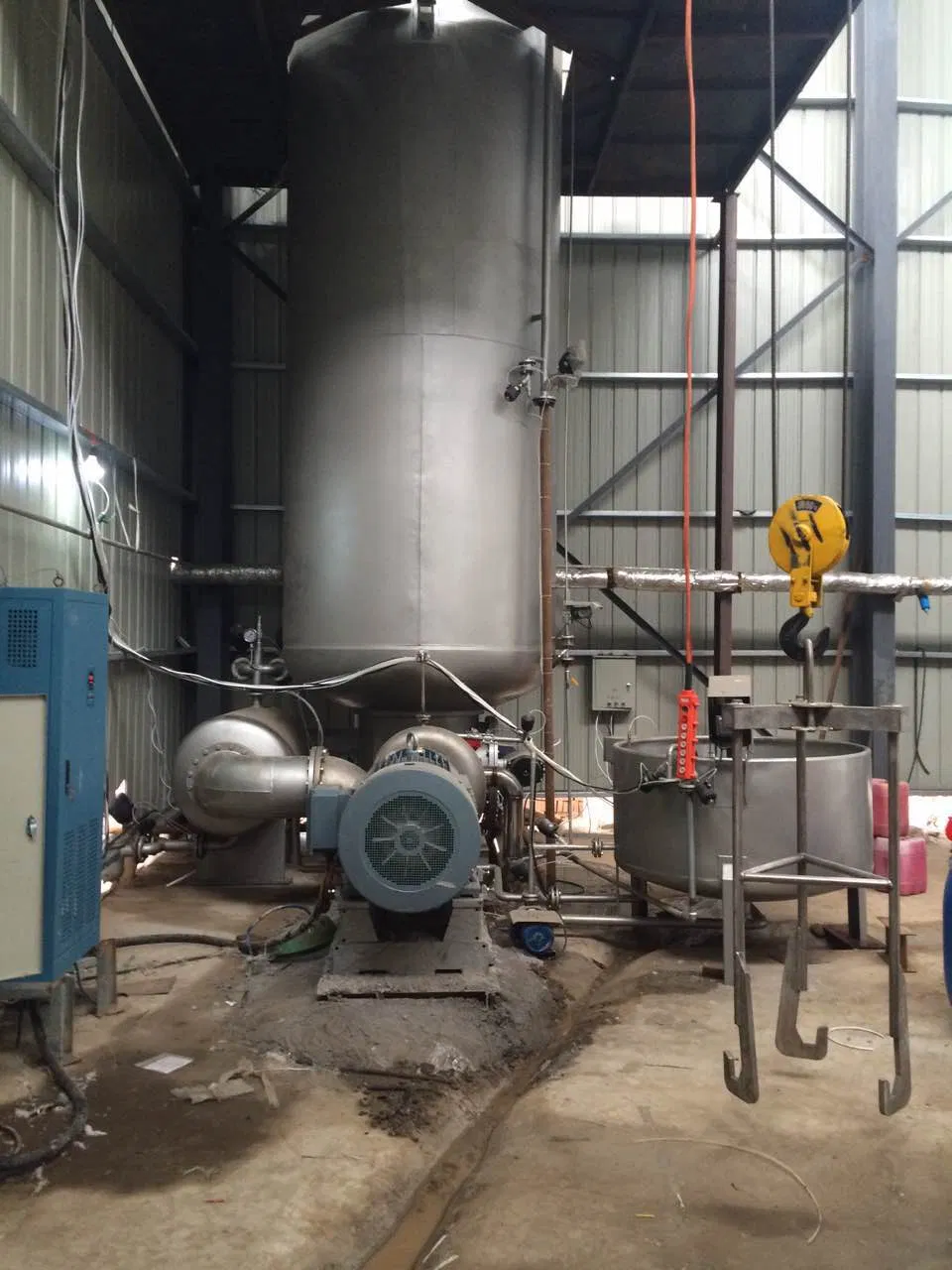

Gauze bleaching machine
Gauze Bleaching Machine - Front View

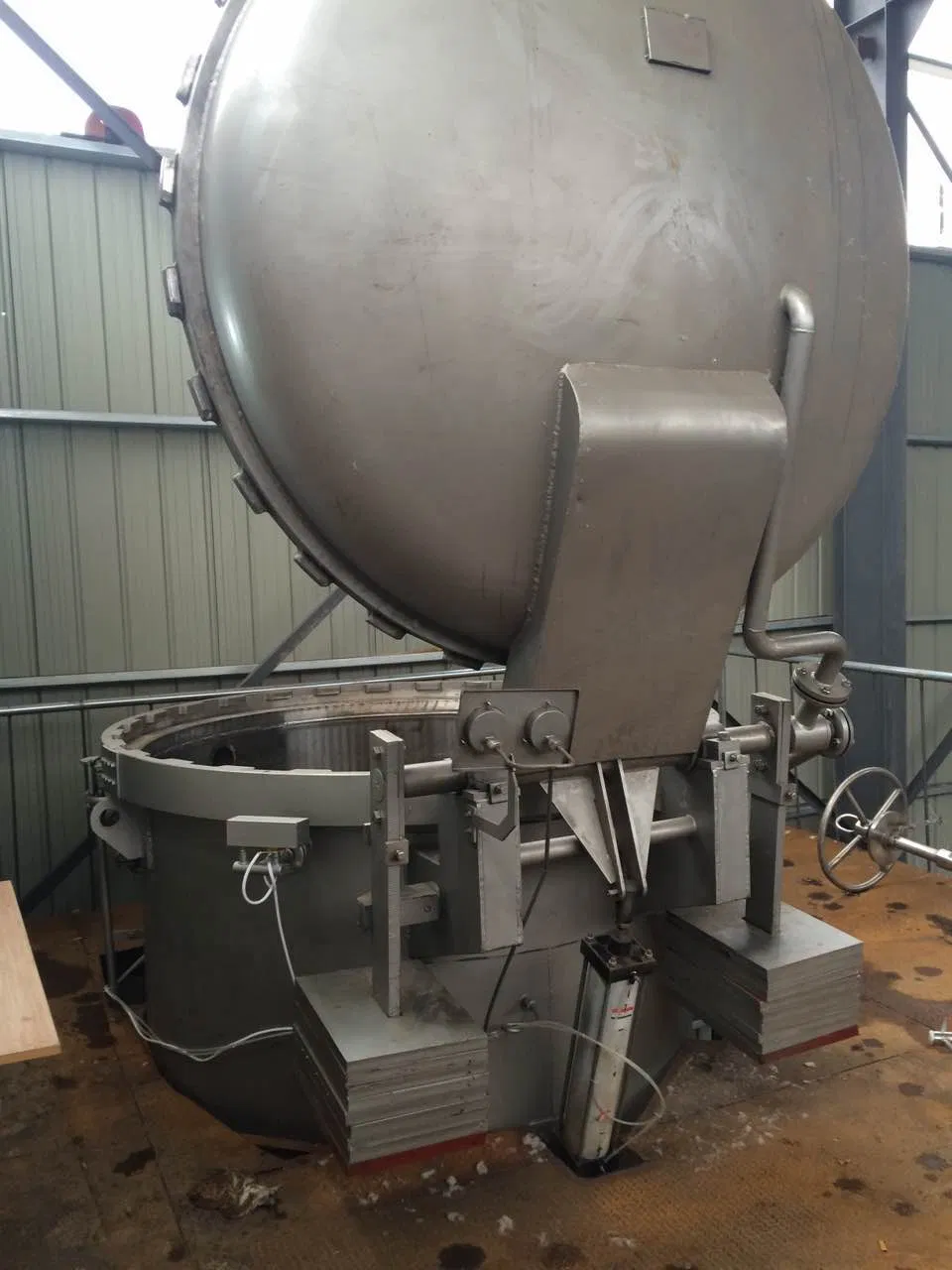

Gauze bleaching equipment
Gauze Bleaching Machine - System Detail
❓ Frequently Asked Questions
What is the primary function of this bleaching line?
The medical gauze bleaching line is specifically designed for desizing and bleaching woven gauze to meet medical standards.
What materials are used for the main tank?
The vertical tank is constructed from high-grade SS316L stainless steel, with a thickness of 5-8mm, ensuring durability and corrosion resistance.
How efficient is the heating system?
The machine uses an inside coil pipe heating system capable of rapid heating at a rate of ≥3ºC/min, provided the steam pressure is ≥0.6Mpa.
Is the production line customizable?
Yes, this is a fully customizable line. We can design the configuration, tank height (1800-3000mm), and diameter according to your specific site and capacity requests.
What safety features are included?
The equipment is equipped with multiple safety devices, including a safety valve, pressure gauge, and a Hammer Opening Cover Auxiliary system for secure operation.
What certifications does this equipment hold?
The machine is compliant with international standards, holding CE and ISO9001: 2000 certifications.
