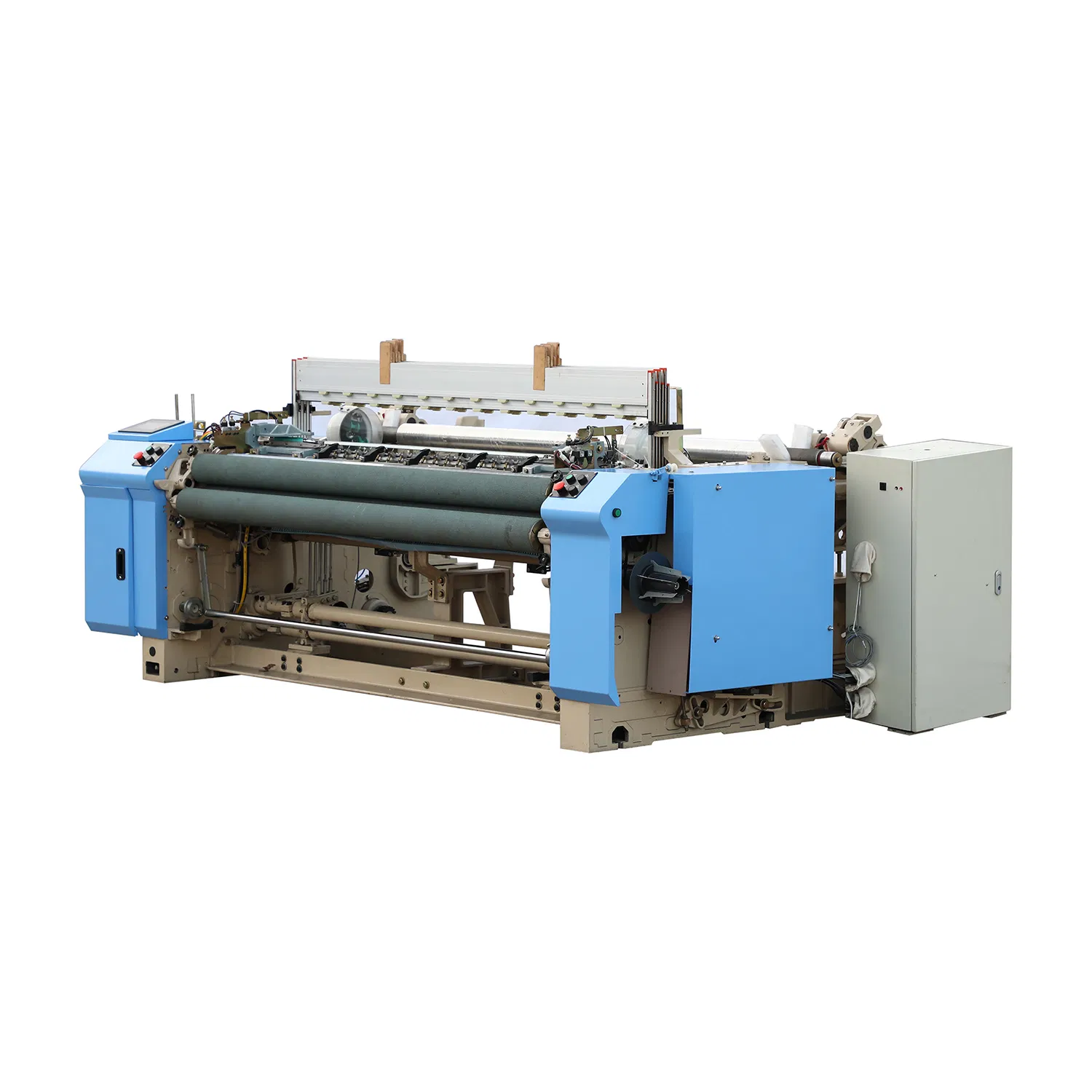

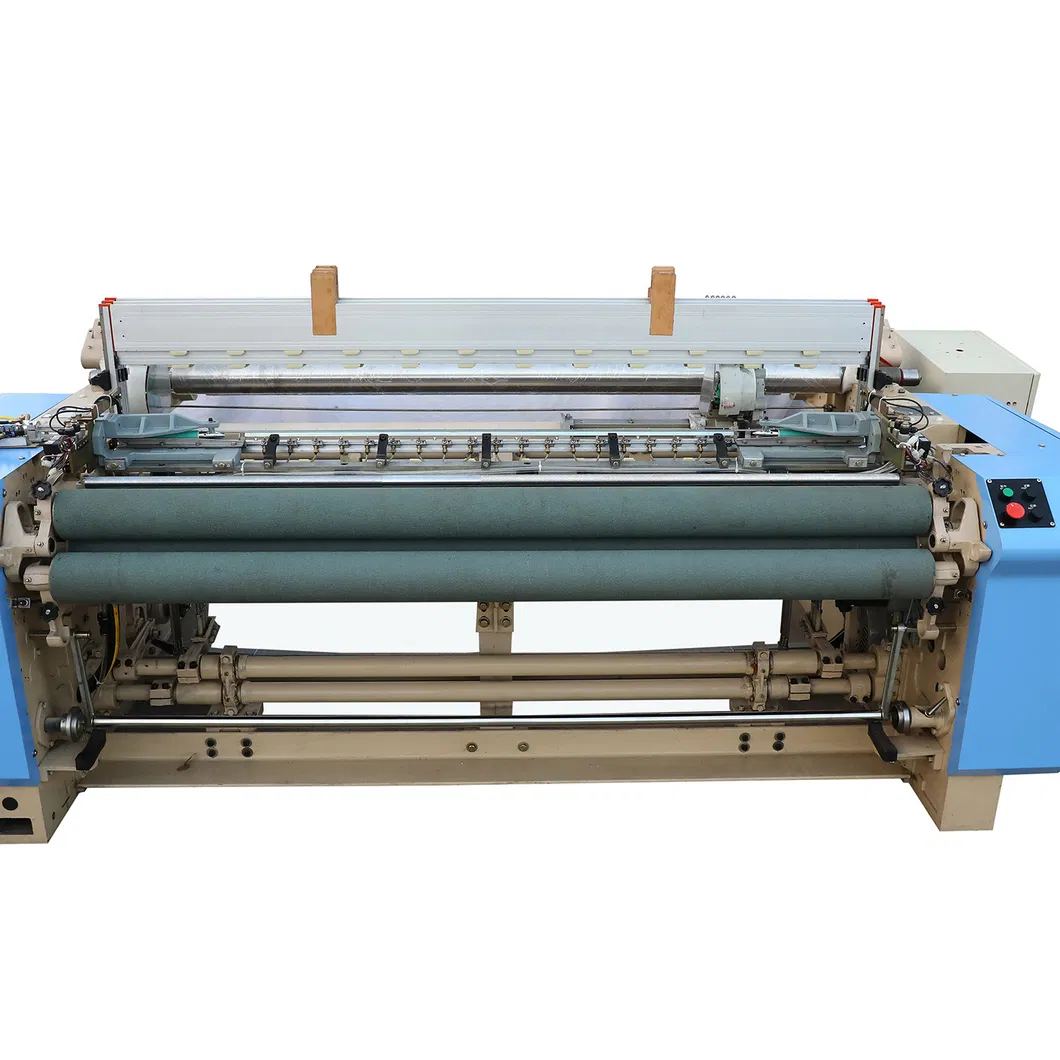

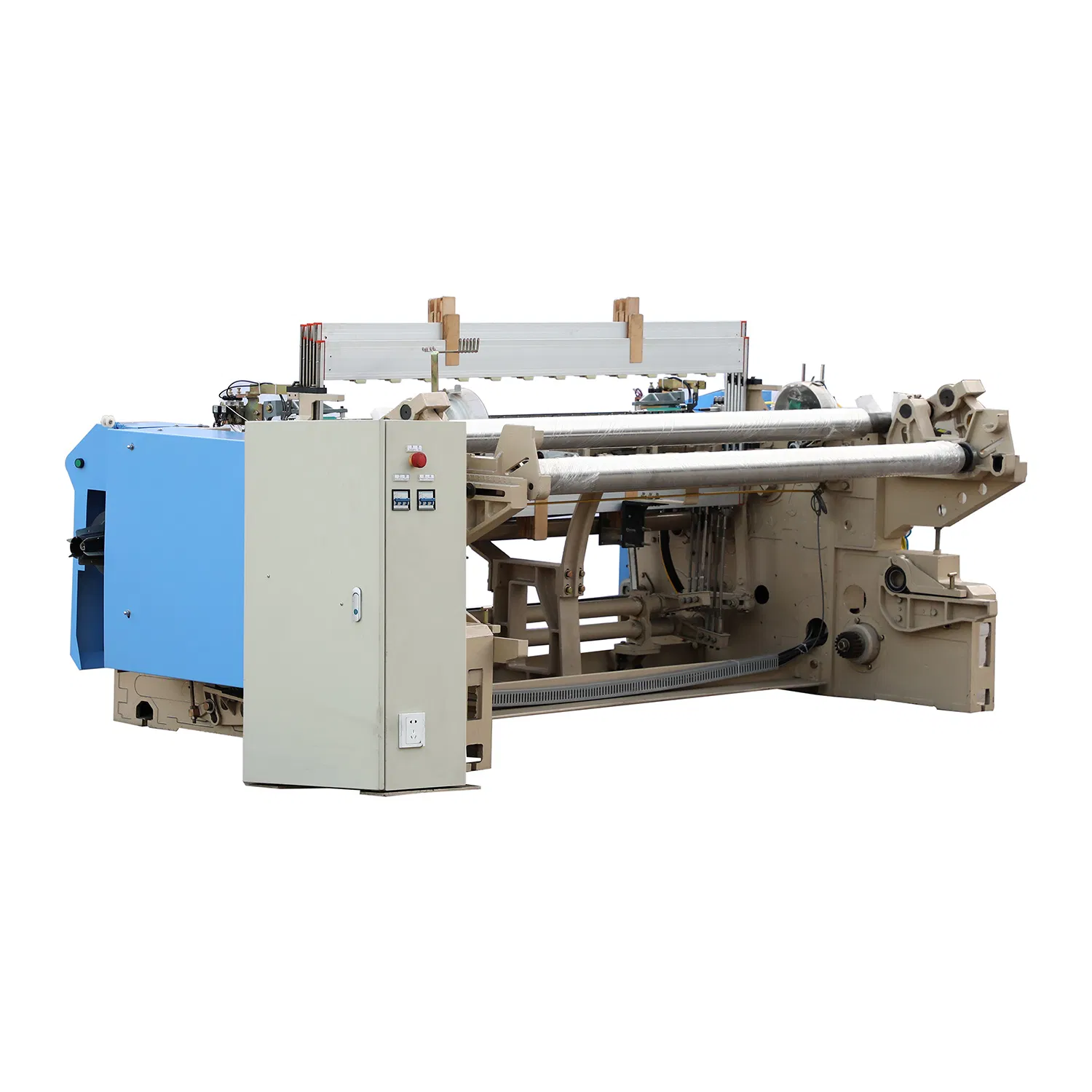

HF-710 LIGHT AIR JET LOOM

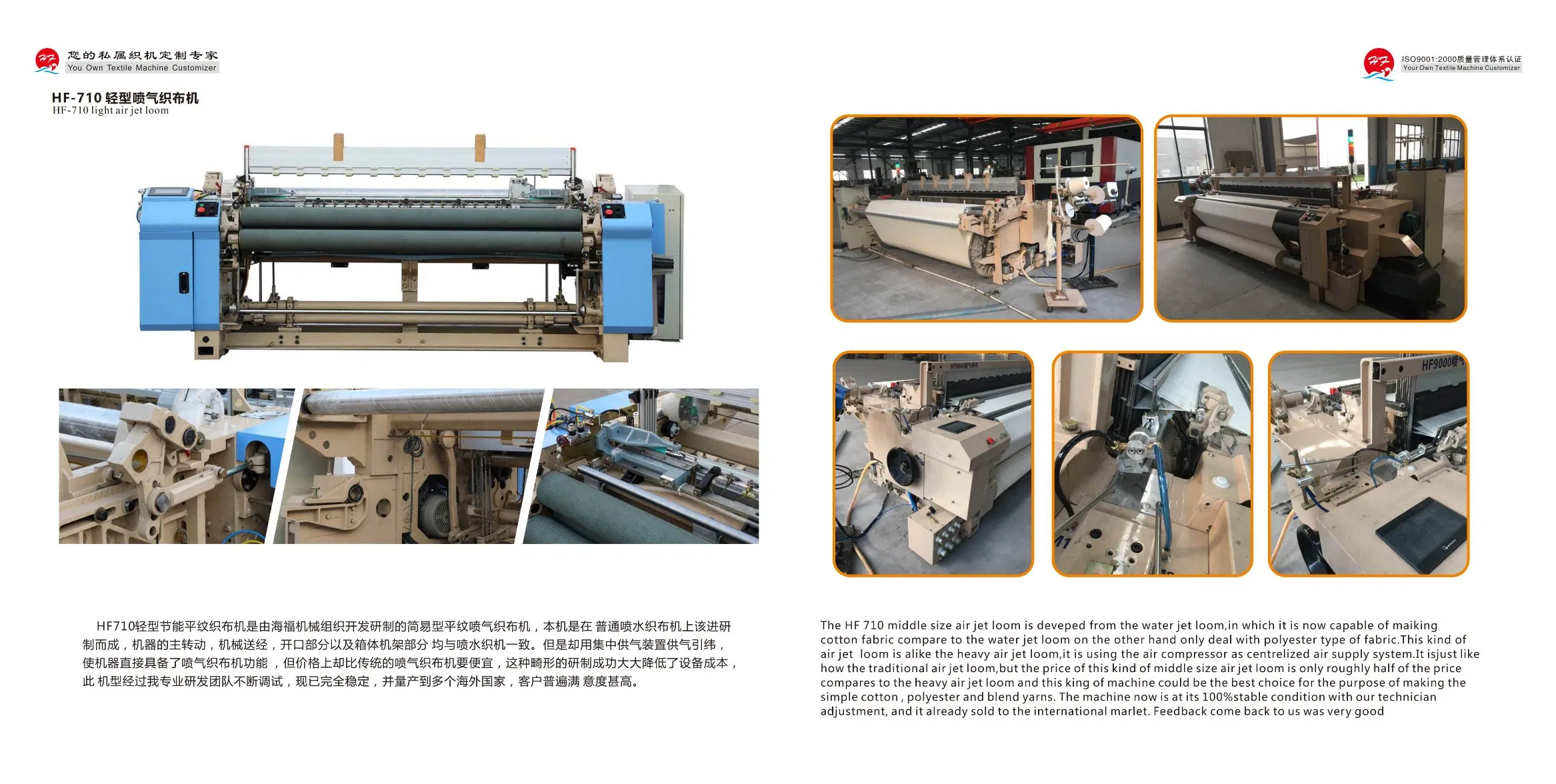

The HF710 middle size air jet loom is an advanced development from traditional water jet technology. While water jet looms primarily handle polyester fabrics, the HF710 is uniquely capable of producing high-quality cotton fabrics.
This machine utilizes a centralized air supply system driven by an air compressor, similar to heavy-duty air jet looms. However, the HF710 offers a significant economic advantage—costing roughly half the price of heavy air jet looms while remaining the optimal choice for weaving simple cotton, polyester, and blended yarns.
Through rigorous technician adjustments, the machine maintains 100% stability. It is currently successfully operating in international markets including Uzbekistan, Mexico, India, Turkmenistan, and Pakistan, receiving excellent feedback for its performance and reliability.
| Working Range | Short yarn: Ne 120-Ne 2.5; 20dtex-300dtex |
| Reed Width | Nominal: 190, 230, 280 cm; Useful Reeding width reduction: 0-60cm |
| Weft Selection | Single color or double color |
| Motor Power | Super motor with 2.7kw-3.7kw (model dependent) |

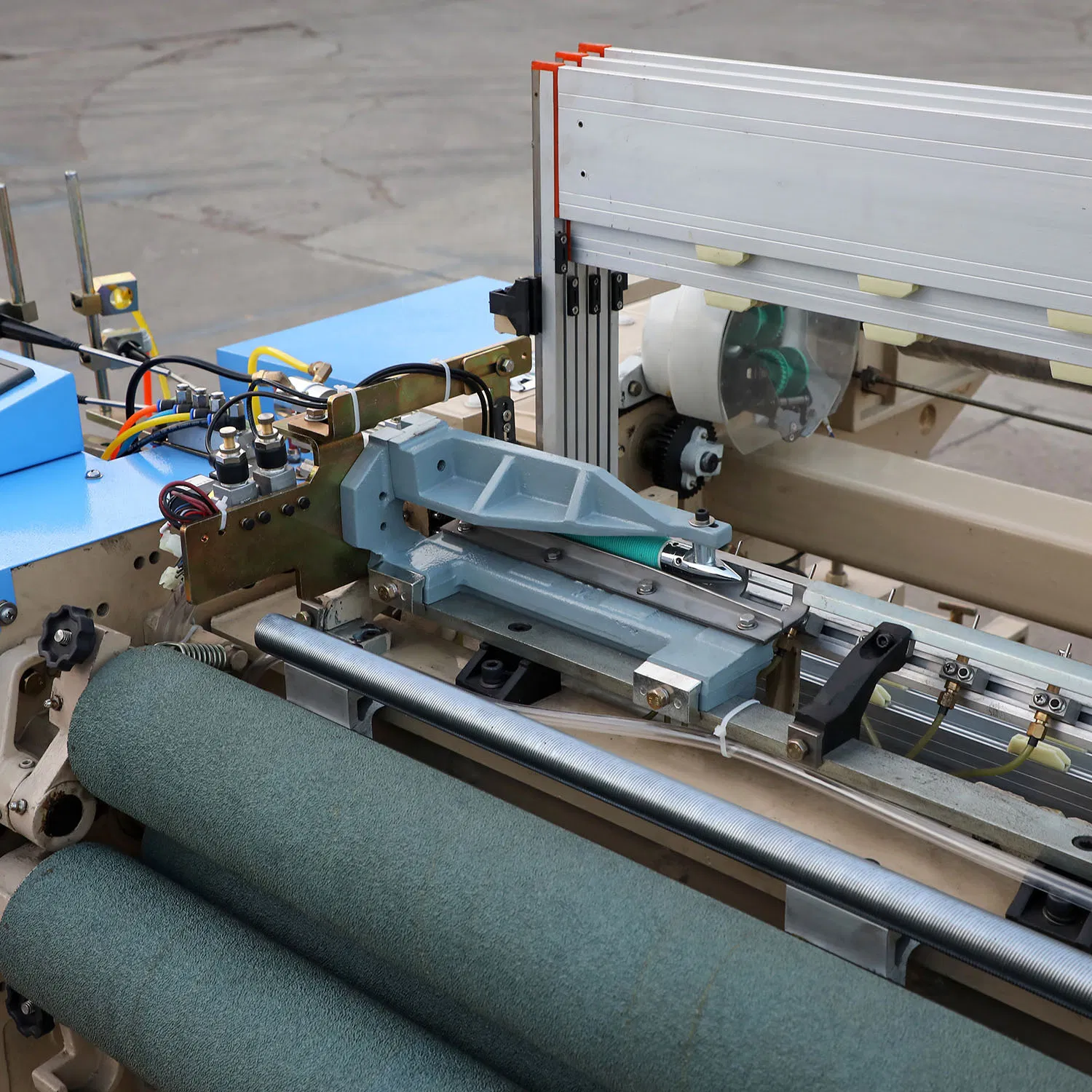

| Weft Picking | Electronic main nozzle + assistant nozzles + profile reed |
| Shedding | Negative/Positive cam machine (8 heddle frames) or Dobby (2-16 frames) |
| Let-off | Electronic (ELO) let-off; Flange dia: 800mm |
| Take-up | Mechanical or Electronic (25 - 205 pieces/inch) |
| Beating | Short lever four-lever beating mechanism |
| Lubrication | Oil bath for main drive; Centralized thicker oil pump for other parts |

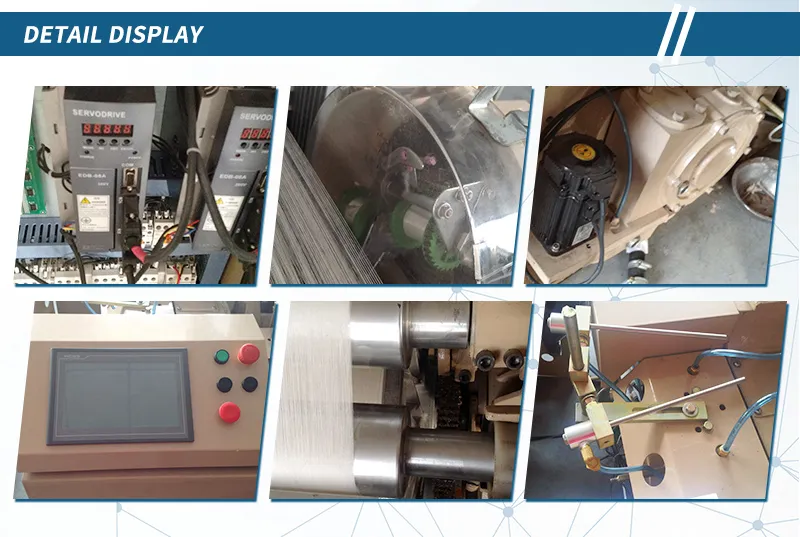

| Control System | Microcomputer controlled; Electromagnetic fixed brake; Variable frequency inching |
