Product Description

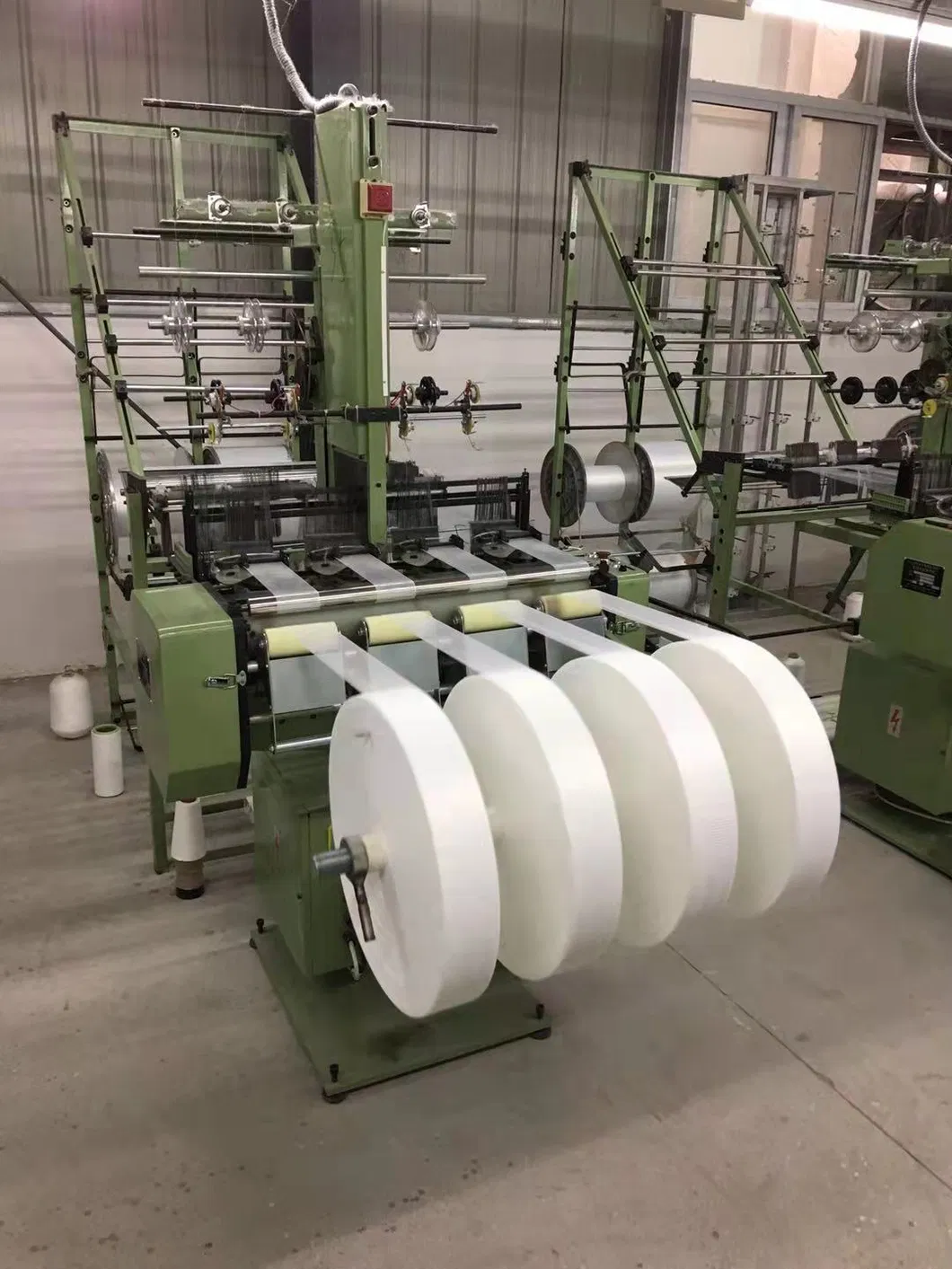

This high-performance medical bandage weaving machine is engineered for versatility and precision. It is specifically designed to weave various types of medical bandages by simply adjusting the yarn material.
✓

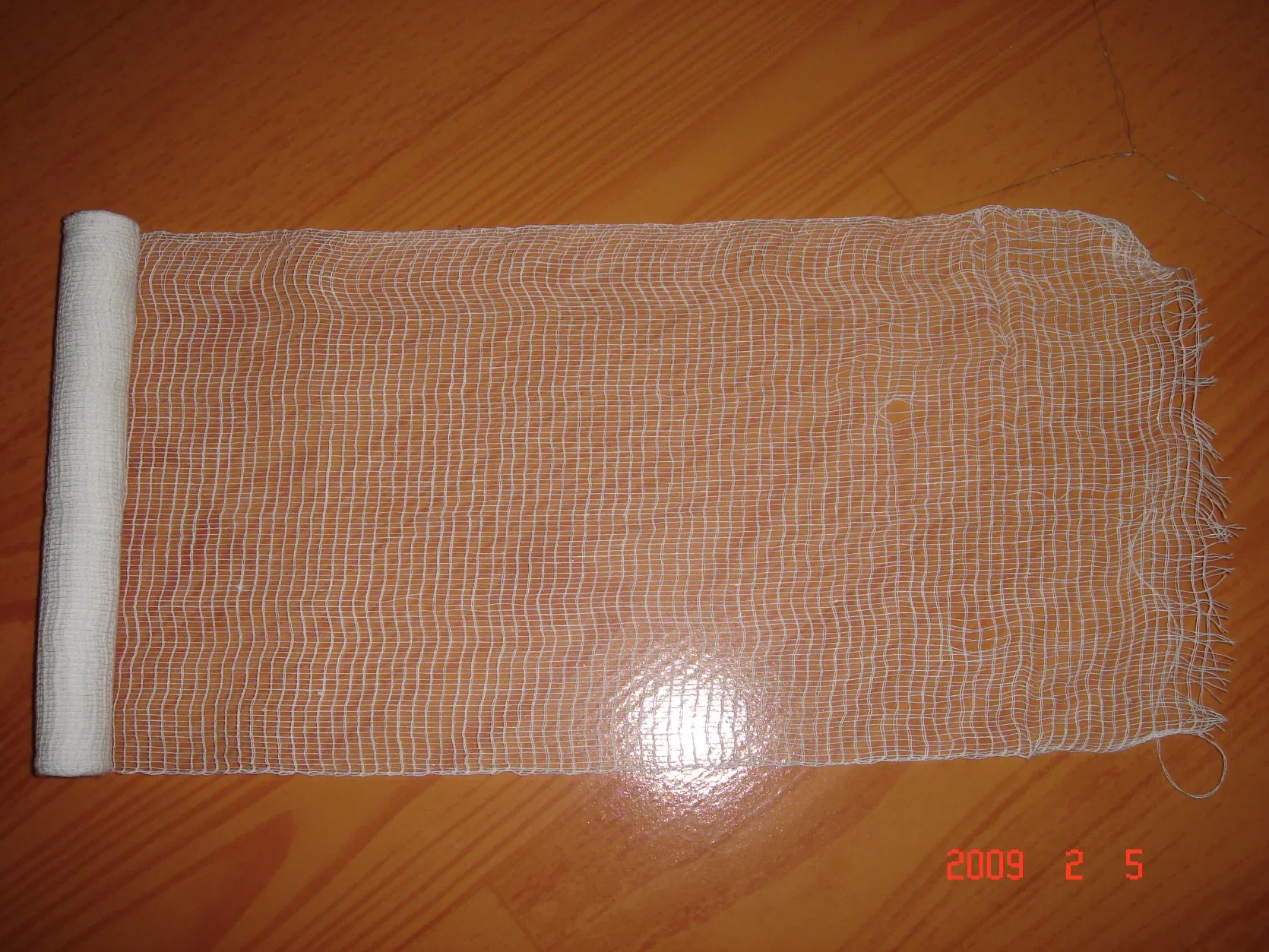

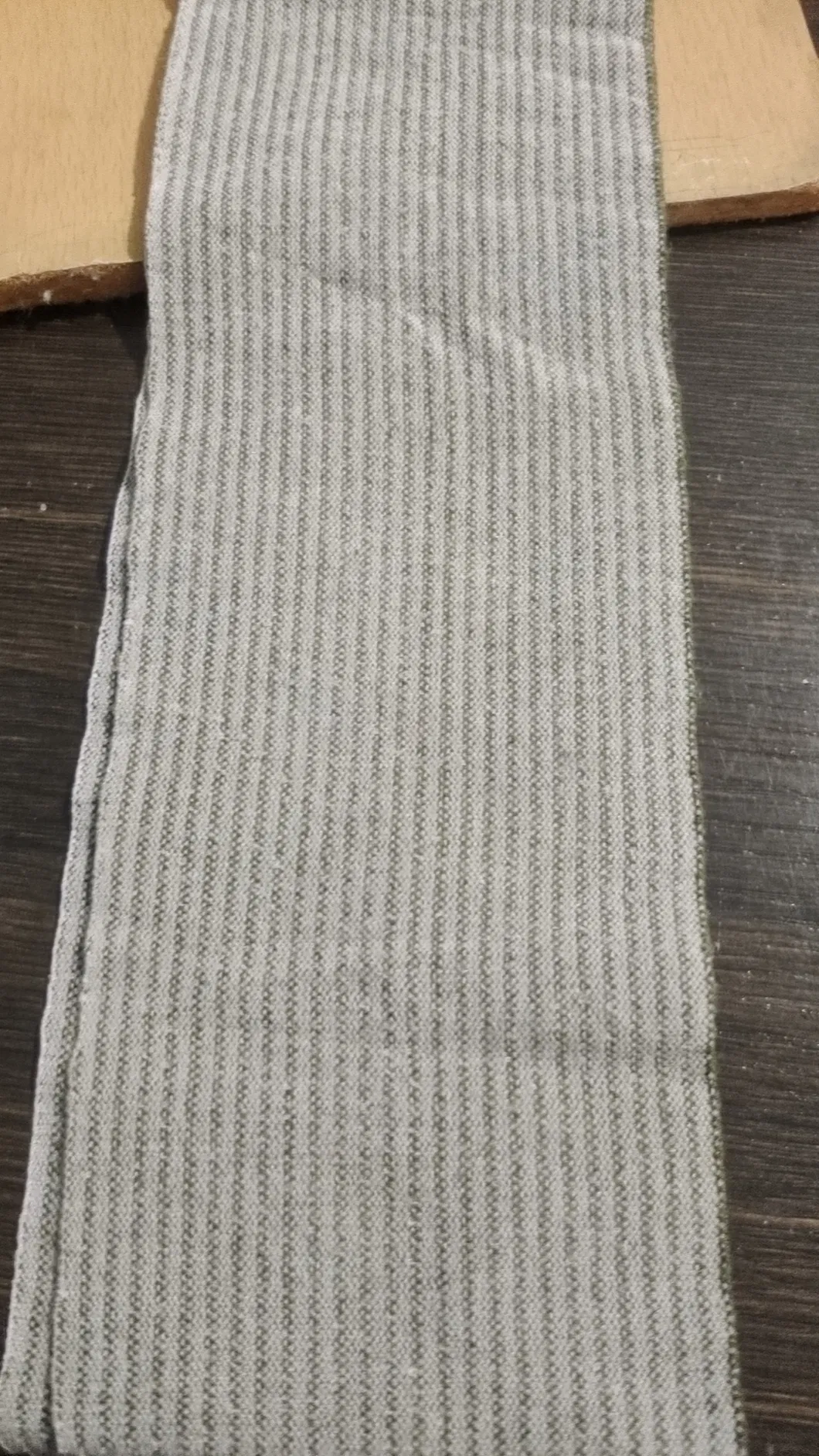

Applications: Suitable for cotton gauze bandages, crepe bandages, PBT elastic bandages, Israeli bandages, and more.
✓
Operational Ease: Features easy operation, high efficiency, and stable, reliable performance.
Technical Specifications
General Speed
400-800 weft/min
Available Specs
8/27, 4/75, 2/100, 2/150, 2/200
Machine Weight
450KG (Excluding creel)
Dimensions
1000 * 2000 * 2800 mm (LxWxH)
Working Efficiency & Output
| Working Width |
Production Speed |
Output Lanes |
| 5 cm |
900 wefts/min |
6 lanes |
| 7.5 cm |
900 wefts/min |
4 lanes |
| 10 cm |
700 wefts/min |
4 lanes |
| 15 cm |
500 wefts/min |
2 lanes |
Frequently Asked Questions
1. What types of medical bandages can this machine produce?
This machine is versatile and can produce cotton gauze bandages, crepe bandages, PBT elastic bandages, and Israeli bandages by changing the yarn material.
2. What is the maximum width of the bandage that can be woven?
The machine supports a wide range of bandage widths, ranging from 2cm up to a maximum of 20cm.
3. How many output lines does the machine have?
Depending on the width of the bandage, the machine provides between 2 to 6 output lanes for high efficiency.
4. Does the machine require complex computer programming?
No, this model is a non-computerized version designed for easy operation, high stability, and low maintenance requirements.
5. What is the production speed of the machine?
The speed varies by width, reaching up to 900 wefts/min for 5cm and 7.5cm bandages, ensuring high output capacity.
6. Is technical support available after purchase?
Yes, we provide after-sales service and the machine comes with a 1-year warranty to ensure reliable operation.
