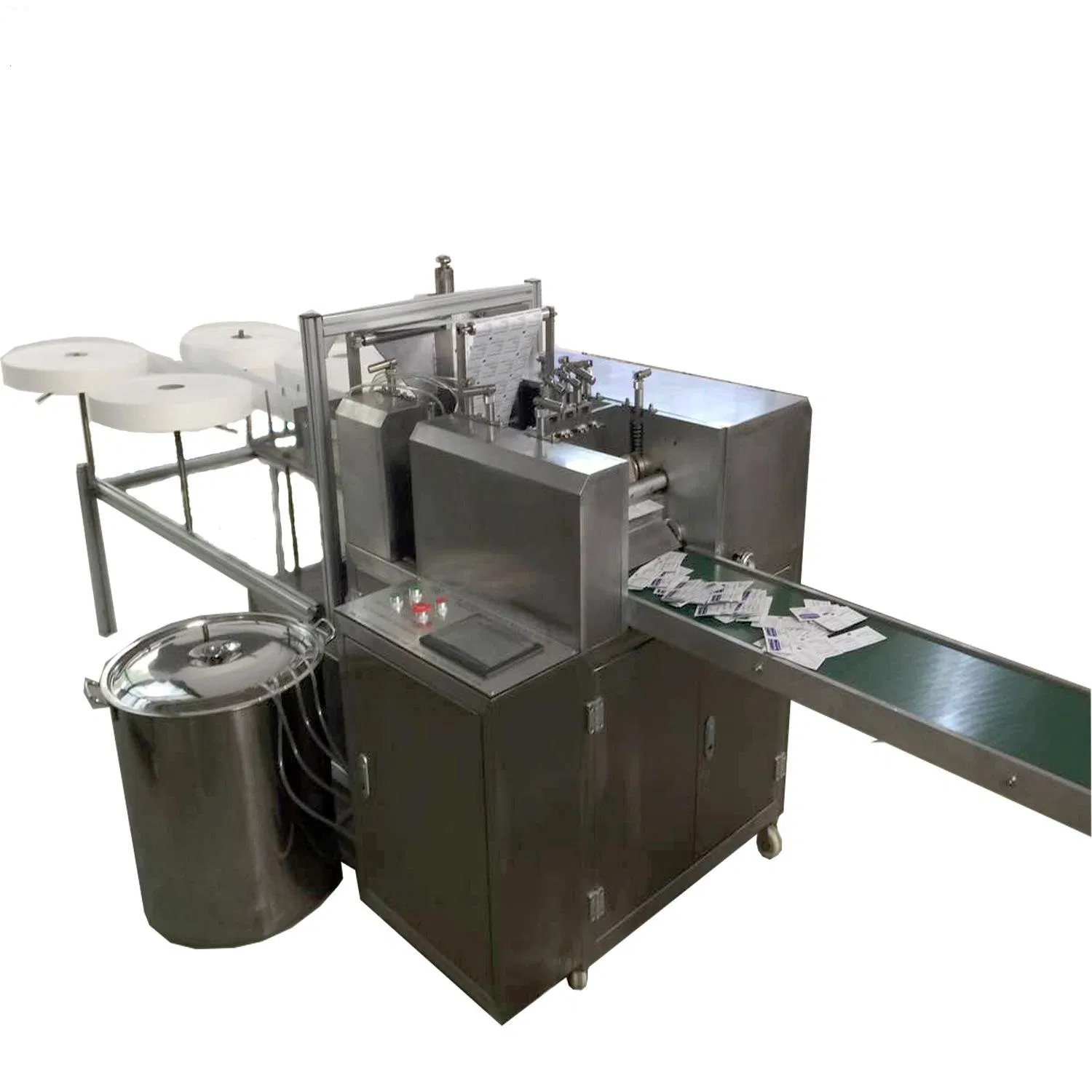

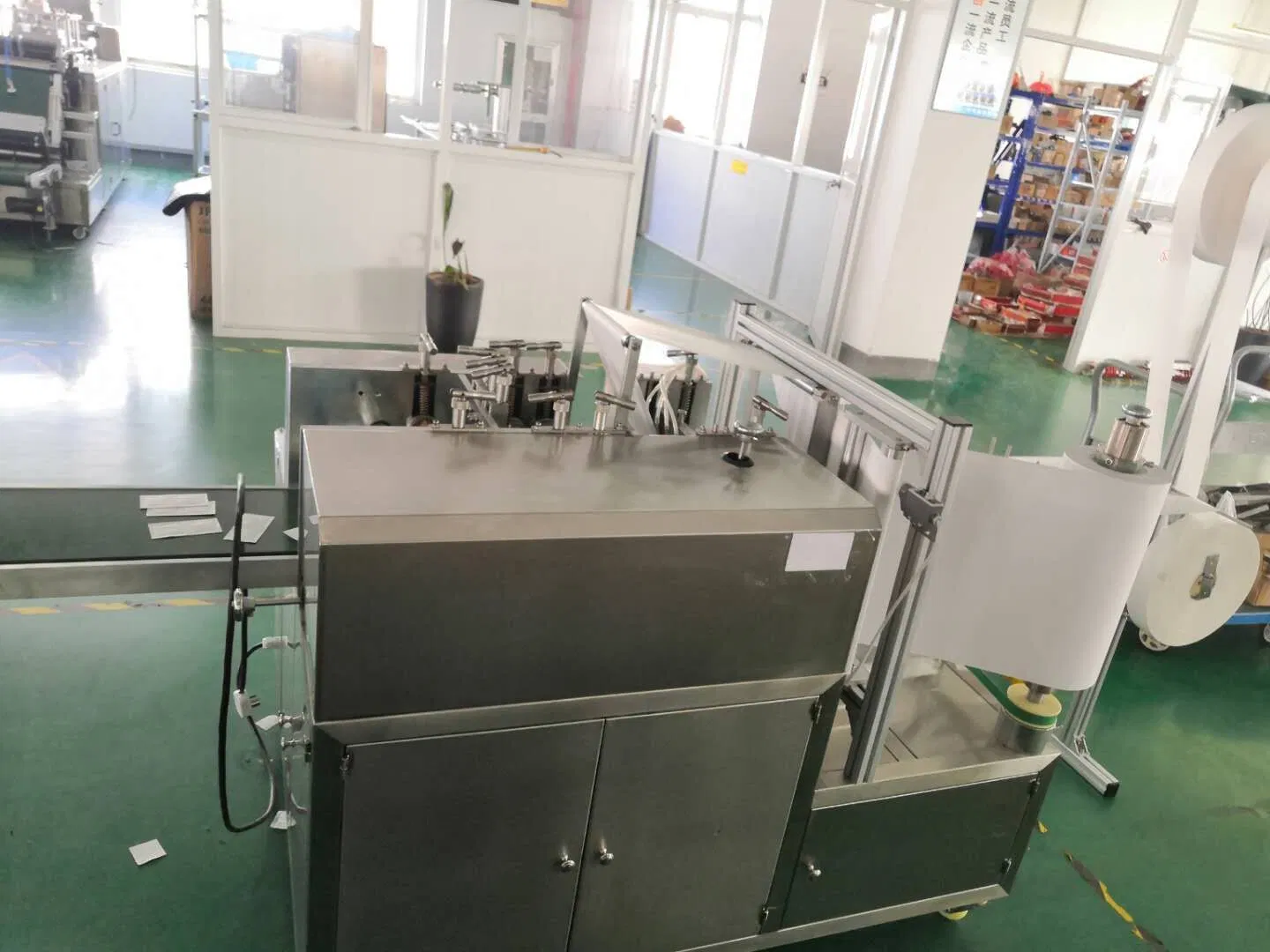

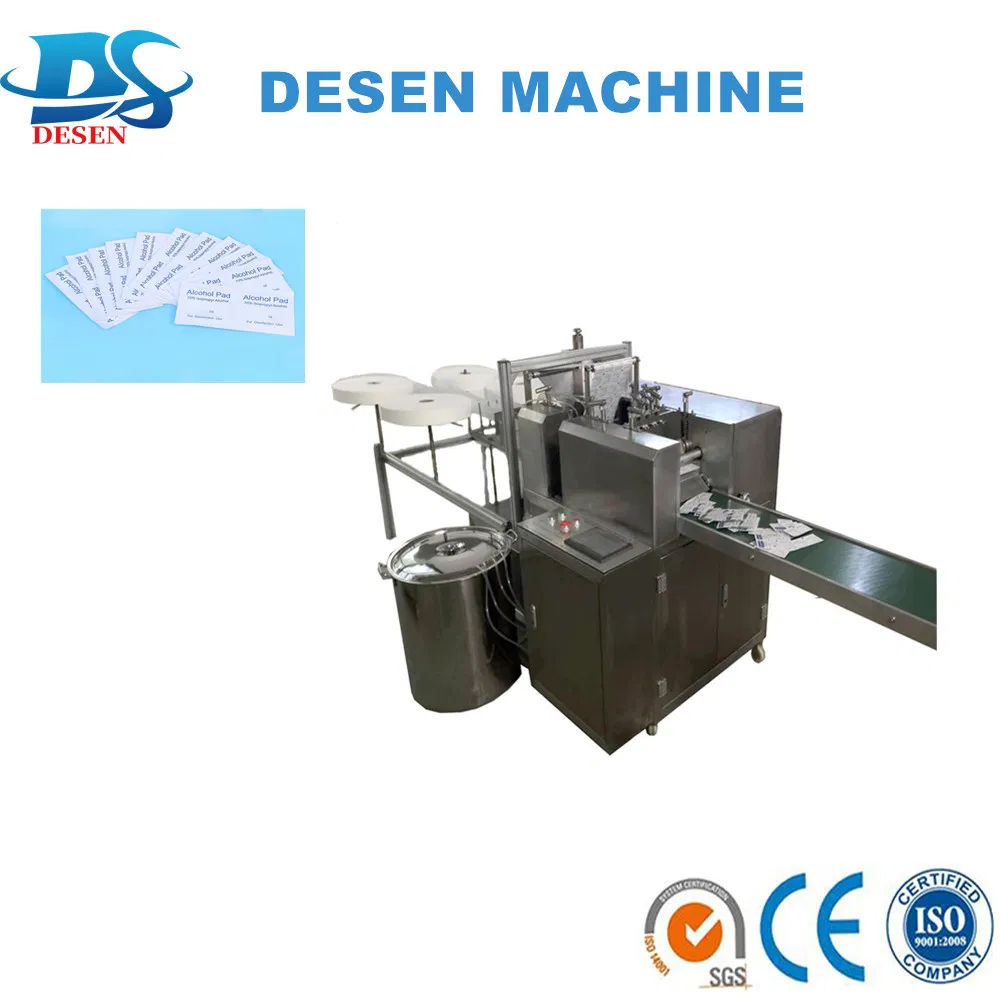

Model: DS-66
A newly updated solution for manufacturing high-speed medical alcohol pre-pad wipes. This integrated system provides a complete end-to-end packaging solution with state-of-the-art equipment designed for the pharmaceutical and medical industries.
| Wipe Size (Unfolded) | Wipes Size (Folded) | Packing Size | Non-woven Width |
|---|---|---|---|
| 60mm x 30mm | 30mm x 30mm | 50mm x 50mm | 60mm |
| No | Name | Brand/Origin | Model/Specification | Qty |
|---|---|---|---|---|
| 05 | Touch screen | EVIEW | MCGS TPC7062K | 1 |
| 06 | Servo motor | Japan | Mitsubishi HF-KN73J-S100 | 1 |
| 08 | PLC Block | Germany | Siemens CPU224CN | 1 |
| 11 | Power switch | Japan | OMRON S8JC-205024C | 1 |

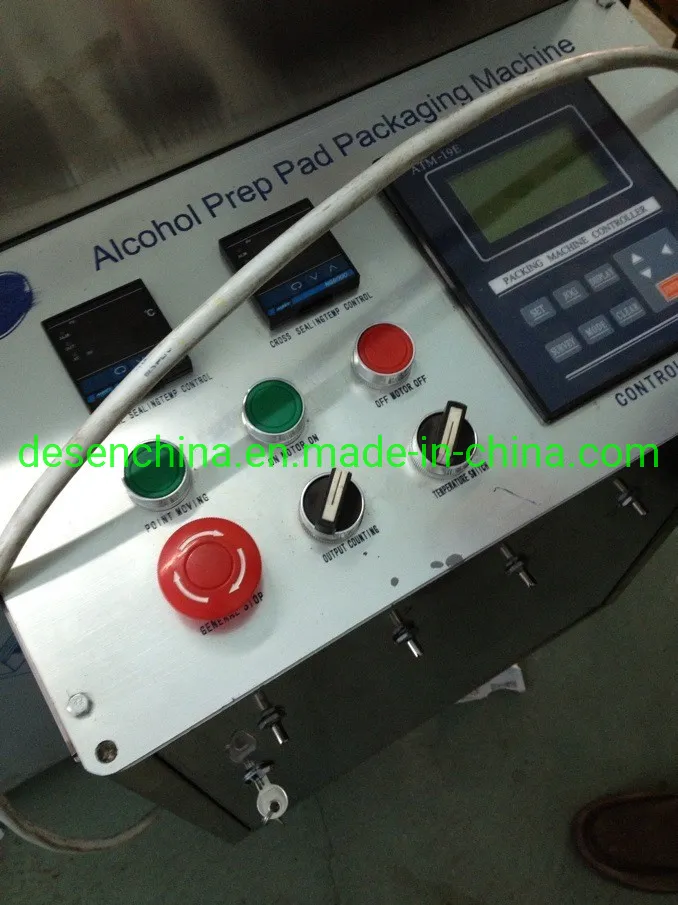

| 14 | Scram button | Japan | OMRON | 1 |
| 20 | Metering pump | Japan | IWAKI | 2 |
| 23 | Tissue insert cylinder | Taiwan | ARDAKE MPGM20*100 | 1 |
The machine is capable of high-speed production ranging from 240 to 320 packages per minute, depending on material specifications.
It uses 73-110g/sqm paper and aluminum compound materials for packaging and 40-70g/sqm spun-lace non-woven materials for the wipes.

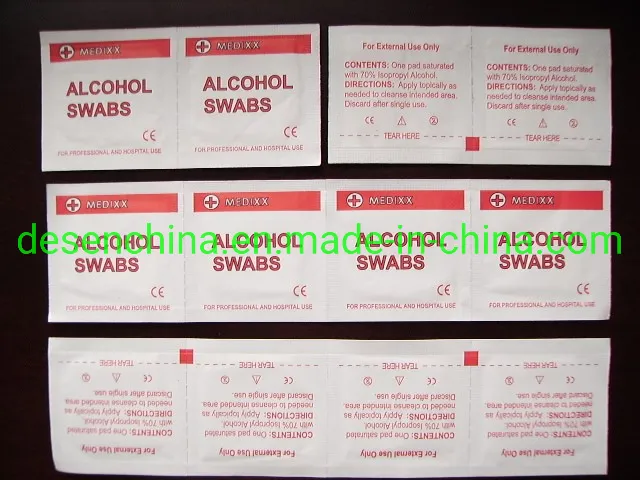

The DS-66 features a four-sided seal bag system with reticulate patterns to ensure medical-grade airtight packaging.

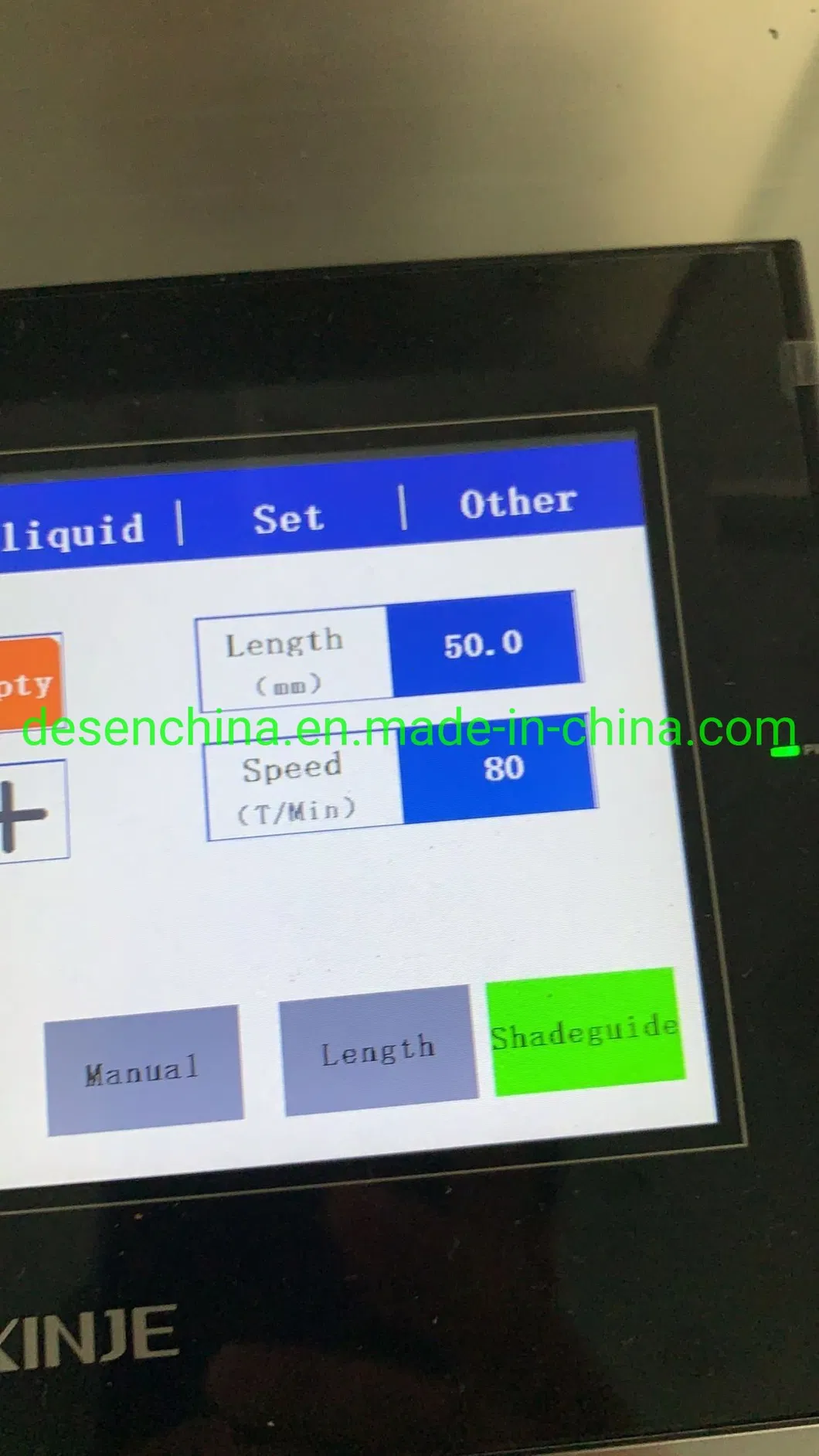

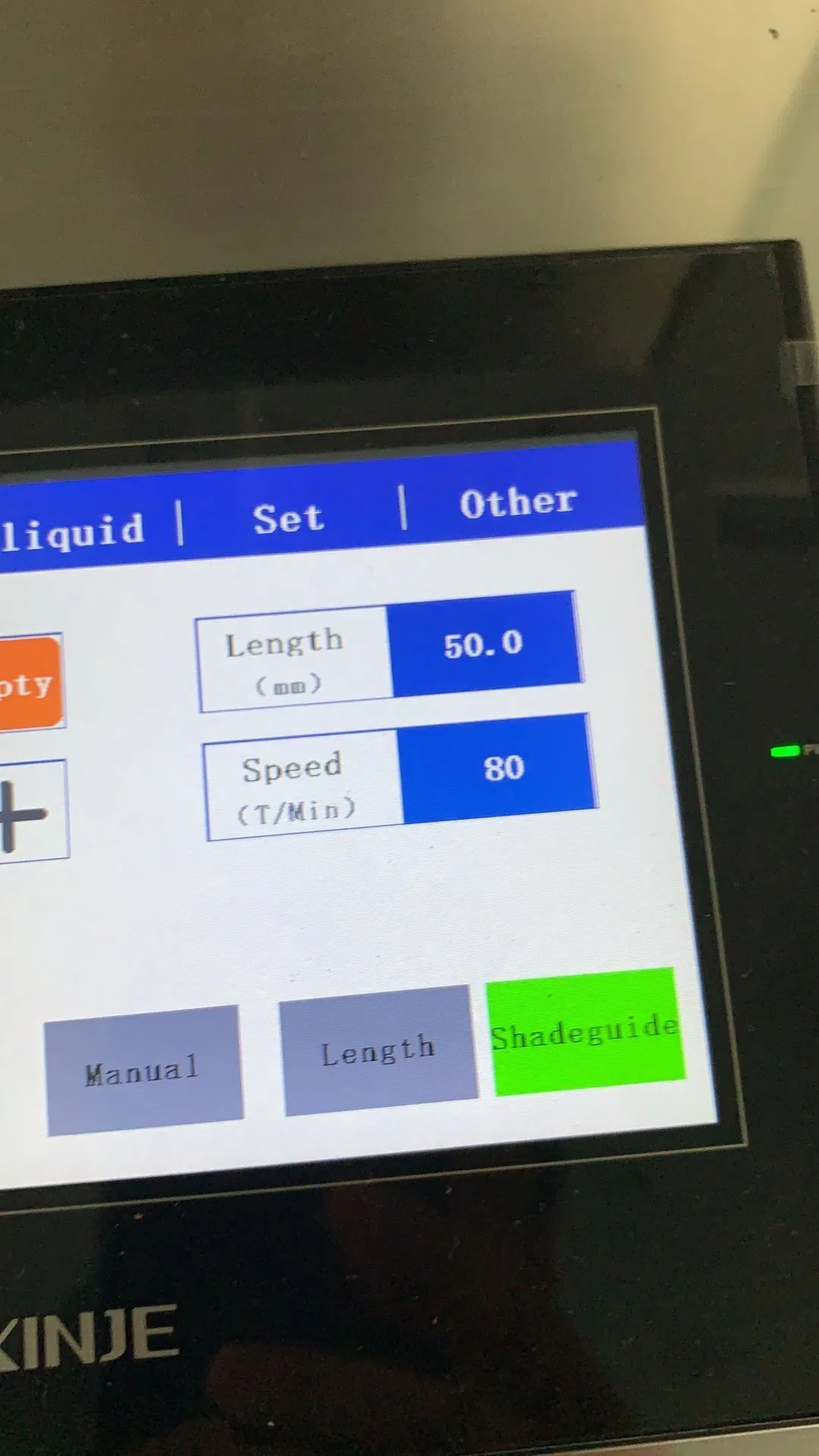

Yes, the machine is equipped with an intelligent PLC block from Siemens and a Mitsubishi servo motor system for precise, user-friendly operation via a touch screen interface.
The standard unfolded wipe size is 60mm x 30mm, which is folded into a 30mm x 30mm square before being sealed in a 50mm x 50mm bag.
Yes, a comprehensive spare parts kit is provided, including heater sticks, blades, knives, springs, and a maintenance tool kit.
