Surgical Medical Adhesive Disposable Non Woven Plaster PU Medical Wound Dressing Making Machine with CE ISO

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

⚙️ Basic Specifications

Model NO.	XN7
Species	Rotary Die-Cutting Machine
Application	Medical Dressing Products, Stickers, Dust-proof Material, EMI Shielding
Automatic Grade	Automatic / Computerized
Power	7.5kw
Cutting Precision	±0.1mm
Feed Width	250mm, 350mm or Customized
Drive Motor	Servo Motor
PLC Brand	Omron

📄 Product Description

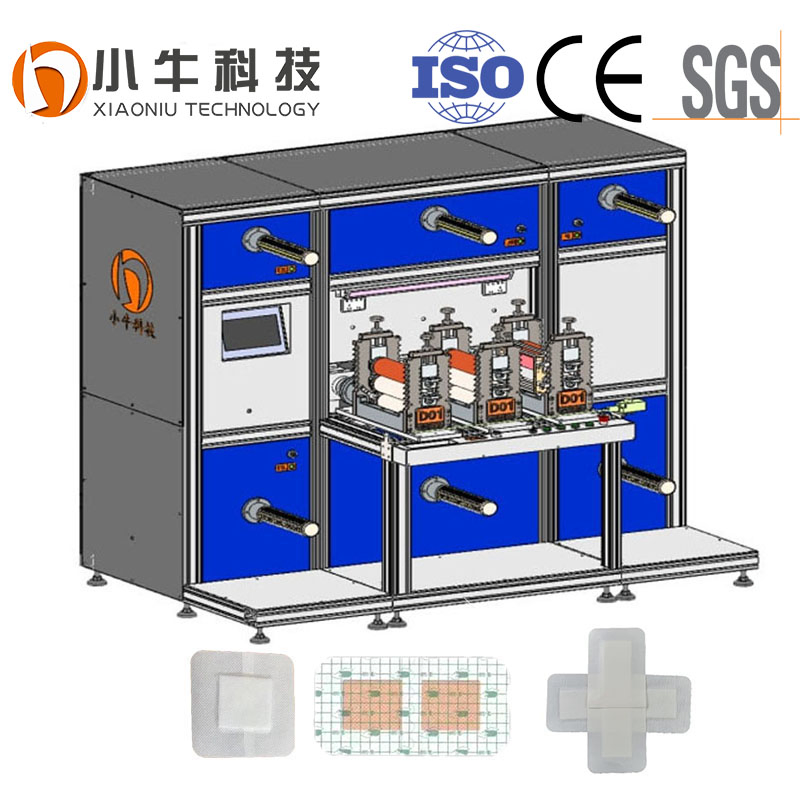

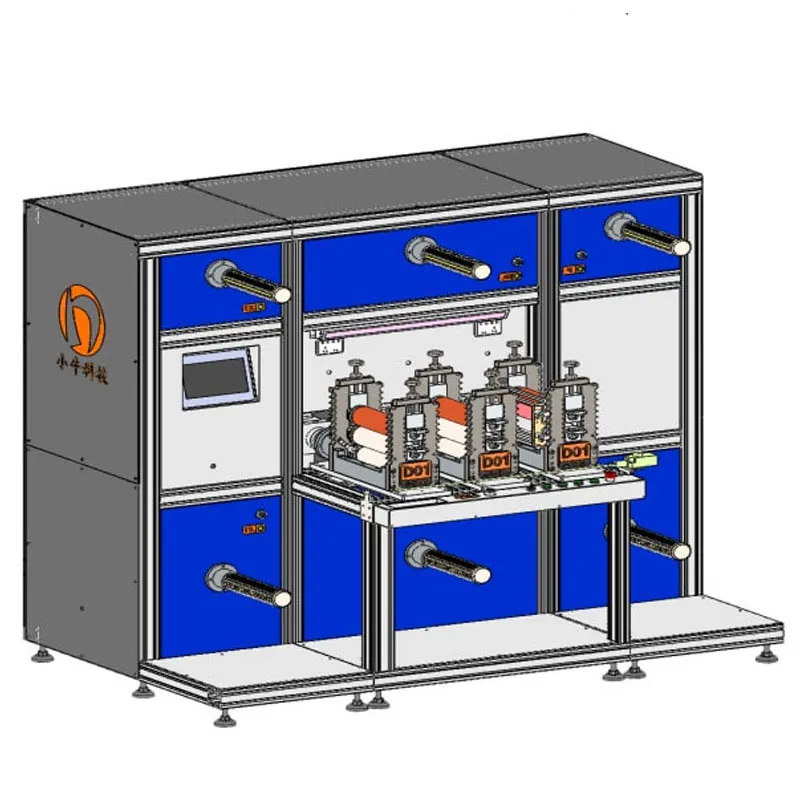

This equipment is a 3-station rotary die-cutting machine where each station and feed shaft are driven by independent servo motors. It operates as a highly intelligent universal machine capable of synchronous and asynchronous processing, constant tension control, and automatic target tracking. It is ideal for high-precision mass production of flexible materials used in medical, electronics, and automotive industries.

🚀 Key Advantages

High Efficiency Continuous roll cutting with speeds of 5-60m/min.

Stable Precision ±0.1mm processing precision for consistent high-quality output.

Multi-Station Design Integrated multi-process compounding for complex material handling.

Intelligent Control Full-auto operation with tension control, deviation control, and power-off memory.

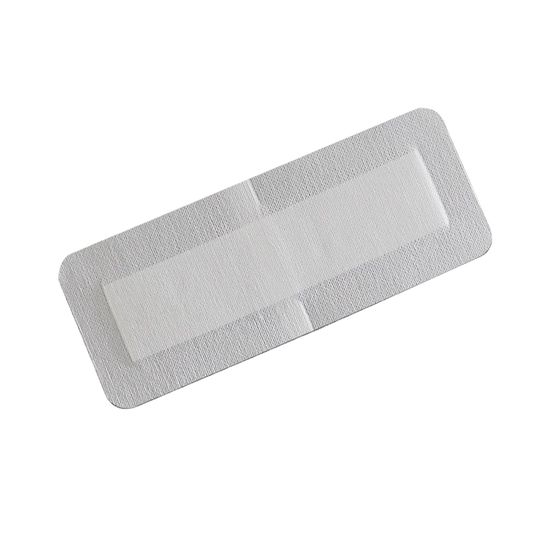

🎬 Operation Demo

💡 Applications & End Products

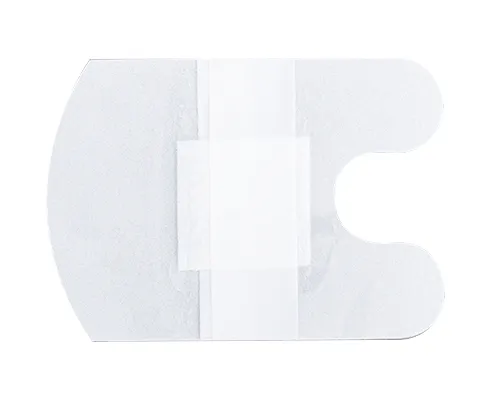

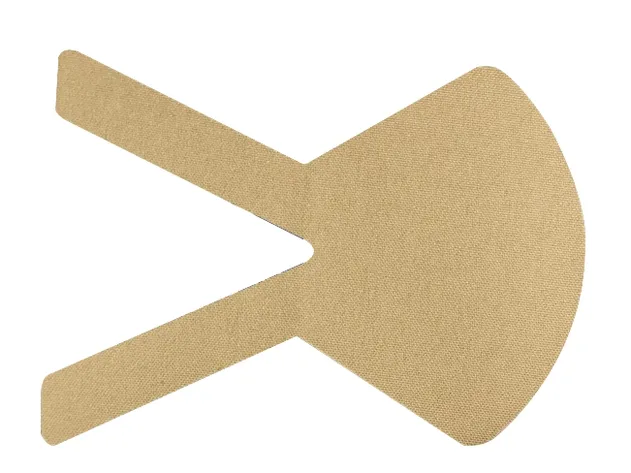

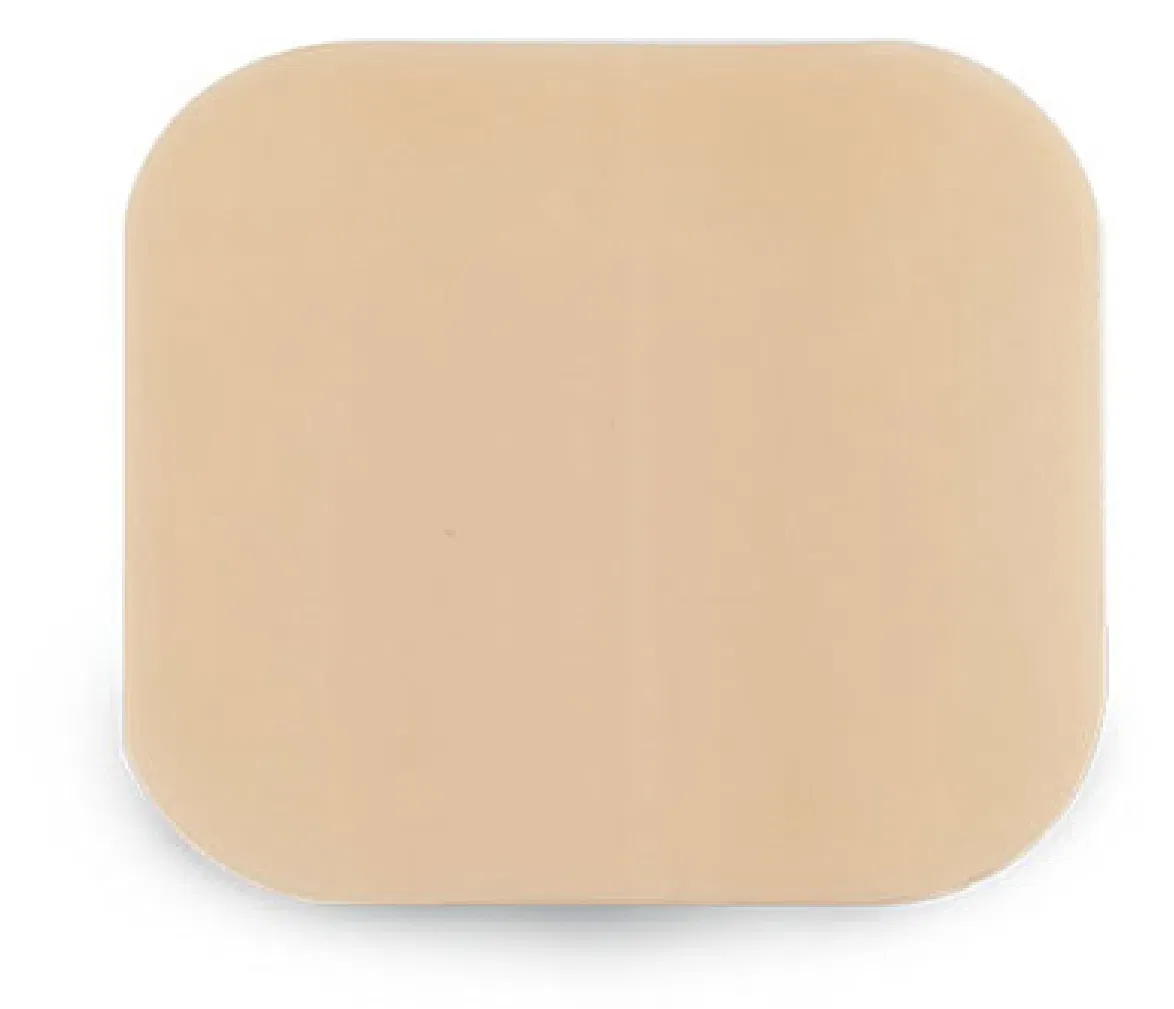

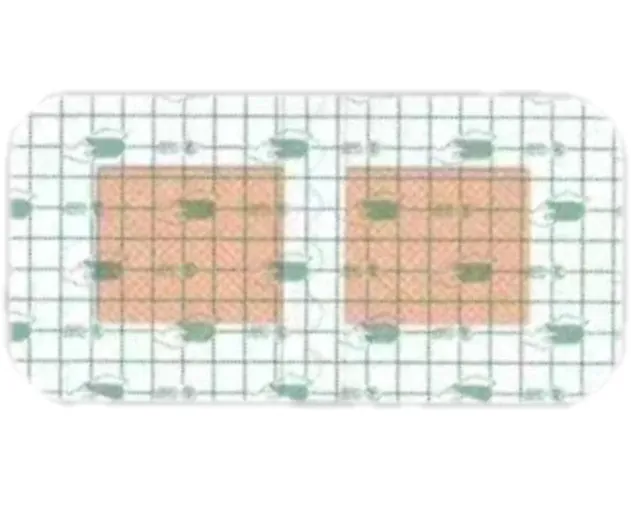

Widely used for manufacturing medical consumables, 3C electronics, and new energy components.

📊 Technical Specifications

Working Voltage	AC380V
Max. Material Diameter	400mm
Max Production Speed	60m/min
System Design	PLC Servo Control (Omron)
Functions	Asynchronous Tracking, Constant Tension, Failure Monitoring

🛠️ Machine Components

📦 Packaging & Delivery

🛡️ After-Sales Service

Standard Warranty: 1 Year comprehensive coverage.
Technical Support: 24/7 global assistance and spare parts supply.
On-site Training: Dispatching engineers for equipment debugging and operator training.

❓ Frequently Asked Questions

1. What materials can this rotary die-cutting machine process?

The machine is designed for all flexible substrates including non-woven fabrics, PU films, foam, medical-grade adhesives, and EMI shielding materials.

2. How accurate is the cutting process?

The machine features a high-precision servo control system and Omron PLC, achieving a cutting precision of ±0.1mm.

3. Can the machine produce different products at the same time?

Yes, for models with 8 or more workstations, a double-system design allows for the production of two different types of products simultaneously.

4. Is the equipment customizable for specific production needs?

Absolutely. The modular design allows you to add or remove stations, and we can customize configurations such as feeding width and specific die-cutters to suit your requirements.

5. What is the typical lead time for delivery?

Standard machines are typically ready for delivery within 20 days after the final design and configuration are confirmed.

6. What happens if I encounter technical issues after the warranty?

We provide life-long paid maintenance and technical assistance. Spare parts are always available for quick dispatch to minimize downtime.
