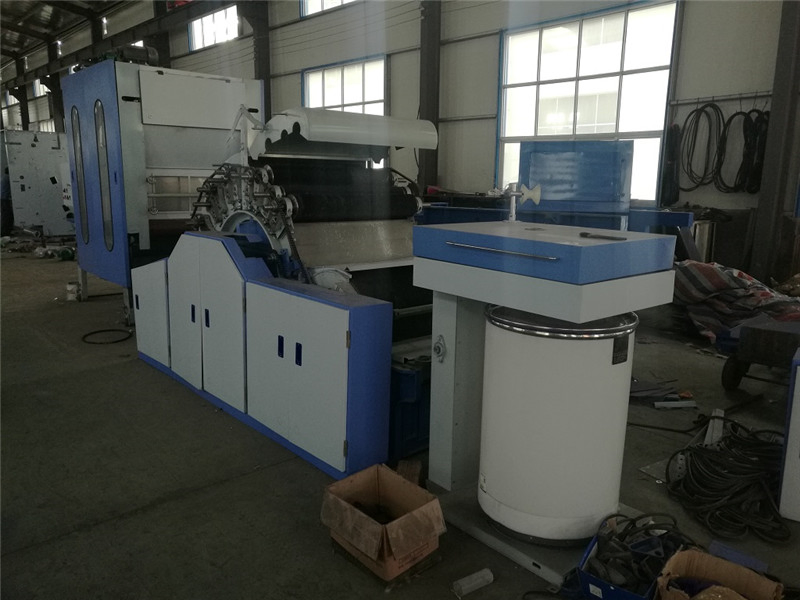

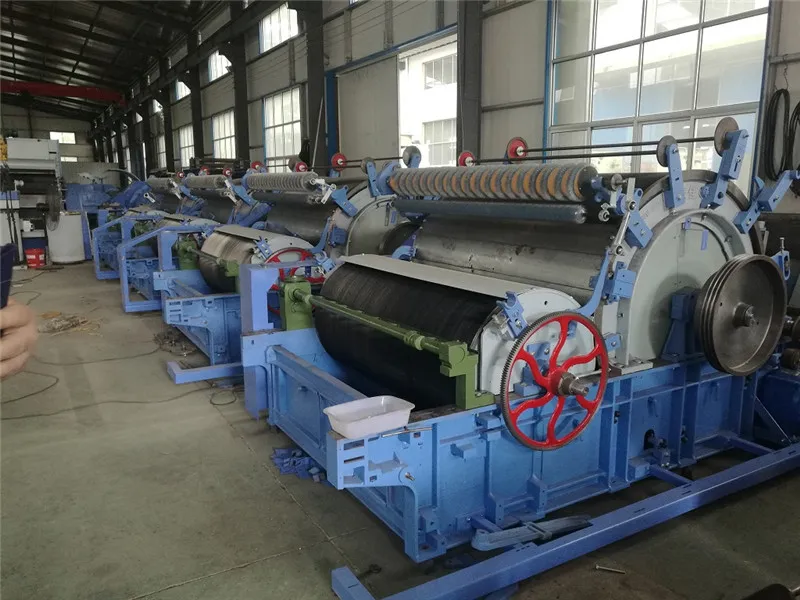

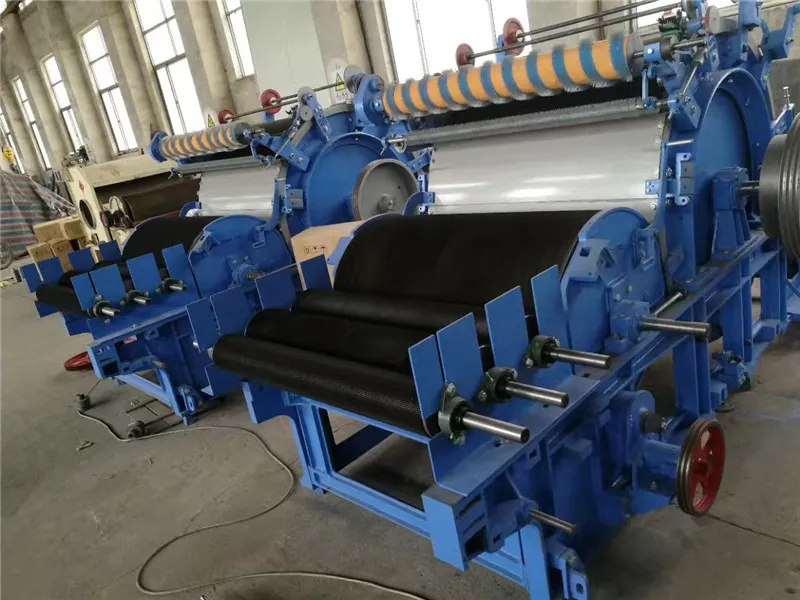

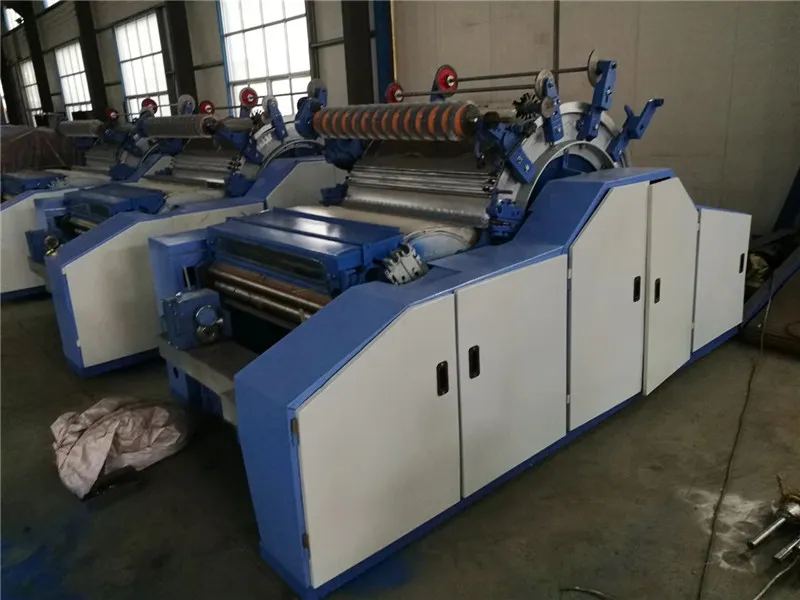

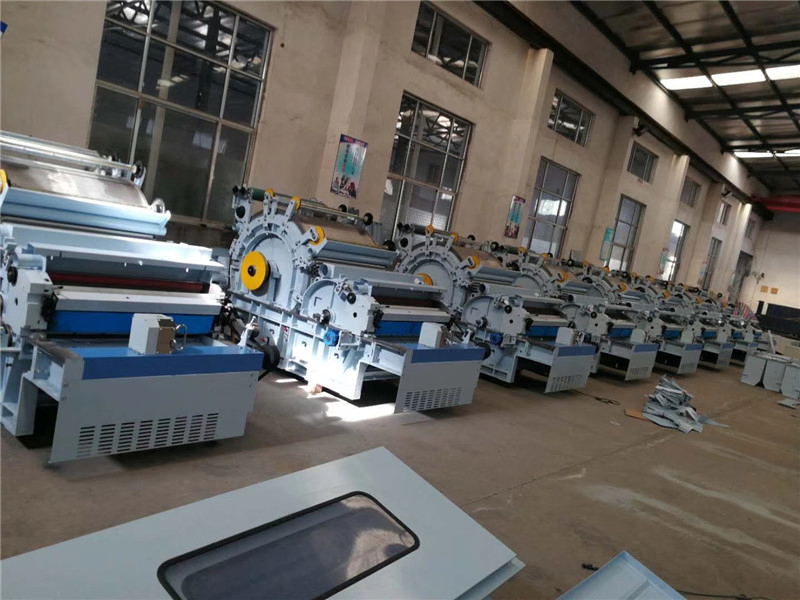

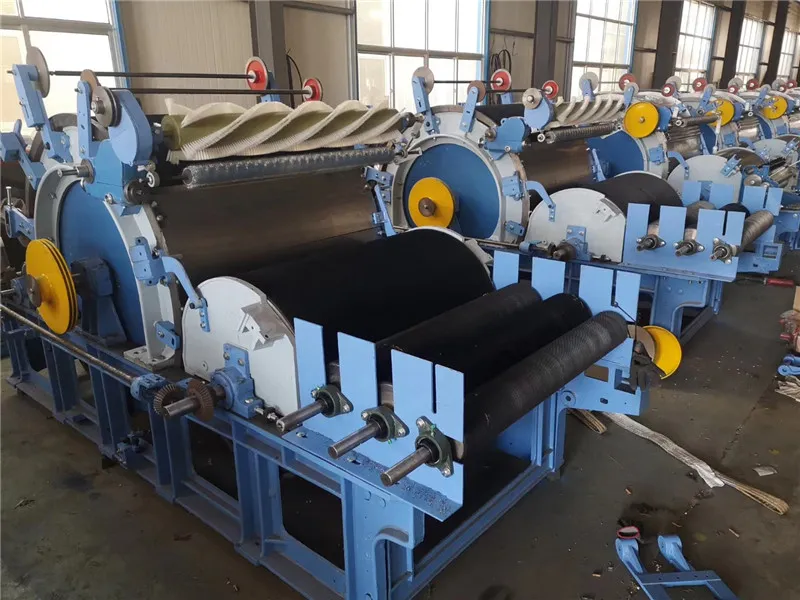

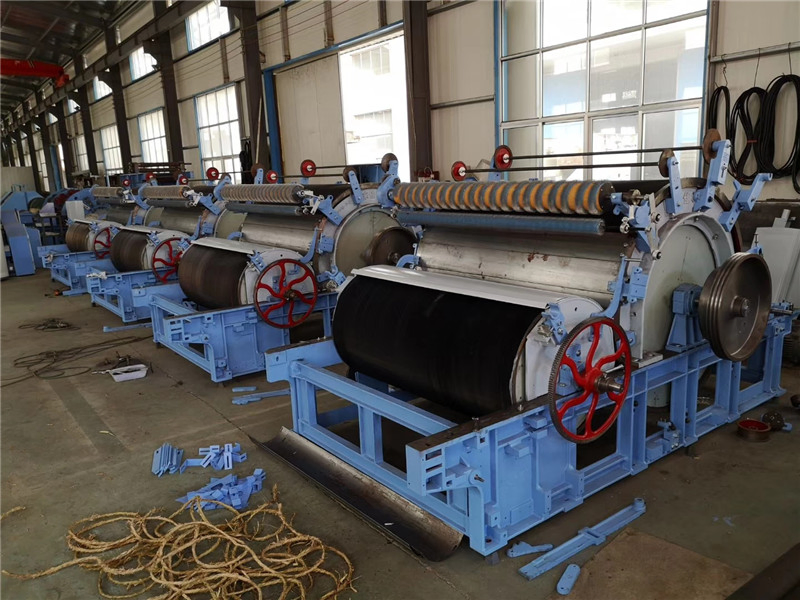

A186 Carding machine is specifically designed for medical cotton processing lines to card degreasing cotton, remove dust, and produce clean cotton for products such as cotton balls, swabs, and rolls.
It can also be integrated with opening machines and cross lappers for quilt making or recycled fiber processing to improve fiber quality.
⭐ High Efficiency: Perfect removing of coarse hair; residual coarse hair after treatment is not higher than 0.05-0.1%.
⭐ High Yield: Up to 98% fine fiber content preserved without damage or fiber shortening.
| Name | Wool carding machinery |
| Model number | A186 |
| Machine width | 1020mm |
| Dimensions | 3300mm * 1800mm * 1800mm |
| Main motor | YQ-DJ-2.8-960 (2.8kw 960r/min) |
| Weight | 4100Kg |
| Output | 10 kg/h |
| Fiber loss | <2% |
| Cylinder working speed | 180-210 r/min |
| Randolph working speed | 10-12 r/min |
| Licker working speed | 500-600 r/min |
| Chopper frequency | 1200 /min |
