Marya Pharmaceutical Automatic 6/8/10 Nozzles Freeze-Dried Powder Auger Vial Powder Filling Machine for Bottle Filling Production Line Supplier

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
MY-VIAL
Type
Washing Filling Sealing Machine
Automatic Grade
Automatic
Material Type
Powder
Filling Valve Head
Multi-Head
Dosing Device
Capacity Cup
Filling Principle
Pressure
Packaging
Bottle (Glass)
Production Speed
30-50 Bottles/ Minute
Drive Mode
Servo Motor
Certification
CE GMP ISO
Bottle Size
5-200 Ml
📦 Product Description

Pharmaceutical Automatic 6/8/10 Nozzles Freeze-Dried Powder Auger Vial Powder Filling Machine

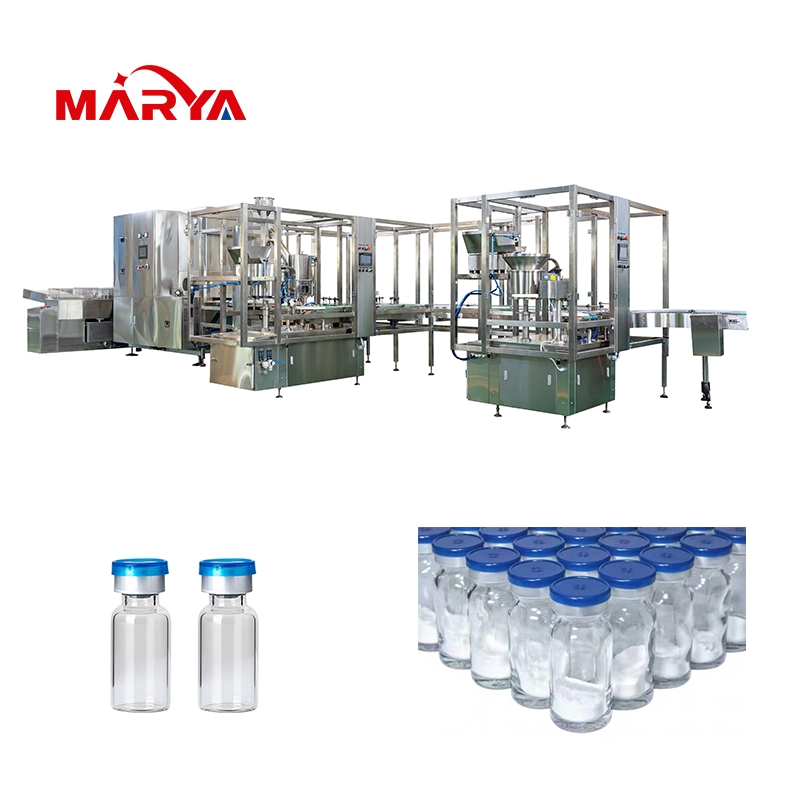

The vial powder filling production line is composed of the ultrasonic bottle washing machine, dryer sterilizer, filling and stoppering machine, and capping machine. It can complete spraying water, ultrasonic cleaning, flushing of the inner and outer wall of the bottle, preheating, drying and sterilization, heat source removing, cooling, bottle unscrambling, filling, plug unscrambling, stopper pressing, cap unscrambling, capping, and other complex functions, realizing automatic production of the whole process. Each machine can be used separately or in a linkage line.

Technical Parameters
Model KGF4 KGF6 KGF8 KGF10 KGF12 KGF20
Applicable Spec.2~30ml vial bottles
Filling heads468101220
Capacity50-100bts/min80-150bts/min100-200bts/min150-300bts/min200-400bts/min250-500bts/min
Stoppling Rate>=99%
Cleanliness100 grade
Power supply380V 50Hz
Performance Features

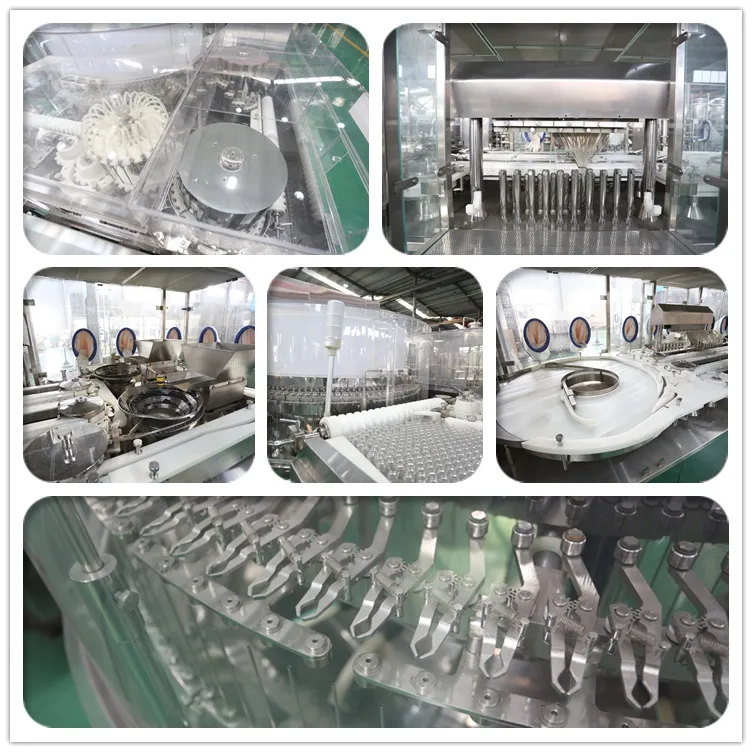

Vial Powder Filling Machine

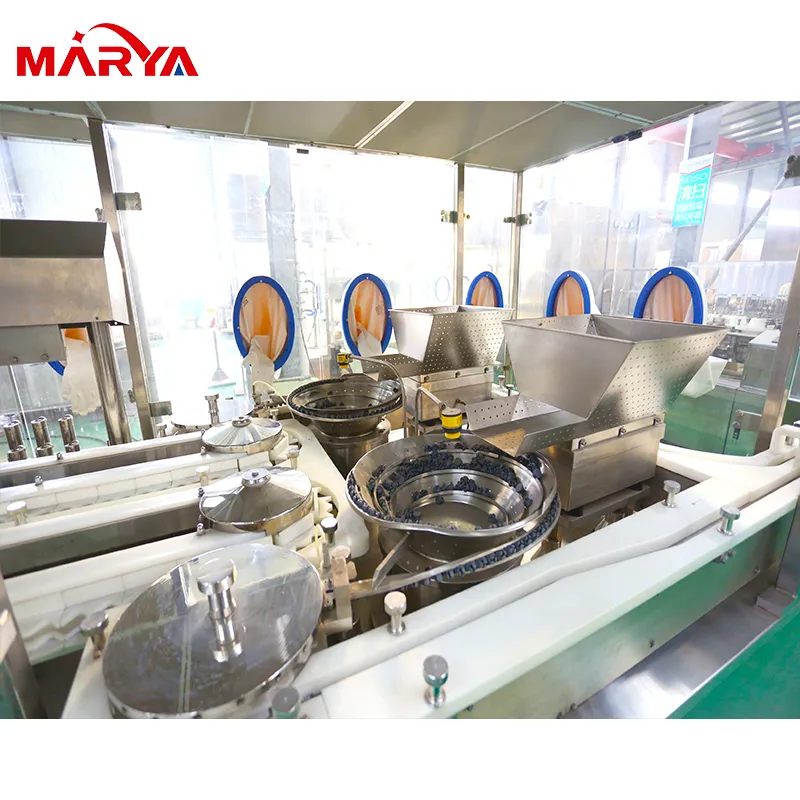

Filling Detail
01Meets GMP requirements; cleaning effect meets Pharmacopoeia standards.
02Straight-line layout reduces drug cross-contamination risk.
03Applicable specification: 5ml-50ml vial.
04Filling Accuracy: ≤ ±1% (based on drug characteristics).
05Capping qualified rate: ≥99.9%.
06High degree of automation with PLC automatic control and touch screen.
07Optional real-time monitoring for dust particles and wind speed.
08Multi-head screw intermittent filling to prevent secondary pollution.

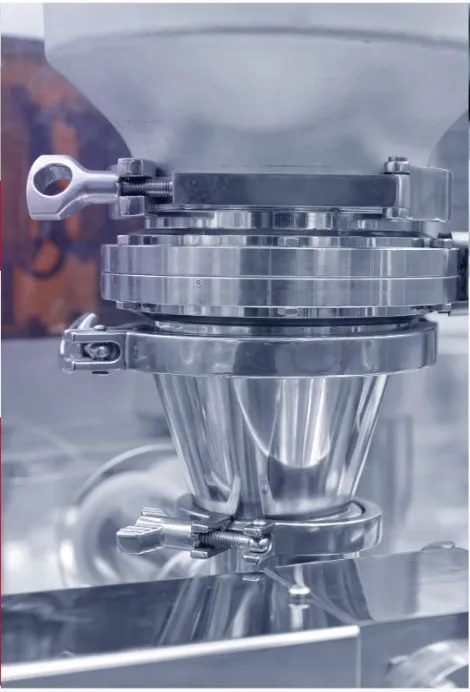

Machine Structure
🏭 Workshop & Capability
About Machine
Advantages
Workshop
📜 Certificates & Projects
Certificate 1
Certificate 2
Project Cases
Customer Success
🚚 Packaging & Shipping
Team
Exhibition
Logistics
FAQ
What materials can this machine fill?
The machine is specifically designed for sterile powder filling, such as freeze-dried powder, into vial bottles.
What is the production capacity of the line?
Depending on the model (from 4 to 20 filling heads), the capacity ranges from 50 bts/min up to 500 bts/min.
Does the machine comply with international standards?
Yes, the entire production line meets new GMP requirements and carries CE and ISO certifications.
How accurate is the powder filling process?
The filling accuracy is highly precise, typically ≤ ±1%, depending on the specific characteristics of the drug powder.
Can the machine handle different vial sizes?
Yes, it is applicable for a wide range of bottle specifications (typically 5ml-50ml) and the molds are easy to replace for different sizes.
What control systems are used in the machine?
The system utilizes PLC automatic control, high-precision colored touch screen monitoring, and servo motor drive modes for stable operation.
