Kdz-300 High Speed Packaging Machinery for Medical Products Box Packing Machine
Kdz-300 High Speed Packaging Machinery for Medical Products Box Packing Machine
Kdz-300 High Speed Packaging Machinery for Medical Products Box Packing Machine
Kdz-300 High Speed Packaging Machinery for Medical Products Box Packing Machine
Kdz-300 High Speed Packaging Machinery for Medical Products Box Packing Machine
1 / 5
Kdz-300 High Speed Packaging Machinery for Medical Products Box Packing Machine
Kdz-300 High Speed Packaging Machinery for Medical Products Box Packing Machine
Kdz-300 High Speed Packaging Machinery for Medical Products Box Packing Machine
Kdz-300 High Speed Packaging Machinery for Medical Products Box Packing Machine
Kdz-300 High Speed Packaging Machinery for Medical Products Box Packing Machine

Kdz-300 High Speed Packaging Machinery for Medical Products Box Packing Machine

Customization: Available
After-sales Service: After-Sales Service
Warranty: One Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
KDZ-300
Automatic Grade
Automatic
Application
Cosmetics, Skin Care, Dairy, Tea, Snacks
Type
Forming Filling Sealing Machine
Driven Type
Electric
Speed
150-300 boxes/Min
Packaging Material
Paper / Cartons
Transport Package
Wooden Case
Product Description

KDZ-300 High Speed Horizontal Pharmaceutical Cartoning Machine is an advanced equipment designed for high-efficiency packaging of tablet blister plates, capsules, bottles, and medical instruments. Utilizing a PLC programming control system, it integrates domestic and international technology to provide a leading solution for modern production lines.

Key Functional Features:
  • Balcony type structure with modular design for compact and simple operation.
  • Integrated servo feeding, manual folding, and carton forming systems.
  • High-speed operation reaching stable production of 240-300 boxes per minute.
  • Comprehensive detection system: rejects products if manual or carton is missing.
  • Automatic batch number embossing for production and expiration dates.
  • GMP standard compliance with easy-to-clean components and no dead angles.

The machine is equipped with reliable overload protection and torque limiters to prevent equipment damage. It features a manual turning system for easy debugging and maintenance. Specification changes are quick and convenient, typically requiring less than one hour for one person to complete without special tools.

Technical Data
Parameter Specification
Machine ModelKDZ-300
Production Speed300 pcs/min
Box Size RangeL:70-200mm, W:25-100mm, H:15-90mm
Leaflet Paper Material50-70 gsm
Leaflet Fold1-4 fold
Paper Box Material250g-300g
Air Pressure0.6 MPa
Gas Consumption≥0.8m³/min
Voltage / Power380-420V 50Hz / 5kW
Machine Weight4000 kg
Overall Dimensions5000 x 1500 x 1900 mm
Product Visuals

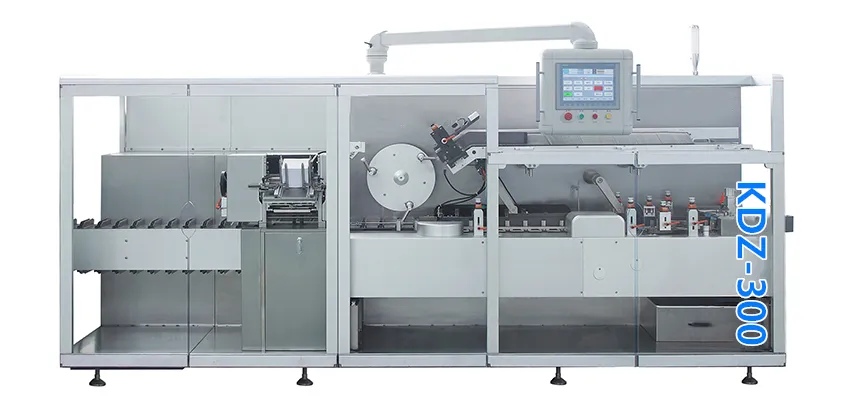

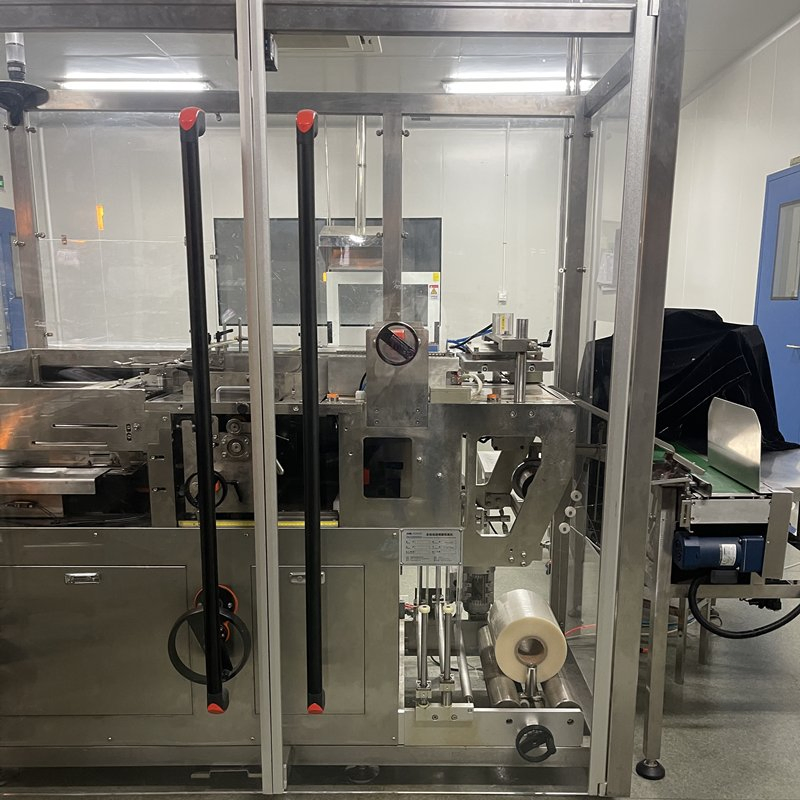

KDZ-300 High Speed Packaging Machine

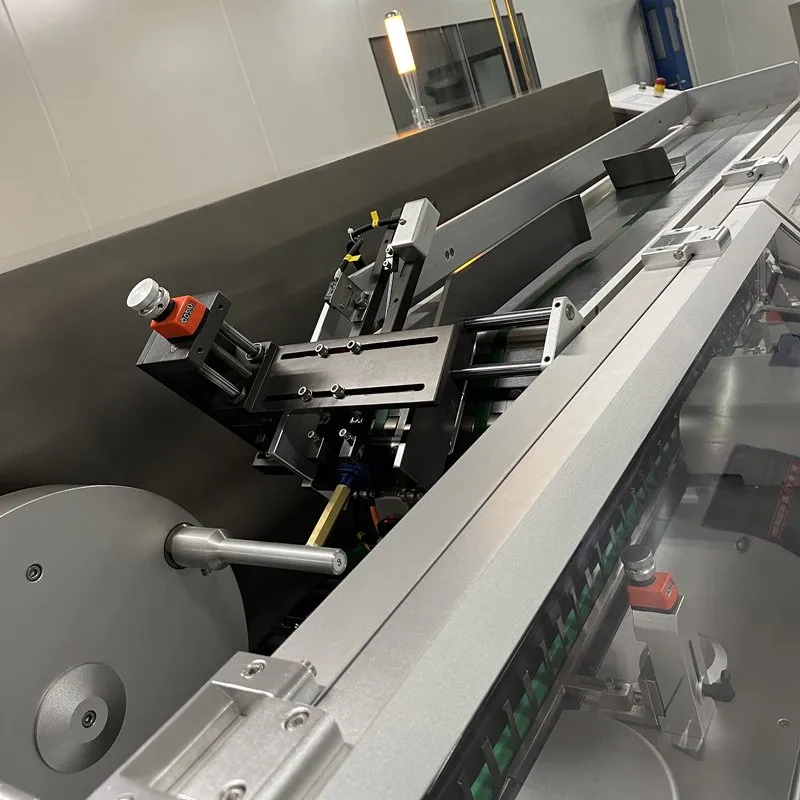

Box Packing Mechanism

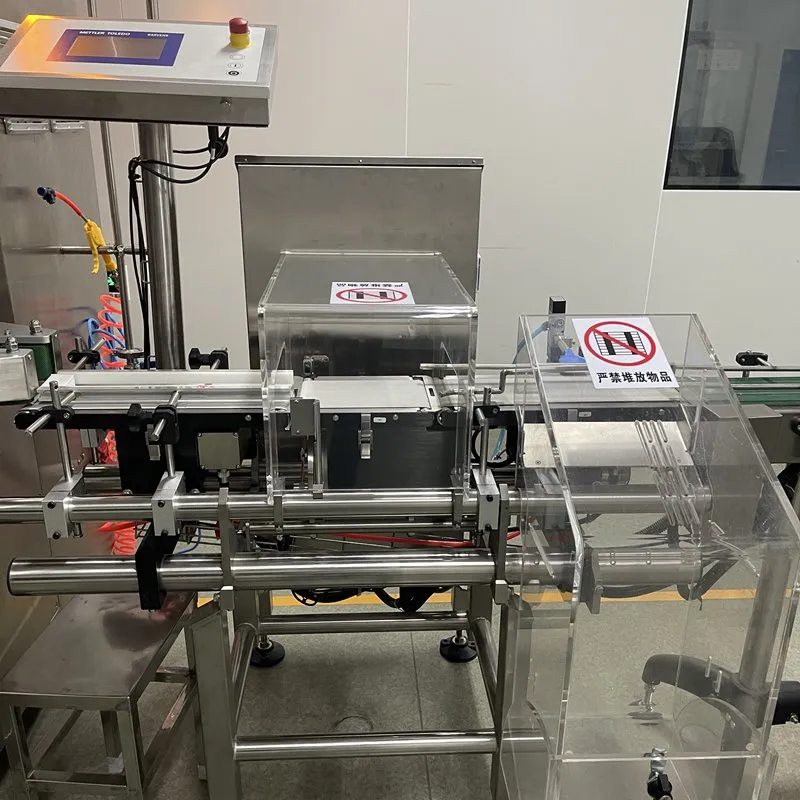

Automatic Cartoning System

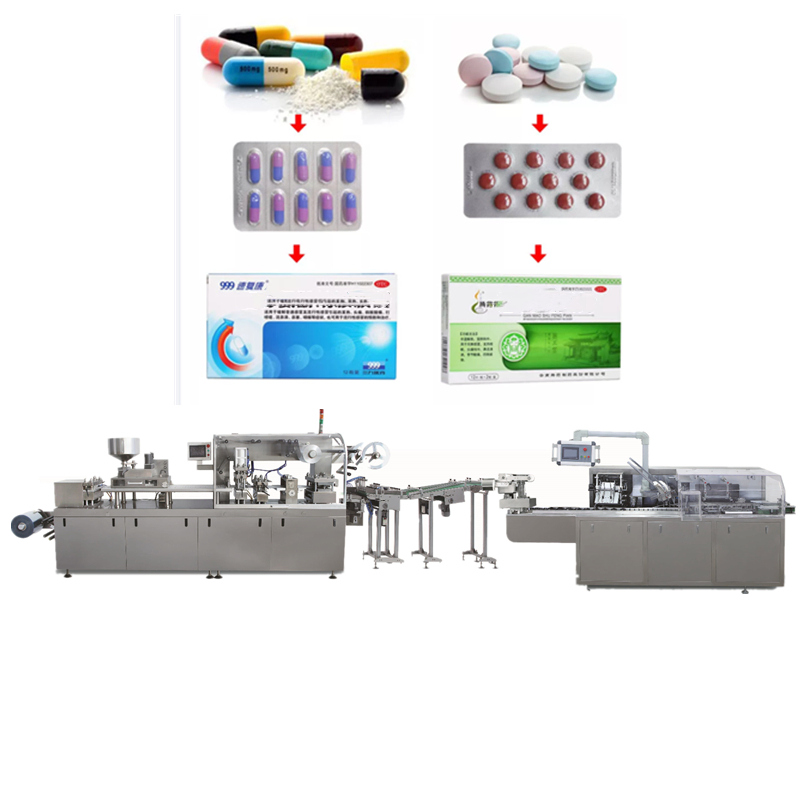

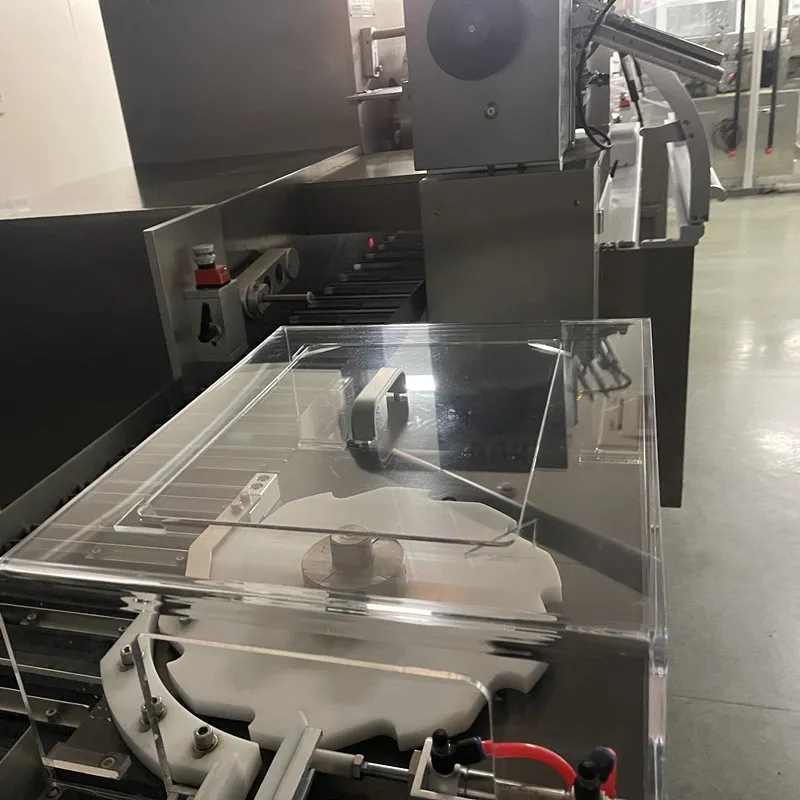

Pharmaceutical Tablet Packing

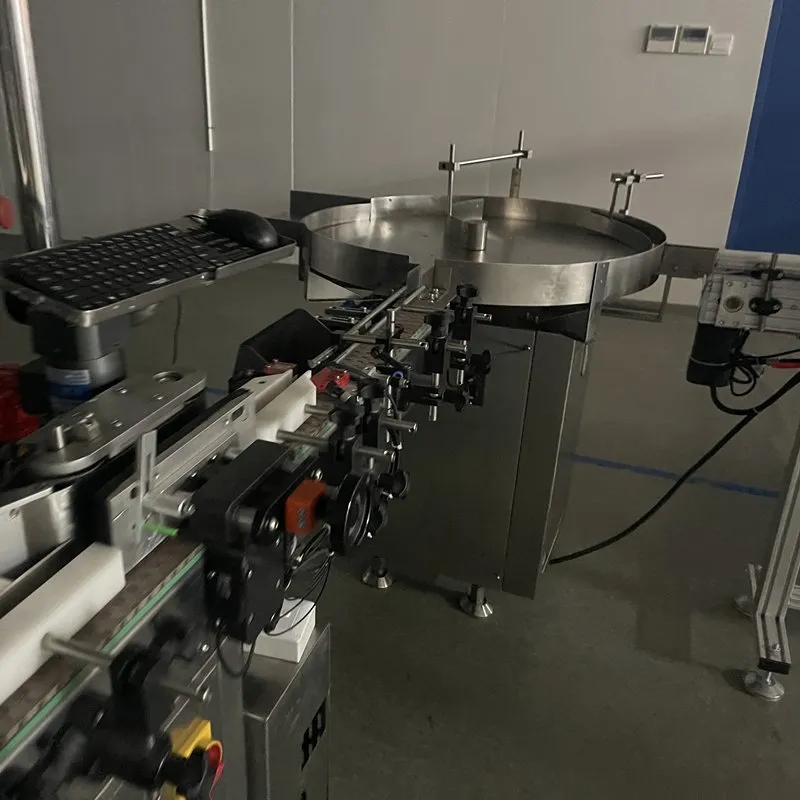

High Speed Feeding Unit

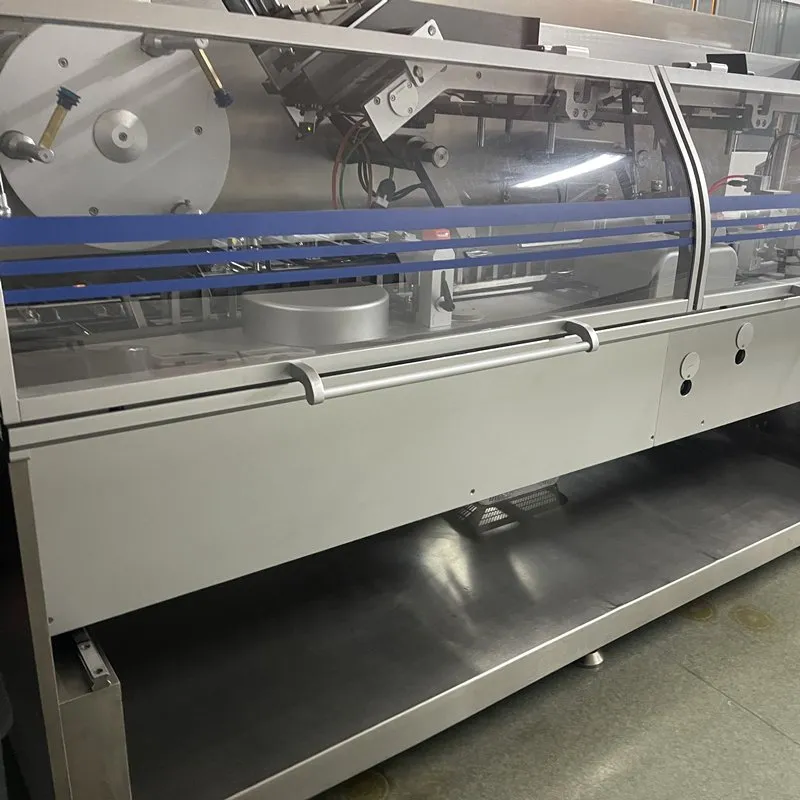

Cartoning Detail View

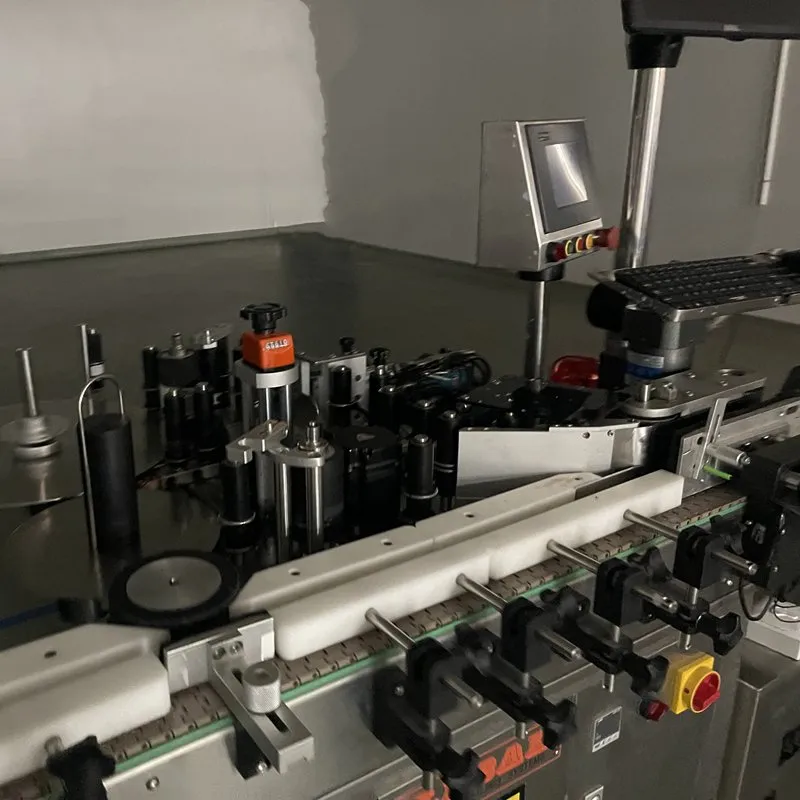

Control System Interface

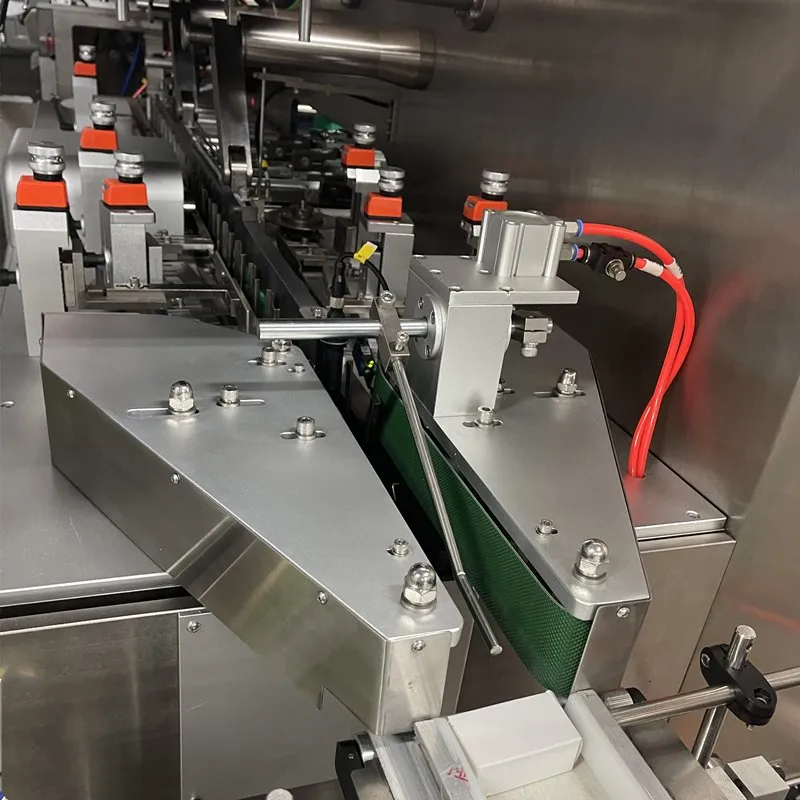

Mechanical Structure
Final Packaging Output
Frequently Asked Questions
What is the maximum speed of the KDZ-300 cartoning machine?
The machine offers a high-speed operation with a maximum stable production rate of 240 to 300 boxes per minute.
Which industries can use this equipment?
It is ideal for pharmaceutical (tablets, capsules), cosmetics, skin care products, dairy, and snack food industries.
Does the machine support automatic leaflet insertion?
Yes, it includes a configuration for an on-line folding machine that automatically inserts folded manuals into the paper boxes.
What happens if a carton or manual is missing during the process?
The machine features an intelligent detection system; it will not push the product if the carton is missing and will automatically stop if manuals or cartons run out.
Is it difficult to change specifications for different product sizes?
Not at all. The modular design allows for quick adjustments using rulers or digital displays. Specification changes can typically be completed by one operator in under an hour.
Does the equipment meet medical hygiene standards?
Yes, the machine is designed with no cleaning dead angles and easy-to-disassemble parts, fully conforming to GMP standards.
