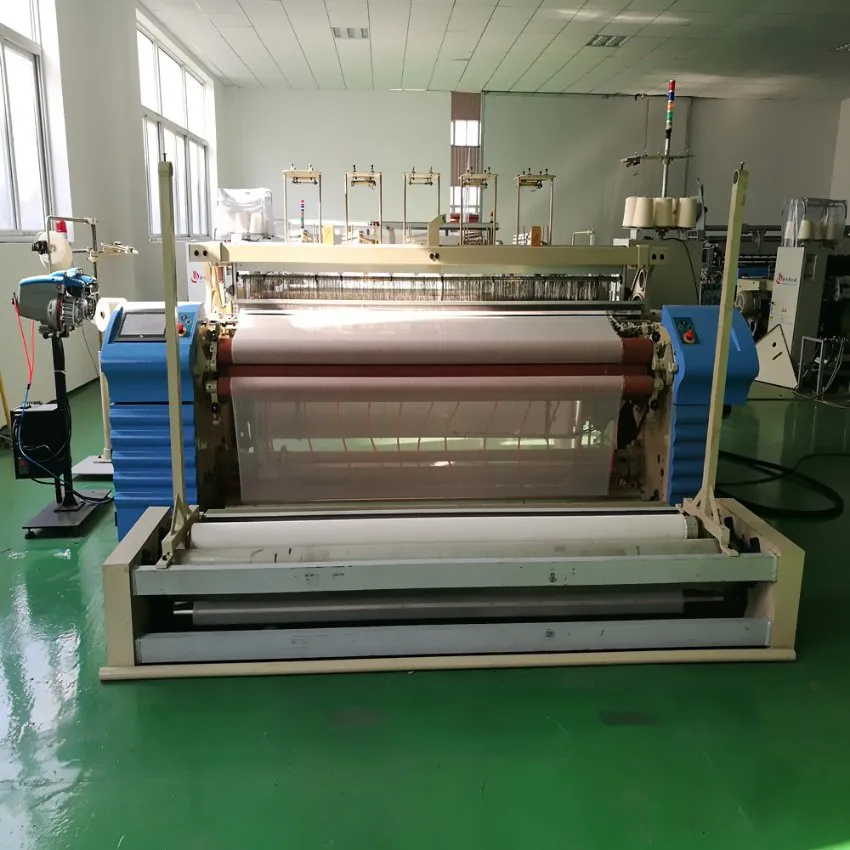

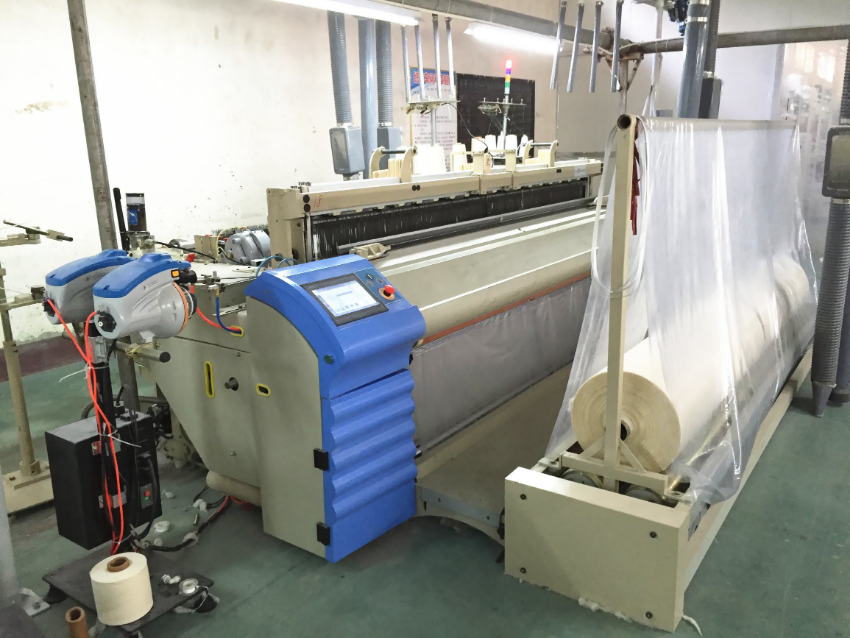

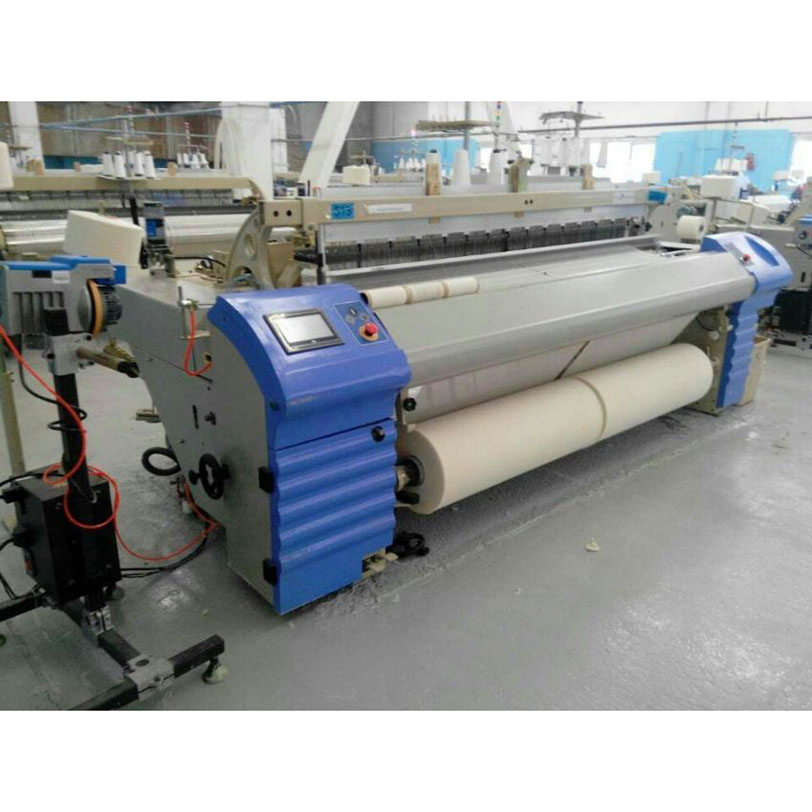

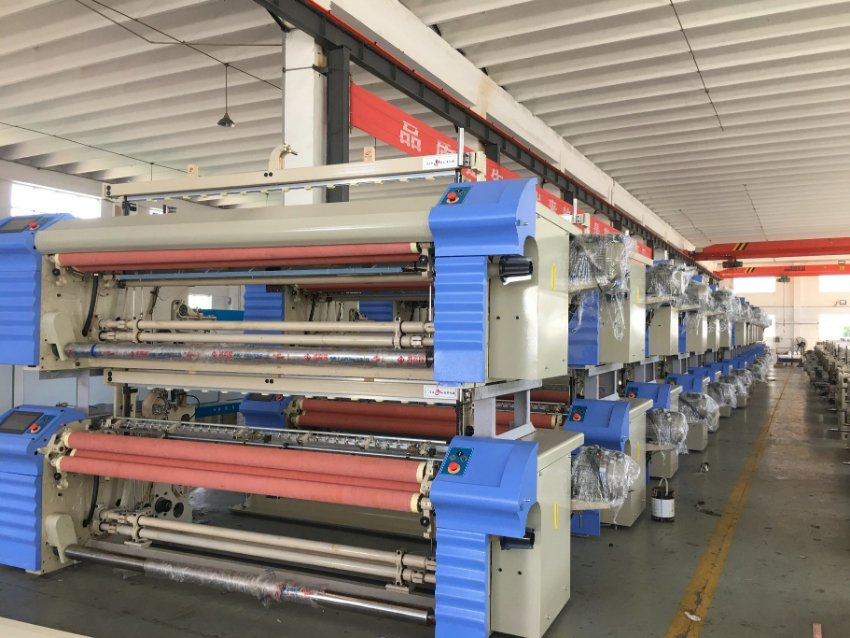

Jlh425s Gauze Production Line Air Jet Loom
This is a highly advanced machine designed for high-quality and high-production medical gauze bandages. It can produce more than 2000m of gauze fabric per 24 hours. Compared with shuttle or rapier looms, production is significantly higher, reducing costs and labor.

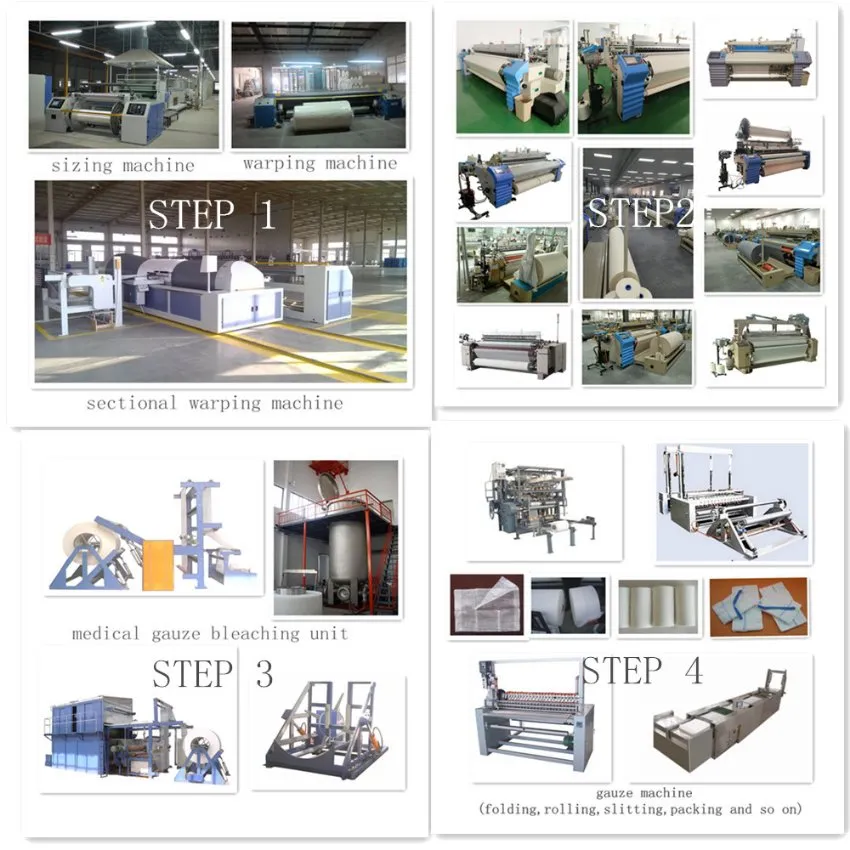

Whole gauze production line and technology support available.
| Feature | Specifications |
|---|---|
| Reed width | 150cm to 360cm |
| Feeder | Electronic feeder |
| Nozzle | Single nozzle, double nozzle |
| Shedding | Plain/cam/dobby |
| Frame | 2PCS/4PCS/6PCS or more |
| Let-off / Take-up | Mechanical/Electronic |
| Edge | Selvage edge/tuck-in selvage |
| Cotton Yarn Count (S) | Warp & Weft Density (PPI) | Gauze Width (Inch) | Production (m/day) |
|---|---|---|---|
| 40 X 40 | 26X18 | 36"-134" | 730-1200 |
| 40 X 40 | 16X14 | 36"-134" | 940-1530 |
| 32 X 32 | 31 X 21 | 36"-134" | 620-1020 |
| 10 X 10 | 40 X 20 | 36"-108" | 650-900 |
| Model | Name | Usage | Raw Material |
|---|---|---|---|
| JLH9200 | Air Jet Loom | Home textile, denim | Cotton, Polyester |
| JLH425S | Air Jet Loom | Medical gauze | Cotton, Polyester |
| JLH740 | Built-in Pump Loom | Medical gauze only | Cotton Yarn 21s-45s |
| YGA-1 | Warping Machine | Cotton/Polyester yarn | - |
| DDL | Bleaching Machine | Bleach gauze/yarn | - |
