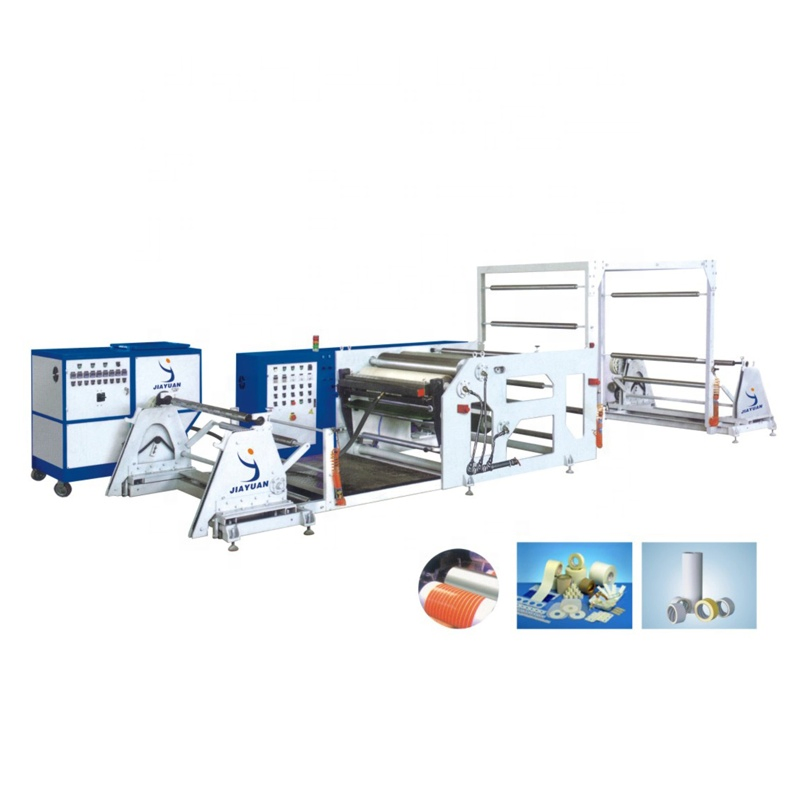

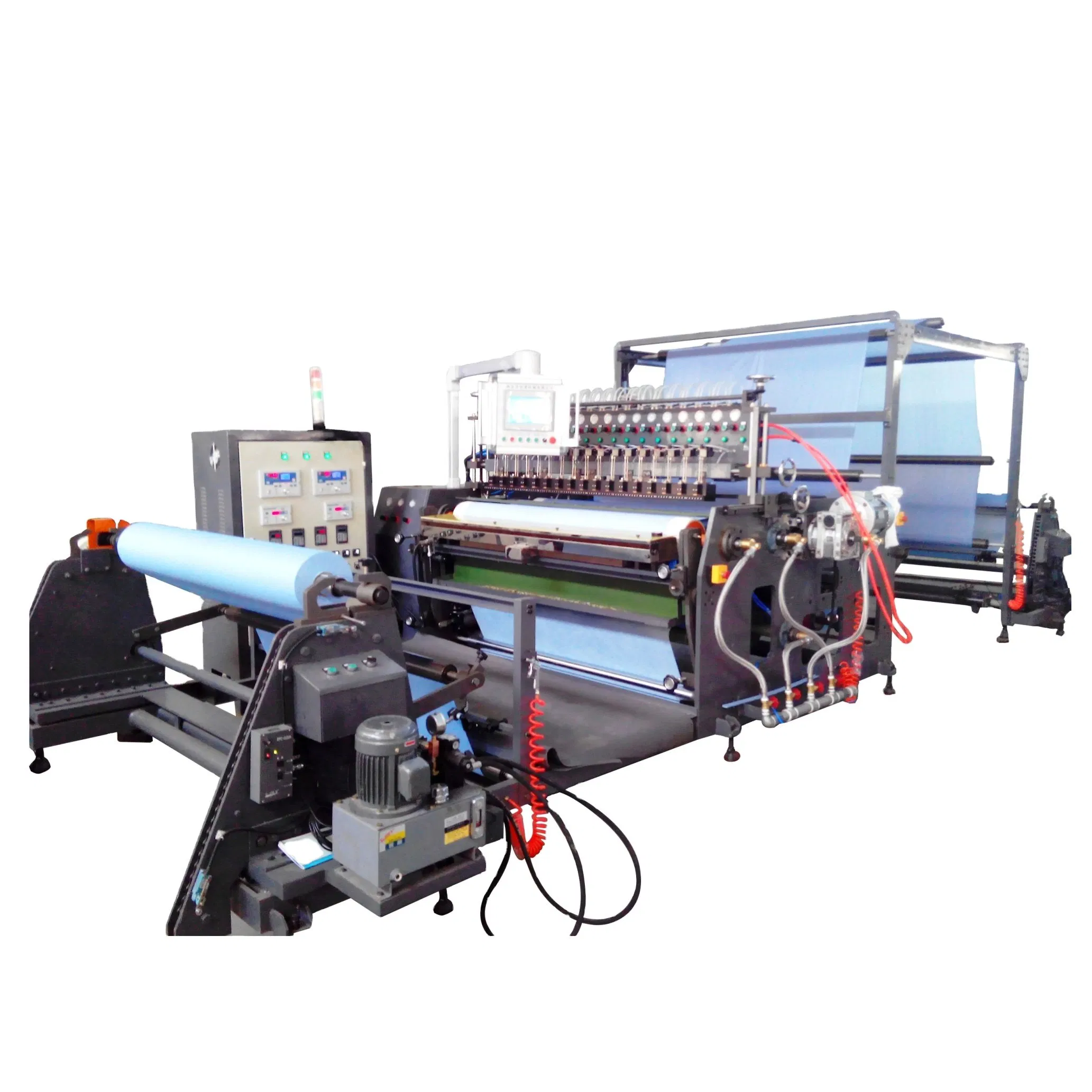

Jiayuan Fabric Tape Medical Surgical Tape Adhesive Bandage Tape Medical Paper Tape Hot Melt Coating Laminaton Machine with Nonwoven Paper

Customization: Available
After-sales Service: Lifetime Technical Support
Warranty: 1 Year

Product Description

i

Basic Specifications

Model NO.
Fabric lamination machine
Classification
Pre-Coating Laminating Machine
Application
Packaging Paper, Film Material
Driven Type
Hydraulic
Automatic Grade
Automatic
Mode
Hot Laminating
Speed
50m/Min
Glue Type
Hot Melt Adhesive
Capacity
30 Sets/Month
Certification
CE & SGS

Product Description

Main Characteristics of Thermal Roll Sheet Laminating Machine:

  • Both the first and second unwind adopt self-existent machine frames, equipped with an automatic edge controller for ideal lamination results.
  • Unwinds collocate electric-motor uploading and downloading functions for enhanced operational efficiency.
  • Comprehensive functionality including all features of the standard JYT-B Roll to Roll Hot Melt Coating Machine.

Range of Application:

This roll sheet laminating machine is specialized for producing high-quality self-adhesive products, including:

  • Self-adhesive tapes, double-side tapes, and fabric tapes.
  • Double-side foam tapes, duct tapes, and craft tapes.
  • Clean adhesive tapes, masking tapes, and aluminum foil tapes.
  • Lamination of non-woven fabrics, filter materials, medical materials, and labels.
📋

Product Parameters

Parameter Item Specifications (JYT-B)
Coating Width 400 - 2000mm
Coating Weight 10 - 200g / m²
Coating Speed 50M / min
Unwind Diameter 1000mm
Rewind Diameter 700mm
Correction Device 1 set
Machine Length 5000mm
Machine Height 1400mm
?

Frequently Asked Questions

1. What materials are compatible with this laminating machine?
The machine is designed for various materials including non-woven fabrics, filter materials, medical materials, film materials, and various papers for color printing.
2. What types of adhesive tapes can be produced?
It is ideal for self-adhesive tapes, double-side foam tapes, duct tapes, masking tapes, and medical surgical tapes.
3. How does the machine ensure coating precision?
The system utilizes an automatic edge controller and a hydraulic driven type to maintain consistent alignment and coating weight (10-200g/m²).
4. What is the maximum production speed?
The JYT-B model offers a stable coating speed of up to 50 meters per minute.
5. What are the key technical advantages of the unwind system?
The unwinds feature independent frames and electric-motor driven uploading/downloading functions for easier material handling.
6. What quality standards does the equipment meet?
The machine is fully compliant with CE and SGS specifications, ensuring high safety and performance standards for industrial use.
