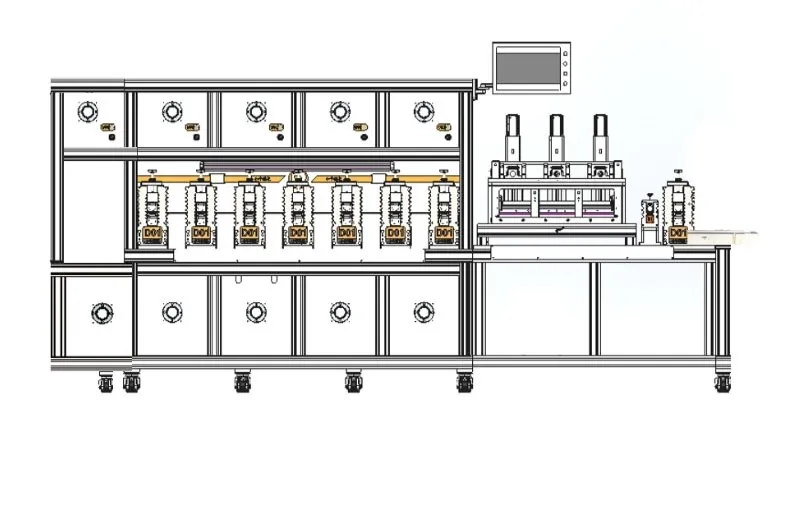

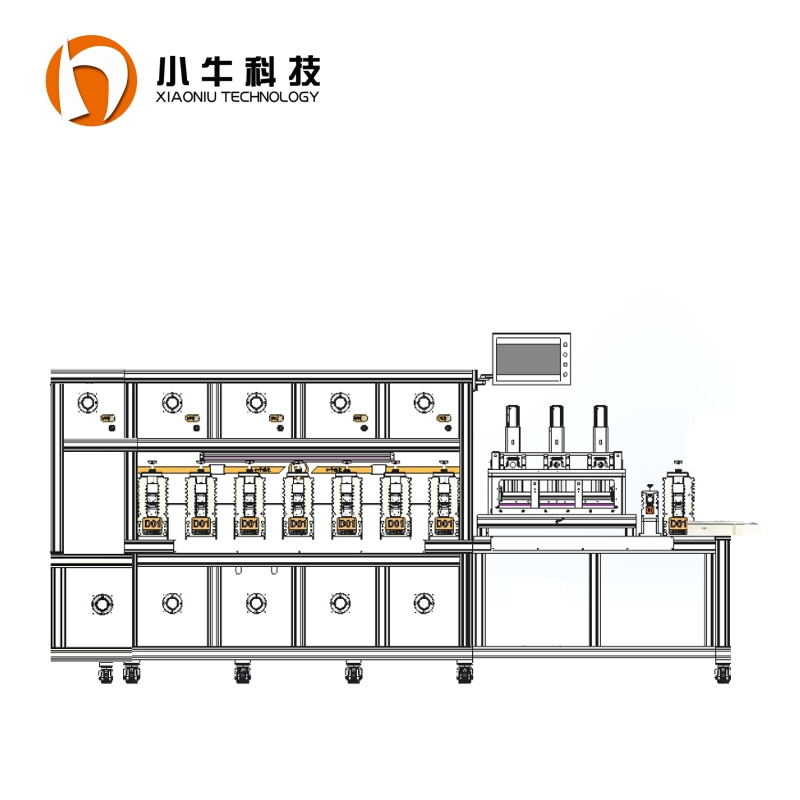

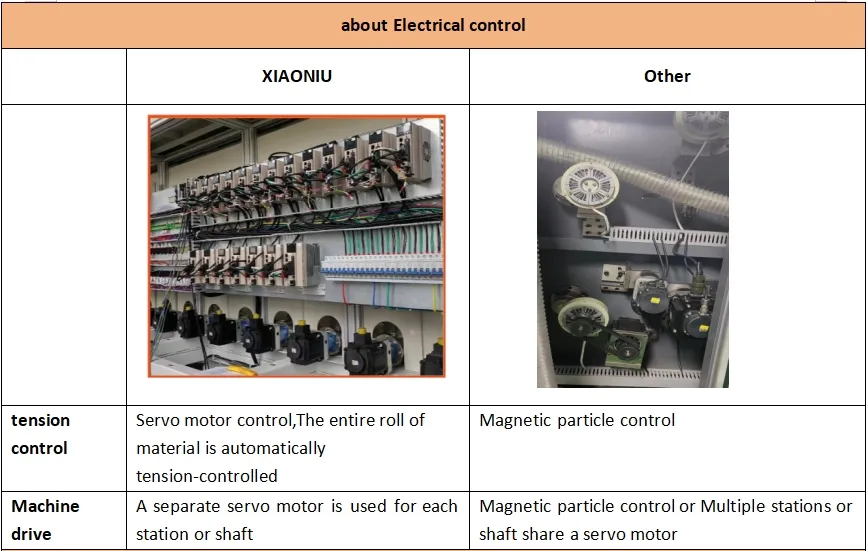

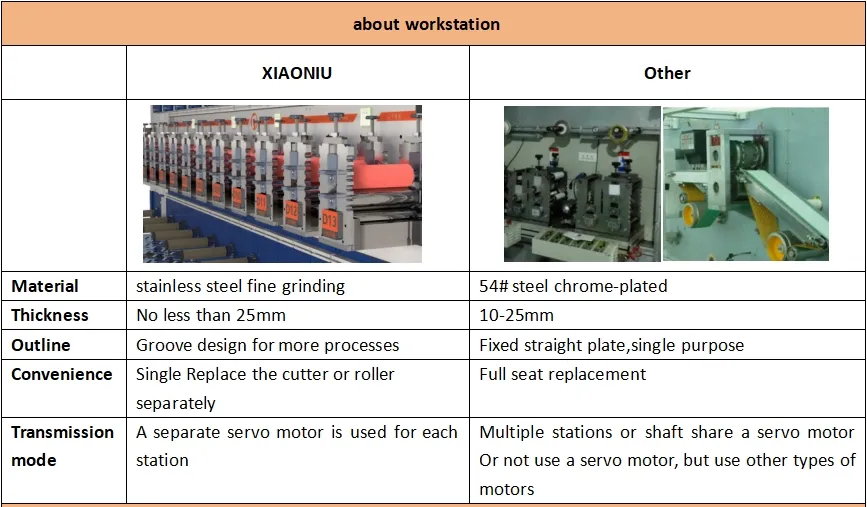

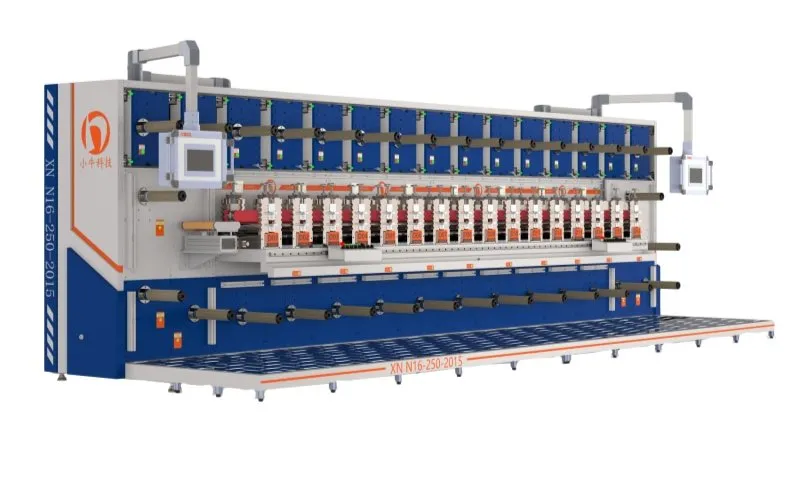

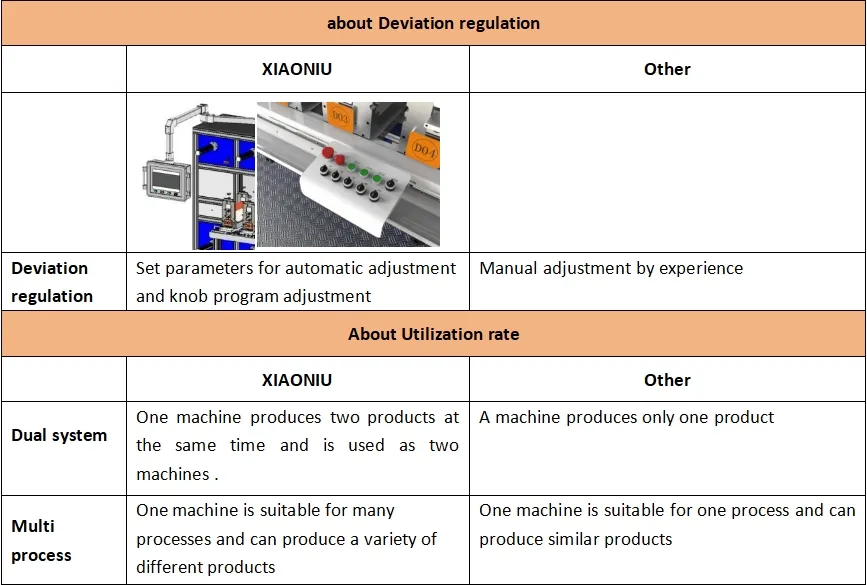

This rotary die-cutting machine is a multi-functional universal equipment designed to produce various medical products on a single platform. Utilizing high-end Omron motion controllers, each workstation and feeding axis is independently driven by servo motors. This modularity allows for diverse production requirements including embossing, die-cutting, and transfer printing. It features synchronous, asynchronous, speed ratio, and constant tension capabilities, representing a fully automatic and highly intelligent system.

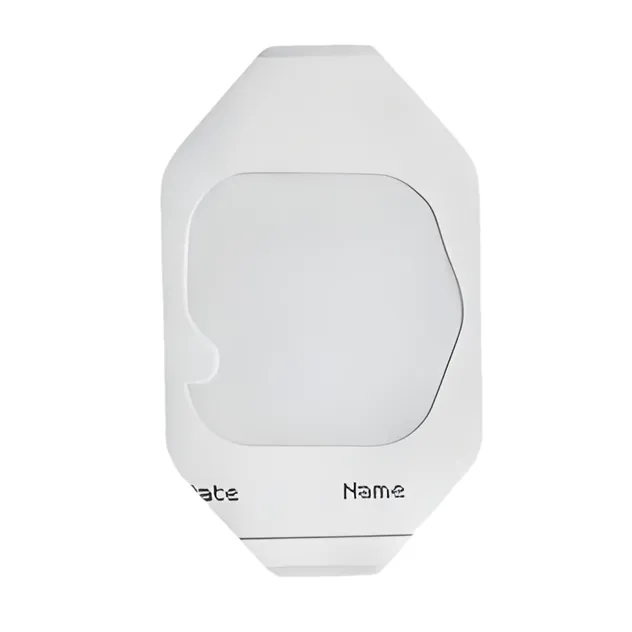

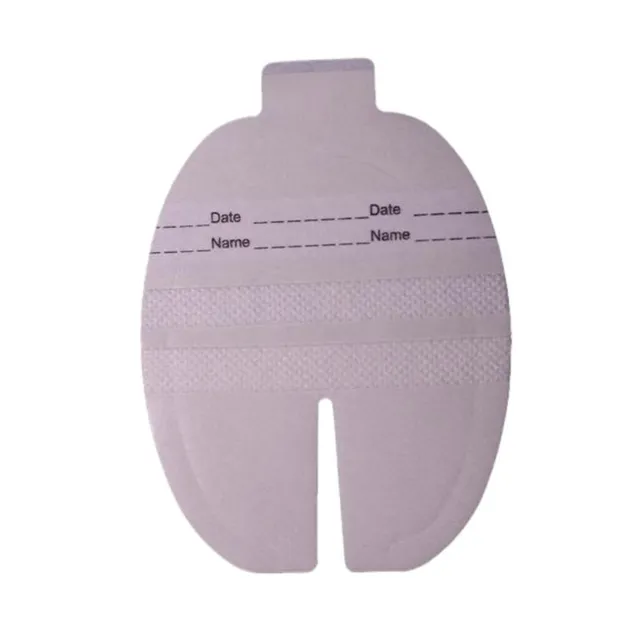

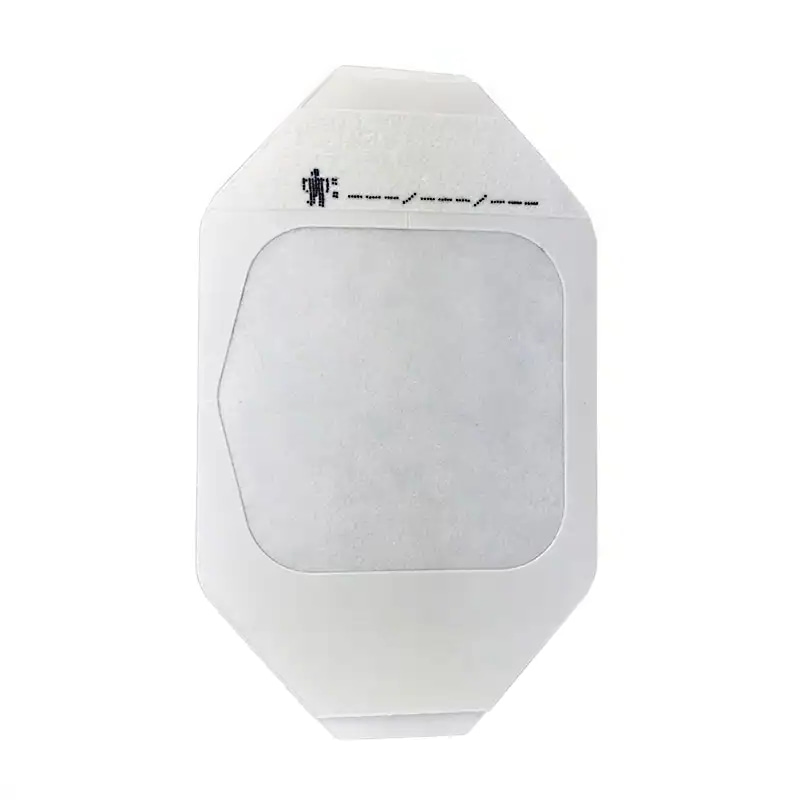

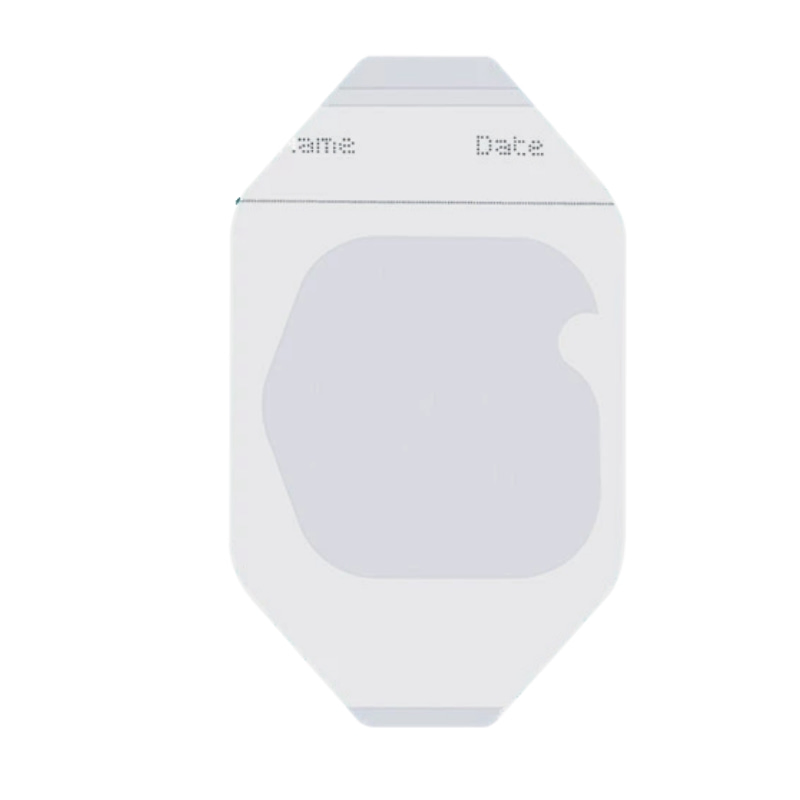

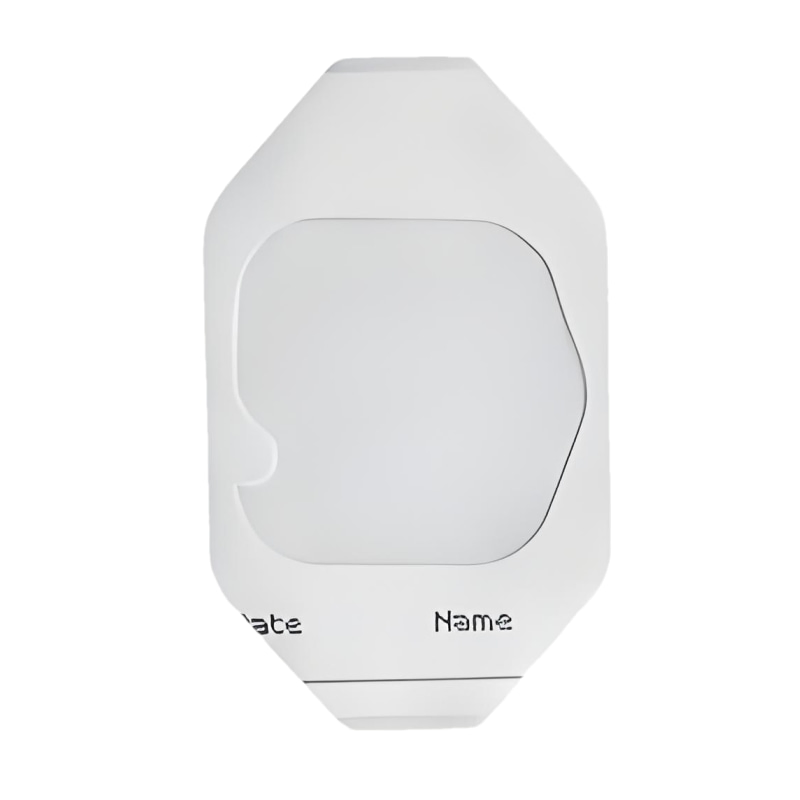

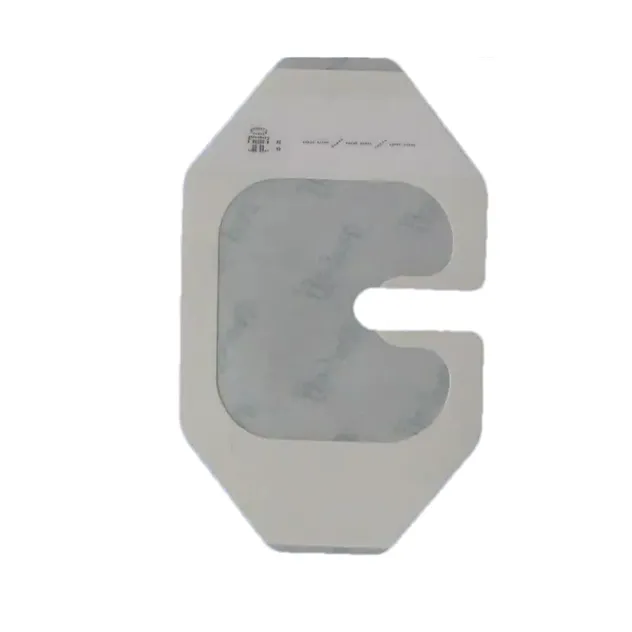

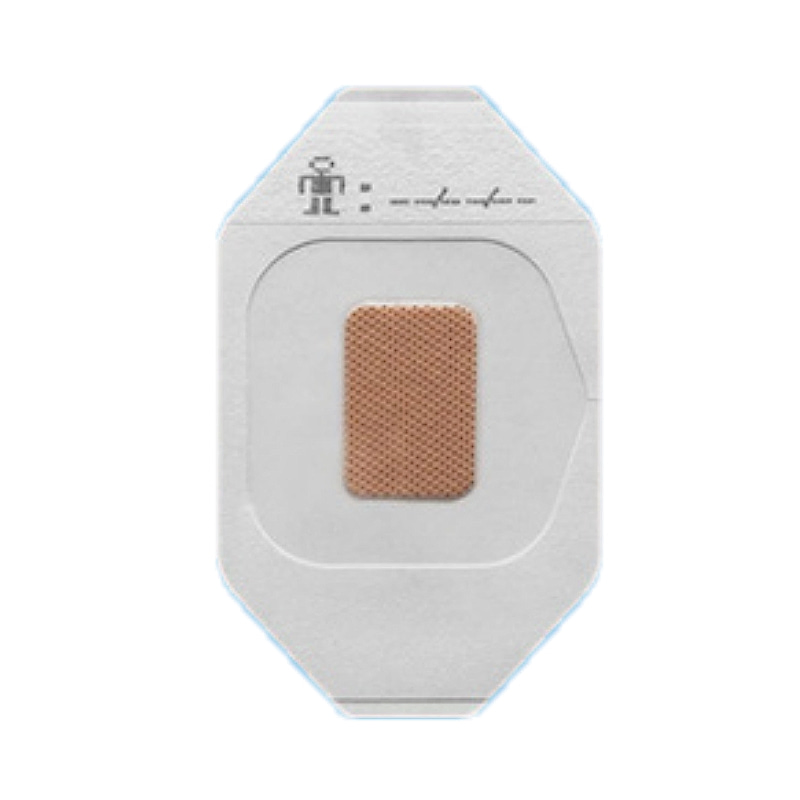

Specifically designed for producing shaped medical dressings, this specialized device automates cotton core die-cutting, transfer lamination, outer shape die-cutting, and heat sealing. The integrated packaging unit utilizes linear motors for enhanced accuracy and stability.
| Parameter Item | Specifications |
|---|---|
| Model | N7-packing |
| Operating Weight (kg) | 2500KG |
| Engine Power (kW) | 27.5KW |
| Machine Dimensions (mm) | 5500 * 1550 * 2100 |
| Feeding Width (mm) | 250 - 1300 |
| Max Running Speed (m/min) | 60 |
| Die Cutting Precision (mm) | ±0.1 |
Expertise in high-precision rotary die-cutting and high-speed medical dressing machines. Capabilities include production lines for neutral electrode sheets, hydrocolloid dressings, transparent dressings, and advanced packaging systems.
