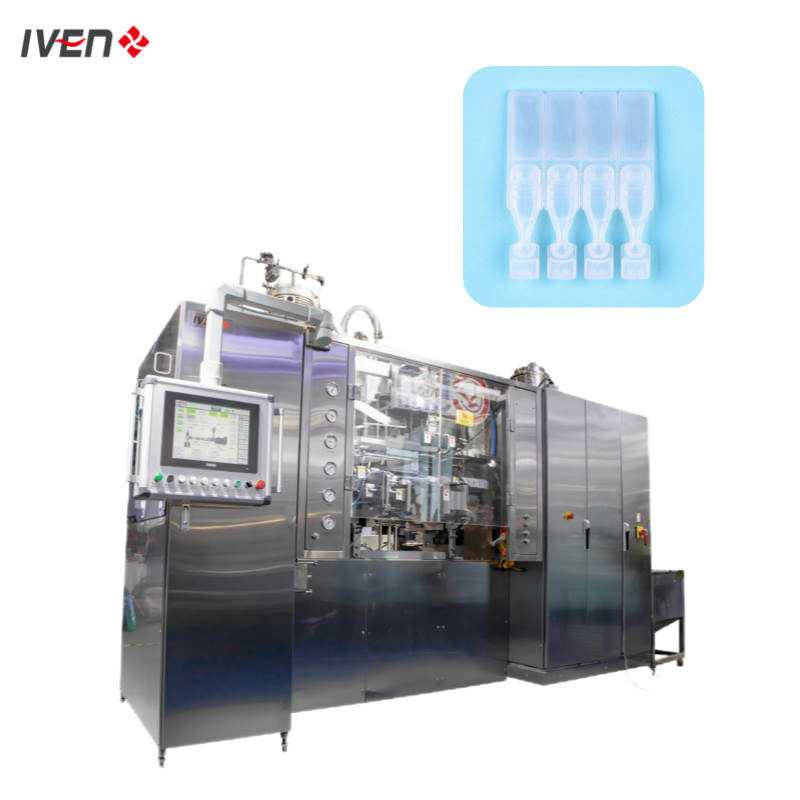

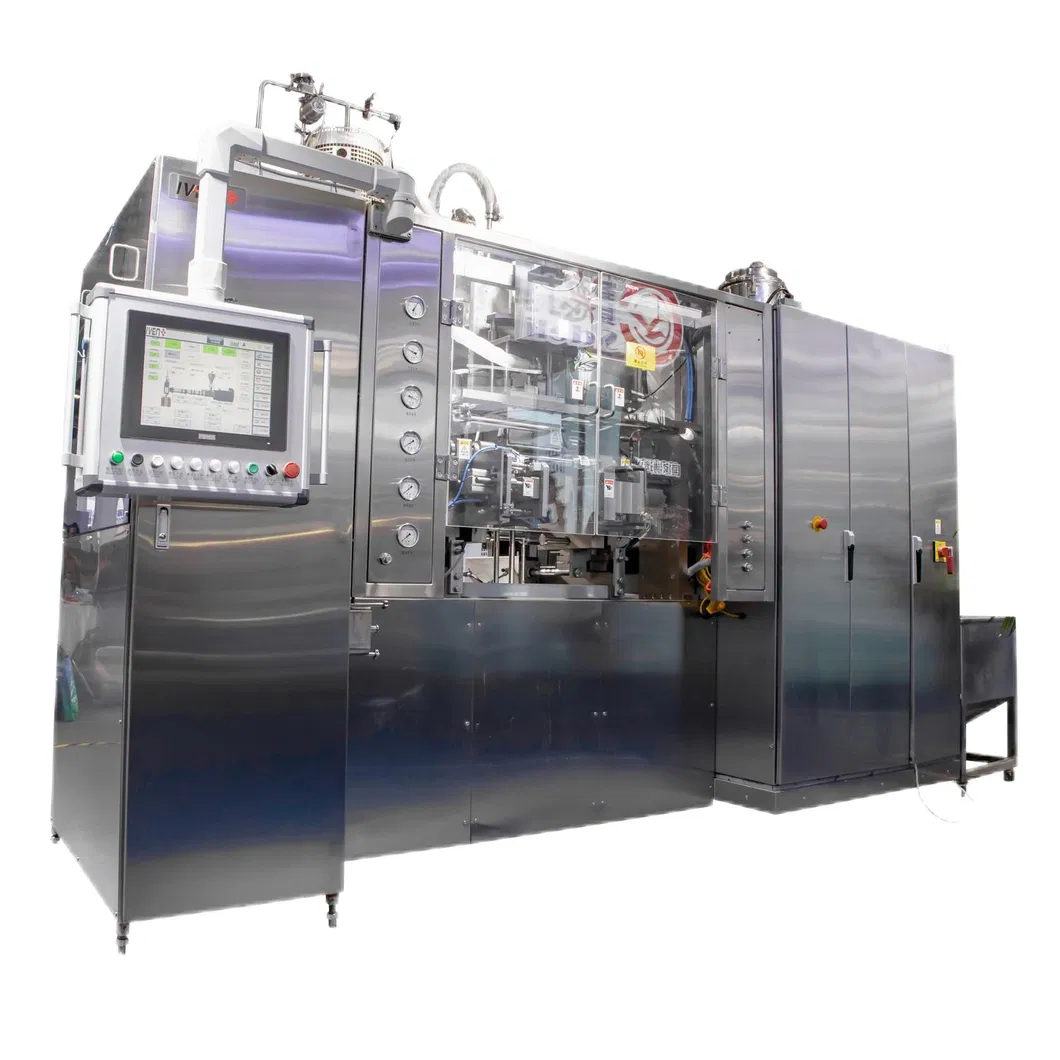

Volumetric BFS Machine Production Line/Blow-Fill-Seal Sterile Packaging Plant
The BFS is a dedicated state of the art system, enabling primary packaging of bulk pharmaceutical solutions into plastic containers of polypropylene or high density polyethylene or low density PE, using a Blow-Fill-Seal (BFS) technology.
The BFS processes are performed automatically in a single machine under a controlled environment (sterile filtered air-shower):

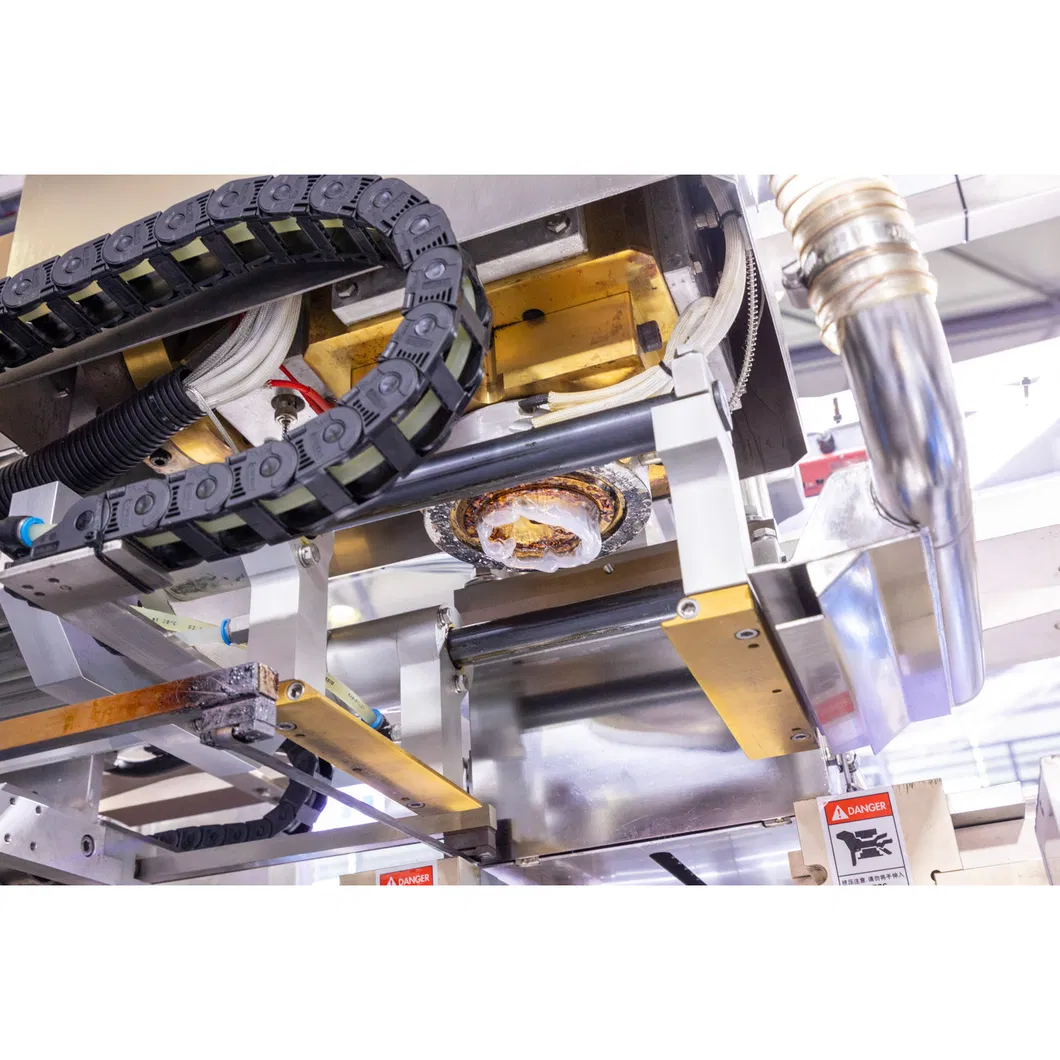

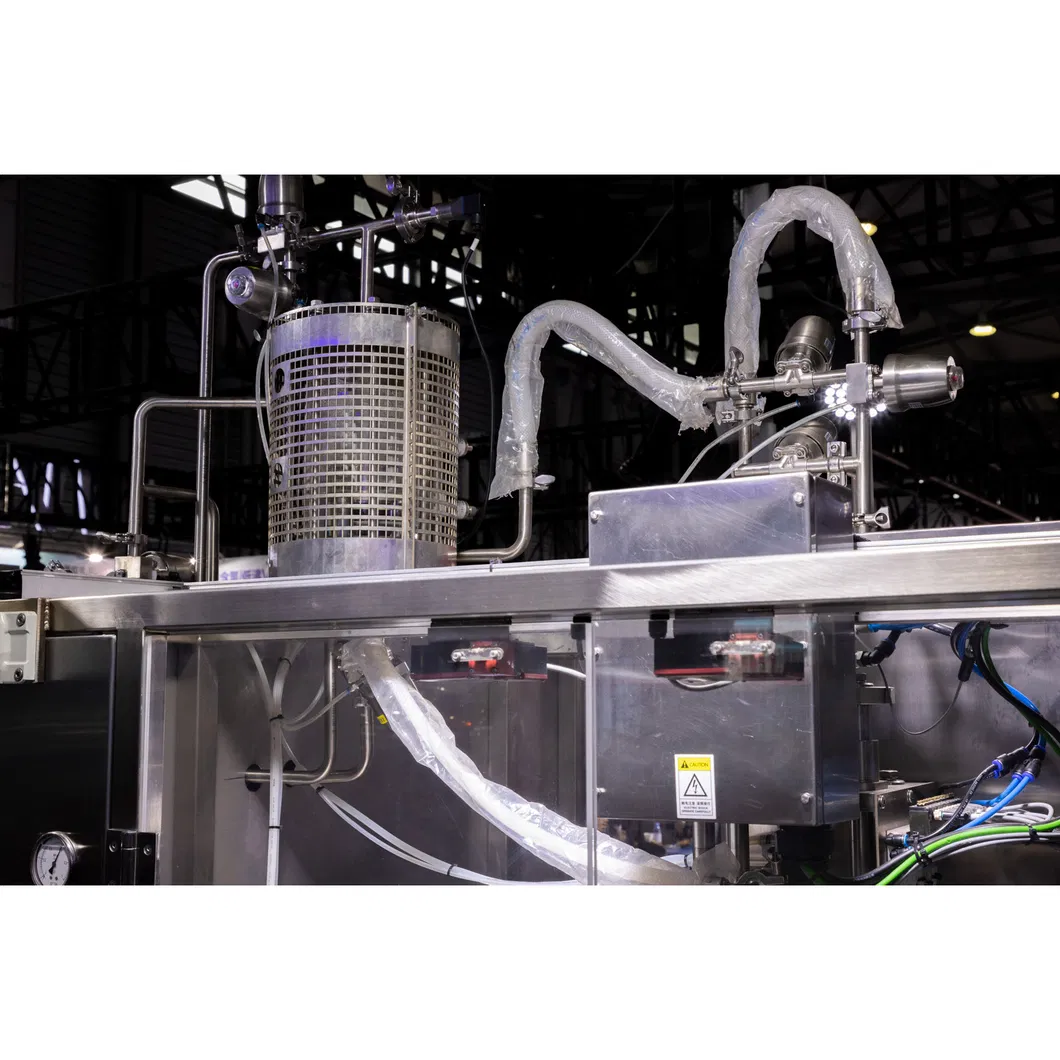

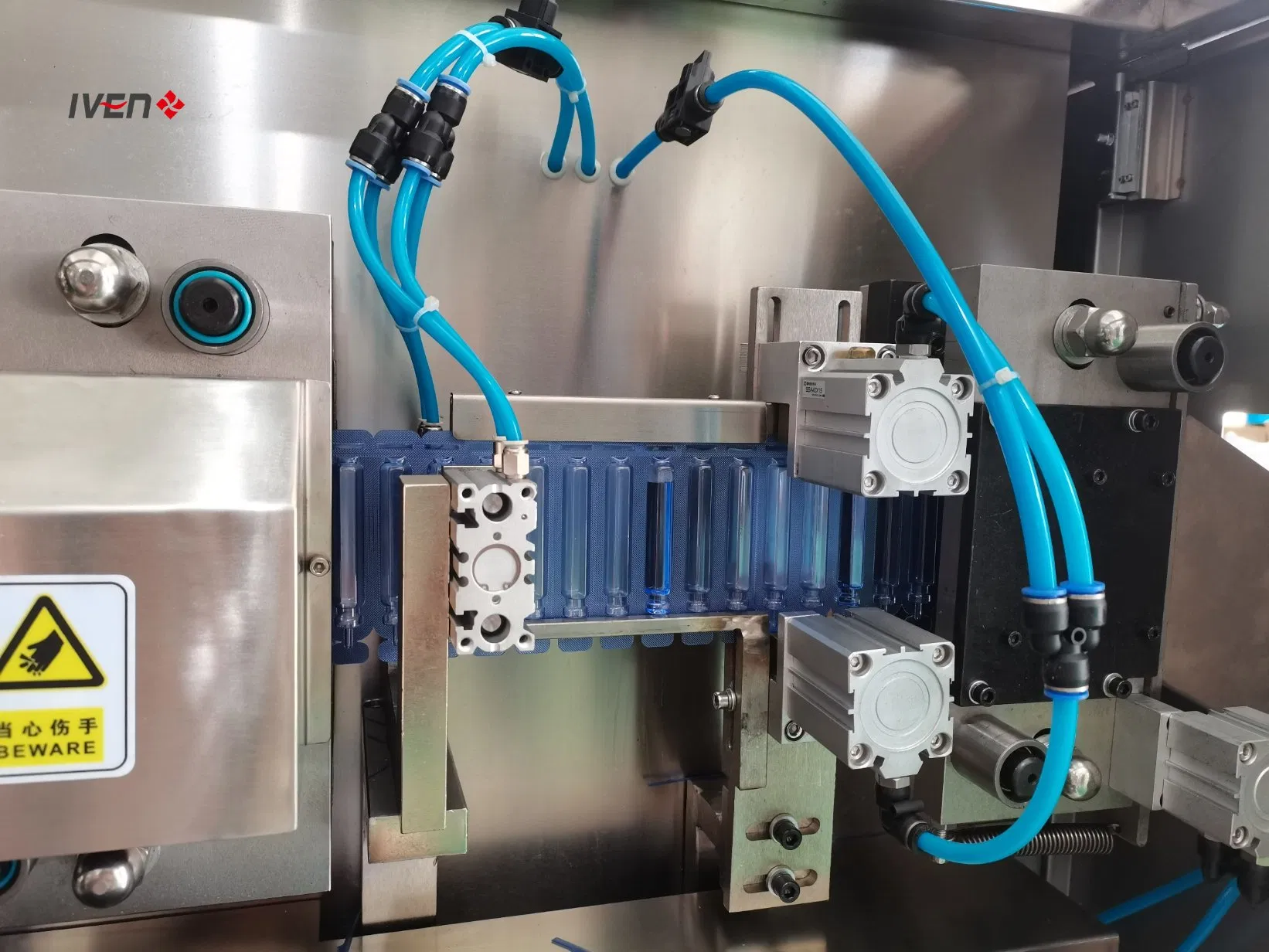

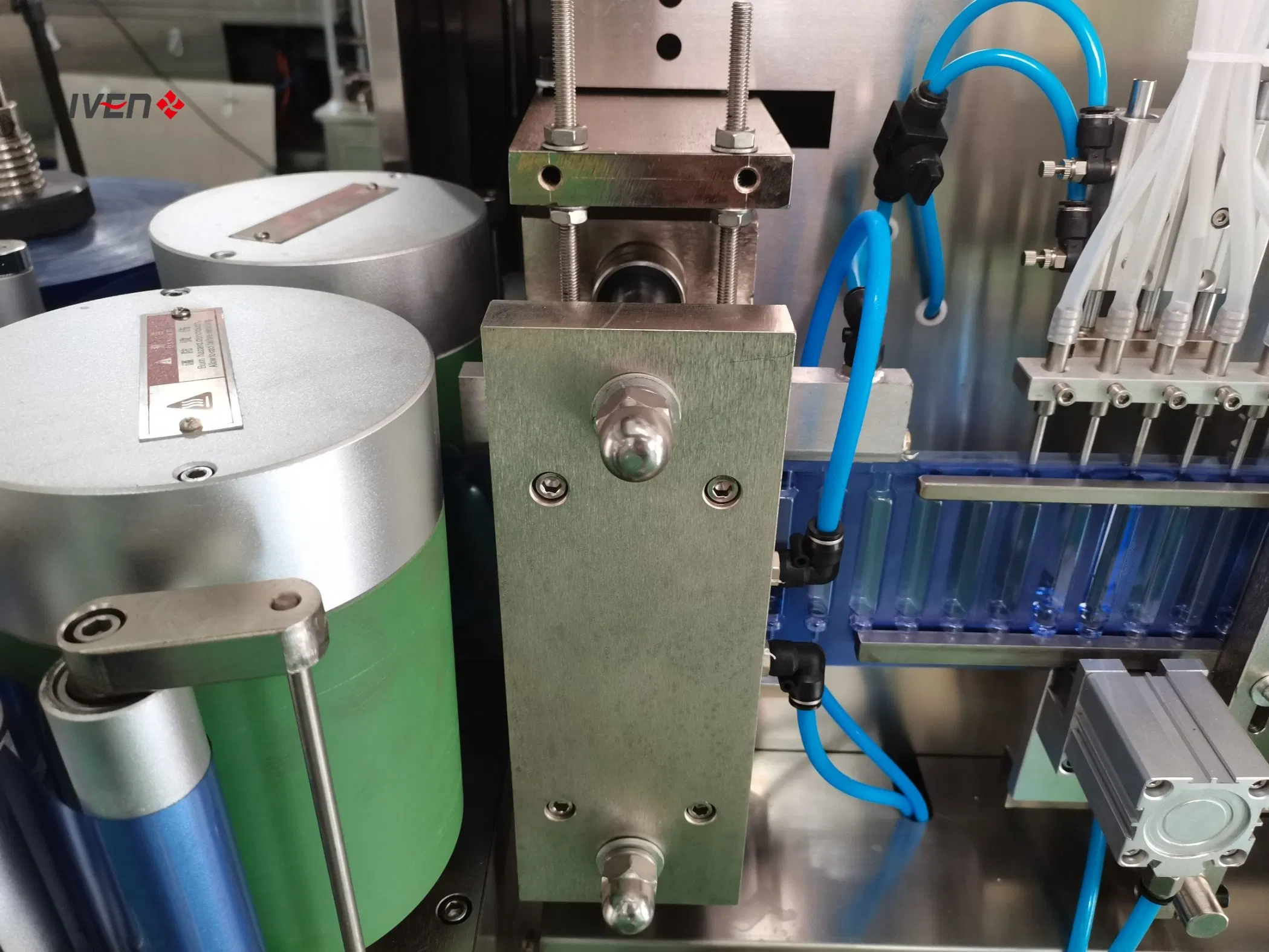

This Filling unit assembly is composed of filling nozzles, the manifold with filling valves, the assembly for sterile air shower around the nozzles, the guide bars and the drive. In most cases it is possible to provide special cylinder drive for shifting the nozzles up and down. Such drive is compact and is particularly suitable for clean ambient. The absence of hydraulic cylinders offers safe and clean assembly right above the filling nozzles.
| NO | Project | Parameter |
|---|---|---|
| 1 | Size (L×W×H) | 3500*1400*2800mm |
| 2 | Weight | 4.5T |
| 3 | Deflasher | Internal punching |
| 4 | Power Source | 3P/AC380V |
| 5 | Installed Power | 42Kw |
| 6 | Machine Structure | Dark side white side unseperation |
| 7 | Packing Materials | PE/PP |
| 8 | Specification | 1ml-50ml |
| 9 | Capacity | 3000 pcs/h (1ml); 1500 pcs/h (10ml) |
| 10 | Filling Accuracy | ±1.5% (based on 5ml) |
| 11 | Pure Steam | 125ºC @ 2bar, 25kg/h |
