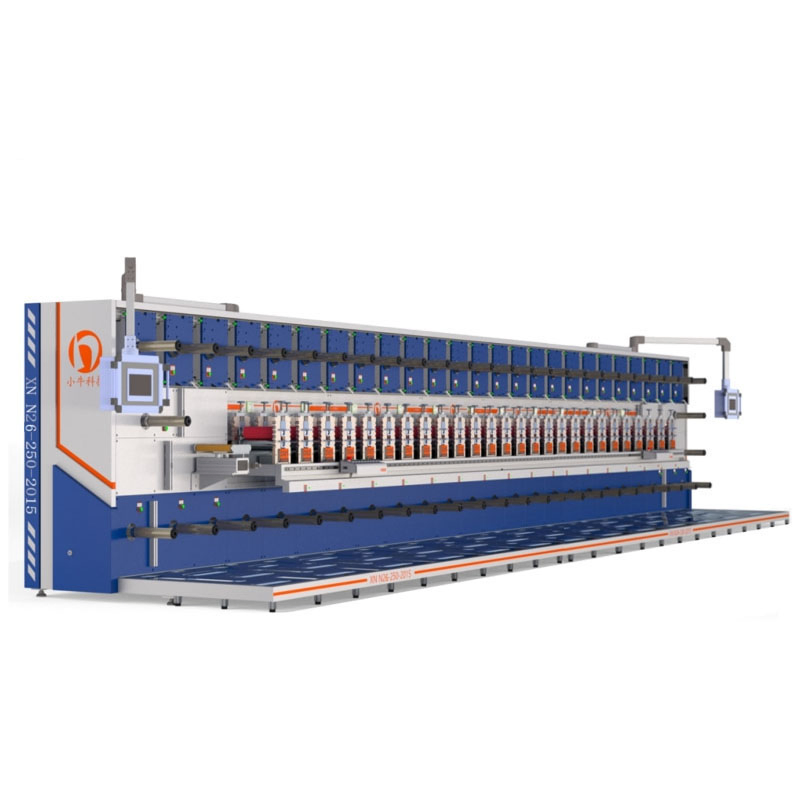

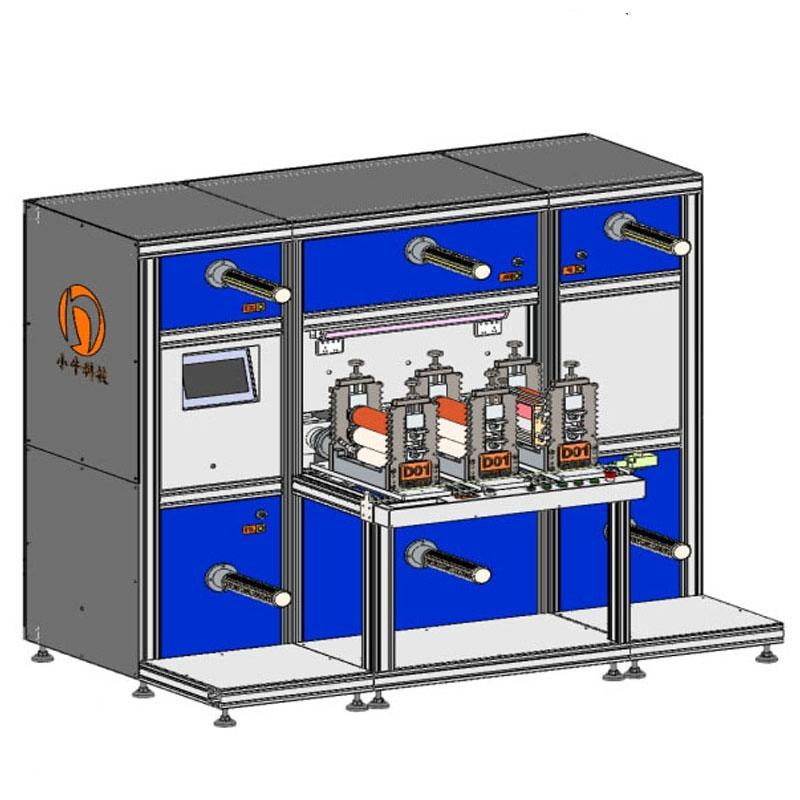

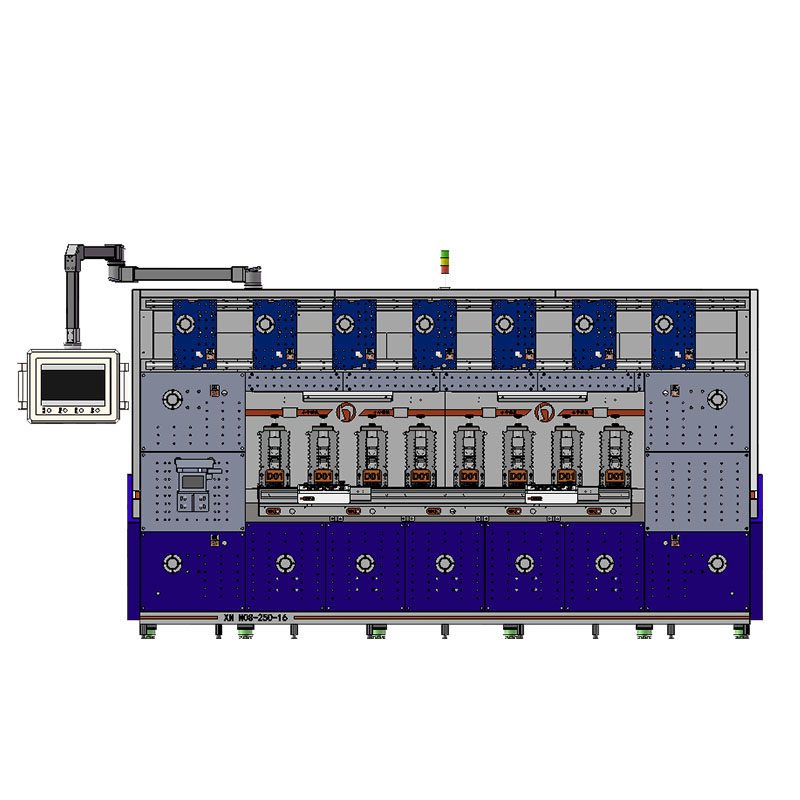

Top-Quality Wound Care Dressings Making Machine with Gear and Motor Integration
Top-Quality Wound Care Dressings Making Machine with Gear and Motor Integration
Top-Quality Wound Care Dressings Making Machine with Gear and Motor Integration
Top-Quality Wound Care Dressings Making Machine with Gear and Motor Integration
Top-Quality Wound Care Dressings Making Machine with Gear and Motor Integration
1 / 5
Top-Quality Wound Care Dressings Making Machine with Gear and Motor Integration
Top-Quality Wound Care Dressings Making Machine with Gear and Motor Integration
Top-Quality Wound Care Dressings Making Machine with Gear and Motor Integration
Top-Quality Wound Care Dressings Making Machine with Gear and Motor Integration
Top-Quality Wound Care Dressings Making Machine with Gear and Motor Integration

Top-Quality Wound Care Dressings Making Machine with Gear and Motor Integration

Customization: Available
Application: Medical Dressing Products
Certification: CE, ISO
Send Inquiry

Product Description

Medical Sterile Dressing & IV Dressing Machinery

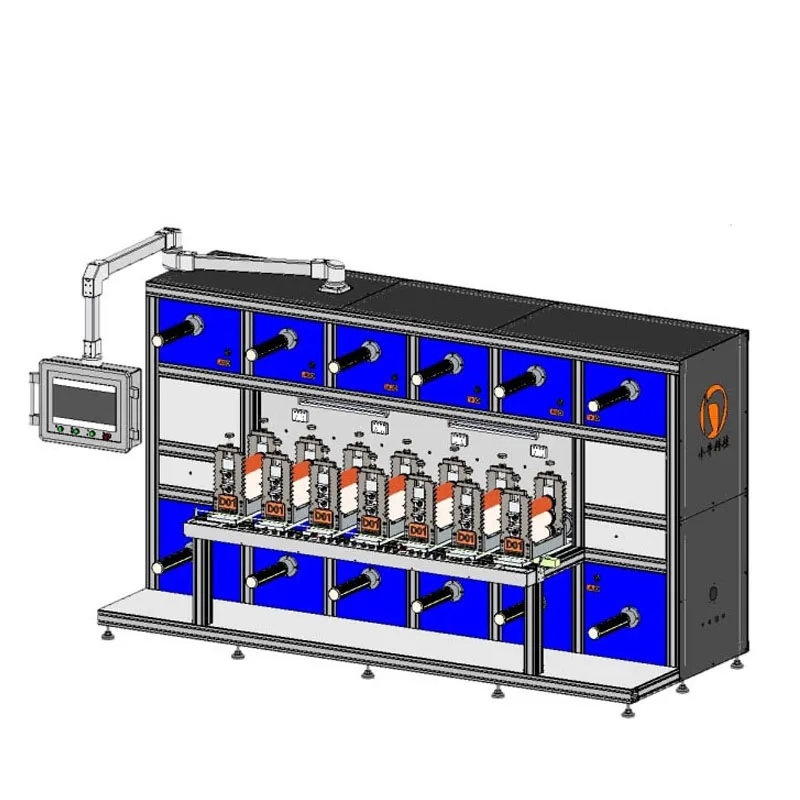

Medical Dressing Machine

This 7-station rotary die-cutting machine features servo motor-driven stations and shafts, operating as a unified, highly intelligent system. It is designed for high-precision pressing, die cutting, and transfer processes. It supports synchronous and asynchronous operations, maintaining constant tension for fully automatic production.

Key Features:
  • ✓ Synchronous & Asynchronous Processing
  • ✓ Automatic Target Tracking
  • ✓ Dual System Configuration
  • ✓ Constant Tension Control
Production Benefits
01
High Efficiency: Continuous roll cutting at 5-60m/min speeds.
02
Extreme Precision: ±0.1mm accuracy for consistent processing.
03
Multi-Station: Integrated design for multi-process compounding.
04
Material Flex: Wide adaptability for various flexible substrates.
05
Smart Control: Intelligent tension and deviation adjustment.
06
Memory Function: Asynchronous processing and power-off memory.
Video Preview

Die-cutting Machine Operation Demo

Applications & Finished Products

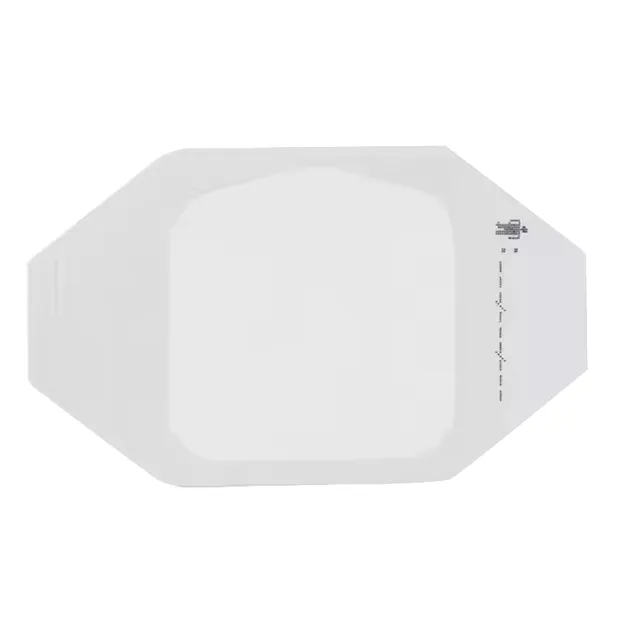

I.V. dressing

I.V. Dressing

foam dressing

Foam Dressing

acne patches

Acne Patches

tracheostomy dressings

Tracheostomy Dressings

infusion dressings

Infusion Dressings

hydrocolloid dressings

Hydrocolloid Dressings

Technical Specifications
Parameter Specifications
ModelXN7
Power (KW)17.5kw
Working VoltageAC380V (Customized available)
Feeding Width250mm / 350mm (Customizable)
Max. Web Diameter400mm
Die Cutting Precision±0.1mm
Max Speed60m/min
Core ComponentsPLC (Omron), Servo Motor, Gearbox, Bearing
Control SystemFully Automatic / Omron PLC
Equipment Details
Main parts

Main Parts

Electronics

Electronics

Stations

Stations

About Our Technology

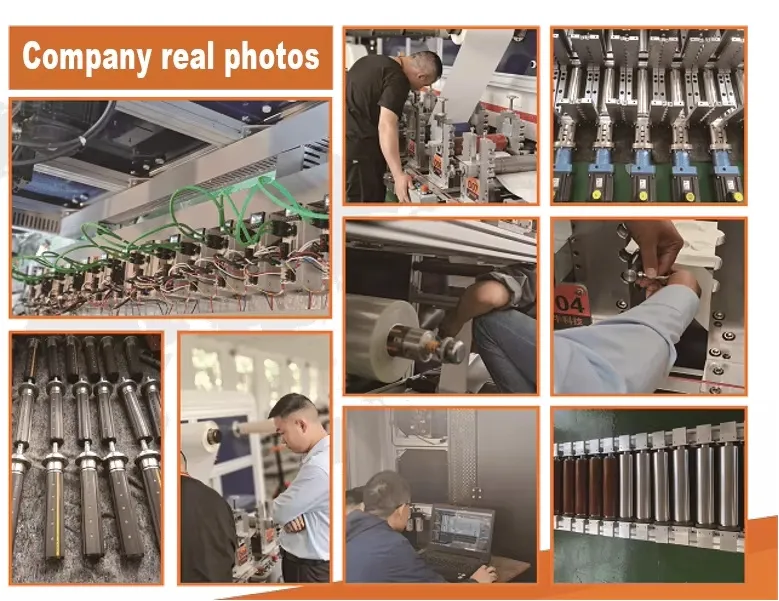

Production Facility

As a leader in multi-station die-cutting machines, we possess over 15 years of expertise in producing high-precision equipment. Our portfolio includes rotary die-cutting and high-speed medical dressing machines. Recognized as a National High-tech Enterprise and CE certified, we provide integrated solutions for automated production lines.

We integrate advanced equipment with professional support and services to deliver precise technical solutions for clients worldwide.

Packaging & Delivery
Shipping 1
Shipping 2
Shipping 3
Package Size351.00cm * 170.00cm * 240.00cm
Gross Weight2900.00kg
Packaging TypeProfessional Wooden Packing
Frequently Asked Questions
What types of products can this machine produce?
It is designed for high-precision medical consumables such as IV dressings, foam dressings, transparent dressings, acne patches, and electrode pads.
How is the cutting precision maintained?
The machine uses a high-quality Omron PLC servo control system and automatic target tracking to maintain a precision of ±0.1mm.
Can one machine produce different types of dressings?
Yes, the modular design allows you to add stations or change cutters to produce multiple products on a single machine, economizing your investment.
What is the standard warranty and after-sales service?
We offer a 1-year standard warranty, lifetime paid maintenance, and round-the-clock global technical support. Engineers can be dispatched for on-site training and debugging.
Is the machine customizable to specific requirements?
Absolutely. Our R&D team can customize machine configurations, including feeding width, station count, and integrated packaging or printing modules.
What is the typical delivery time?
Standard production and delivery are typically fulfilled within 20 days following final design approval.
