Medical Dressings Equipment Hydrocolloid Dressing Machine for IV Fixation

1 / 5

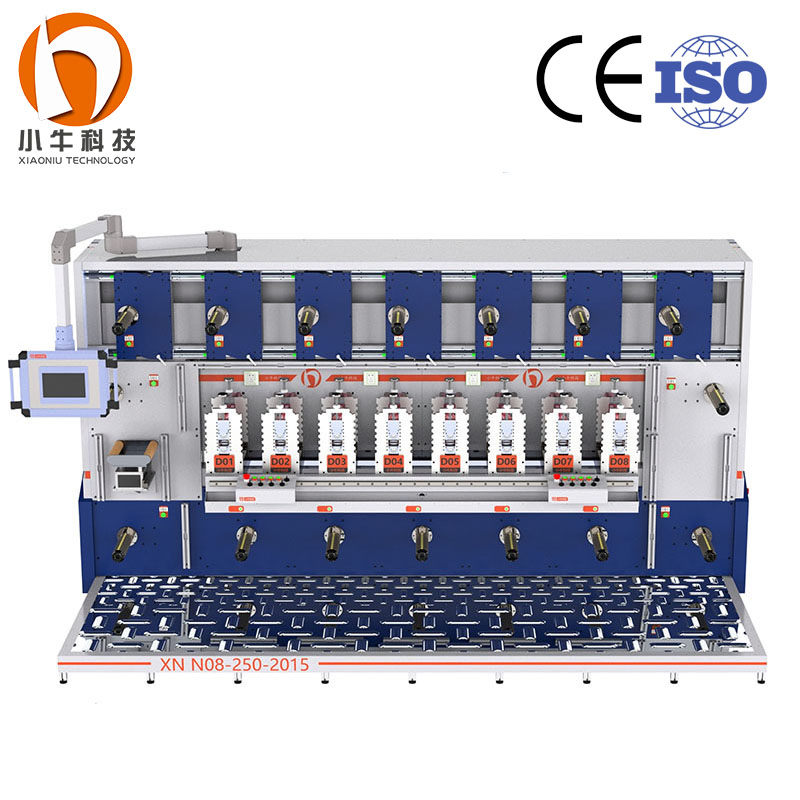

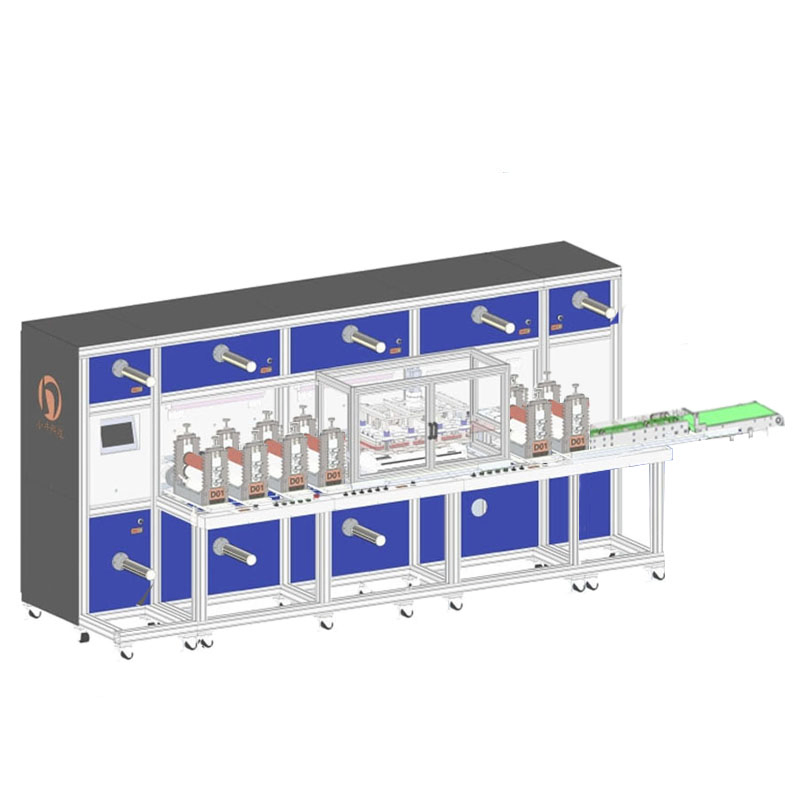

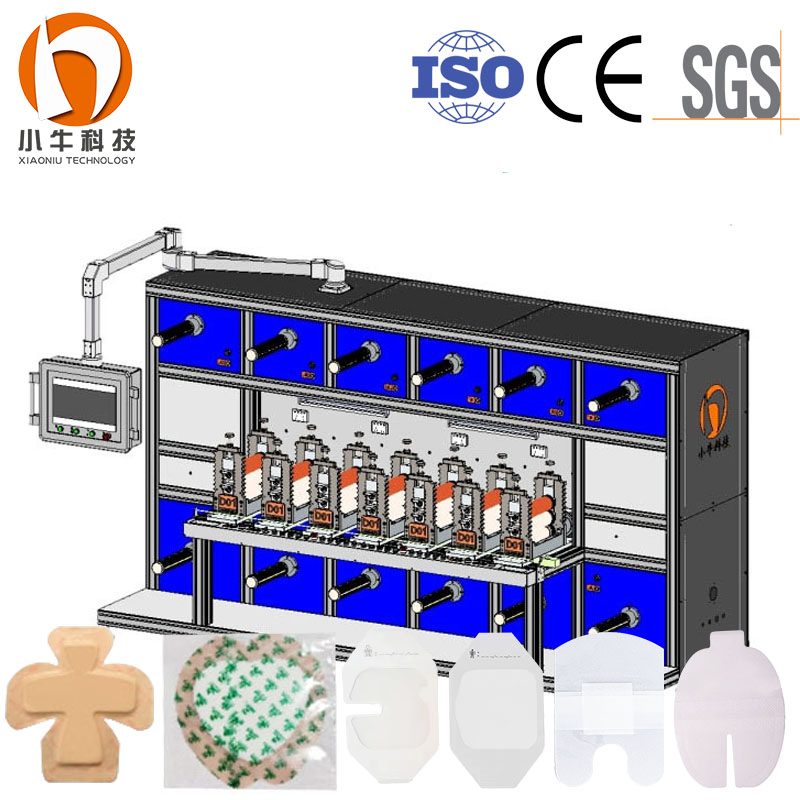

Medical Dressings Equipment Hydrocolloid Dressing Machine for IV Fixation

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

XN13

Species

Rotary Die-Cutting Machine

Application

Medical Dressings, Stickers, EMI Shielding

Automatic Grade

Automatic

Power

32.5kw

Cutting Precision

±0.1mm

Drive Motor

Servo

PLC

Omron

Feed Width

250mm / 350mm (Customized)

Productivity

High Productivity / Multifunctional

Product Description

Hydrocolloid Dressing Equipment IV Fixation Production Line Electrosurgical Grounding Pad Machinery

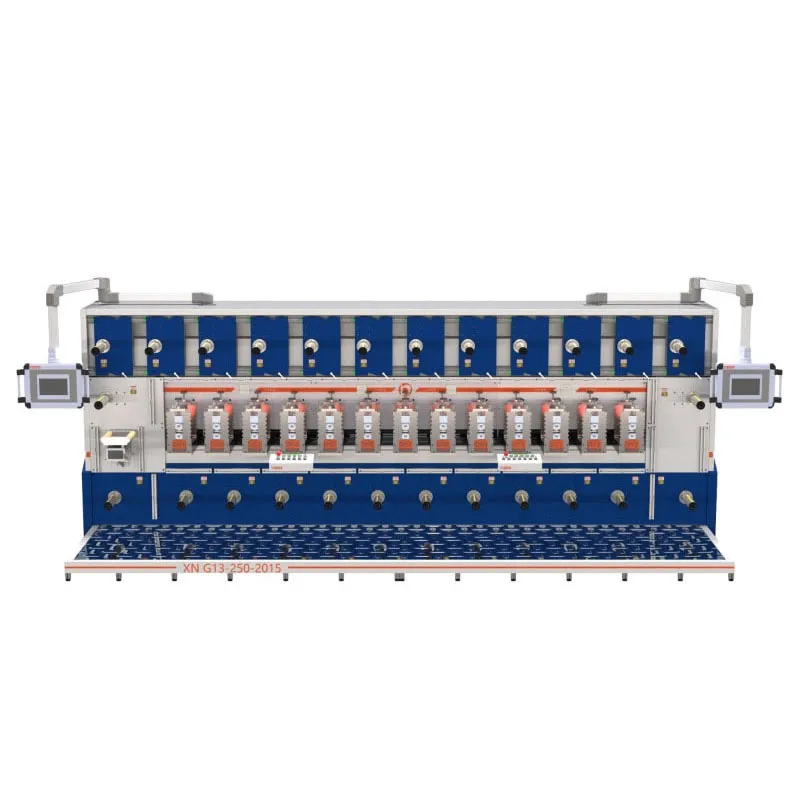

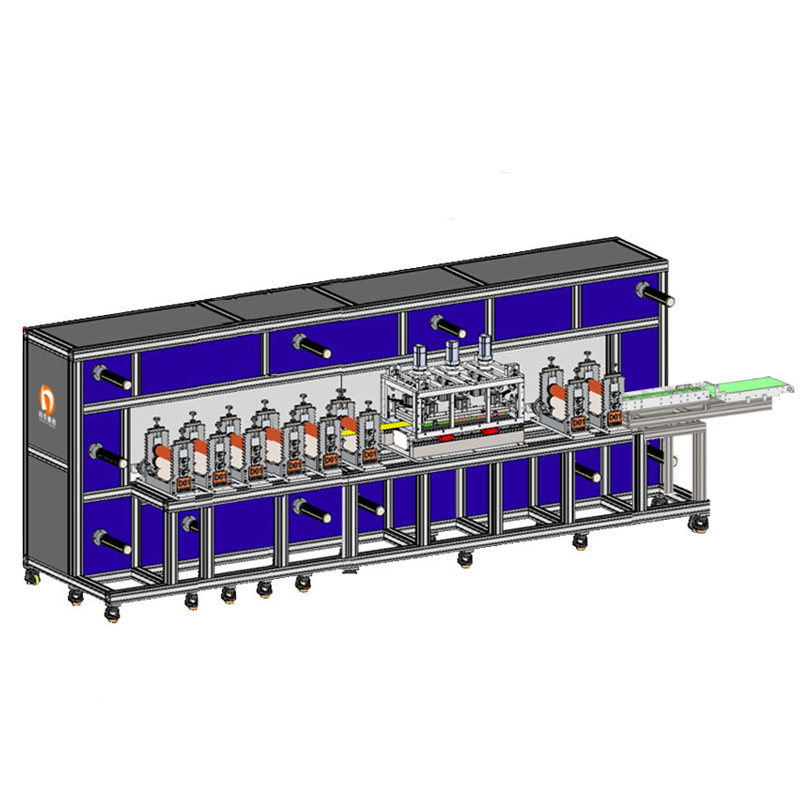

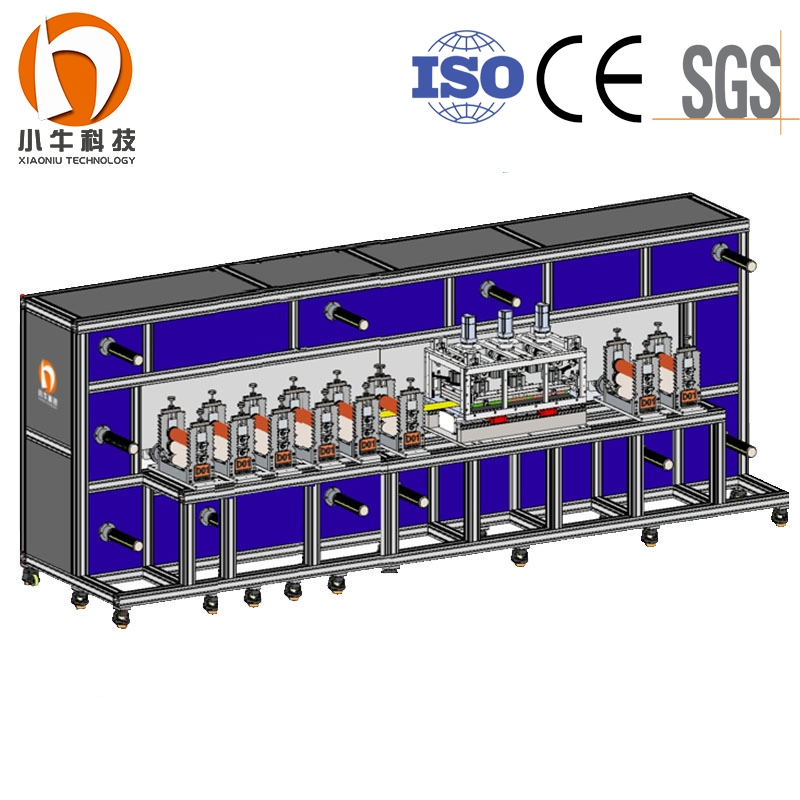

This 13-station rotary die-cutting machine features servo motor-driven stations and feed shafts, allowing for independent yet cohesive operation. It suits pressing, die-cutting, and transfer needs with synchronous, asynchronous, speed ratio, and constant tension functions.

Key Applications

Medical consumables production
3C electronics components
Automotive electronics
Packaging & printing
New energy industry components

Main Functions

Synchronous & Asynchronous processing
Automatic Target Tracking
Material Breaking Alarm
System Failure Monitoring
Constant Tension Control

Core Advantages

Continuous roll cutting: 5-60m/min efficiency
High Precision: ±0.1mm stable processing
Multi-station design: Integrated multi-process compounding
Universal Adaptation: Suits all flexible substrates
Full-auto operation: Intelligent tension & deviation control
Smart Memory: Power-off memory & asynchronous processing

Products Manufactured by the Machine

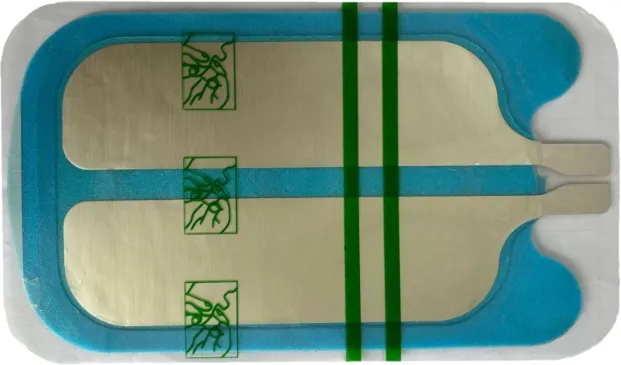

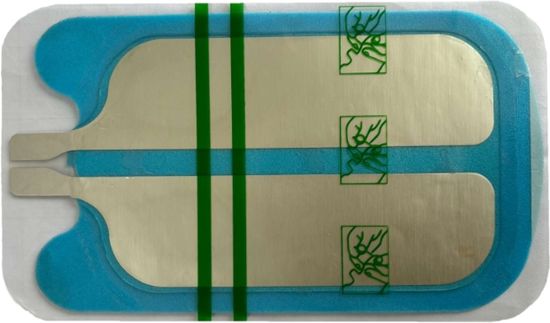

ESU pads

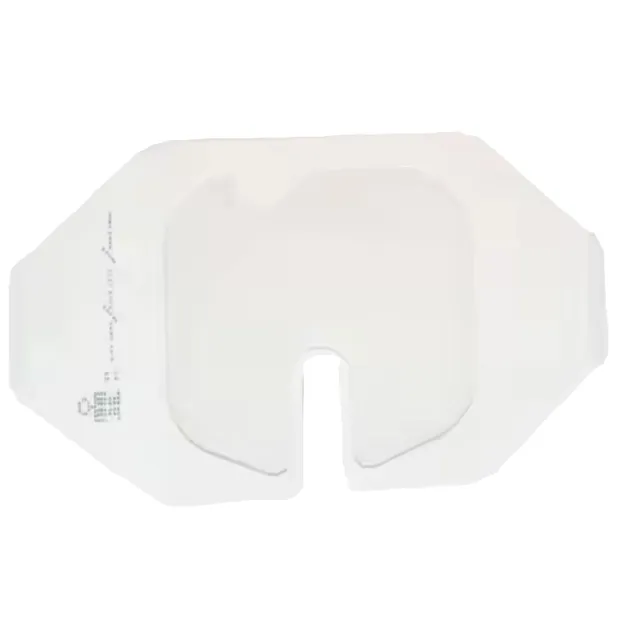

I.V. dressing

acne patches

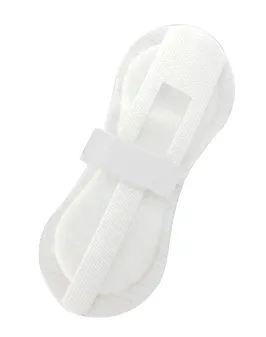

catheter fixation dressings

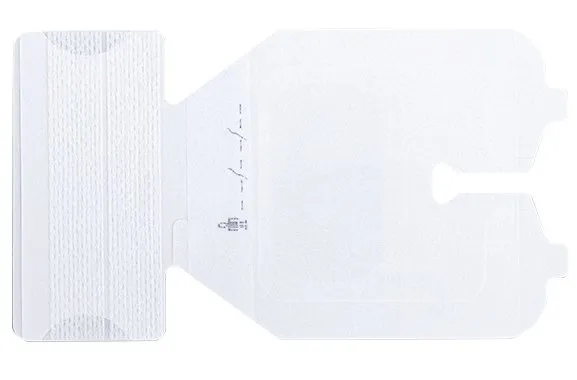

infusion dressing

hydrocolloid dressing

Technical Specifications

Parameter	Value
Power (KW)	32.5kw
Working Voltage (V)	AC380
Feeding Width (mm)	250mm or 350mm
Max. Diameter (mm)	400mm
Die Cutting Precision (mm)	±0.1
Max Speed	60m/min

Main Components & Delivery

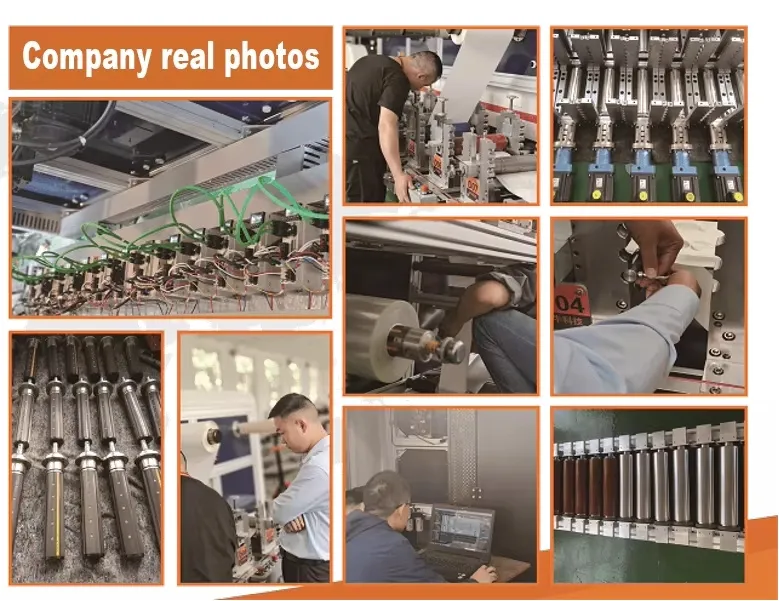

Company Profile

We are a leading manufacturer of multi-station die-cutting machines, specializing in high-precision rotary die-cutting and high-speed medical dressing machines for over 15 years. The company boasts numerous national patents, is recognized as a National High-tech Enterprise, and holds CE certification. We provide integrated solutions for professional equipment and automated production lines.

By seamlessly combining equipment, technology, support, and services, we deliver precise and professional solutions to meet global manufacturing needs.

After Sales Service

Standard Warranty: 1 year complete coverage.
Global Support: 24/7 technical support and spare parts availability.
Professional Training: On-site or remote training for operation and maintenance.
Expert Engineering: Engineers dispatched for training and debugging.

Frequently Asked Questions

1. What is the production efficiency of the rotary die-cutting machine? The machine offers continuous roll cutting with an efficiency of 5-60m/min, depending on the material and complexity of the design.

2. Can one machine produce different types of medical products? Yes. Due to the modular design, you can share one machine for various products by adding stations or changing die cutters, which significantly saves equipment costs.

3. What kind of control system is used for precision? We use a high-end PLC servo control system, specifically the OMRON brand, ensuring a cutting precision of ±0.1mm.

4. Is the machine capable of simultaneous production? Our double-system design for machines with over 8 stations allows for simultaneous dual-product production, maximizing output.

5. What materials can be processed? The machine adapts to all flexible substrates, including stickers, dust-proof material, EMI shielding materials, and various medical dressing products.

6. How long is the delivery time? We provide quick delivery, typically within 20 days after the final design approval.
