| Model NO. | Clf-PUR1300 |
| Classification | PUR Hotmelt Adhesive Wrapping/Laminating |
| Application | Particle Board, Fiberboard, Plywood, Aluminium Plate, Film Material |
| Driven Type | Electric / Automatic |
| Membrane Material | PVC Film, Pet Film, CPL, Veneer |
| Glue | PUR Hotmelt Glue |
| Specification | 5660*1200*1800mm |

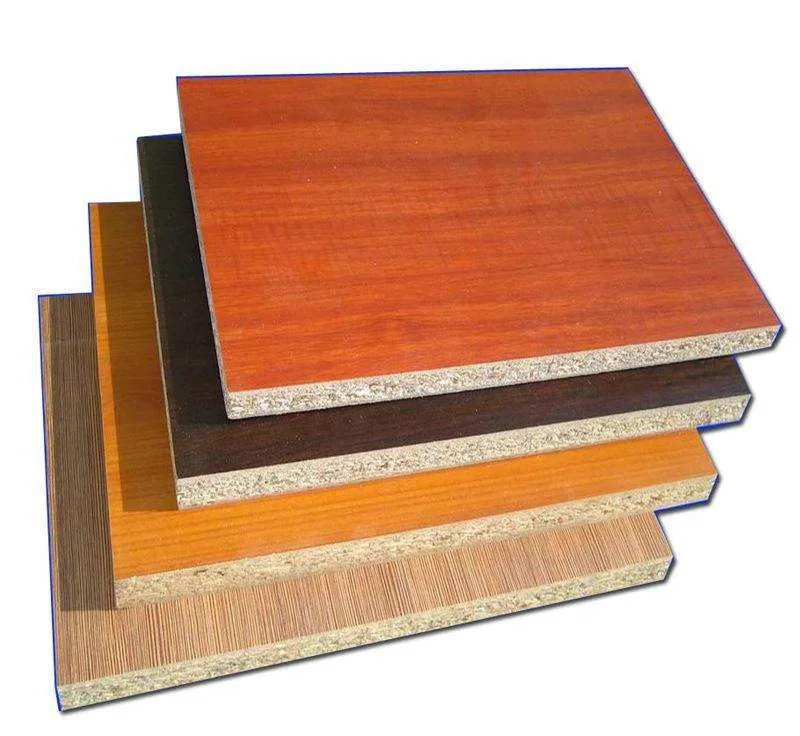

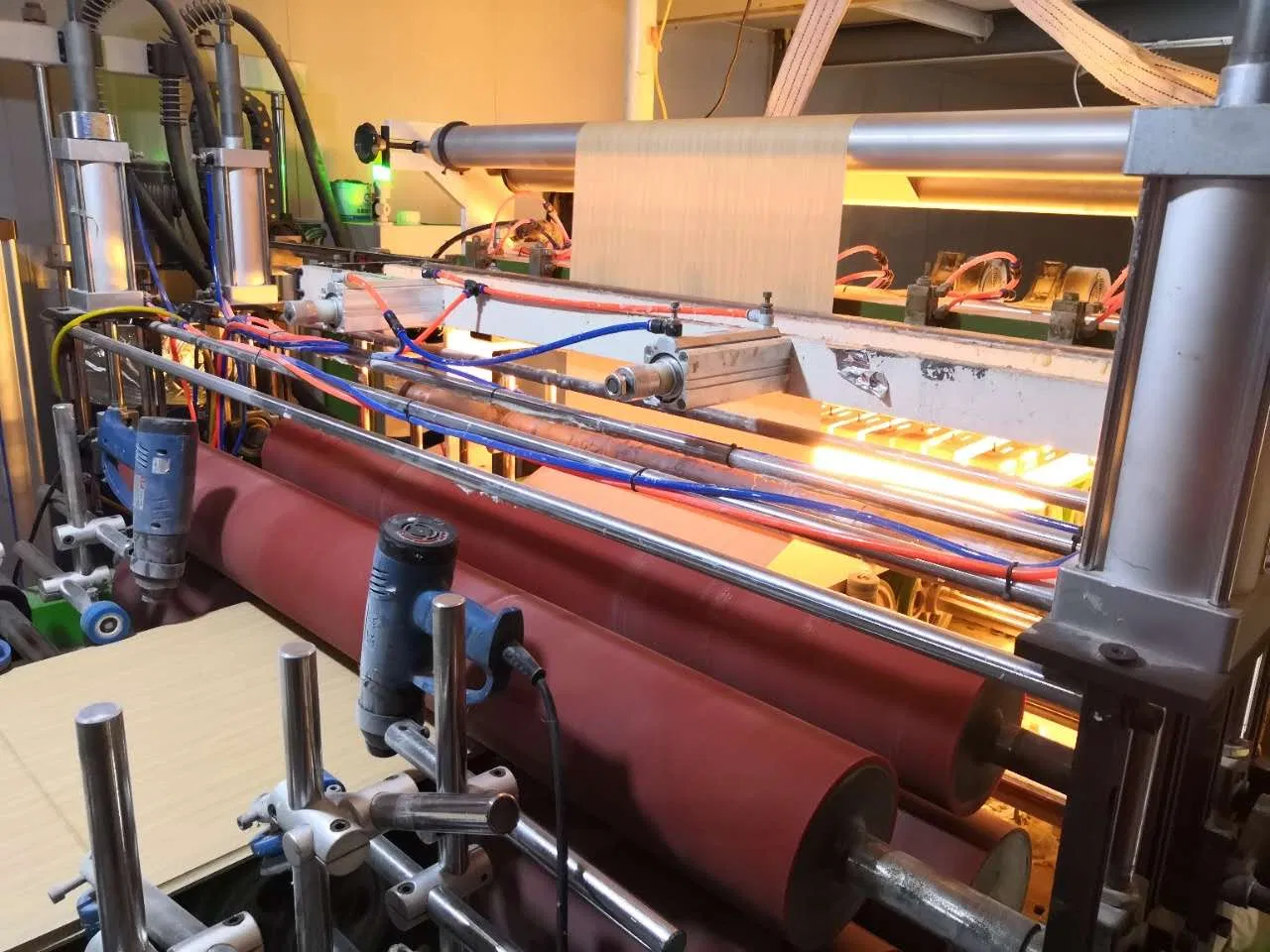

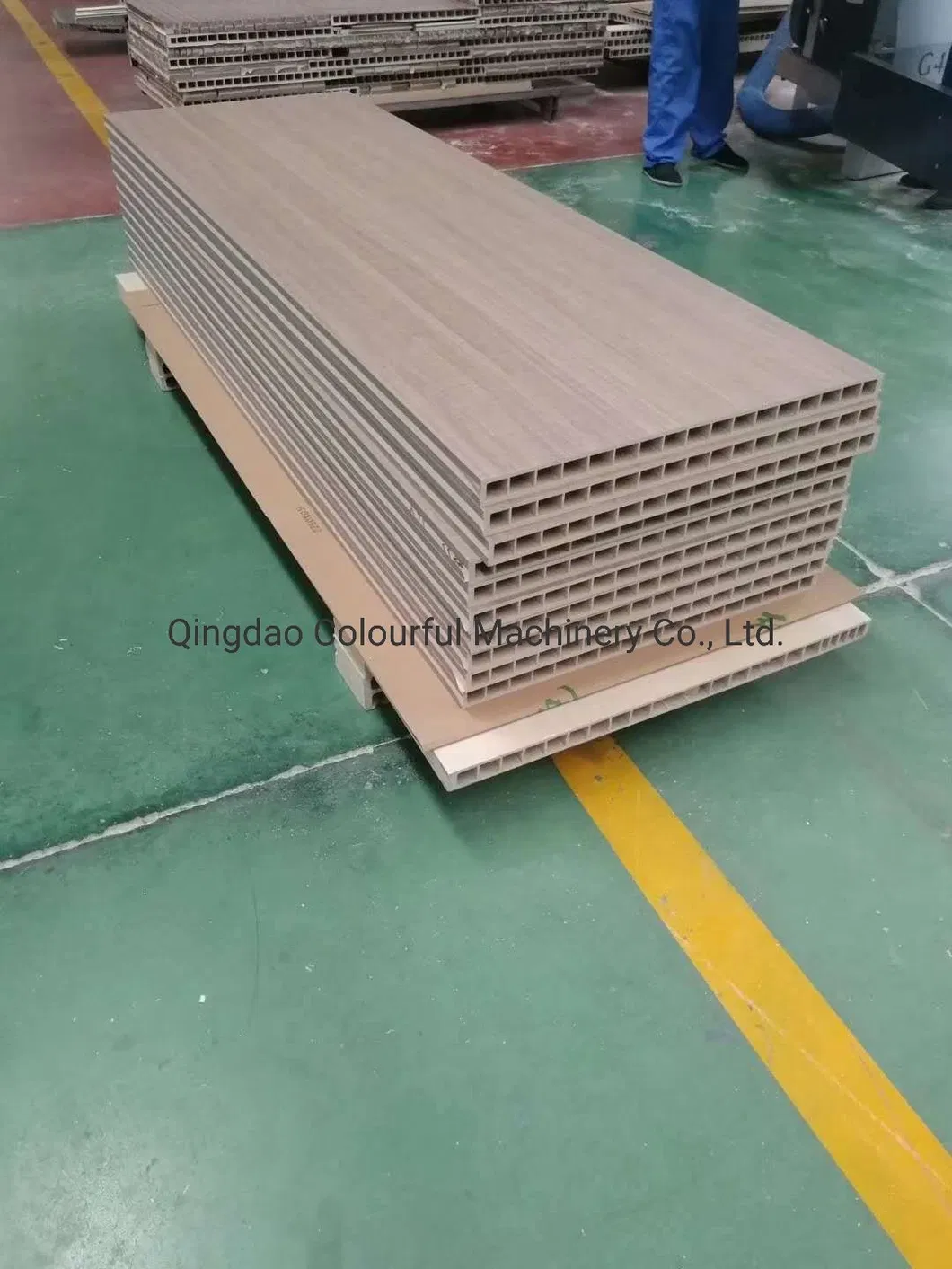

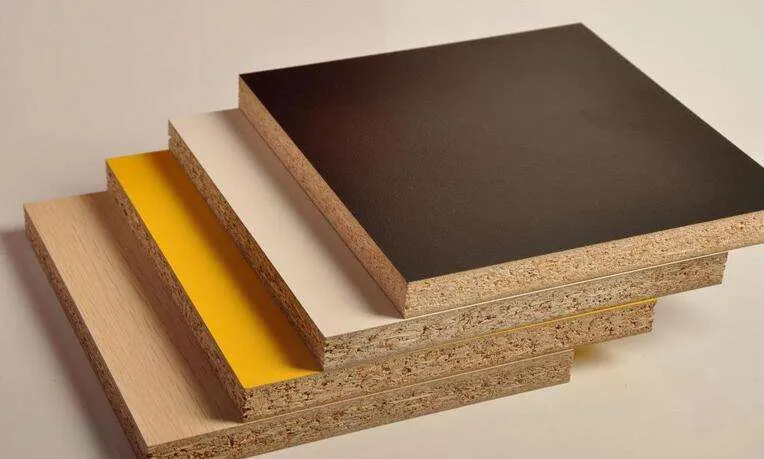

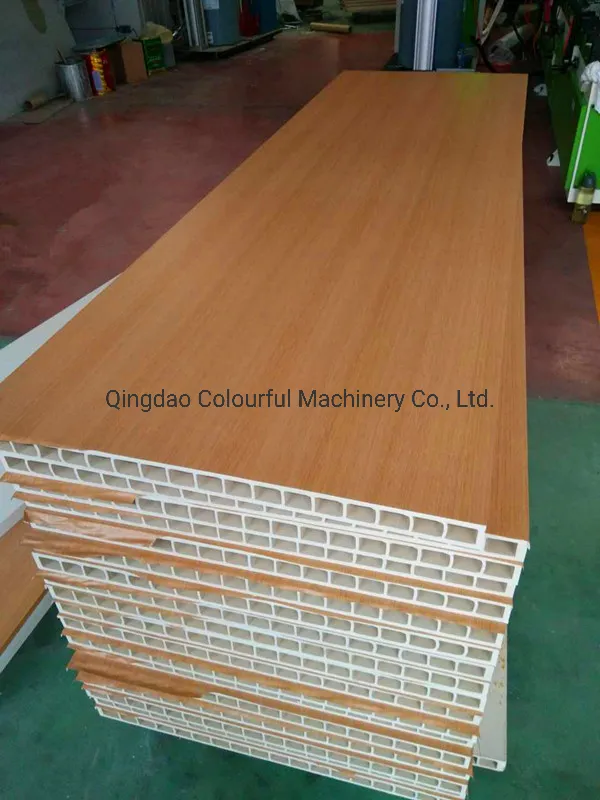

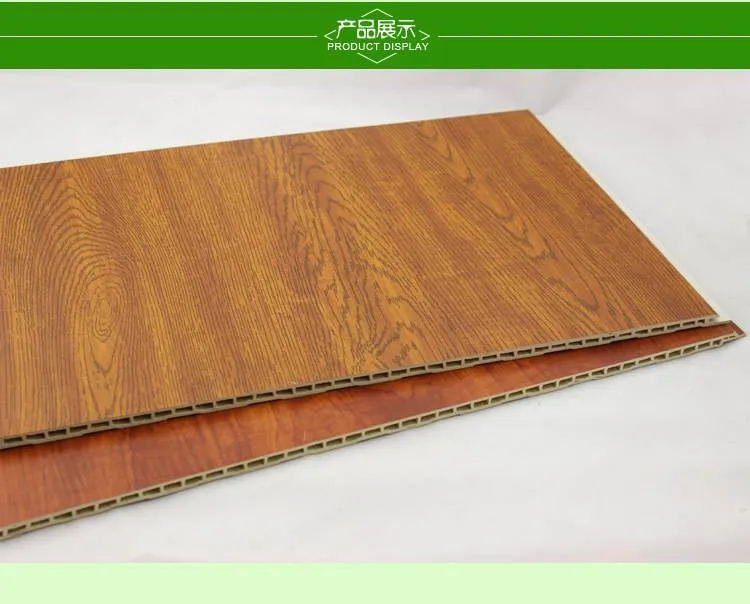

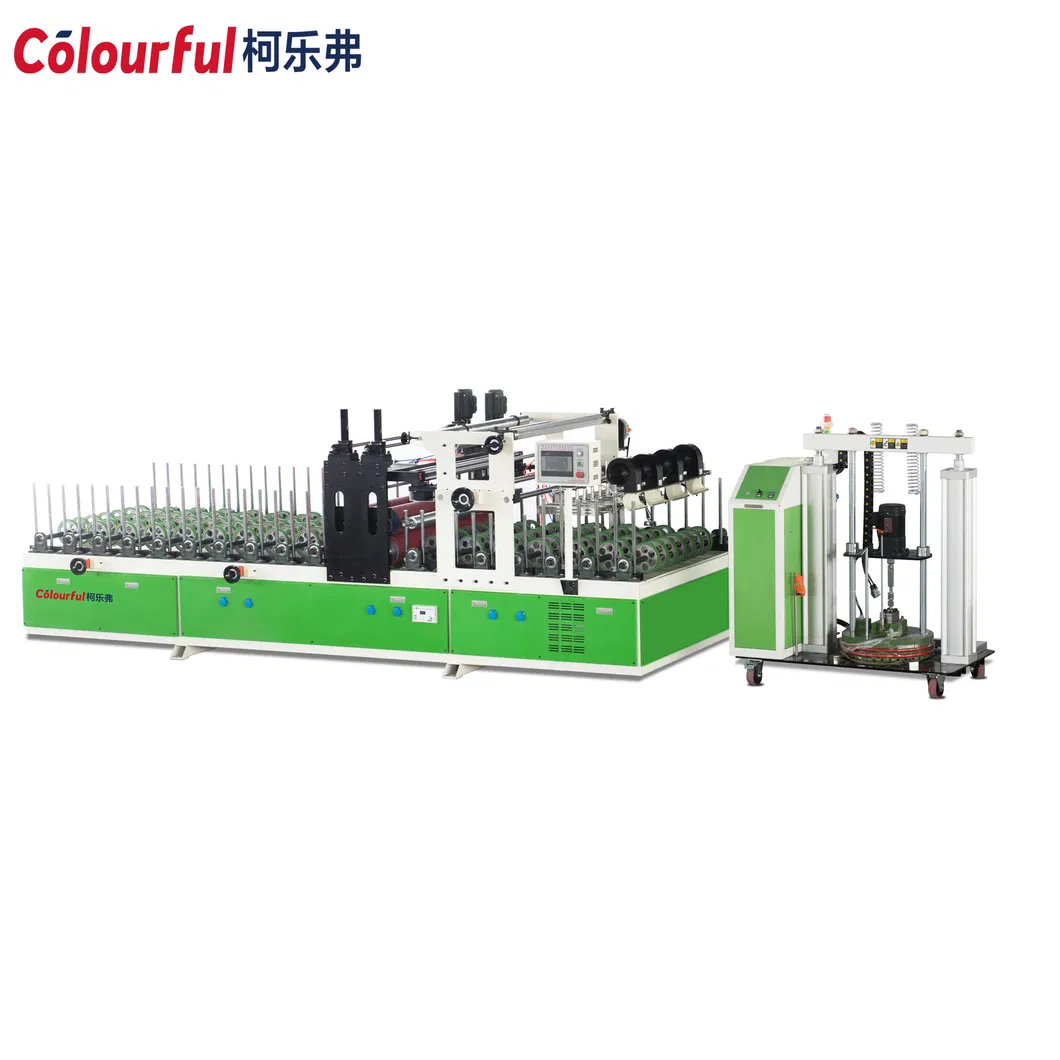

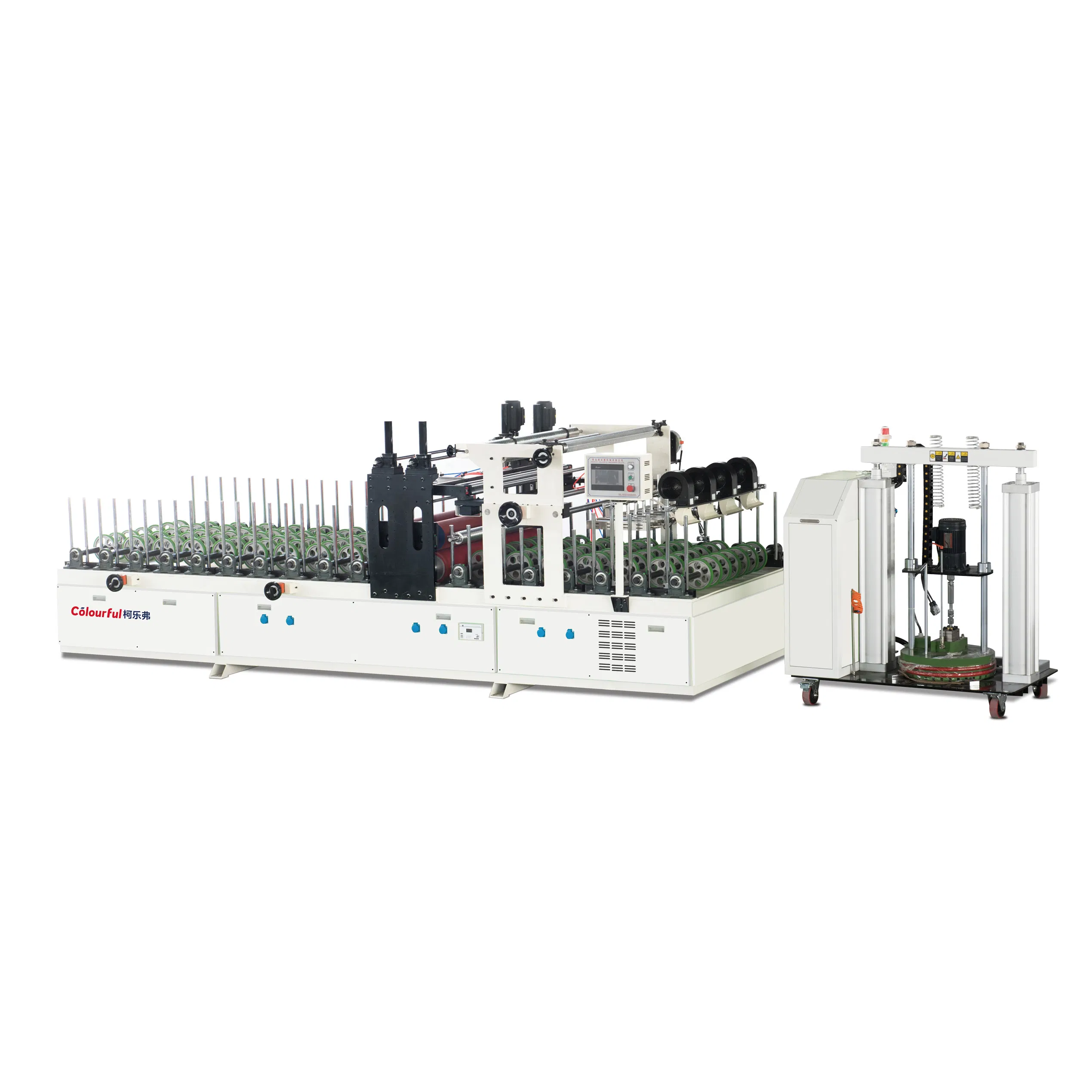

This series of plate lamination machine is suitable for the surface of MDF board, particle board, calcium silicate board, glass magnesium board, PVC foam board, aluminum board, and wood plastic doors. It efficiently processes PVC film, paper, veneer, CPL, leather, aluminum foil, and copper foil fabrics.
Advanced Components: Includes additive device, PVC film corona machine, and protective film device for enhanced material treatment.
Precision Adjustment: Width adjustment via hand wheel with counter display. Equipped with 4 rubber rollers (200mm diameter) and an automatic tension compensation system to maintain constant fabric tension.

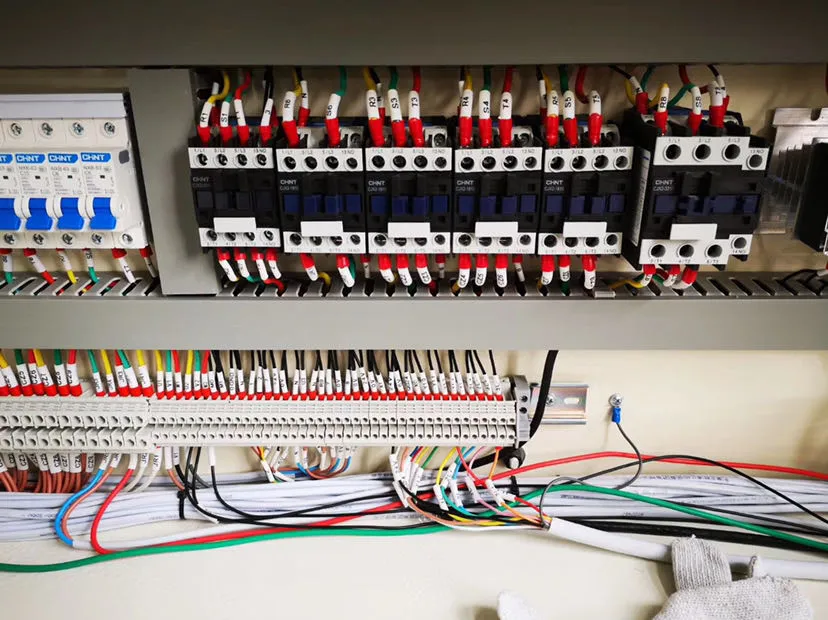

Electronic Control: Integrated PLC control system managing all hot-melt functions. Features Delta brand controllers and Schneider low-voltage components for reliable operation.

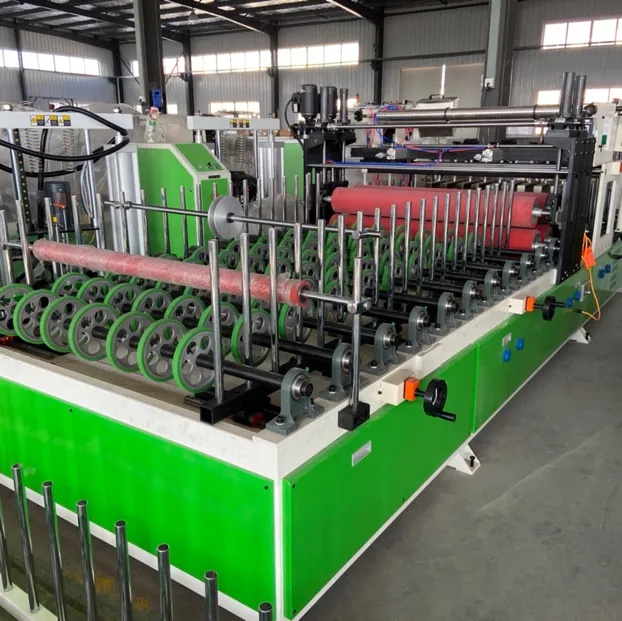

Transmission System: Helical gear transmission ensures long-term accuracy. The feeding end utilizes unidirectional bearings for consistent material gaps and easy operation.
| Overall Size | Approx. 4760*2400*3500 mm |
| Weight | Approx. 2000 kg |
| Power Supply | 380V 50Hz (Customizable) |
| Total Power | 9 kW |
| Working Speed | Up to 25 m/min |
| Profile Spec | Width: Up to 350mm | Height: Up to 125mm |
| Glue Melter | 5 Gallon standard / 30kg/hr capacity |
| Glue Type | PUR Hotmelt |
We are an enterprise integrating design, research, production, and sales, specializing in decoration material surface treatment machinery. Our engineering team brings over ten years of industry experience to every project.

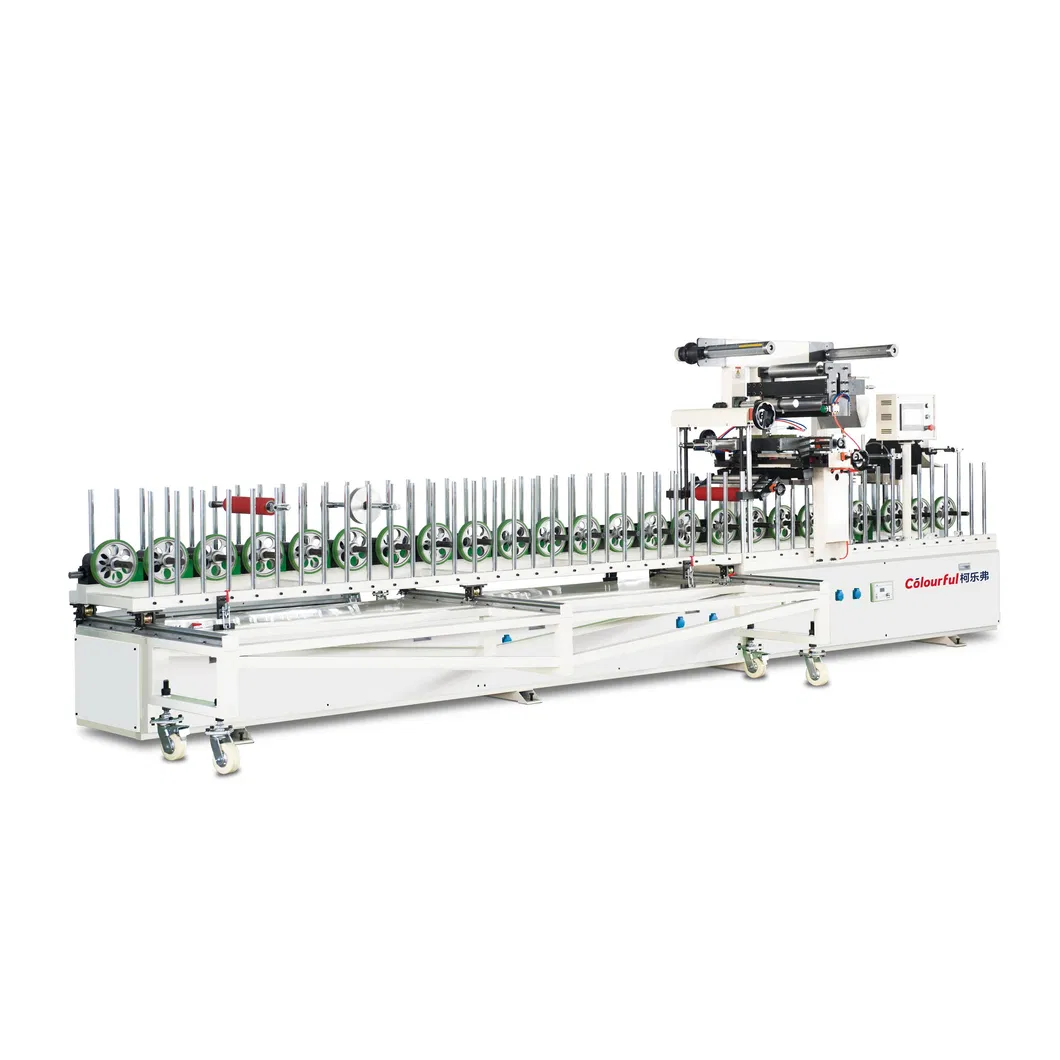

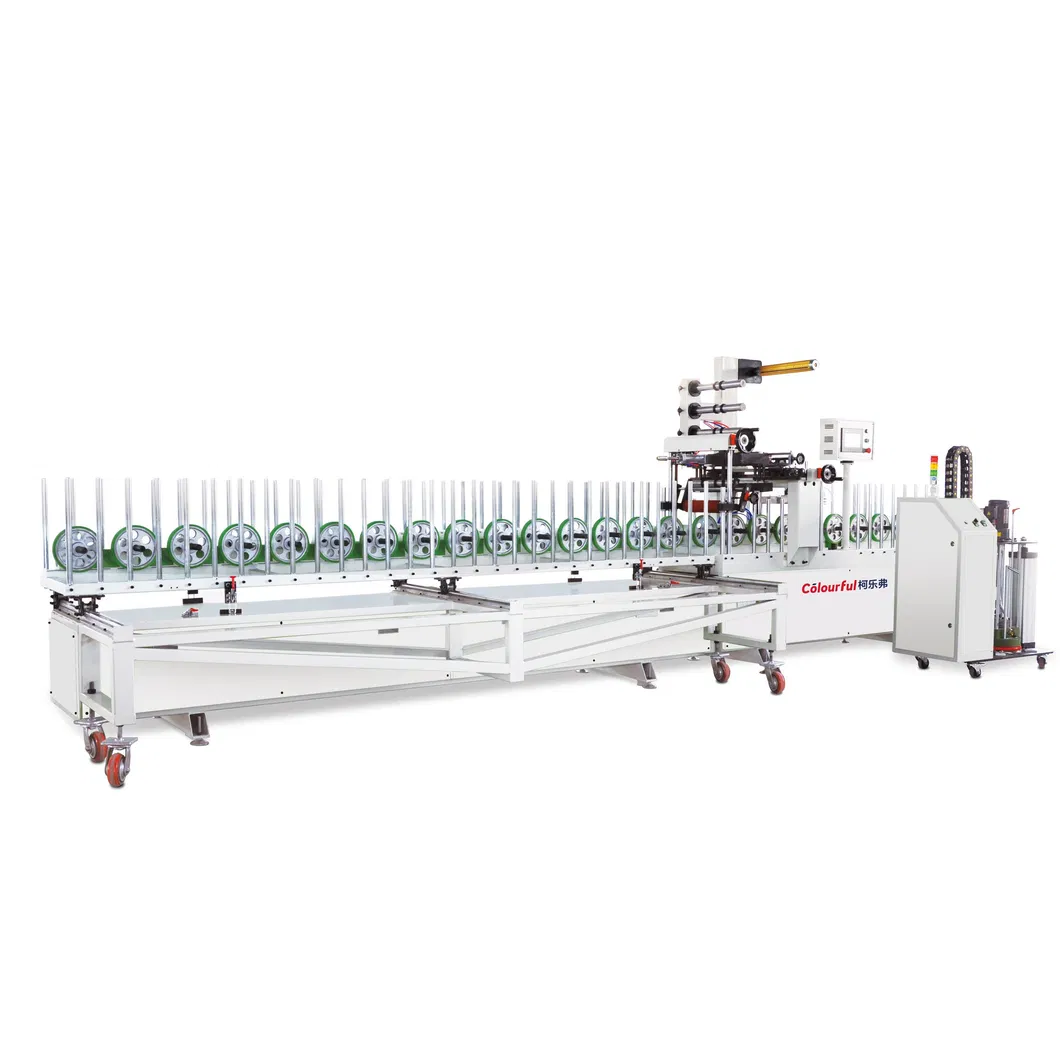

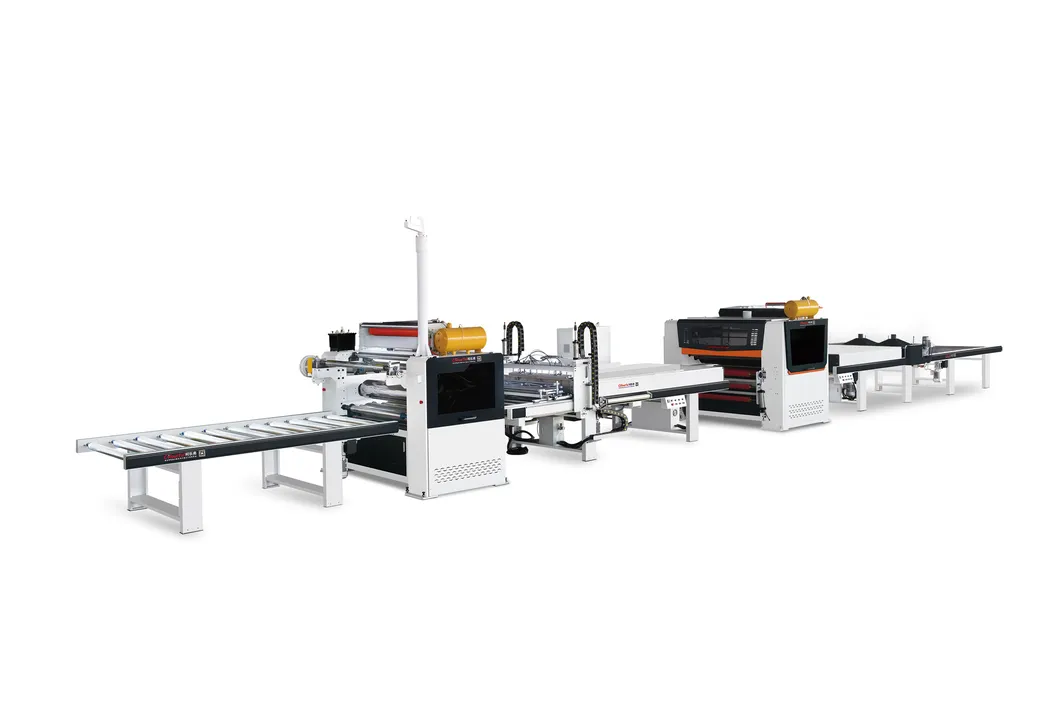

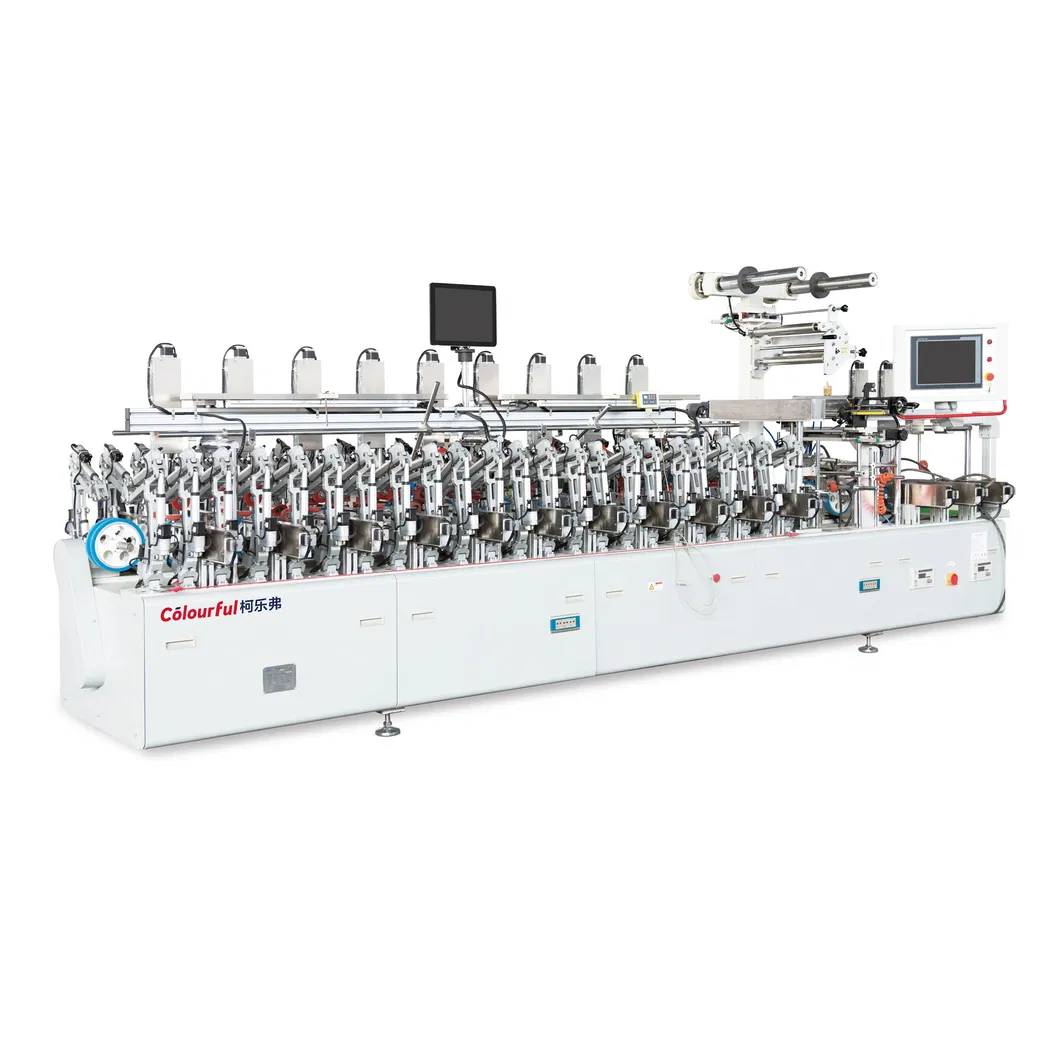

Our core product line includes PUR hot glue laminators, flat laminators, door panel laminating machines, and automatic veneer production lines. These machines are designed to work with wood, aluminum alloy, steel, and PVC materials, serving the furniture, door, window, and automotive industries worldwide.
