Technical Specifications
Model NO.:FM-CS
Printing Page:Single Faced
Printing Color:6 Colors
Anilox Roller:Ceramic Anilox Roller
Drying Mode:Hot Air, IR & UV Drying
Printing Speed:200m/min
Max. Web Width:1370mm
Max. Printing Width:1350mm
Repeat Length:300-1200mm
Material:60-350GSM Paper Roll
Automatic Grade:Automatic
Structure:Unit Type
Product Applications
Ideal for eco-friendly packaging solutions across various industries:
Food Packaging
Healthcare Bags
Paper Cups & Boxes
Courier Bags

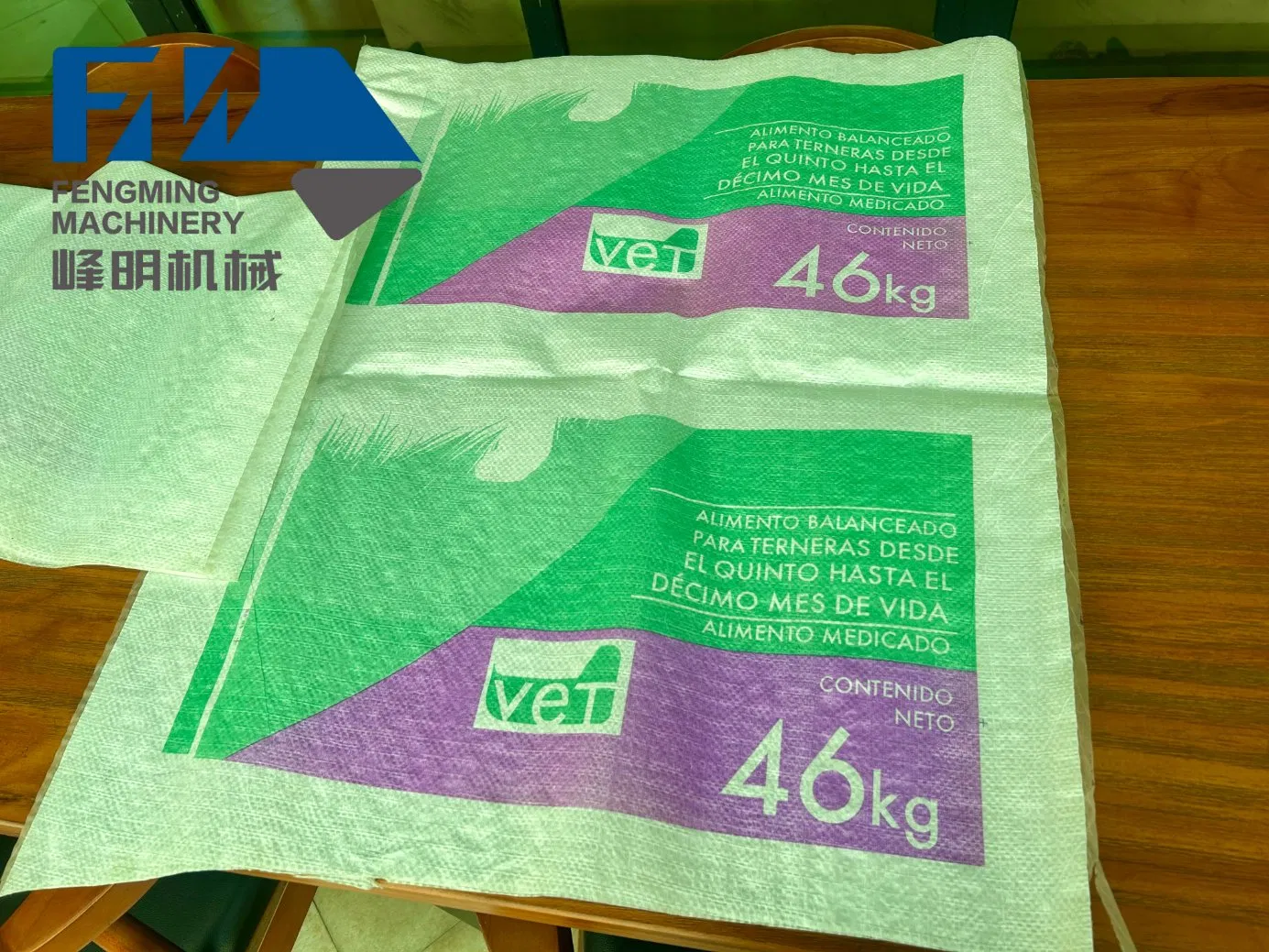

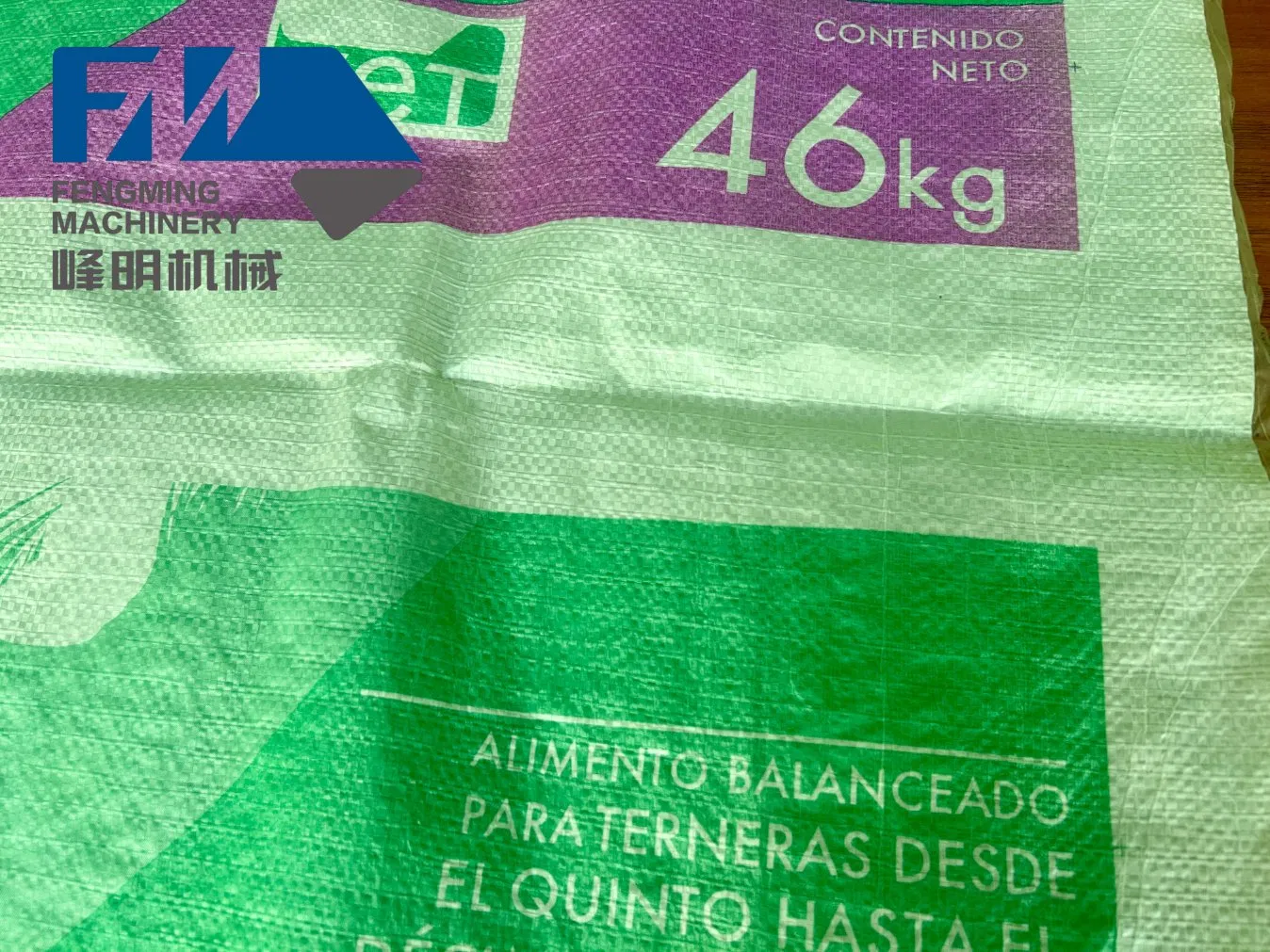

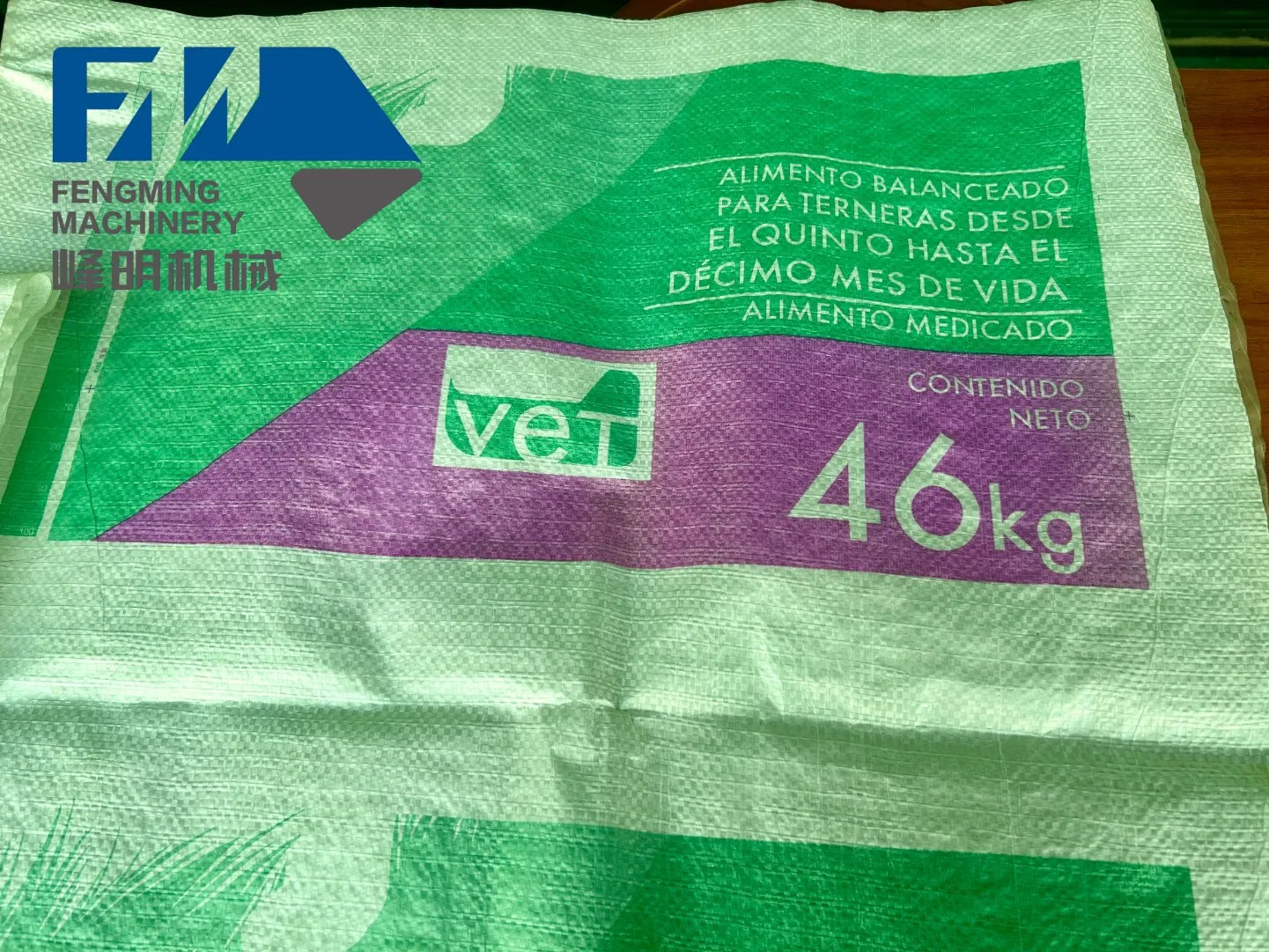

PP Woven Bags
Milk Cartons
Pre-printing Cartons
Frequently Asked Questions
Q1: What is the maximum printing speed of the FM-CS series?
The machine operates at a high-speed production capacity of up to 200 meters per minute.
Q2: What types of materials are suitable for this flexo machine?
It is designed for 60-350GSM paper rolls, non-woven fabrics, PP woven bags, and various eco-friendly packaging materials.
Q3: How many colors can the FM-CS machine print?
This specific model is a 6-color flexographic printing machine, providing high-quality multi-color output.
Q4: What drying systems are integrated into the machine?
The system utilizes a combination of Hot Air Drying, IR (Infrared) Drying, and UV Drying to ensure fast ink setting.
Q5: What is the benefit of the petal-type plate mounting structure?
The petal-type design allows for the quick change of anilox rollers and cylinders, which simplifies operation and reduces downtime.
Q6: Does the machine support automatic registration?
Yes, it features a full servo shaftless transmission with an automatic memory function for register positions and pre-printing.
