High Speed Disposable Medical Consumables Wound Care Dressings Surgical Adhesive Plaster Making Machine
High Speed Disposable Medical Consumables Wound Care Dressings Surgical Adhesive Plaster Making Machine
High Speed Disposable Medical Consumables Wound Care Dressings Surgical Adhesive Plaster Making Machine
High Speed Disposable Medical Consumables Wound Care Dressings Surgical Adhesive Plaster Making Machine
High Speed Disposable Medical Consumables Wound Care Dressings Surgical Adhesive Plaster Making Machine
1 / 5
High Speed Disposable Medical Consumables Wound Care Dressings Surgical Adhesive Plaster Making Machine
High Speed Disposable Medical Consumables Wound Care Dressings Surgical Adhesive Plaster Making Machine
High Speed Disposable Medical Consumables Wound Care Dressings Surgical Adhesive Plaster Making Machine
High Speed Disposable Medical Consumables Wound Care Dressings Surgical Adhesive Plaster Making Machine
High Speed Disposable Medical Consumables Wound Care Dressings Surgical Adhesive Plaster Making Machine

High Speed Disposable Medical Consumables Wound Care Dressings Surgical Adhesive Plaster Making Machine

Customization: Available
Application: Medical Dressing Products
Certification: CE, ISO
Send Inquiry

Product Description

Basic Information
Model NO.
XN7
Control System
Fully Automatic
Material
Aluminum Alloy, Stainless Steel
Power
17.5kw
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Gear
Cutting Precision
±0.1mm
Feed Width
250mm, 350mm or Customized
Drive Motor
Servo
PLC Brand
Omron
Key Selling Point
High Productivity
Product Description

High Speed Disposable Medical Consumables Wound Care Dressings Making Machine

This equipment is a 7-station rotary die-cutting machine where each station and feed shaft are driven by independent servo motors. This modular design allows each station to function as an individual unit or cooperate as a whole system to meet various production needs, including pressing, die cutting, and transfer. It supports synchronous and asynchronous operations, speed ratio adjustment, and constant tension control, representing a truly intelligent universal machine.

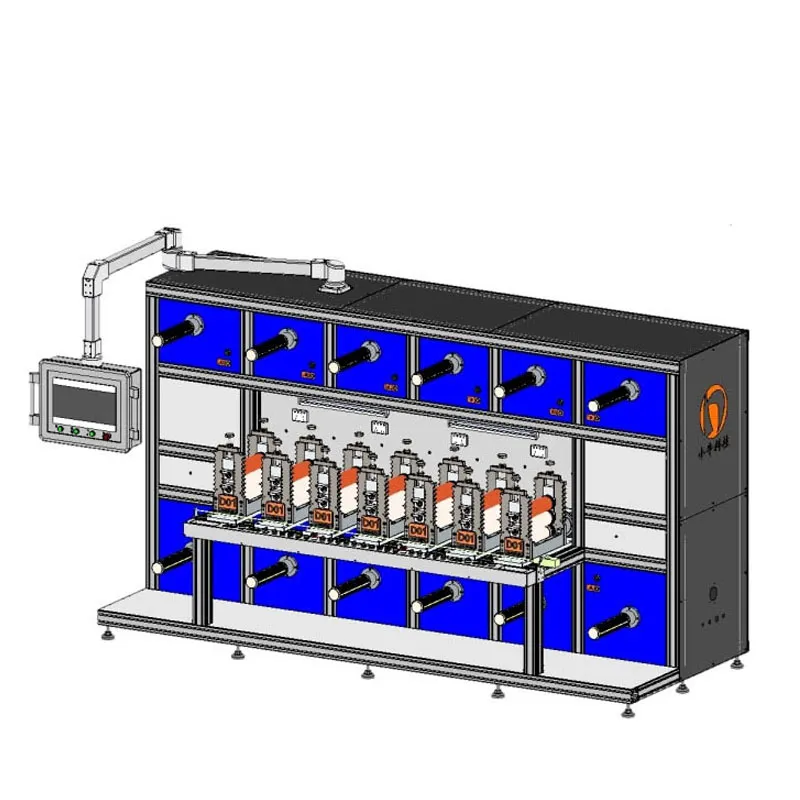

Medical Consumables Making Machine
Key Advantages & Applications
✔
High Efficiency: Continuous roll cutting at 5-60m/min.
✔
Ultra Precision: Stable processing with ±0.1mm accuracy.
✔
Multi-Station: Integrated multi-process compounding design.
✔
Intelligent Control: Full-auto tension and deviation control.
Main Functions:
• Synchronous/Asynchronous Operation
• Automatic Target Tracking
• Material Breaking Alarm
• Constant Tension System
• System Failure Monitoring
• Power-off Memory
Processed Products & Applications

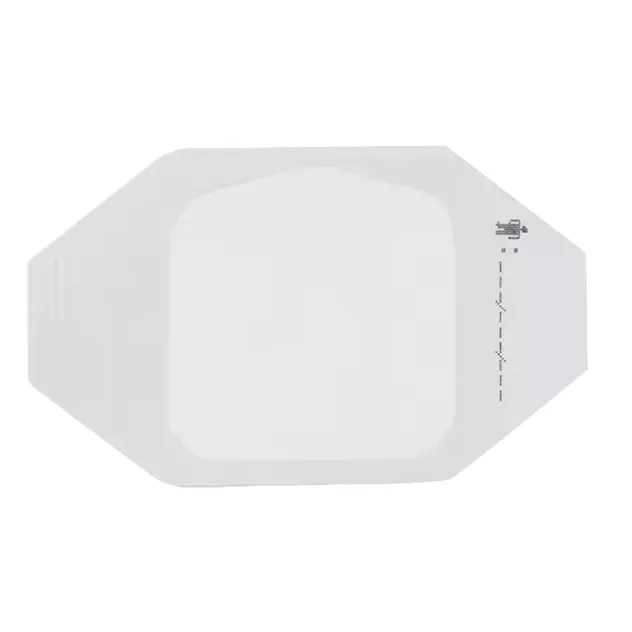

I.V. dressing

I.V. Dressing

foam dressing

Foam Dressing

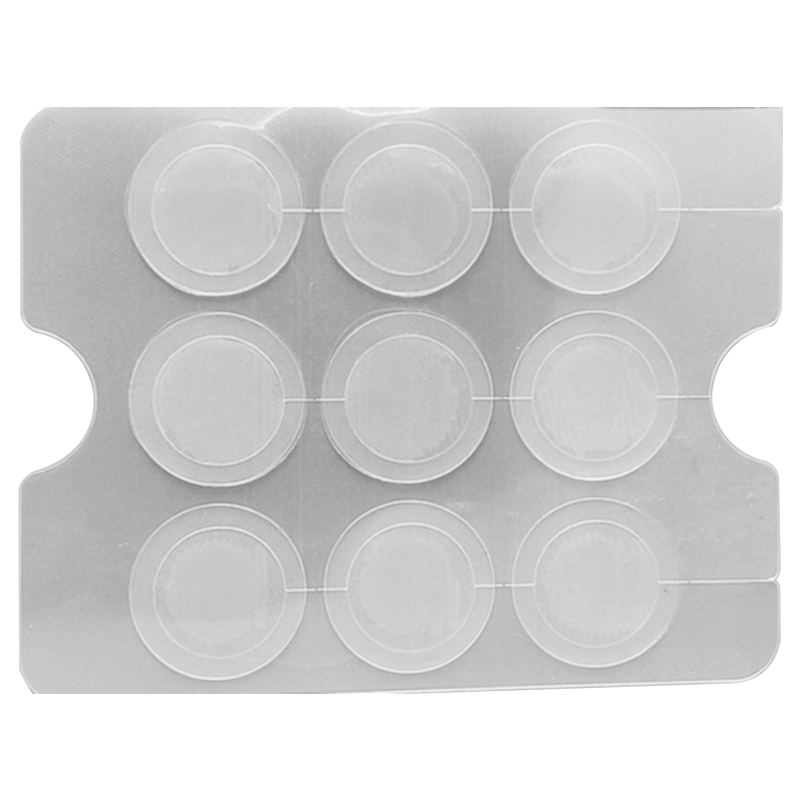

acne patches

Acne Patches

tracheostomy dressings

Tracheostomy Dressings

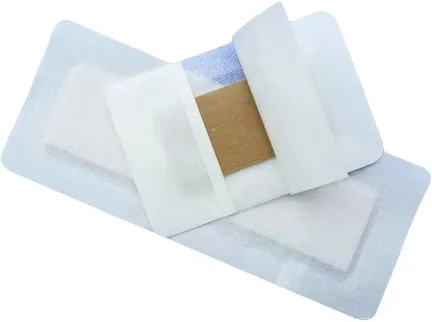

sterile dressings

Sterile Dressings

hydrocolloid dressings

Hydrocolloid Dressings

Technical Specifications
Parameter Specification Details
Power (KW)17.5kw
Working Voltage (V)AC380 (Customizable)
Feeding Width (mm)250mm or 350mm
Max. Diameter (mm)400mm
Die Cutting Precision (mm)±0.1mm
Production SpeedUp to 60m/min
Components & Equipment Delivery
Main parts
Electronics
Stations
Packaging 1
Packaging 2
Packaging 3
After Sales Service
⭐
Standard Warranty: 1 year comprehensive coverage.
⭐
Global Support: 24/7 technical assistance and rapid spare parts supply.
⭐
Professional Training: On-site or remote operation and maintenance training programs.
Frequently Asked Questions
Q: What materials can this rotary die-cutting machine process?
The machine is designed for various flexible substrates, including medical-grade tapes, foams, non-woven fabrics, hydrocolloids, and electronic flexible materials.
Q: How accurate is the cutting precision of the XN7 model?
The equipment utilizes a high-precision servo control system that ensures a die-cutting precision of ±0.1mm, providing stable and consistent output for medical consumables.
Q: Can I produce multiple types of products on one machine?
Yes. Due to the modular station design, you can produce different products by simply changing the die cutters or adding/removing stations. For 8+ station machines, a double-system design even allows simultaneous production of two different items.
Q: What is the typical lead time for equipment delivery?
Generally, prompt delivery is available within 20 days after the final design configuration is fixed.
Q: Do you provide installation and debugging services?
Yes, technical engineers can be dispatched to the customer's location for machine setup, debugging, and comprehensive operator training.
Q: Is it possible to customize the machine voltage and feeding width?
Absolutely. While standard feeding widths are 250mm and 350mm, we offer fully customized configurations for voltage and machine dimensions to suit your specific factory requirements.
