🔵 Basic Information
Bag Length
65mm - Unlimited
Packing Speed
40-230 bag/Min

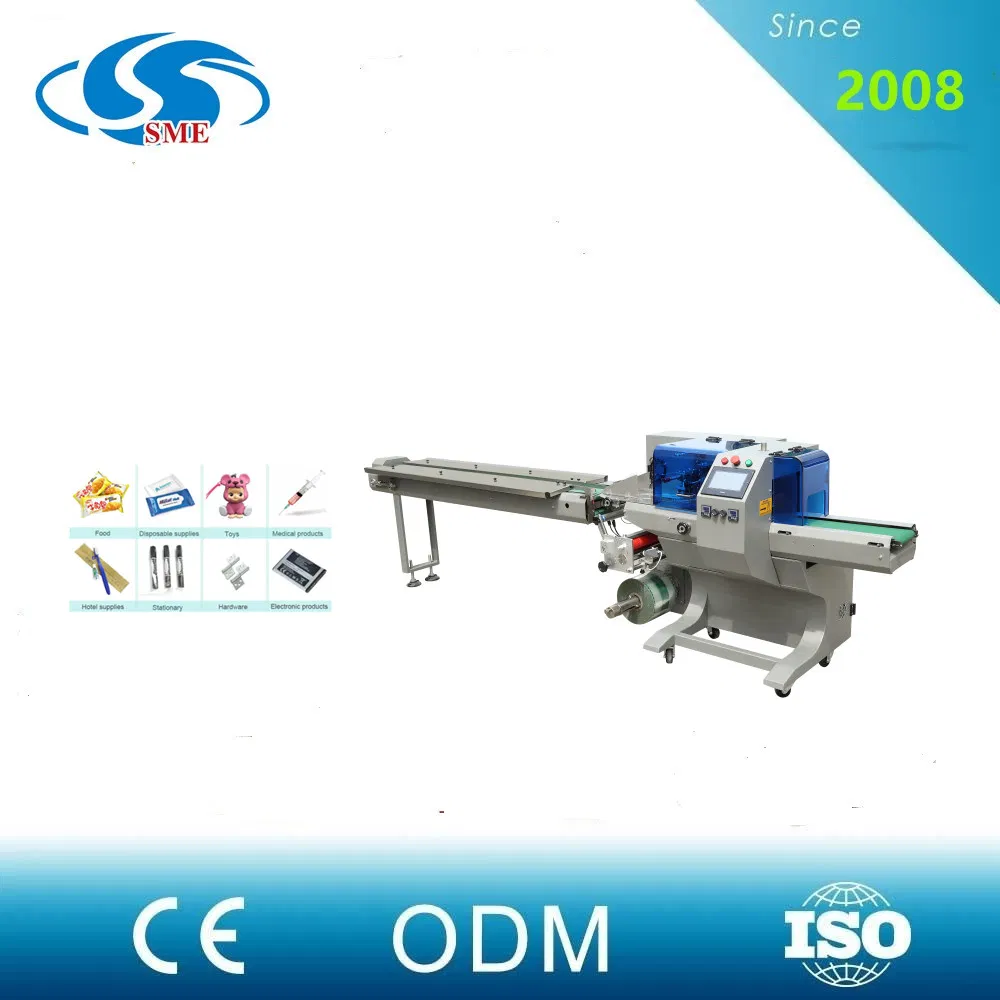

🔵 3 Servo Motor Drive Horizontal Packing Machine

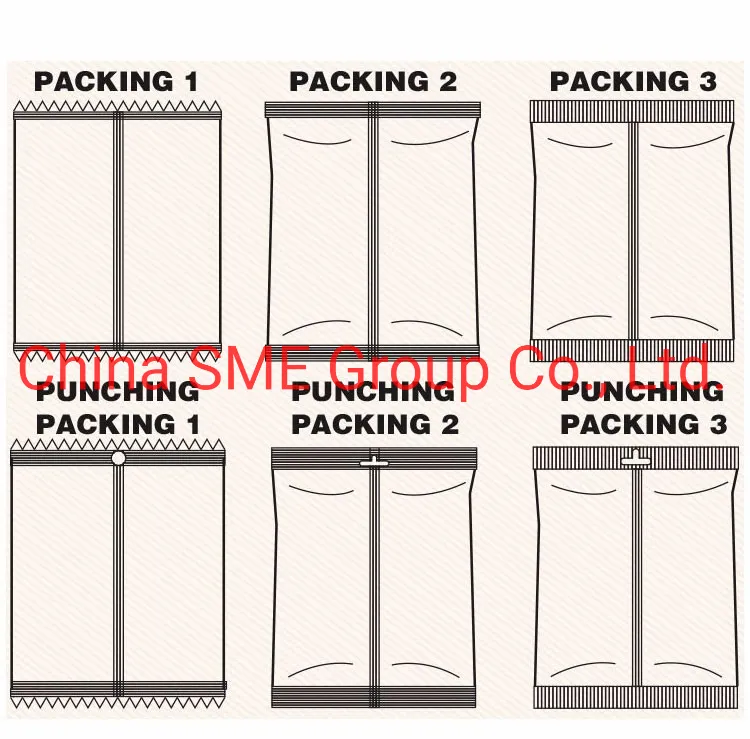

Applications: Suitable for packaging various large regular objects into pillow or gusseted bags.
- Food: Bakery bread, biscuits, cookies, candy, chocolate bar, cake, popsicle, ice cream bar, meat, muffin, sausage, noodles, etc.
- Vegetables & Fruits: Apples, bananas, lettuce, potatoes, tomatoes, etc.
- Hardware: Hinge, stainless steel pipe, bearings, screws, nuts, washer, etc.
- Medical & Daily Use: Face masks, gloves, gauze, syringes, bandages, disposable tableware, wipes, etc.
- Stationery & Electric: Pencils, notebooks, batteries, USB cables, earphones, etc.
🔵 Performance Characteristics

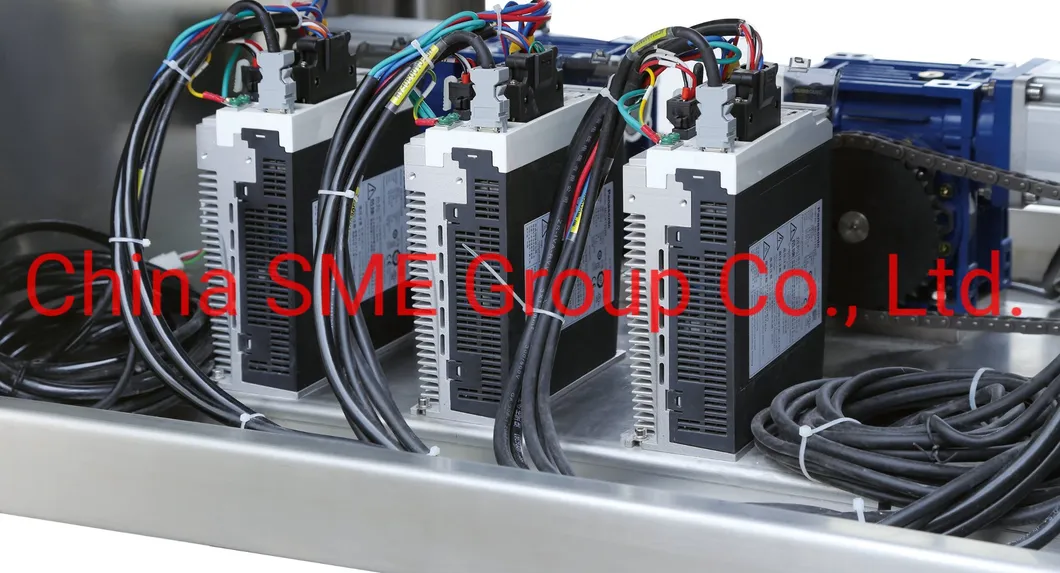

- Equipped with 3 Servo motors and Panasonic PLC controller for flexible bag length setting and cutting.
- Human-machine interface for convenient and quick parameter settings.
- Automatic sensing: machine starts when product is detected and stops otherwise.
- Self-diagnosis failure function with clear display.

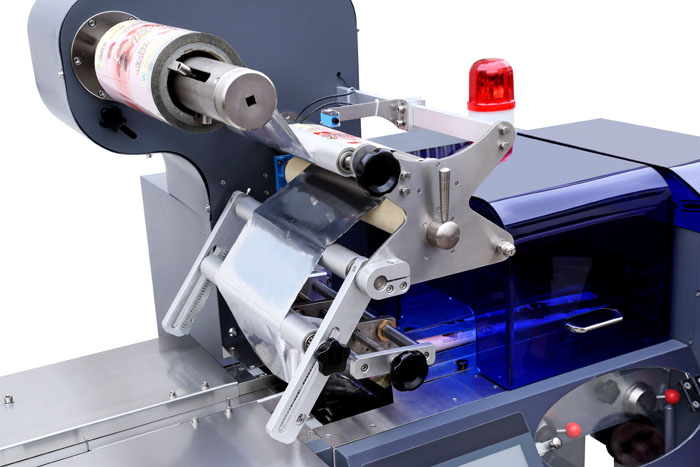

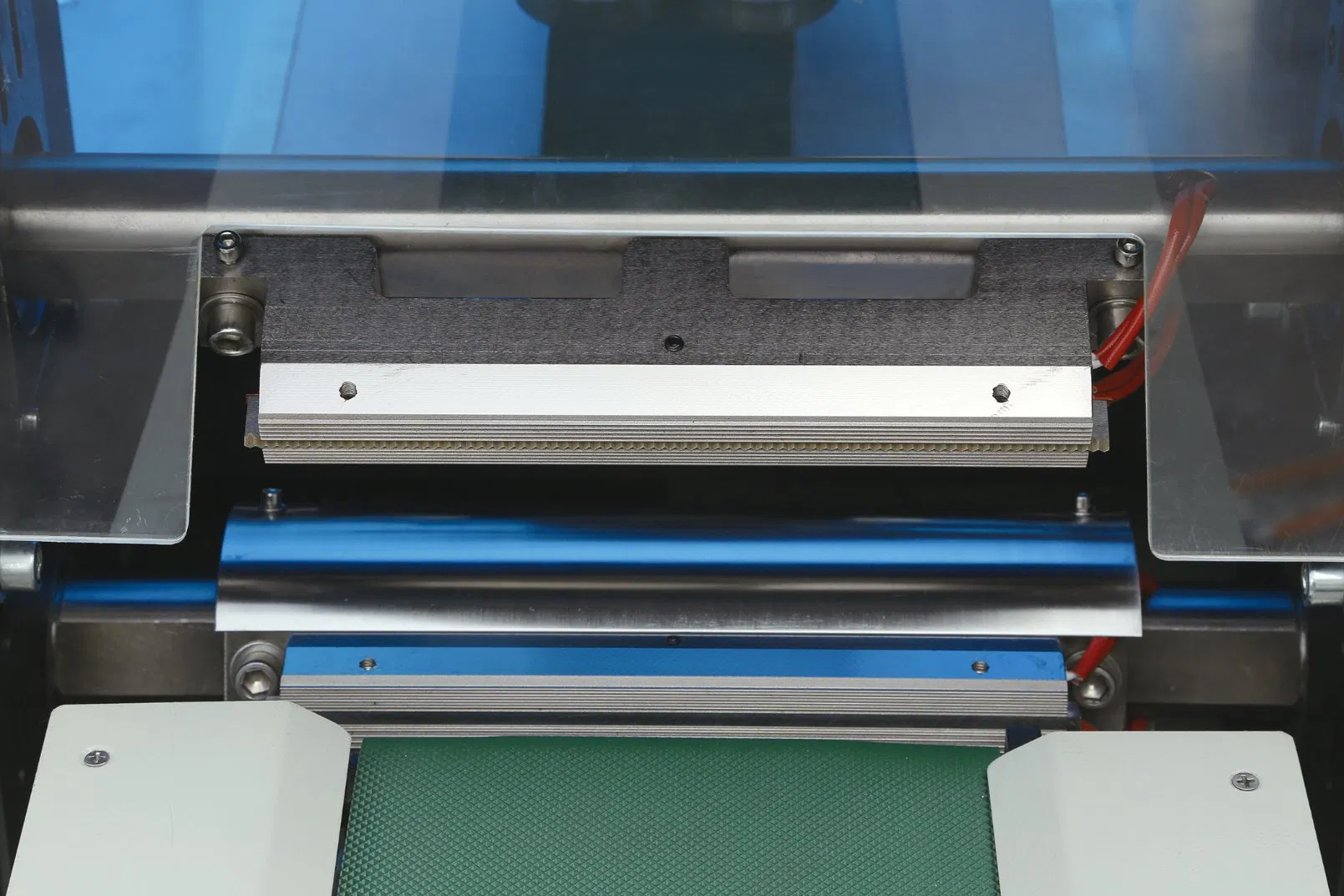

- High-sensitivity optical electric color mark tracking for accurate sealing and cutting.
- Separated PID control system for temperature, compatible with various packing materials.
- Simple driving system ensuring reliable working and easy maintenance.
🔵 Product Parameters
Note: We can customize the machine according to your specific requirements such as weight or bag size.
| Specification |
Detail (Model MZ-350XS) |
| Film width | Max. 340mm |
| Film roll diameter | Max. 320mm |
| Bag length | Min. 65mm, Max. Unlimited |
| Bag width | 50-160mm |
| Product Height | Max. 45mm |
| Packing Speed | 40-230 bag/min |
| Power | 220V, 50/60HZ, 2.4KW |
| Machine Weight | About 550kg |
| Machine Size | 3700 * 670 * 1450mm |
🔵 Main Electrical Components
| Component |
Brand |
| PLC / Servo Motor / Screen | XINJE |
| Temperature Control / Photocell | AISET |
| Close to Switch / Intermediate Relay | Omron (Japan) |
| Solid State Relay | Sch (Germany) |
| Power Supply | Ming Wei (Taiwan) |
🔵 Packing Materials & Spare Parts

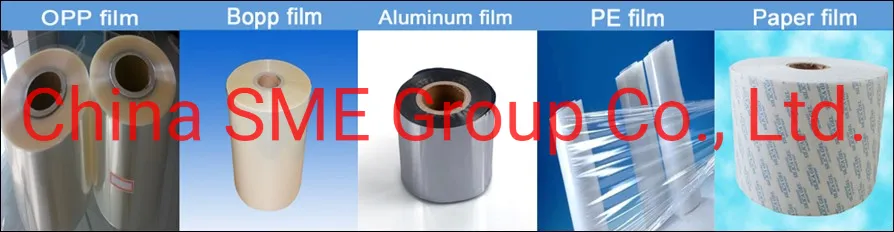

Heat-sealable laminated film: OPP, Aluminized, POPP & other special sealable films.
Standard Spare Parts:
Three pushers, Mid-seal belt, Solid-state relay, Heating tubes, Tool set, User manuals, Foot cups, Power cable.
🔵 Packaging & Shipping
Exporting Wooden Cases: 1 machine is packed into 2 sturdy wooden boxes for safe international transit.
🔵 Professional Manufacturing
Leading manufacturer in front-of-line packaging devices since 2008. Over 14 years of expertise in technology development, precise manufacturing, and OEM solutions. We offer Flow Packing Machines, Vertical Packing Machines, Metal Detectors, and Weight Checkers to fit the needs of various industries.

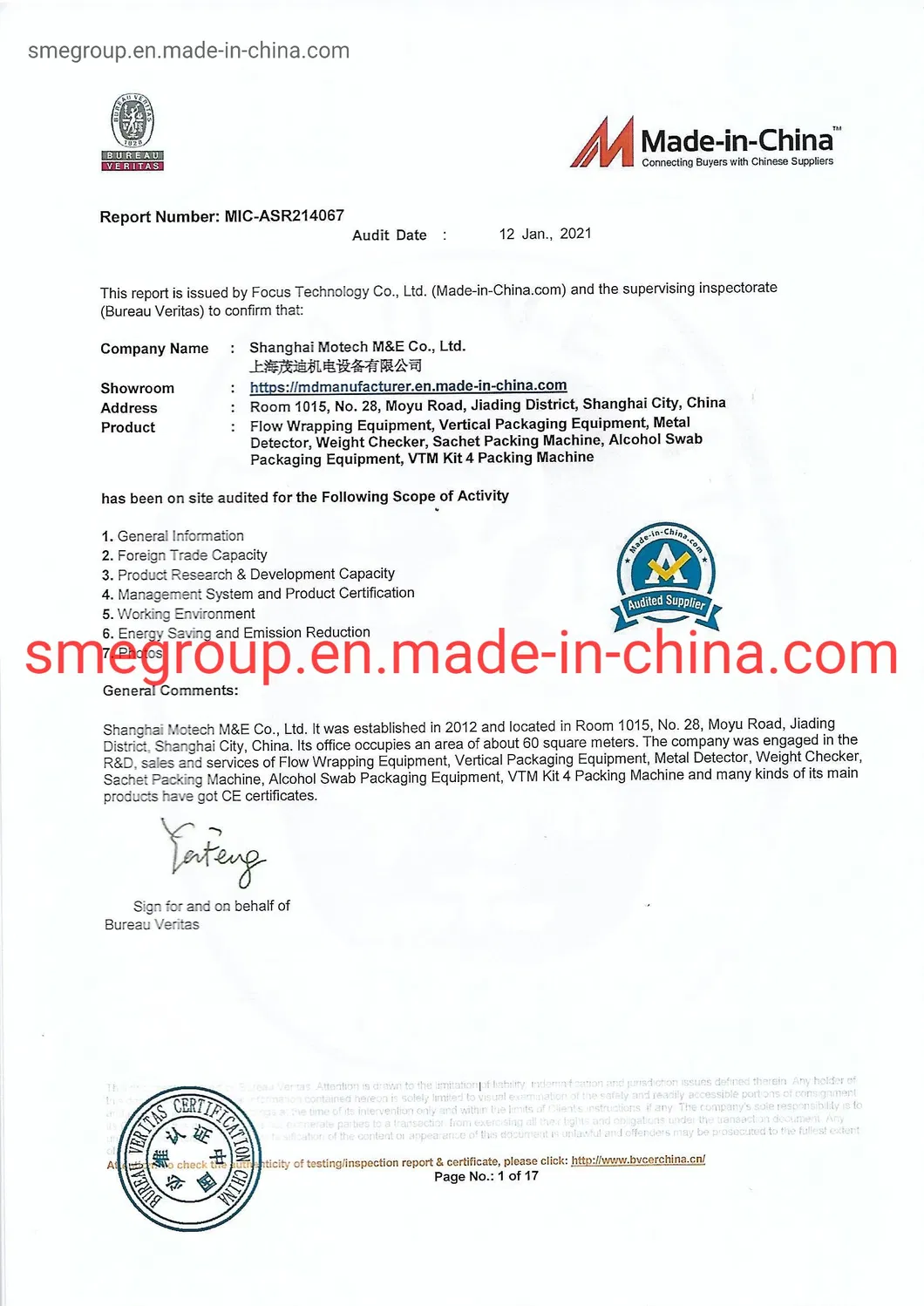

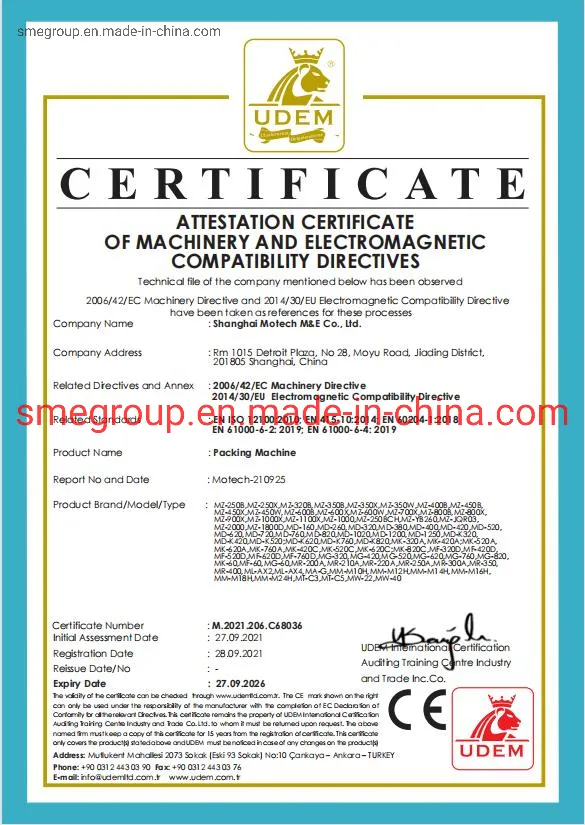

Our machinery has obtained CE and ISO 9001 certification, emphasizing safety and quality across Asia, America, and Africa. We provide OEM solutions based on strict quality control for global enterprises.
🔵 Frequently Asked Questions
What materials can this machine pack?
It is ideal for regular objects like biscuits, bread, medical masks, hardware parts, and daily necessities.
Is the bag length adjustable?
Yes, the bag length can be set and cut flexibly via the PLC controller, ranging from 65mm to unlimited length.
Does the machine support date printing?
Yes, a date coder is an optional accessory that can print manufacture and expiration dates directly on the bag.
How many servo motors does it use?
This model features a 3-servo motor drive system for high precision and stability.
Can the machine handle different film materials?
Yes, the separated PID temperature control system allows it to work with various heat-sealable laminated films like OPP and POPP.
What is the maintenance like for this system?
The simple driving system and self-diagnosis failure display make maintenance convenient and reliable.
