Disposable IV Dressings Machine for Quick and Reliable Production

1 / 5

Disposable IV Dressings Machine for Quick and Reliable Production

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

Medical Silicone Foam Dressings Producing Machine

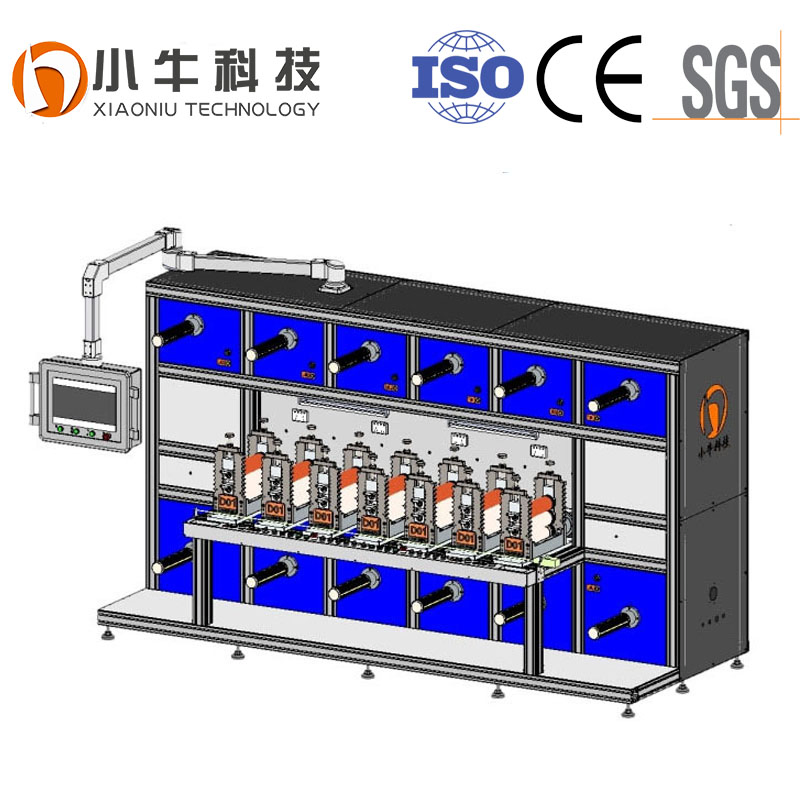

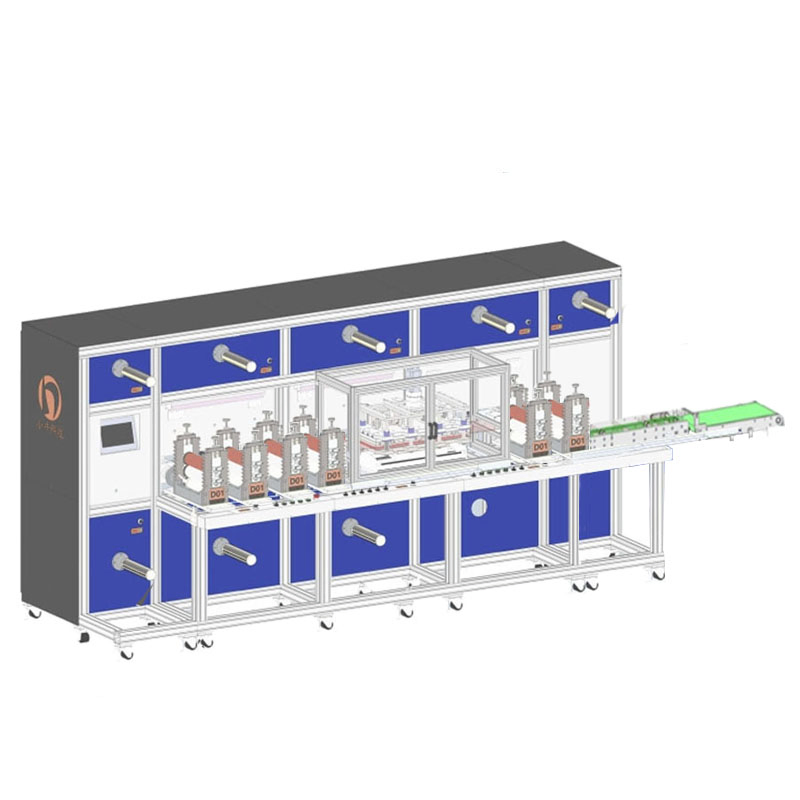

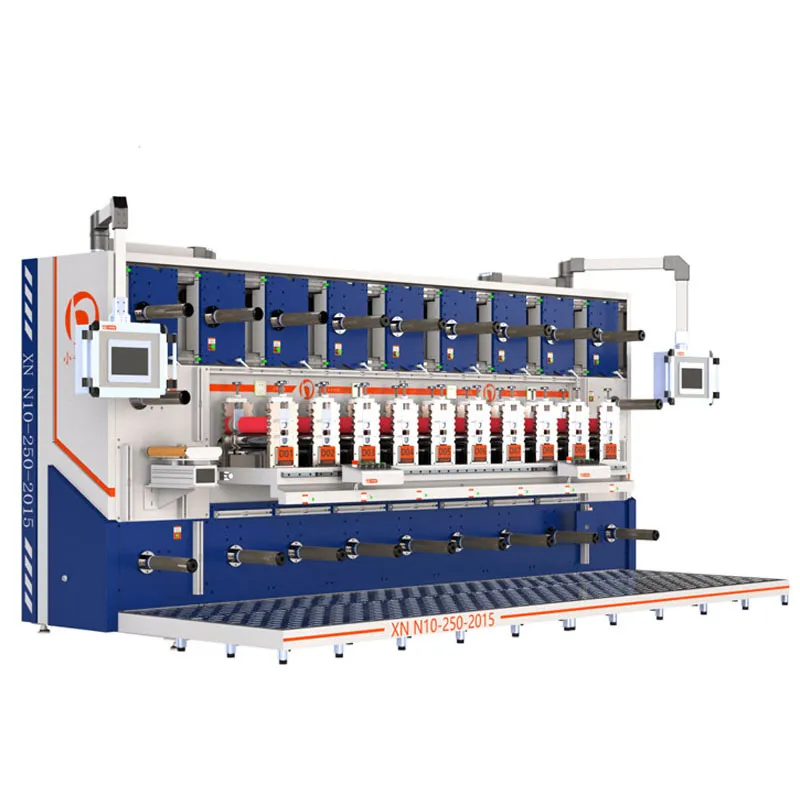

This 10-station rotary die-cutting machine, driven by servo motors, allows each station or feed shaft to function independently or as part of a synchronized whole. It supports pressing, die-cutting, and transfer needs with functions like synchronous, asynchronous, speed ratio, and tension control. A highly intelligent universal machine ideal for Wound Care Making Equipment.

🔹 Basic Specifications

Model	XN10
Application	Stickers Products, Dust-proof Material, EMI Shielding Materials, Medical Dressing Products
Power	25kw
Voltage	AC380 (Customized)
Feeding Width	250mm, 350mm or Customized
Cutting Precision	±0.1mm
Max. Speed	60m/min
Automatic Grade	Full Automatic
Core Components	PLC (Omron), Servo Motor, Engine, Bearing, Gearbox
Web Max. Dia	400mm

🚀 Core Advantages

Continuous High Efficiency: Roll cutting at 5-60m/min.
Superior Precision: ±0.1mm accuracy for consistent processing.
Multi-station Design: Integrated multi-process compounding.
Wide Adaptability: Suitable for all flexible substrates.
Intelligent Control: Full-auto operation with smart tension & deviation control.
Memory Function: Smart adjustment and power-off memory.

🎬 Operation Demonstration

▶

📦 Product Applications

Essential for high-precision mass production of flexible materials, used in medical consumables, 3C electronics, automotive electronics, packaging & printing, and new energy industries.

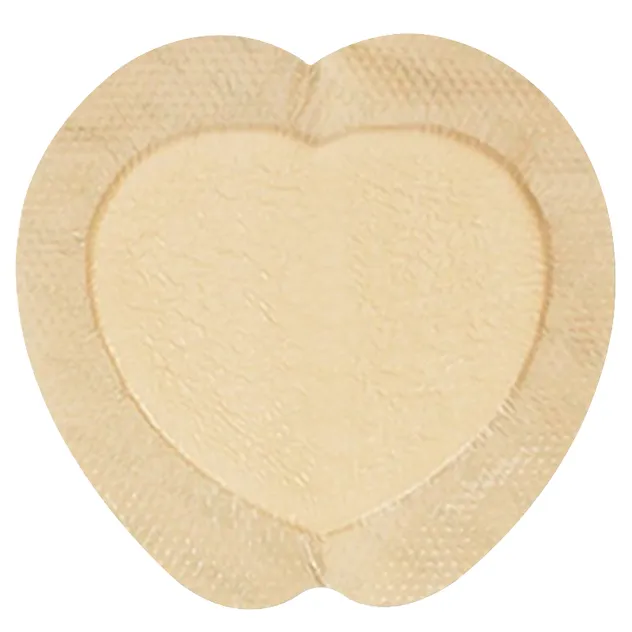

Foam Dressings

I.V. Dressings

Acne Patches

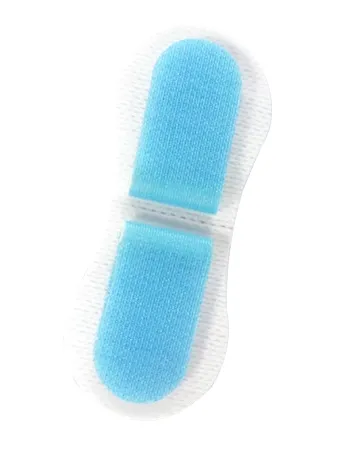

Catheter Fixation

Infusion Dressings

Hydrocolloid Dressings

🛠️ Main Components & Delivery

Packaging & Delivery: Machines are securely packed in wooden cases for international transport. Typical package size: 450cm * 170cm * 260cm. Gross weight: approx. 4700kg.

❓ Frequently Asked Questions

1. What types of materials can this machine process? The machine is highly adaptable to all flexible substrates, including medical dressings, foam, hydrocolloids, 3C electronic tapes, EMI shielding materials, and dust-proof fabrics.

2. Can one machine produce multiple types of products? Yes. Due to the modular design, you can share one machine for multiple products by adding stations or changing die cutters, which significantly saves equipment costs.

3. What is the cutting precision and speed? The machine offers a high precision of ±0.1mm and an efficient production speed ranging from 5 to 60 meters per minute depending on the material and complexity.

4. What kind of technical support do you provide? We provide a one-year warranty, 24/7 technical support, and lifetime maintenance. We can also dispatch engineers for on-site training and debugging.

5. Does the machine support customized configurations? Yes, our R&D team specializes in customizing station counts, feeding widths (250mm/350mm/etc.), and integrating additional modules like printing or packaging.

6. How is the tension controlled during production? The system utilizes a PLC servo control system (Omron) to maintain constant tension and intelligent deviation control, ensuring stable and consistent processing.
