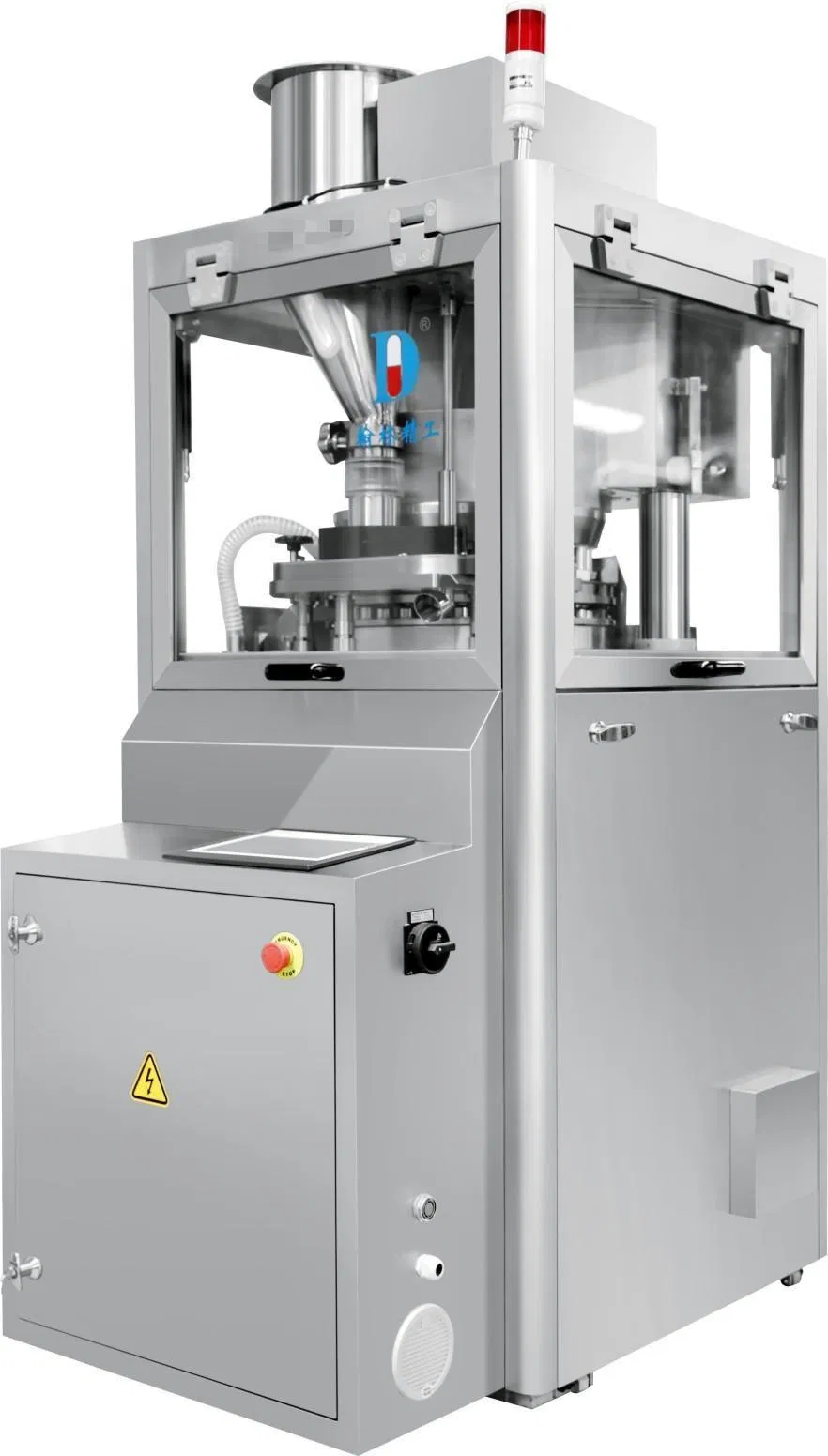

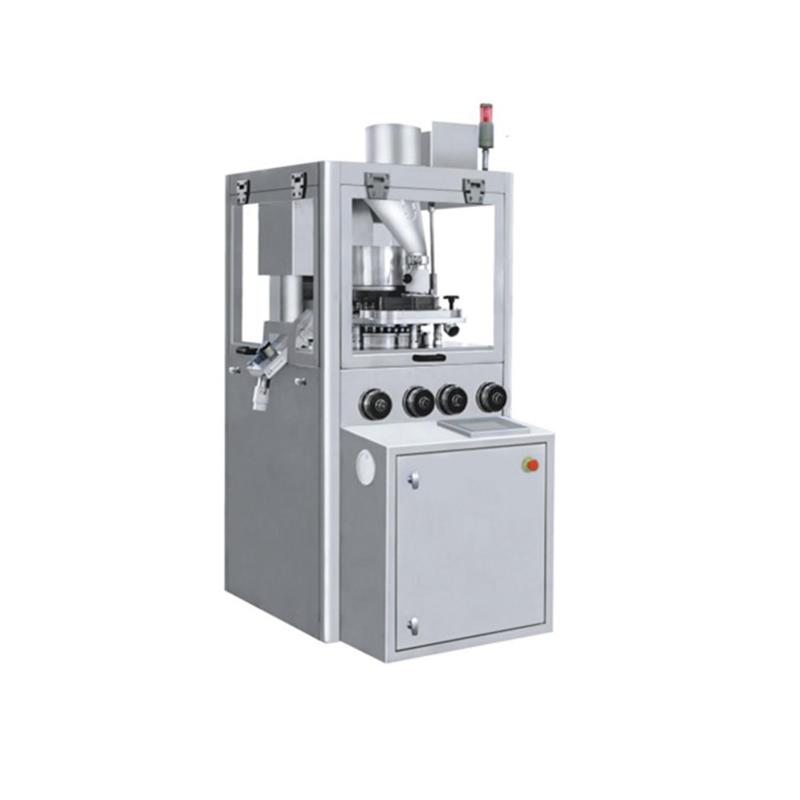

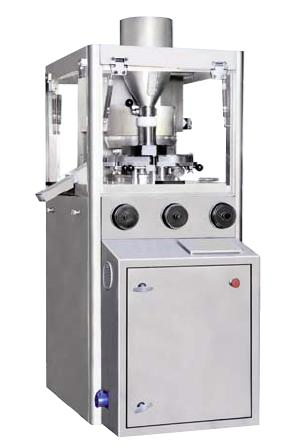

This machine meets GMP standard's relative requirement. It is designed for high-efficiency production of various tablets with consistent weight and quality.
Suitable Materials:
Available Tablet Shapes: Regular round, big shape, irregular, special irregular, single-double surface lettering, and cartoon shapes.

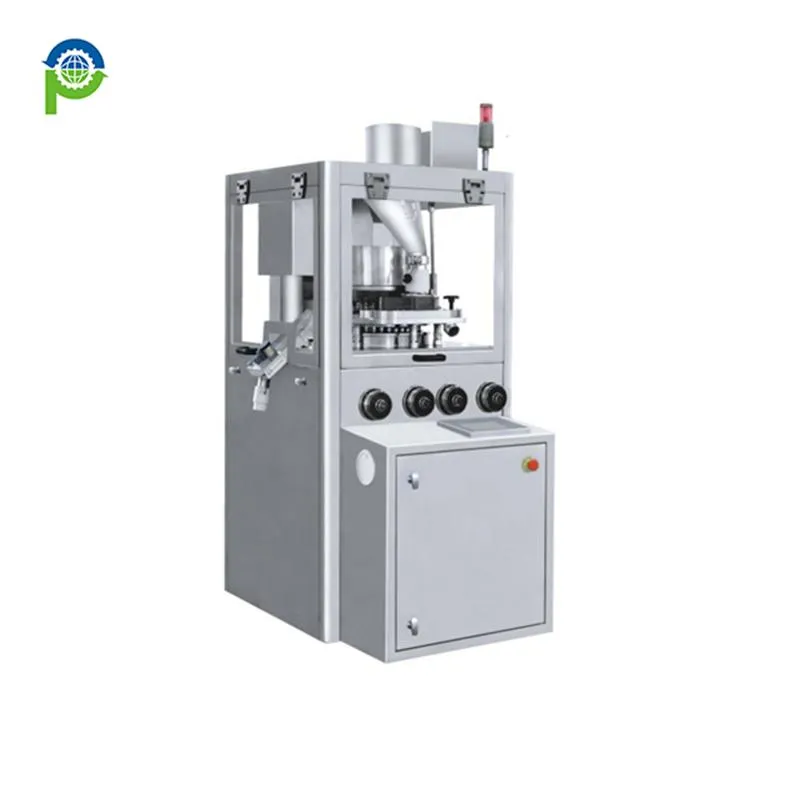

| Parameter | Specification (GZP-30) |
|---|---|
| Output Range (Tablets/h) | 14,400 - 54,000 |
| Punch Number | 13 |
| Punch Type | BB |
| Turret Rotation (RPM) | 8 - 30 |
| Max Main Press | 100 KN |
| Max Pre Press | 14 KN |
| Max Tablet Diameter | 25 mm |
| Tablet Thickness Range | 1 - 8 mm |
| Power | 5.5 Kw |
| Weight | 1,200 KG |
| Dimension | 700 × 1000 × 1750 mm |
Established in 2004, our professional team is engaged in the research and development of pharmaceutical machinery. We specialize in a wide range of equipment including tablet presses, counting machines, coating machines, and filling machines for both soft and hard capsules.
Our selection caters to global industries, providing engineering assistance and high-standard materials like pharmaceutical PVC, PTP aluminum film, and vials. We welcome international cooperation to create a bright future together.
