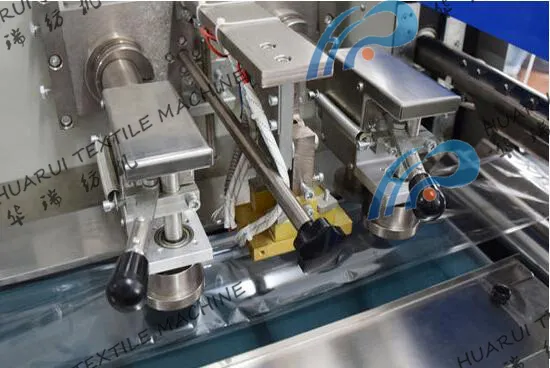

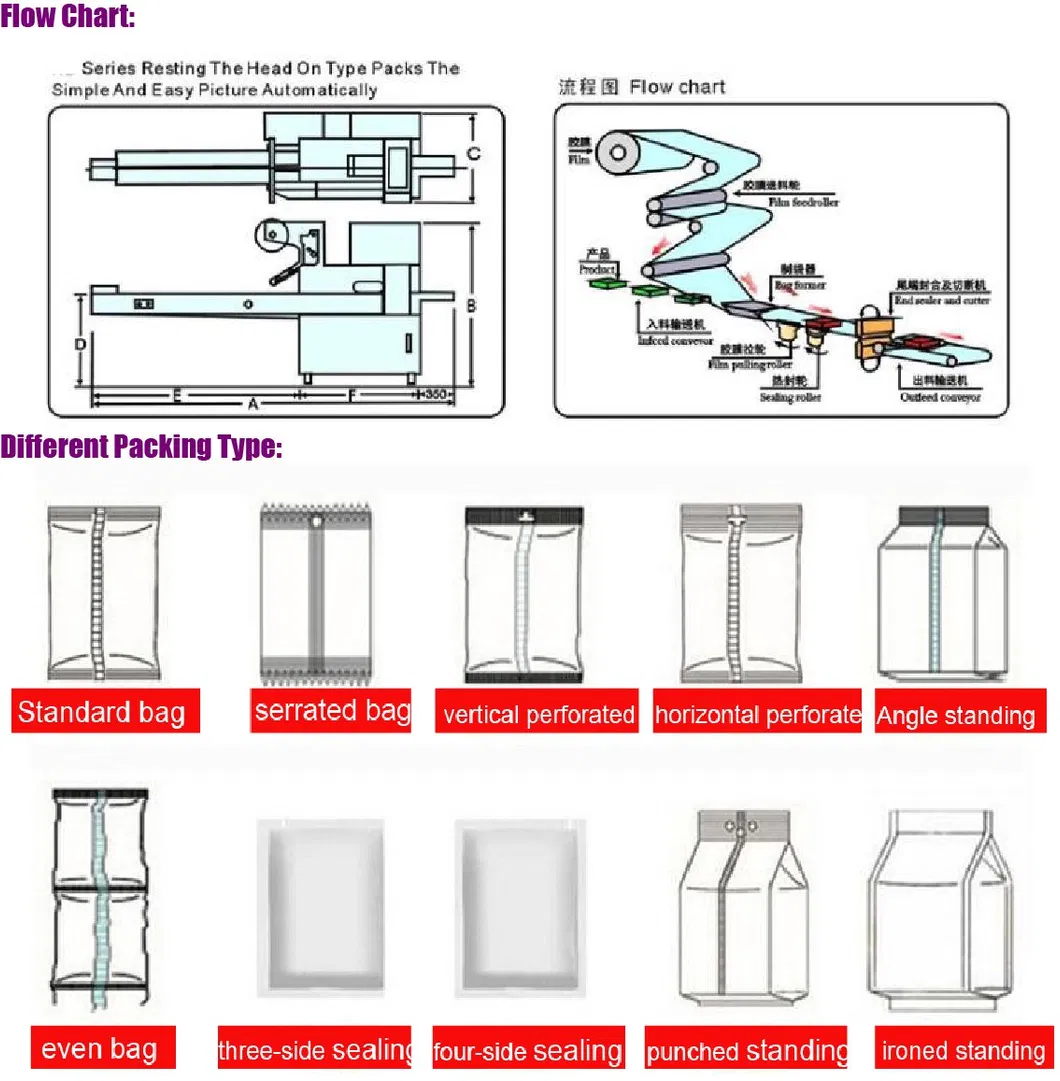

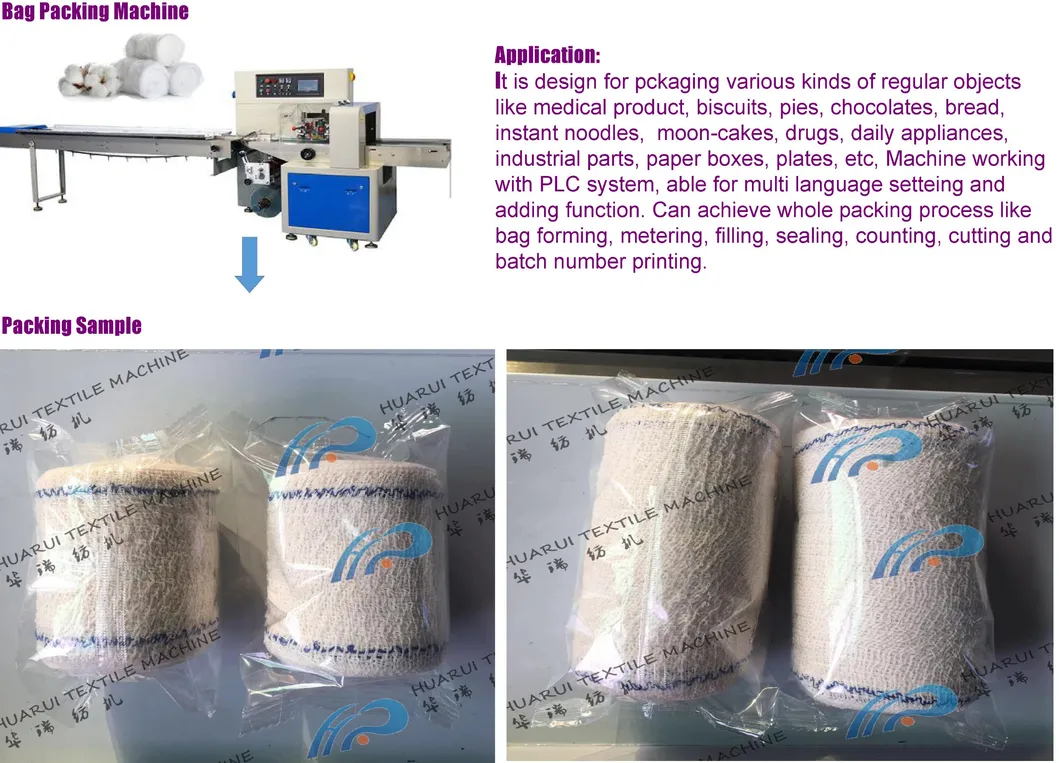

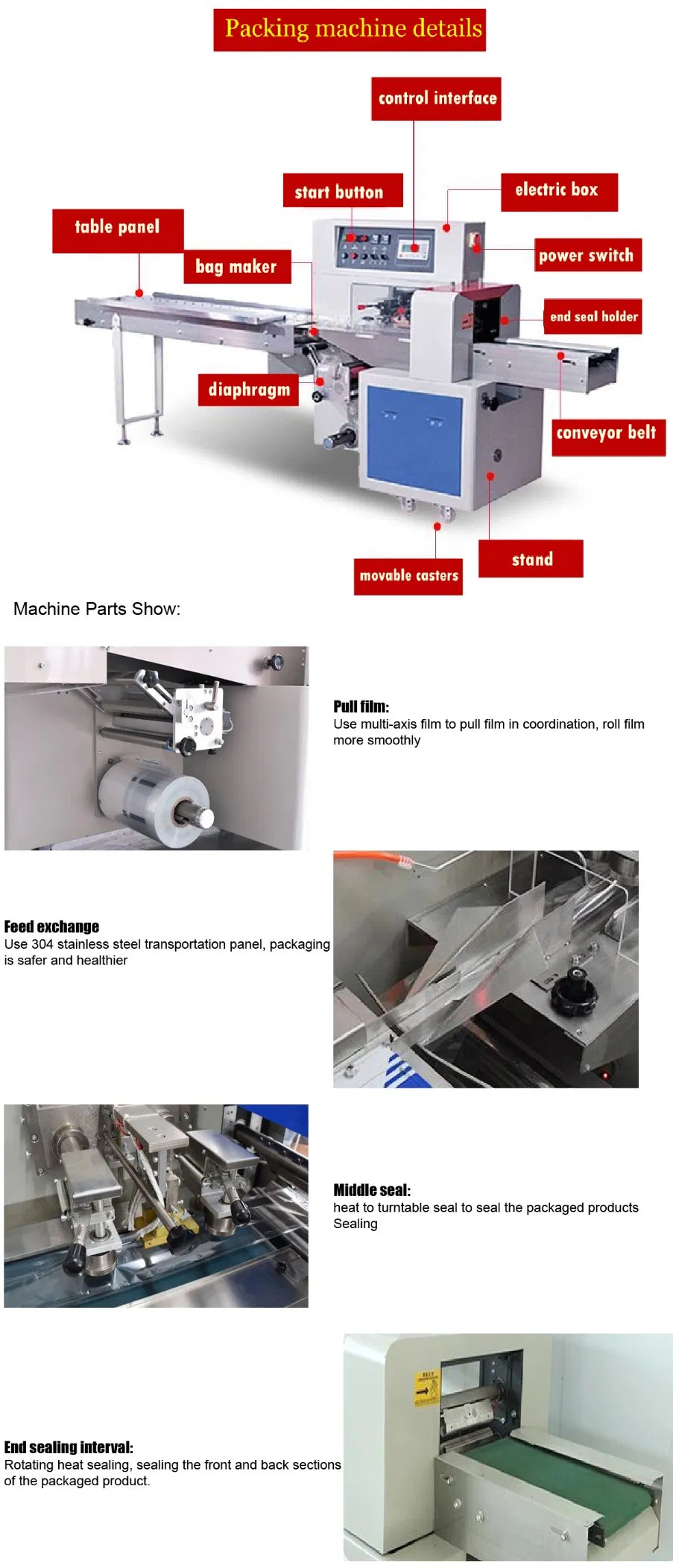

This horizontal form fill seal machine is designed for packaging various regular objects such as biscuits, pies, chocolates, bread, instant noodles, moon-cakes, drugs, daily appliances, industrial parts, paper boxes, and plates. Operating with a high-performance PLC system, it supports multi-language settings and handles the complete process including bag forming, metering, filling, sealing, counting, cutting, and batch number printing.
| Item | Name | Brand | Model | Qty |
|---|---|---|---|---|
| 1 | Double frequency conversion | Panasonic (Japan) | - | 2 |
| 2 | Touch Screen | Taiwan Wiluntong | TK6070I | 1 |
| 3 | Temperature Meter | Yatai | NG-6401V-3 | 2 |
| 4 | Electric Eye | Yatai | NGJ-612 | 1 |
| 5 | Encoder | Changchun Rongde | E38S-8G12-21C-360B-2M | 1 |
| 6 | Combination Switch | GLELE | GLH12-20/2 | 1 |
| 7 | Air Switch | Tianzheng | DZ47-63 C20 | 3 |
| 8 | Proximity Switch | Omron | TL-Q5MC1-Z | 1 |
| 9 | Power Supply | MeanWell | NES-15-24 | 1 |
| 10 | Solid-state Relay | Schneider | SSR-25 DA | 3 |
| 11 | Intermediate Relay | Omron | MY2N-J | 1 |
| 12 | PLC | Panasonic (Japan) | - | 1 |
| Parameter | Details (Model HR450) |
|---|---|
| Width of Bag | 80-210mm |
| Length of Bag | Adjustable based on product size |
| Product Height | Max 80mm |
| Packing Speed | 40~80 packs per minute |

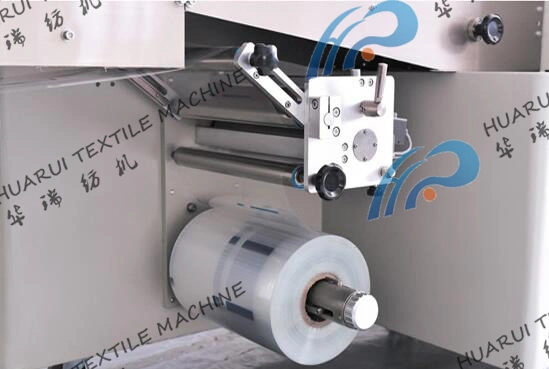

| Reel Film Diameter | 320mm |
| Machine Size | 4020 x 700 x 1400mm |
| Material Capability | Stainless Steel 304 Construction |

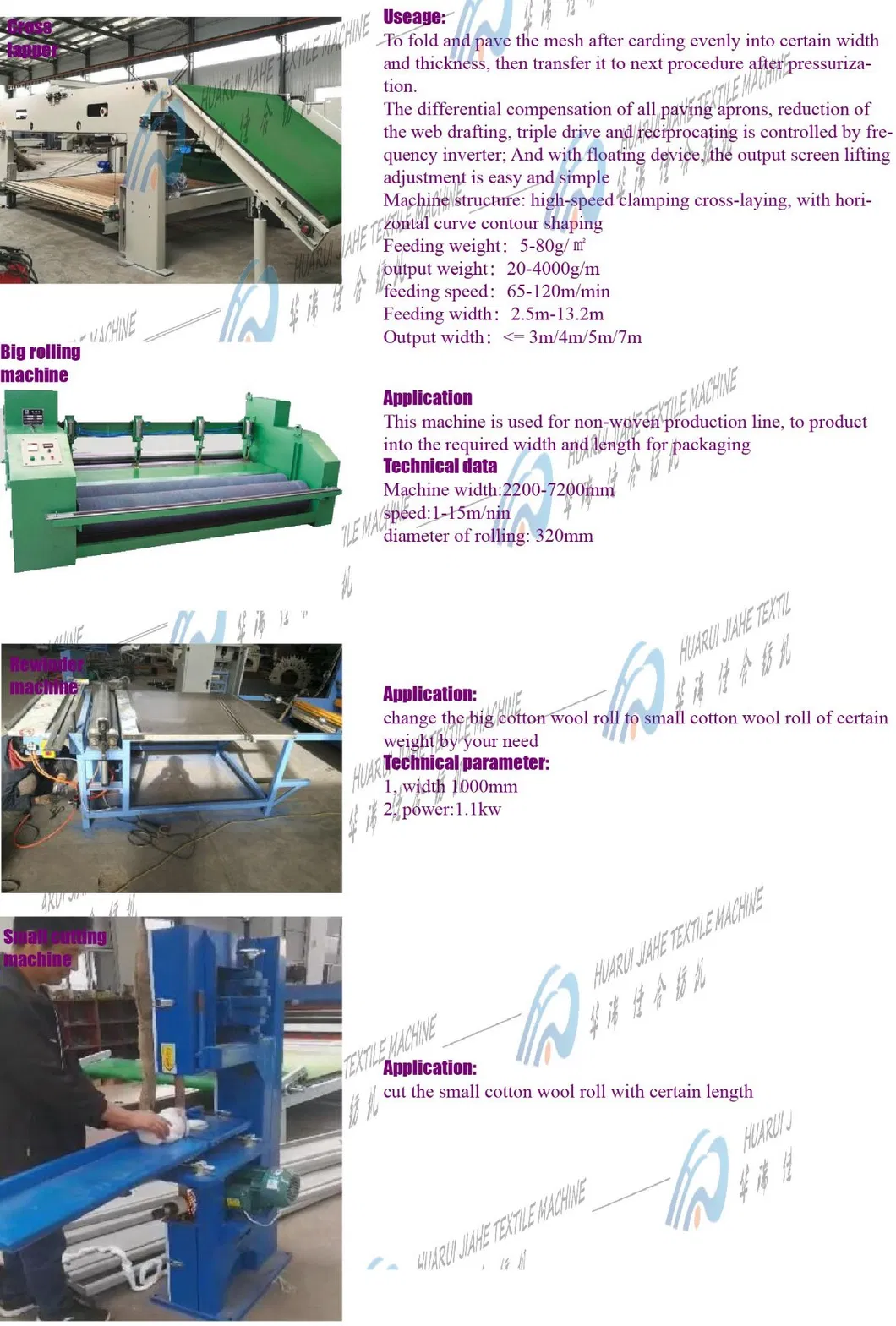

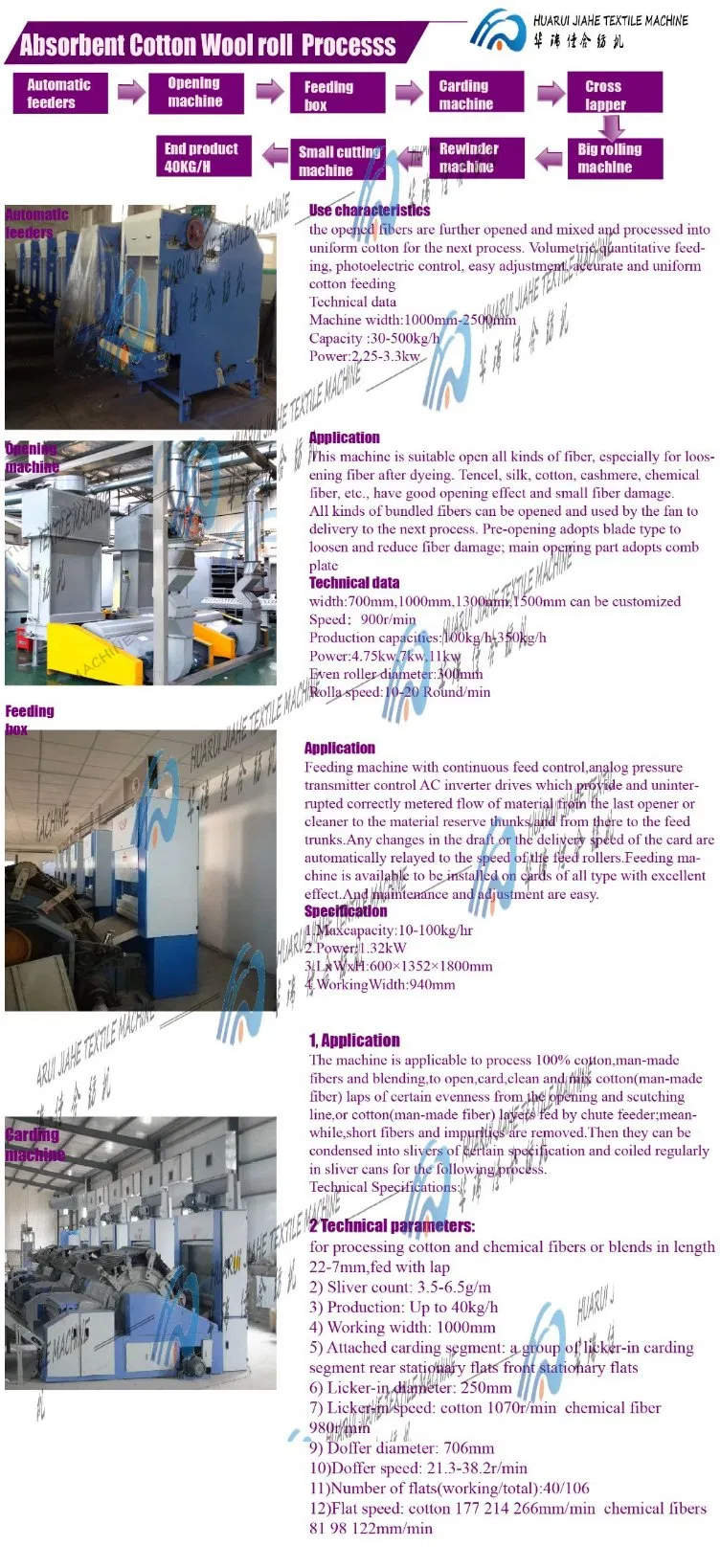

Medical Cotton Roll Packaging Specifications:
Packaging Weights: 25g, 100g, 200g, 250g, 500g, 1000g
Width Range: 5-10 cm | Length Range: 10-20 cm
Packaging Type: Roll format
