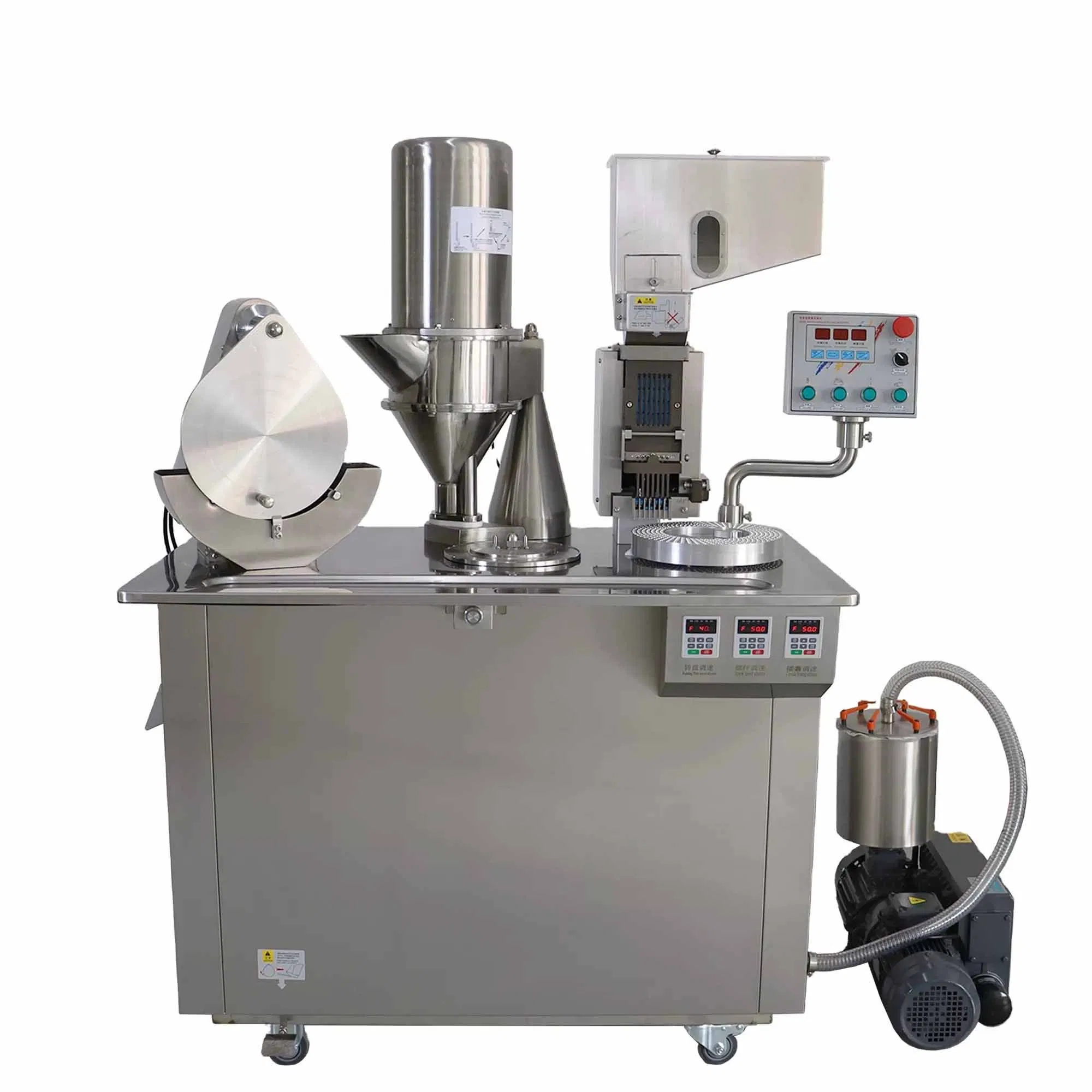

High Quality Factory Semi Automatic Capsule Filling Machine
High Quality Factory Semi Automatic Capsule Filling Machine
High Quality Factory Semi Automatic Capsule Filling Machine
High Quality Factory Semi Automatic Capsule Filling Machine
High Quality Factory Semi Automatic Capsule Filling Machine
1 / 5
High Quality Factory Semi Automatic Capsule Filling Machine
High Quality Factory Semi Automatic Capsule Filling Machine
High Quality Factory Semi Automatic Capsule Filling Machine
High Quality Factory Semi Automatic Capsule Filling Machine
High Quality Factory Semi Automatic Capsule Filling Machine

High Quality Factory Semi Automatic Capsule Filling Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
cgn208d
Machine Type
Capsule Filling Machine
Voltage
220V
Warranty
>2 Year
Mold Change
5 Minutes
Speed
10000-25000 per Hour
Capsule Size
000#, 00L#, 00#, 0#, 1#, 2#, 3#, 4#
Material
Powder or Pellets
Precision
High Precision
HS Code
8422400000

Product Overview

The semi automatic capsule filling machine is a new efficient equipment based on research and development. It is more intuitive and offers higher loading efficiency in capsule dropping, U-turning, and vacuum separation. The new capsule orientating system adopts a column positioning design, shortening mold replacement time from 30 minutes to just 5-8 minutes.
This machine integrates electricity and pneumatic control, featuring automatic electronic counting, a programmable controller (PLC), and a frequency conversion speed regulating device. It significantly reduces labor intensity and serves as the ideal equipment for small to medium-sized pharmaceutical companies and research institutions.

Technical Parameters

Adjust New Mould Time5-8 minutes (for beginner)
Production Capacity10000-25000 capsules/hour (depends on size)
Suitable Capsule000#, 00L#, 00#, 0L#, 0#, 1#, 2#, 3#, 4#, 5# standard capsules
Filled MaterialPowder (non-sticky) or granules
Total Power2.12KW
Compressed Air0.03m³/min, 0.7Mpa
Vacuum PumpExhaust 40m³/h
Overall Dimension1200*700*1650mm
Gross Weight420 KGS

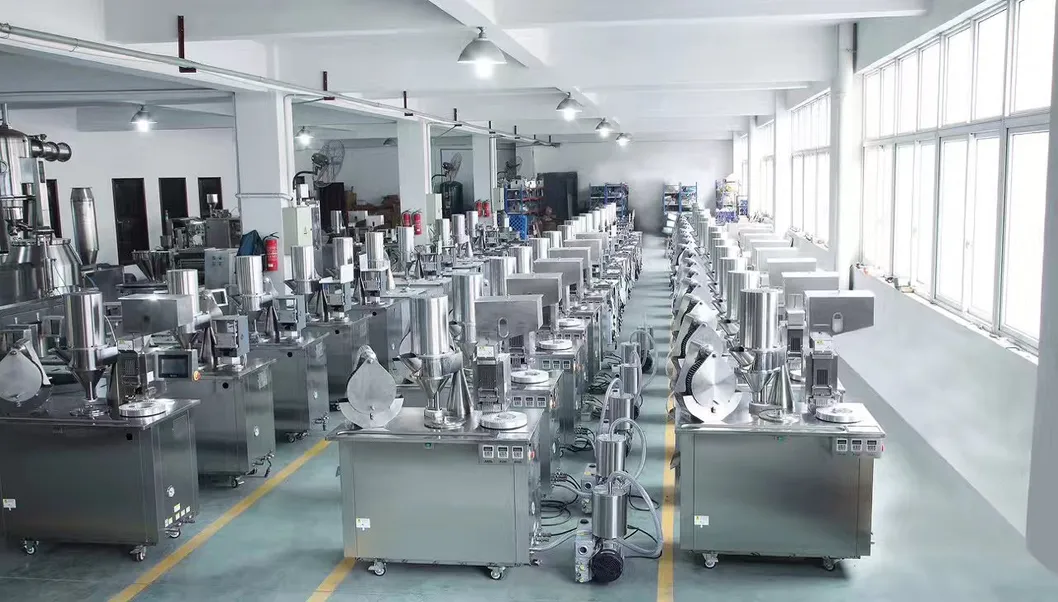

Visual Gallery

Semi Automatic Capsule Filling Machine

Frequently Asked Questions

1. What is the production capacity of the CGN208D machine?
The machine can produce between 10,000 and 25,000 capsules per hour, depending on the capsule size and material characteristics.
2. Which capsule sizes are compatible with this equipment?
It supports a wide range of standard mechanical capsules, including sizes 000#, 00L#, 00#, 0L#, 0#, 1#, 2#, 3#, 4#, and 5#.
3. How long does it take to change the mold for different capsule sizes?
Thanks to the advanced column pill positioning design, the mold replacement time has been reduced to just 5-8 minutes.
4. What types of materials can be filled using this machine?
This machine is designed to fill capsules with either powder (non-wet and non-sticky) or granules/pellets.
5. What are the utility requirements for operation?
The machine requires a 220V power supply, a total power of 2.12KW, and compressed air at 0.7Mpa with a flow of 0.03m³/min.
6. What control systems are integrated into the machine?
It utilizes a combination of electricity and pneumatic control, featuring programmable logic controllers (PLC) and frequency conversion for speed regulation.
