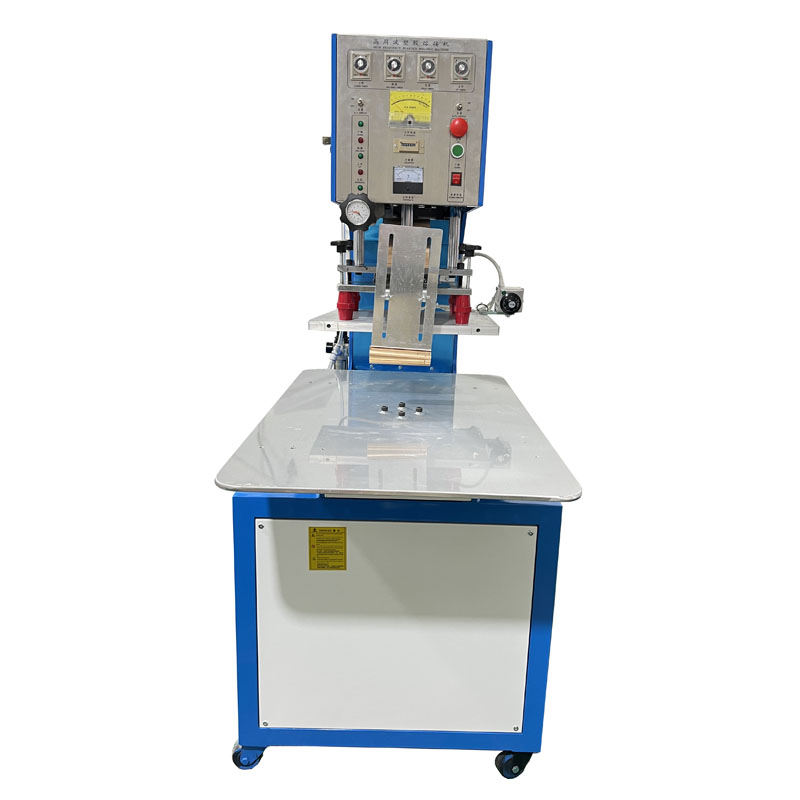

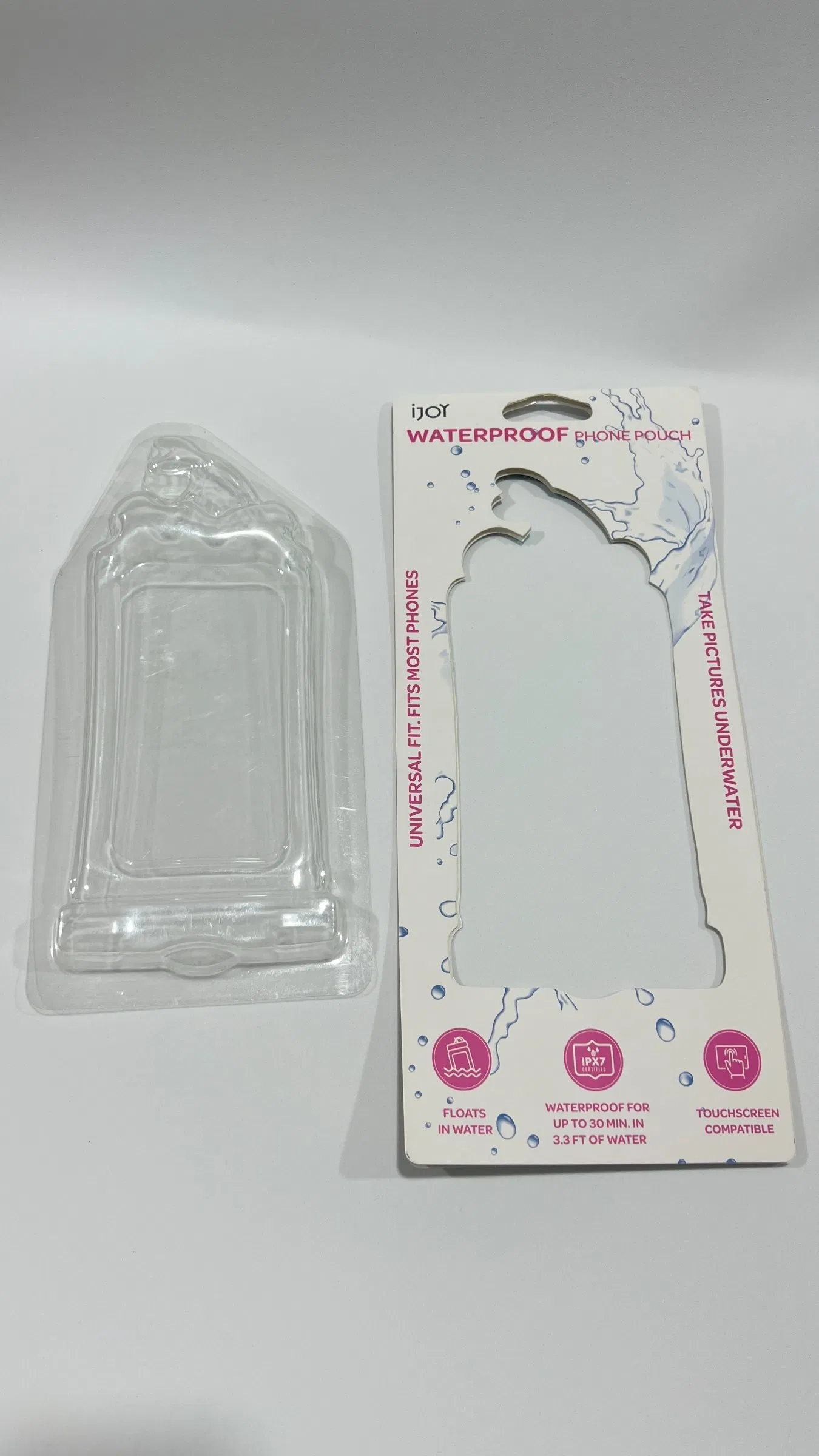

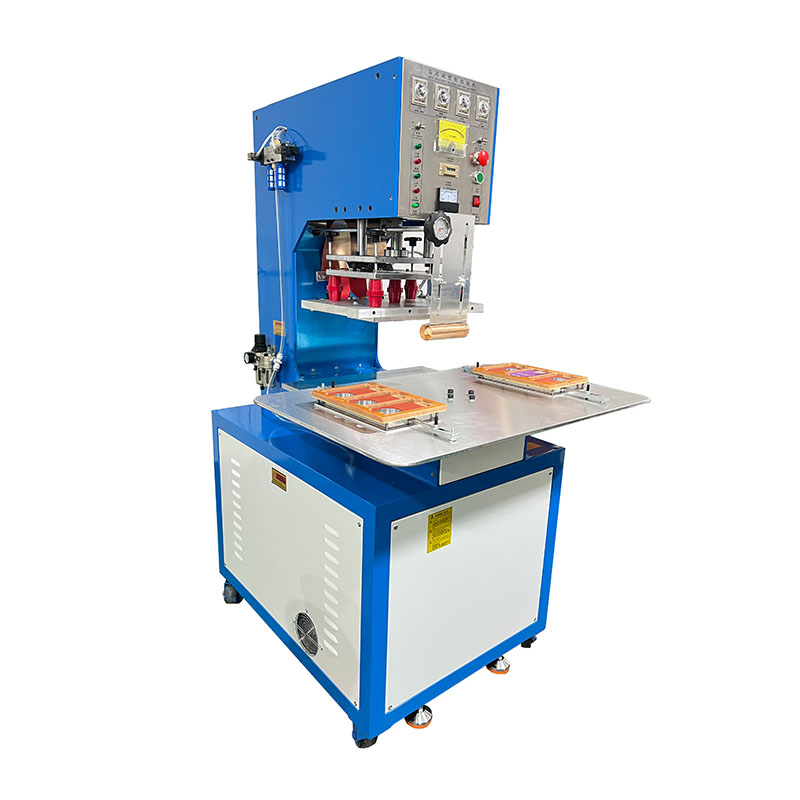

Professional welding and sealing solution for plastic blisters and paper cards. Ideal for electronic products, cosmetics, and medical packaging.
| Model NO. | XX-8000A |
| Control | Automatic / Semi-Automatic |
| Frequency Range | High Frequency (27.12KHz) |
| Electric Current | AC 380V |
| Condition | New |
| Certificate | CE Approved |
| Style | Handheld / Turntable |
| Usage | Plastic welding |
| Output Power | 8000W |
| Working Speed | 400-700 pcs/H |
| Rectifier | Silicon diode |
| Oscilliation Tube | 7T69RB |
| Gap of Electrodes | 250mm |
| Max Welding Area | 460*610mm |

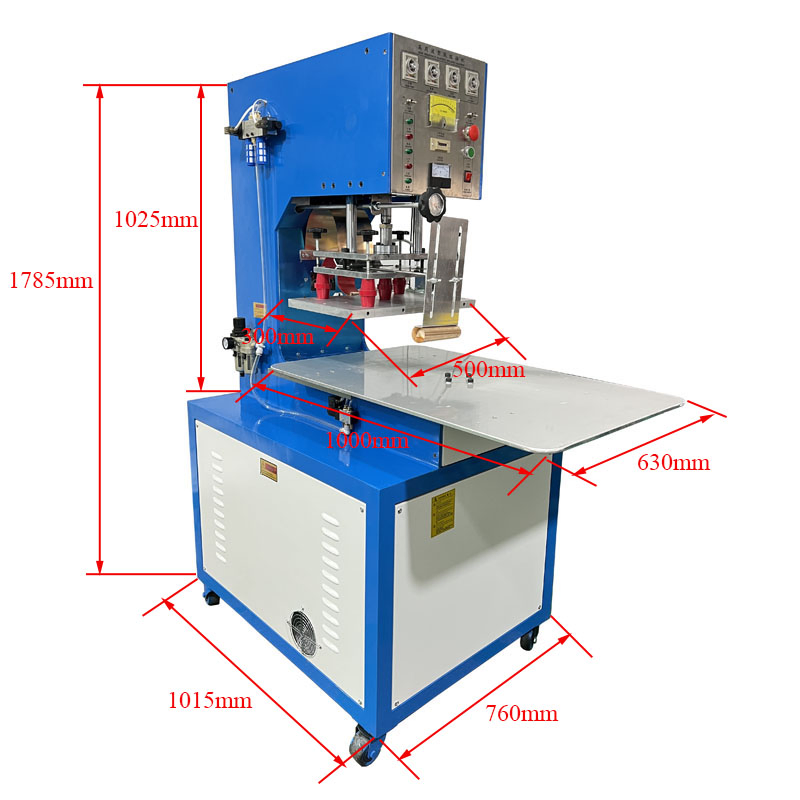

| Machine Size | 760*1015*1785mm |
| Weight (N.W) | 420KGS |
| Suitable Material | PVC, APET, PETG |

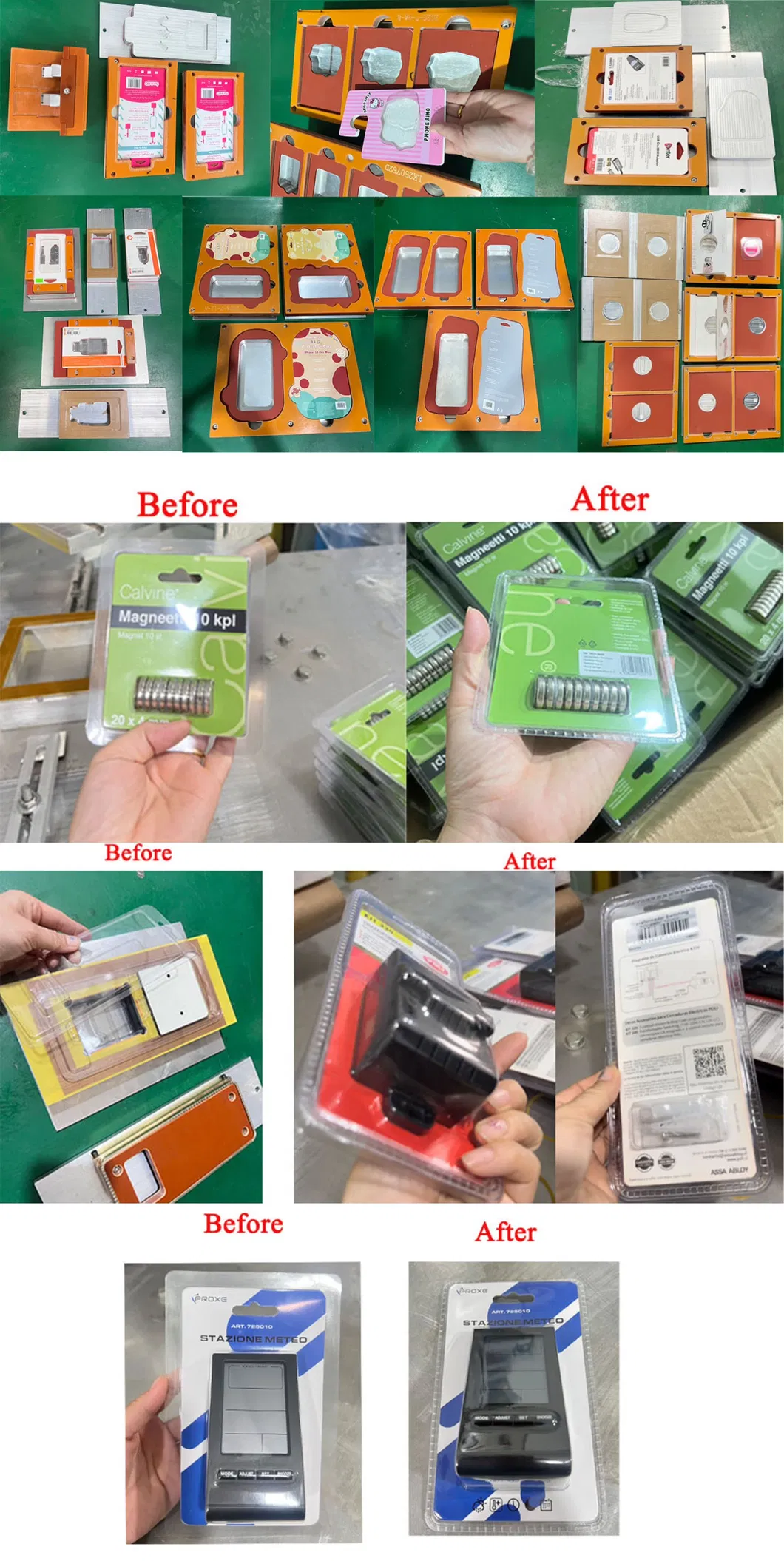

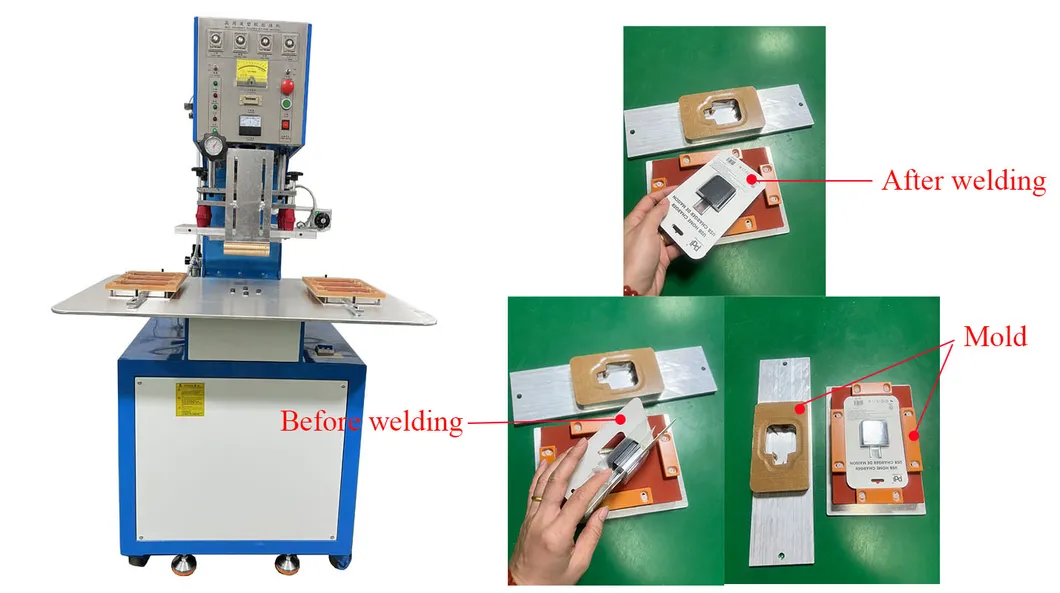

The machine uses high-frequency thermal bonding to heat the workpiece through a high-frequency mold. This process allows for precise bonding of plastic to plastic, plastic to paper cards, or paper cards to paper cards. The card surface is typically coated with a layer of PVC, APET, or PETG glue, which melts under high-frequency action to form a seamless seal.

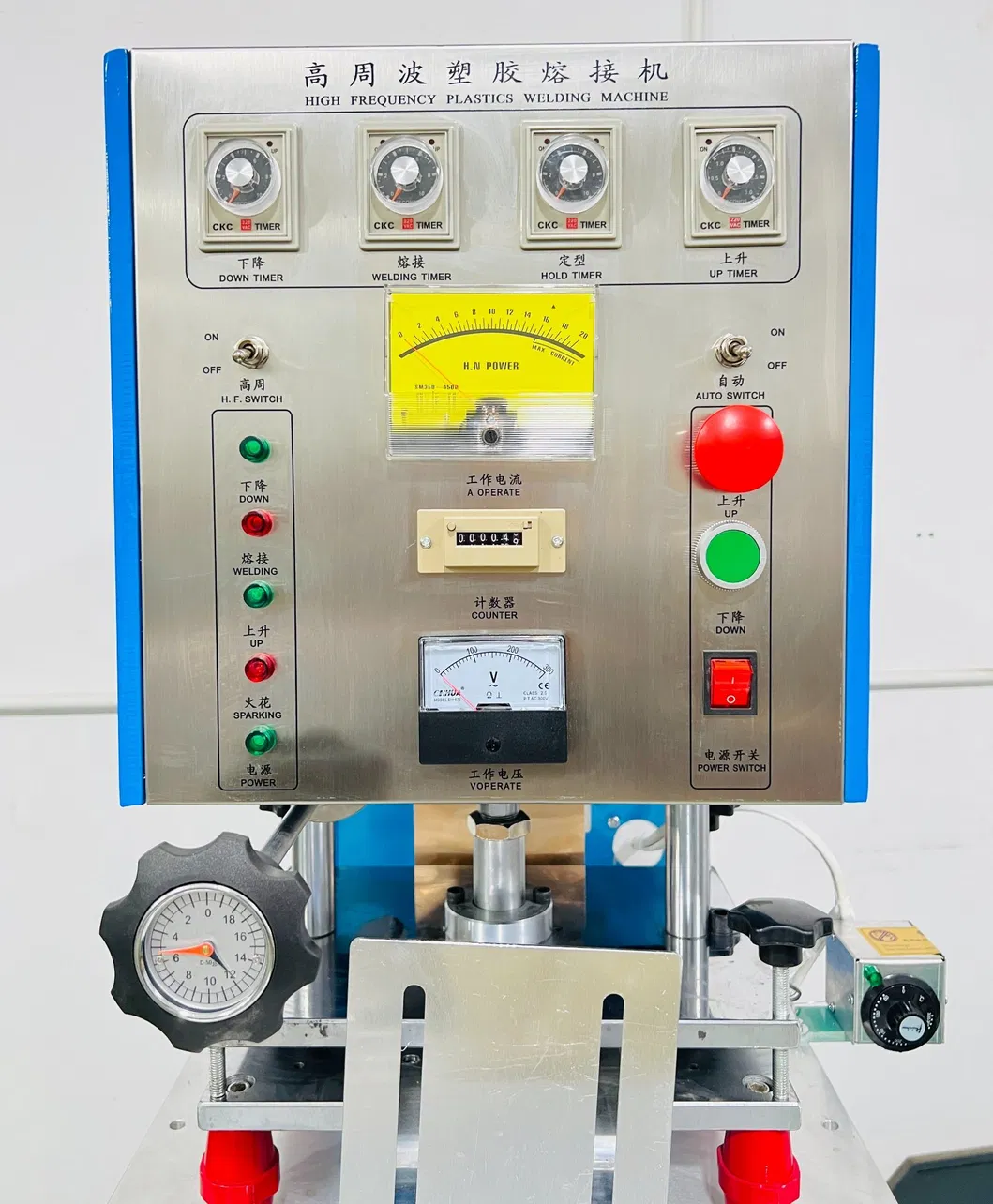

Equipped with an intuitive interface where almost all control switches are centralized. It is designed for easy understanding and simplified operation.

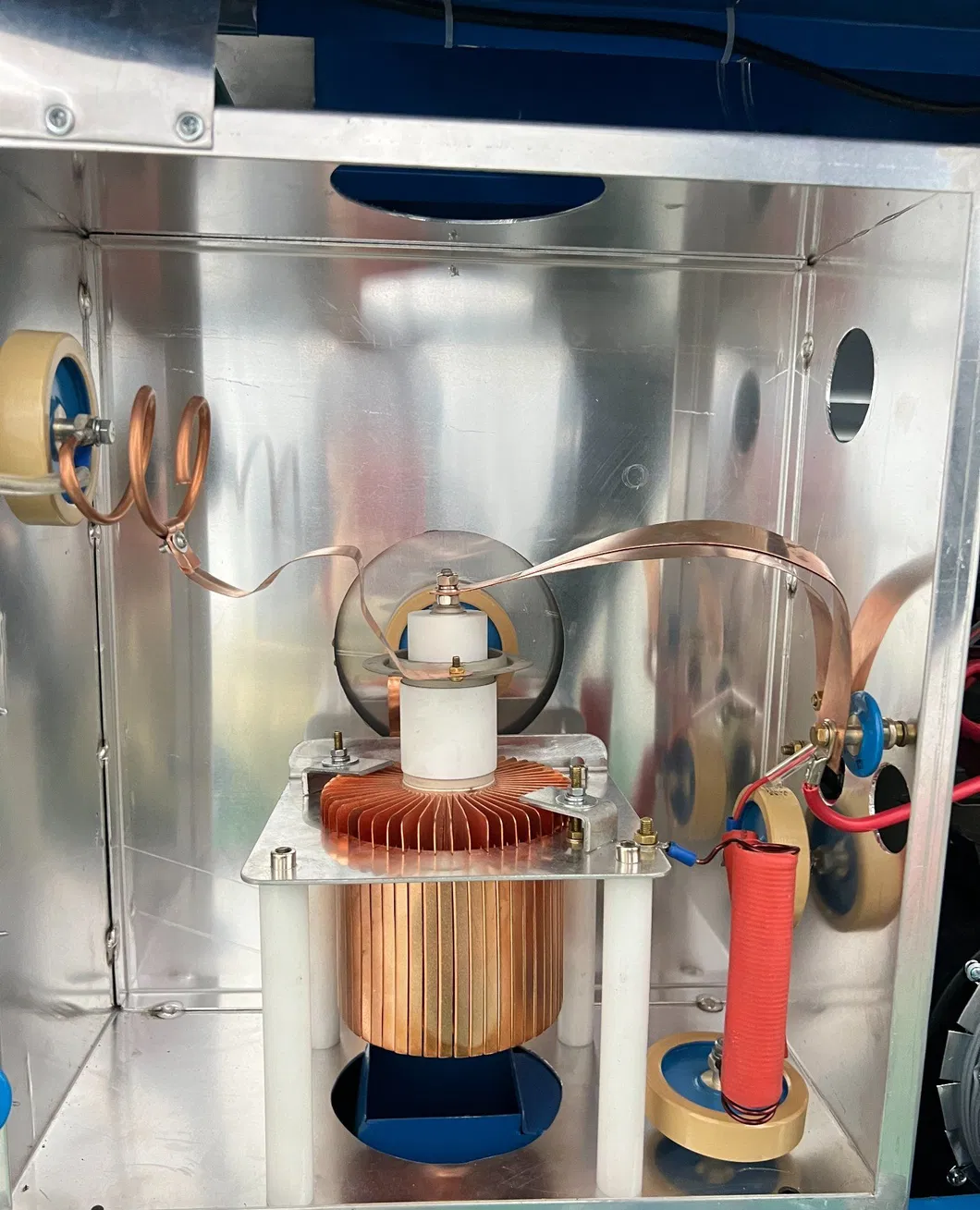

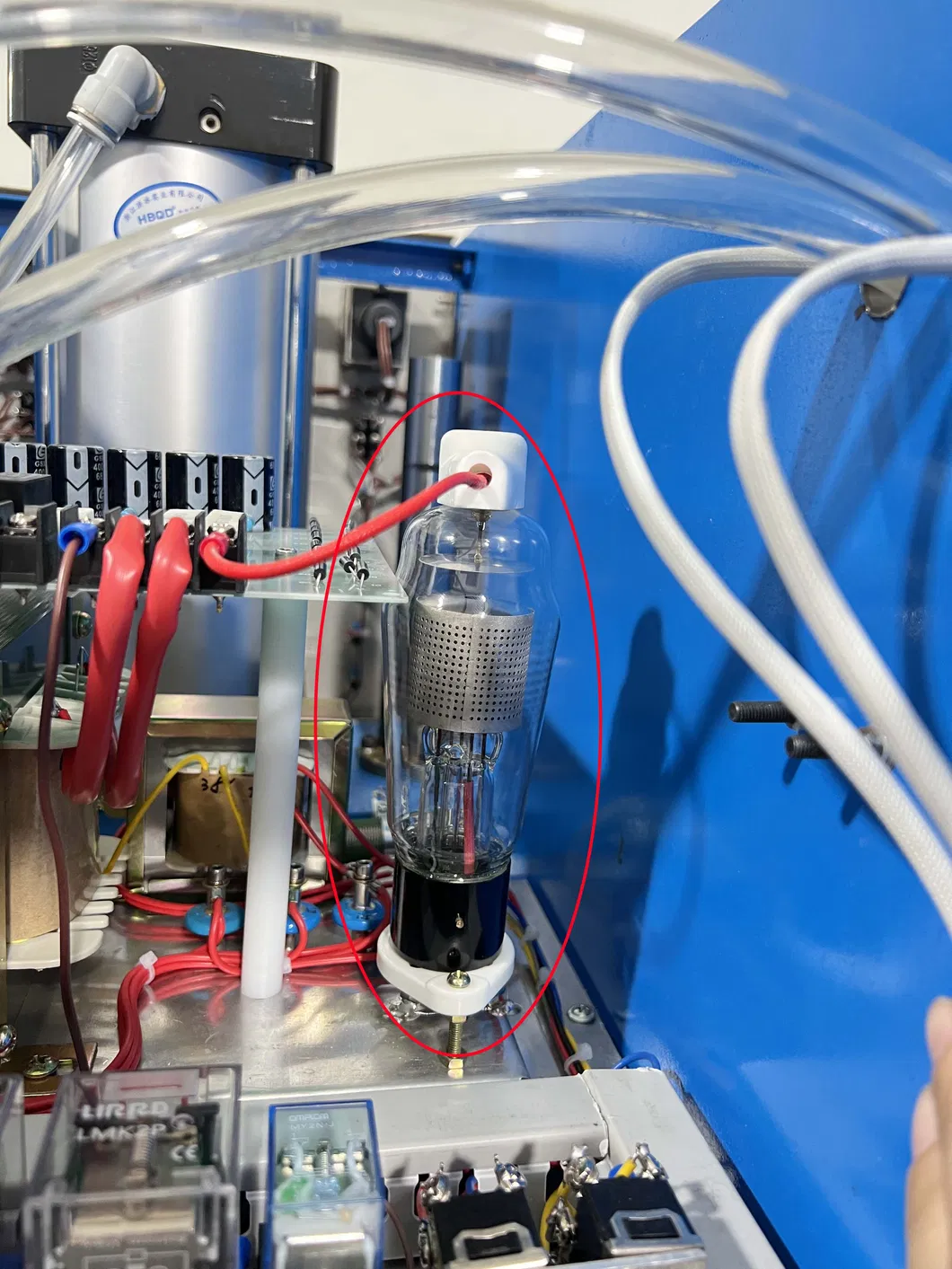

Features a high-quality vacuum tube that ensures the output power remains stable and reliable during long-term production cycles.

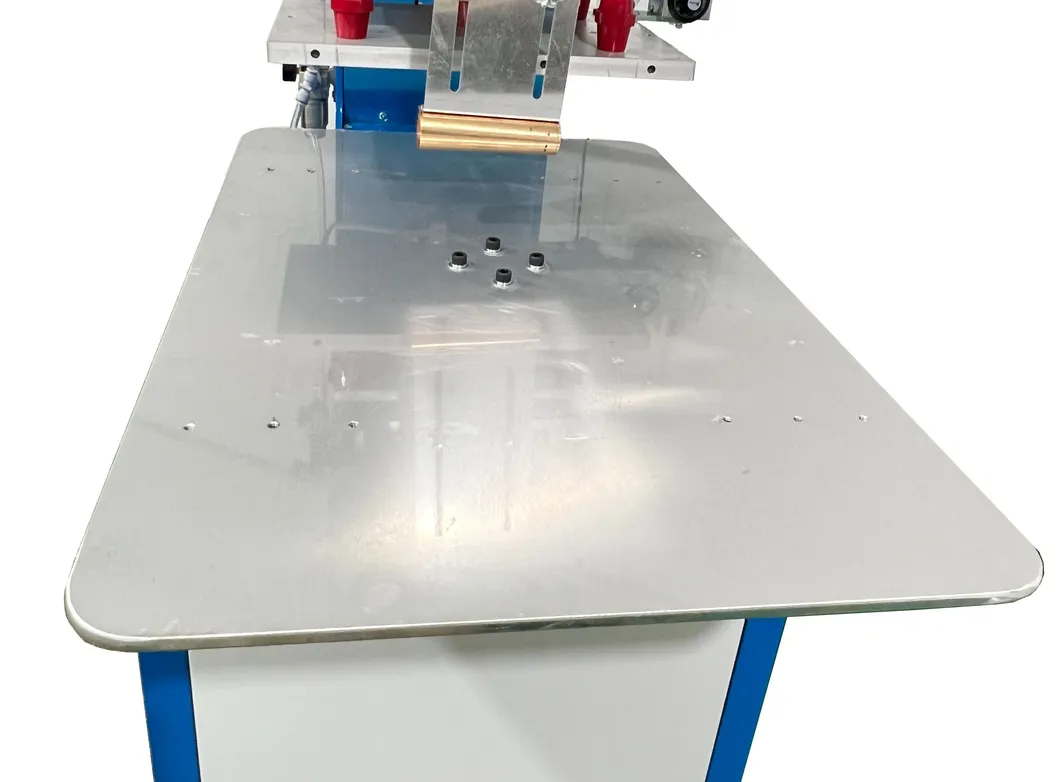

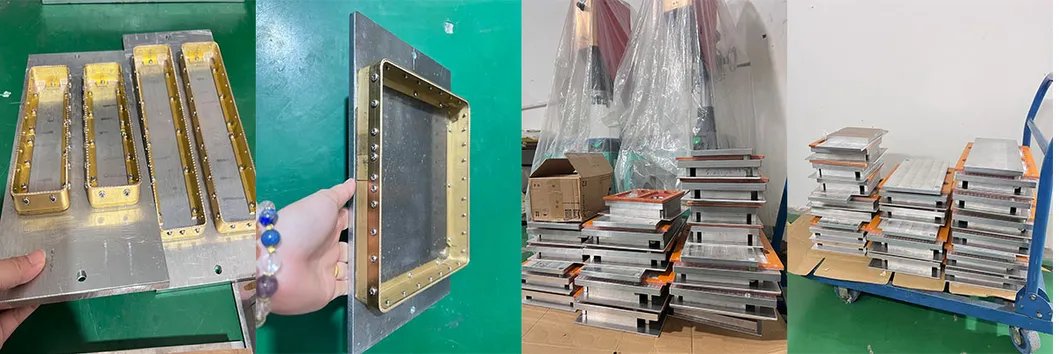

Constructed from durable aluminum. Features 2 working positions (optional). Molds can be manually adjusted for easy horizontal alignment.
Equipped with a sensitive spark over-current protection circuit. Effectively suppresses sparks and cuts off high current to protect the host.
| Package Size | 86.00cm * 110.00cm * 190.00cm |
| Gross Weight | 520.00kg |
| Packing Material | Wooden Case / Carton |
| Shipping Options | Sea (over 100KG suggested), Air, Courier |
