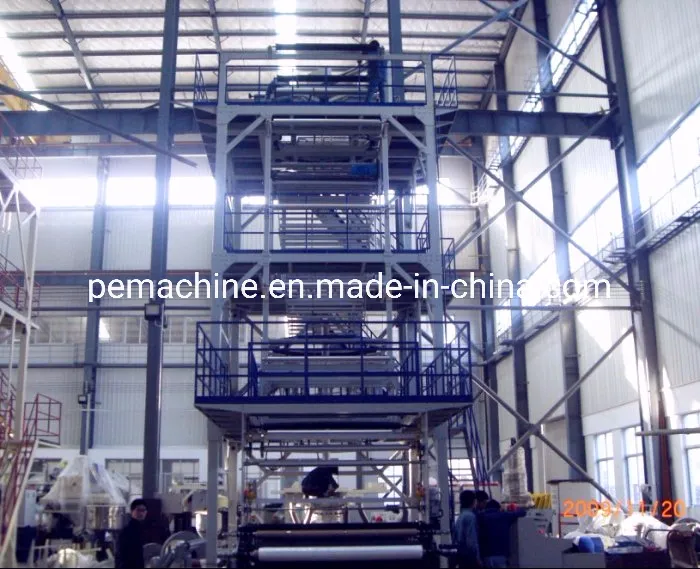

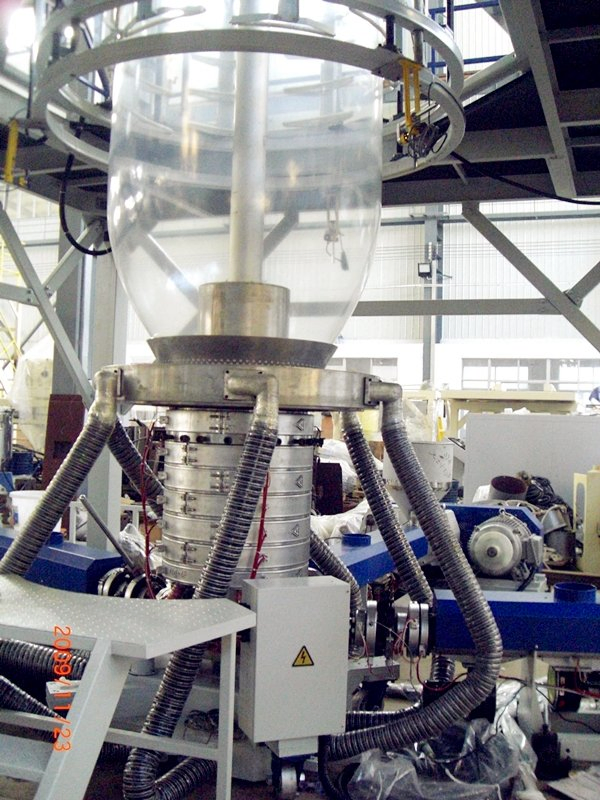

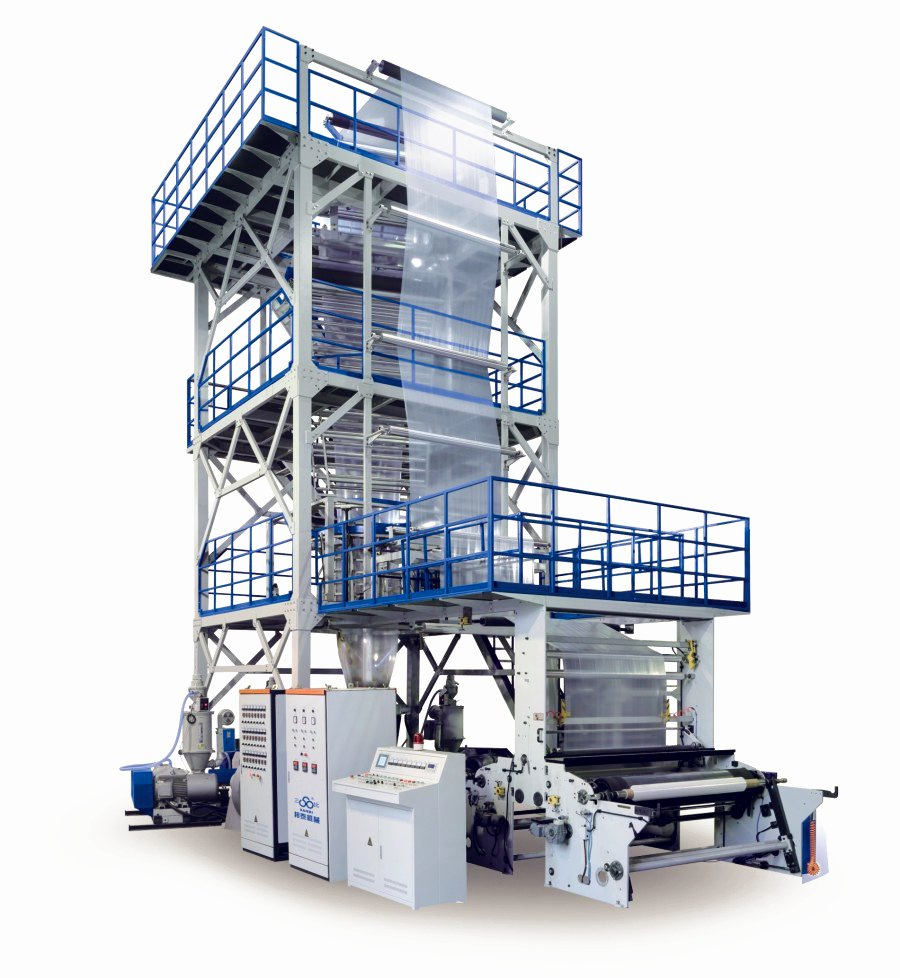

High-end Three Layers Co-Extrusion Agricultural Film Blowing Machine is designed to satisfy high-quality and high-output requirements. It features an extruder with force feeding functionality, precision ceramic heaters, and a double vents air ring for superior performance.
Advanced Technical Features:
| Type | SJ55-GS1300 | SJ60-GS1500 | SJ65-GS1800 | SJ-GS2300 |
|---|---|---|---|---|
| Max. Lay Flat Width (mm) | 1200 | 1400 | 1700 | 2100 |
| Film Layer | 3 | 3 | 3 | 3 |
| Film Thickness (mm) | 0.02-0.12 | 0.02-0.12 | 0.02-0.12 | 0.02-0.12 |
| Max. Output (kg/h) | 200 | 250 | 300 | 400 |
| Raw Material | LLDPE, LDPE, EVA | |||
| Screw Diameter (mm) | Φ 45/55/45 | Φ 50/60/50 | Φ 60/70/60 | Φ 75/90/75 |
| Extruding Power (kw) | 18.5/30/18.5 | 22/37/22 | 30/45/30 | 55/90/55 |
| Die Structure | IBC Film Tube Inner Cooling System | |||

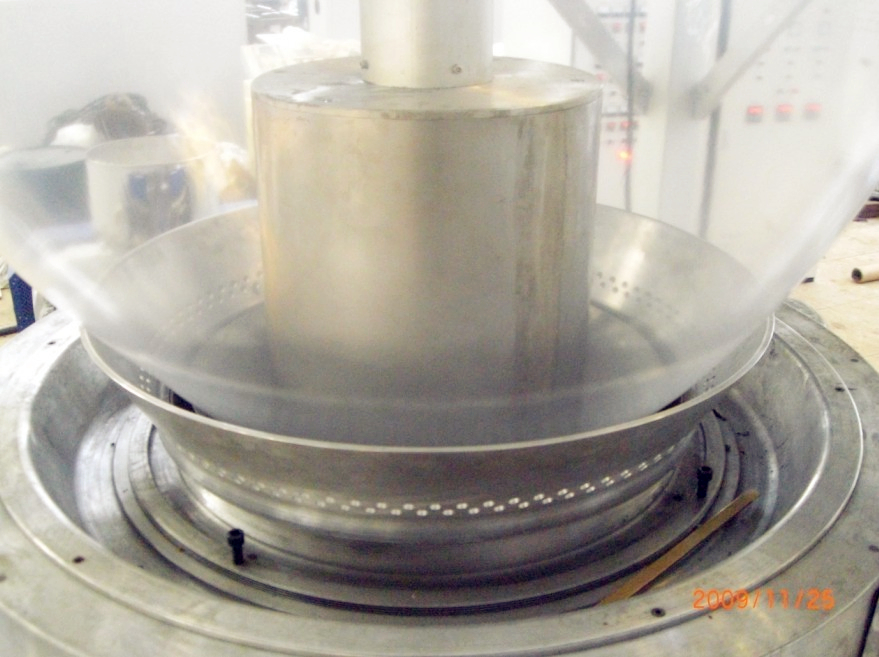

| Air-ring Structure | Double Vents Air Ring | |||
| Total Power (kw) | 150 | 280 | 280 | 350 |
