High-Efficiency Wound Care Dressings Making Machine with PLC Control System
High-Efficiency Wound Care Dressings Making Machine with PLC Control System
High-Efficiency Wound Care Dressings Making Machine with PLC Control System
High-Efficiency Wound Care Dressings Making Machine with PLC Control System
High-Efficiency Wound Care Dressings Making Machine with PLC Control System
1 / 5
High-Efficiency Wound Care Dressings Making Machine with PLC Control System
High-Efficiency Wound Care Dressings Making Machine with PLC Control System
High-Efficiency Wound Care Dressings Making Machine with PLC Control System
High-Efficiency Wound Care Dressings Making Machine with PLC Control System
High-Efficiency Wound Care Dressings Making Machine with PLC Control System

High-Efficiency Wound Care Dressings Making Machine with PLC Control System

Customization: Available
Application: Medical Dressing Products
Certification: CE, ISO
Send Inquiry

Product Description

i

Basic Information

Model NO.
XN7
Control System
Fully Automatic
Material
Aluminum Alloy, Stainless Steel
Power
17.5kw
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Gear
Feed Width
250mm, 350mm or Customized
Web Max. Dia
400mm
Drive Motor
Servo
PLC
Omron
Cutting Precision
±0.1mm
Product Name
Medical Consumables Dressings Making Machine
Origin
Hebei, China
★

Product Description

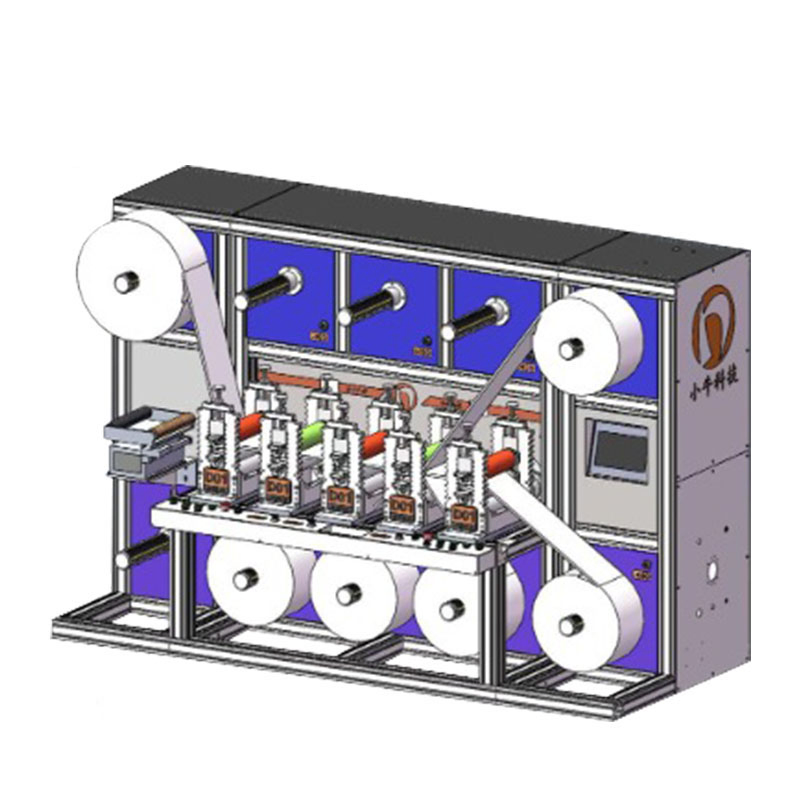

This 7-station rotary die-cutting machine, driven by servo motors, ensures that each station and feed shaft operate independently or as a unified system. It supports various pressing, die cutting, and transfer needs, with capabilities for synchronous, asynchronous, speed ratio, and constant tension functions. This highly automated, intelligent machine adapts to diverse production requirements.

Key Advantages

  • Continuous roll cutting, 5-60m/min high efficiency
  • ±0.1mm precision, stable & consistent processing
  • Multi-station design, integrated multi-process compounding
  • Wide material adaptability for all flexible substrates
  • Full-auto operation, intelligent tension & deviation control
  • Smart adjustment asynchronous processing & power-off memory

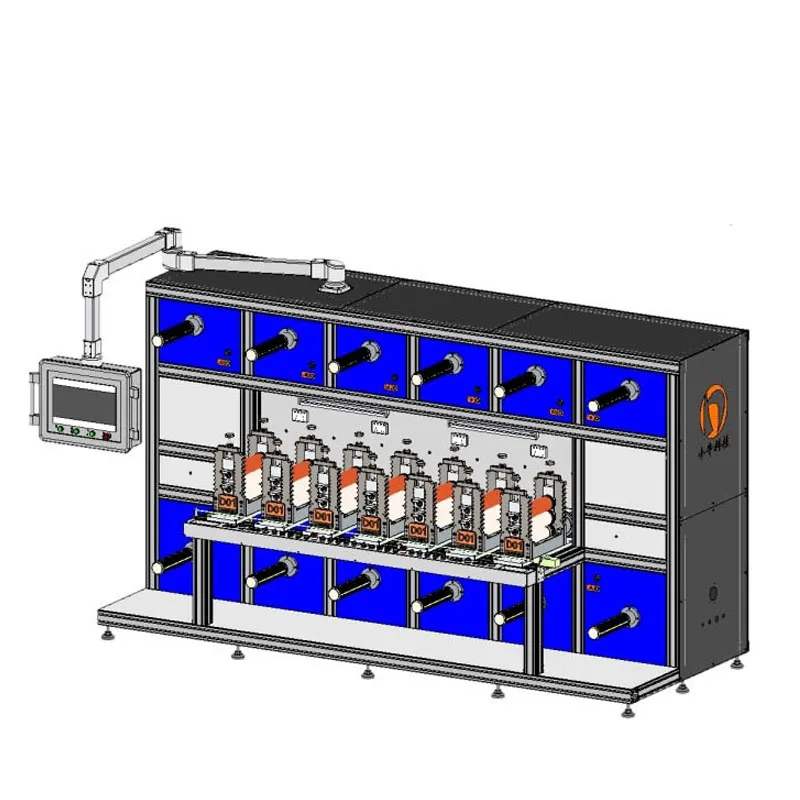

Rotary Die-Cutting Machine
Rotary Die-Cutting System
Machine Advantages
High Efficiency Processing
✚

Medical Dressing Applications

Our rotary die-cutting machines are pivotal for high-precision, mass production of flexible materials, widely used in medical consumables, 3C electronics, and more.

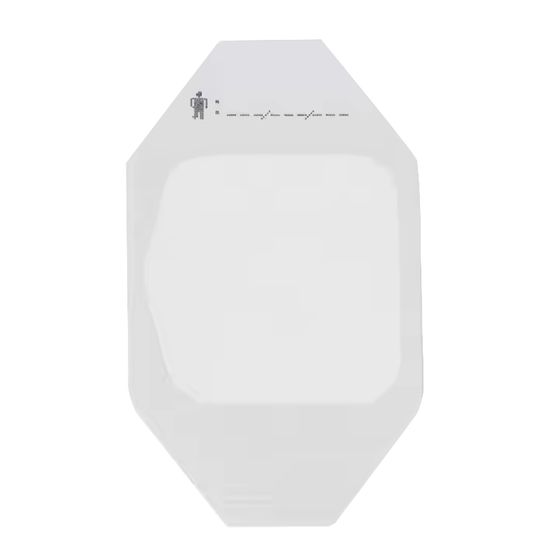

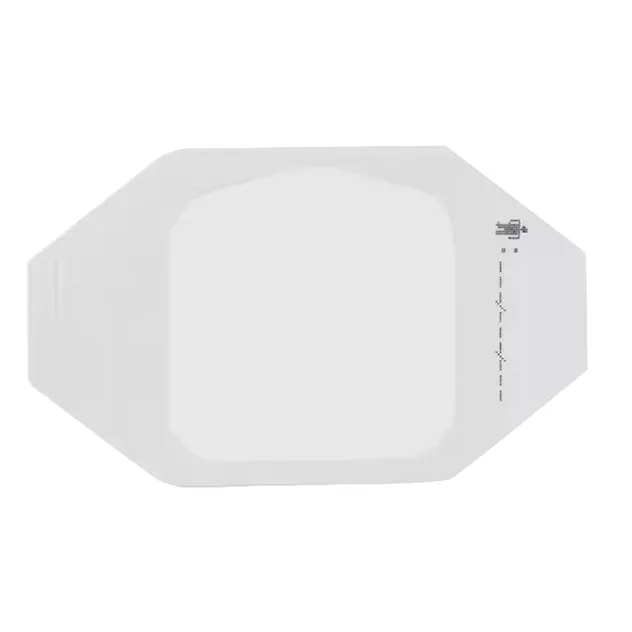

I.V. dressing
I.V. Dressing
foam dressing
Foam Dressing
acne patches
Acne Patches

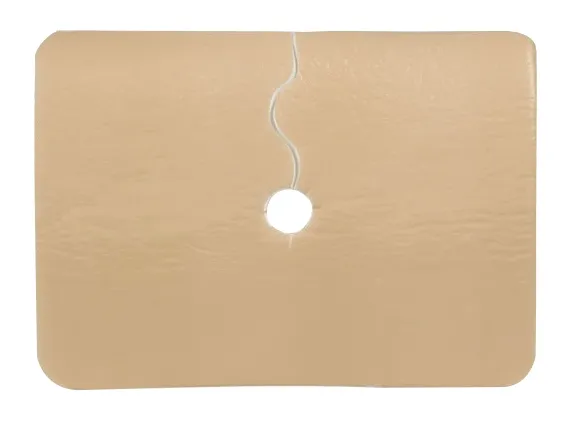

tracheostomy dressings
Tracheostomy Dressings
infusion dressings
Infusion Dressings
hydrocolloid dressings
Hydrocolloid Dressings
⚙

Technical Specifications

Parameter Item Technical Detail
Power (KW)17.5kw
Working Voltage (V)AC380 (Customizable)
Feeding Width (mm)250mm or 350mm
Max. Diameter (mm)400mm
Die Cutting Precision (mm)±0.1mm
Max Speed (m/min)60m/min
⚒

Core Components & Details

Main parts
Main Parts
Electronics
Electronics
Stations
Processing Stations
✓

Service & Support

Standard Warranty: 1 year.

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation and maintenance training provided by expert engineers.

Delivery 1
Delivery 2
?

Frequently Asked Questions

What materials can this machine process?
The machine is designed for all flexible substrates, including medical-grade tapes, foams, non-woven fabrics, hydrocolloids, and 3C electronic materials.
How accurate is the die-cutting process?
The machine utilizes an Omron PLC servo control system, achieving a high cutting precision of ±0.1mm.
Can one machine produce multiple types of products?
Yes. Due to the modular multi-station design, you can share one machine for multiple products by simply adding stations or changing die cutters, which significantly saves equipment costs.
What is the delivery time for a custom machine?
Standard configurations can typically be delivered within 20 days post-design confirmation.
Do you provide technical support for international customers?
Absolutely. We offer one-year free warranty, lifetime maintenance, and can dispatch engineers globally for on-site debugging and staff training.
Is the machine easy to upgrade in the future?
Yes, the modular design allows for flexible combinations. You can easily add or remove stations (e.g., adding a packaging module to a die-cutting line) as your production needs evolve.
