Basic Info.
Type
Medical Tape Slitting Machine
Work Method
Flat Knife Slitting
Classification
Tape Slitting Machine
Effective Width
600, 1100mm
Specification
1600*1300*1420mm
Production Capacity
3 Sets/Month
Product Description

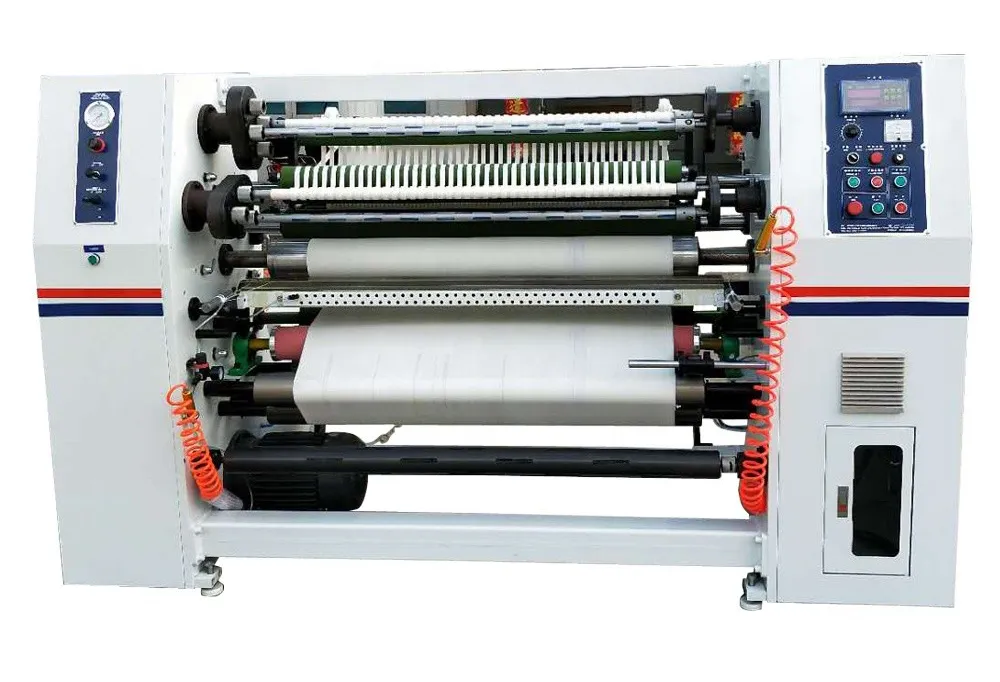

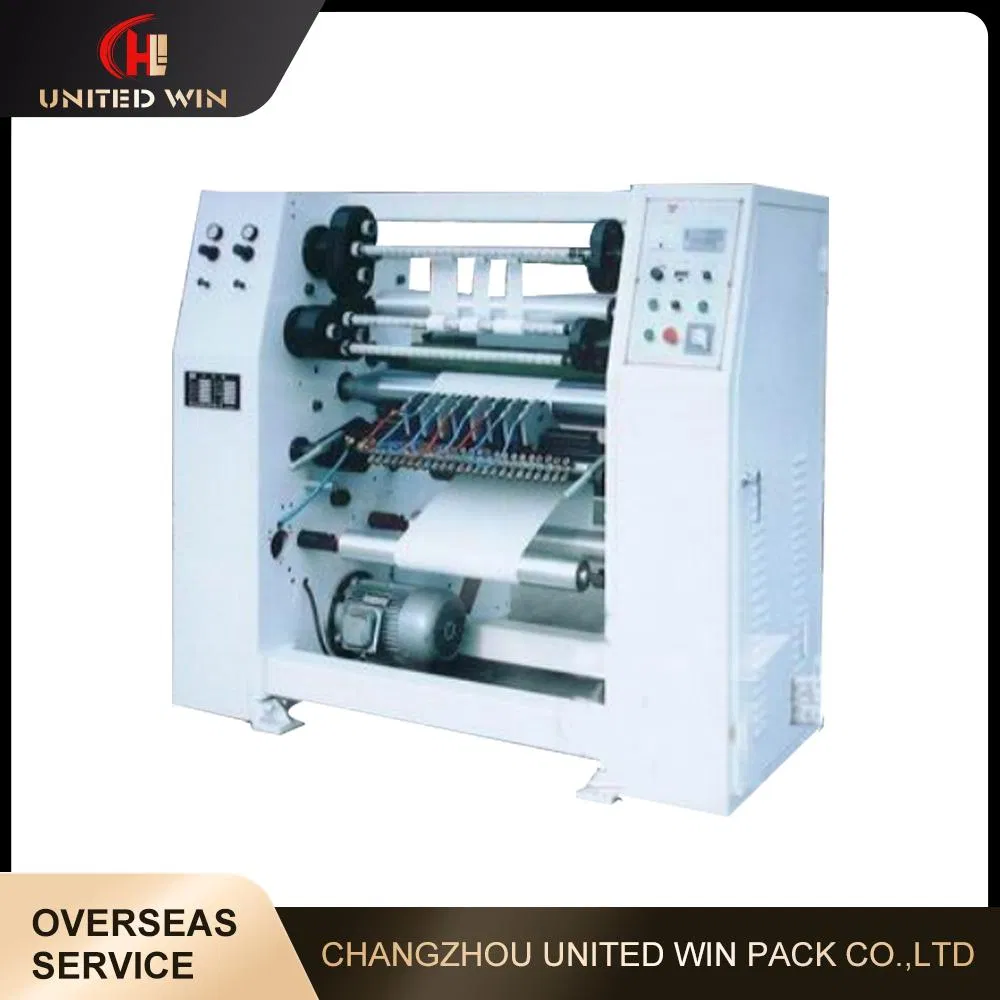

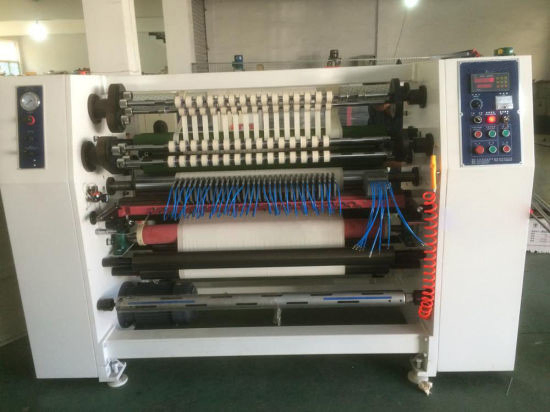

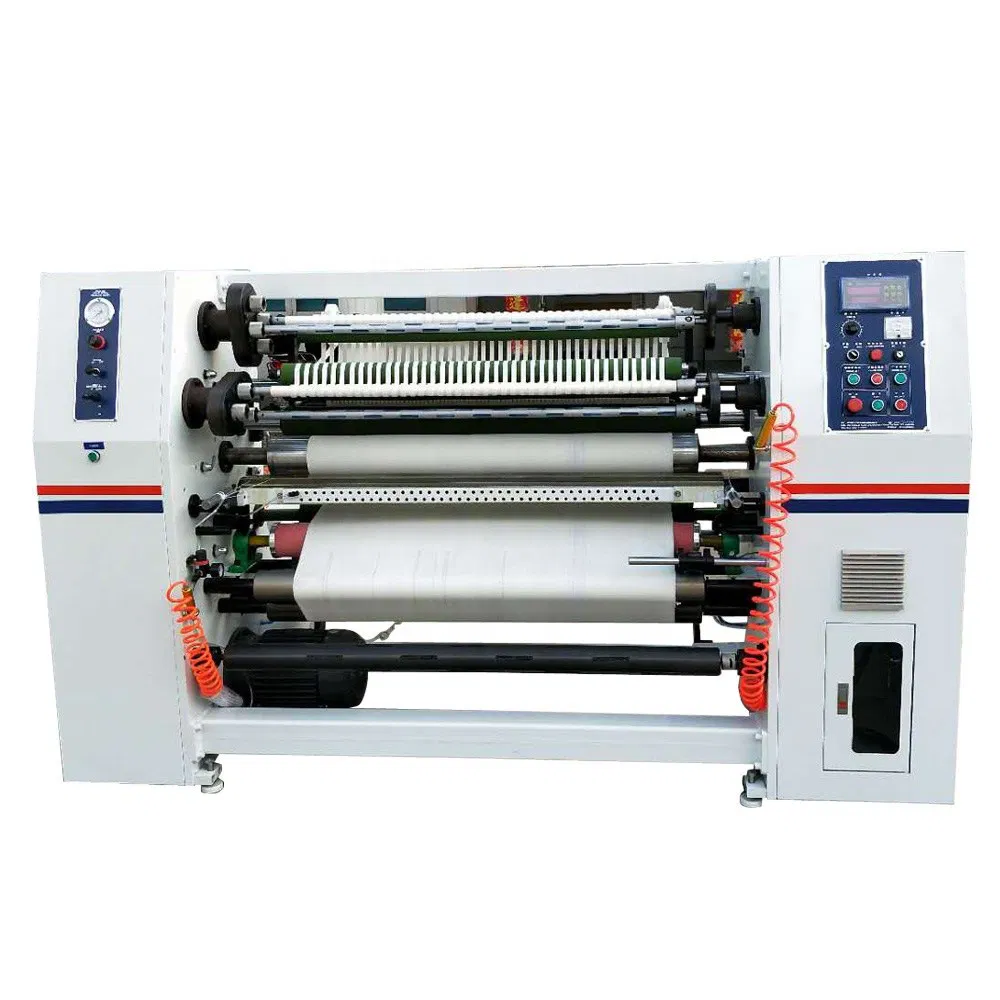

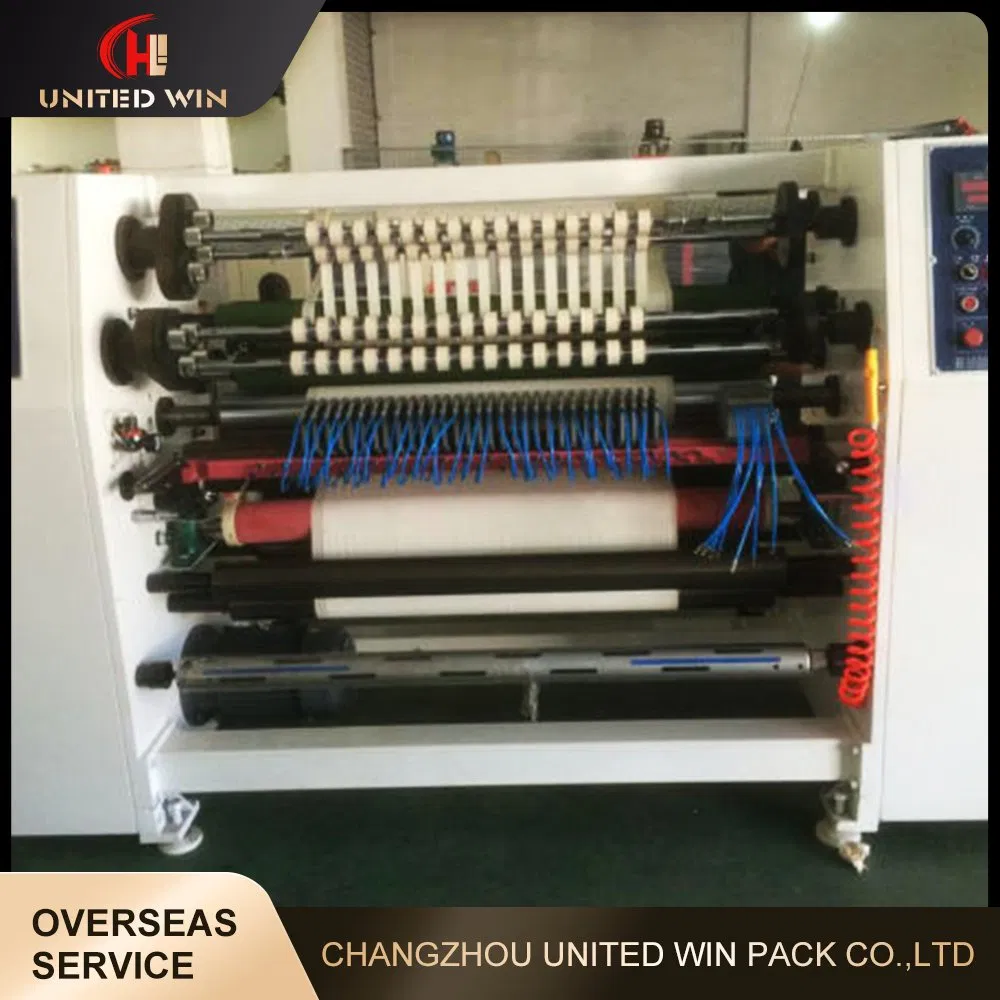

High Efficiency Automatic Slitting Machine For Medical Tape
Features:
1
Equipped with air knife and flat knife, four-axis automatic exchange coiling, continuous coiling, and improve work efficiency.
2
Variable frequency stepless speed regulation, equipped with three-stage counter, can automatically decelerate and stop when running at high speed.
3
The unwinding tension is pneumatically controlled, and the winding tension is controlled by a friction clutch. With the clutch and the winding air shaft, the tension can be adjusted freely.
4
Equipped with curved stretching rollers, which can effectively stretch the substrate.
Technical Parameters:
| Model |
UW-F0631 |
UW-F1131 |
| Effective width (mm) |
600 |
1100 |
| Max. unwinding dia. (mm) |
800 |
| Min. slitting width (mm) |
12 |
| Max. rewinding dia. (mm) 1" shaft |
75 |
| Max. rewinding dia. (mm) 3" shaft |
150 |
| Machine power (KW) |
4 |
| Dimension(LXWXH)(mm) |
1600X1300X1420 |
2050X1300X1420 |
Machine Details
Application: Suitable for slitting of medical tape.
FAQ
Are you a trading company or manufacturer?
We are a manufacturer and also provide comprehensive business solutions to all our partners.
Do you have quality certificates for your machines?
Yes, our equipment is certified with CE, SGS, and other relevant industry standards.
What is the estimated delivery time?
The delivery time is usually around 20 to 30 days, depending on the specific order requirements.
What are your accepted payment and trade terms?
We typically accept T/T (30% deposit, 70% balance before shipment). We usually offer FOB prices, but also accept L/C, Western Union, CFR, and CIF.
Is the machine easy to operate? What support is provided?
The machine is stable and designed for one-person operation. We provide manuals and videos for learning. If issues arise, we offer solutions within 36 hours via video chat or email, and engineers can be dispatched overseas if required.
Can you handle the transportation of the machinery?
Yes, we have rich experience in transport. Just provide us with your destination port or address and we can manage the process.
