📊 Basic Information
Machine Type
Capsule Filling Machine
Capacity
18,000 Tablets / Hour
Dimensions
3800*900*1900mm
Specification
GMP Standard
📝 Product Summary
NJYF-300C automatic hard-capsule liquid filling machine and sealing linkage line equipment are based on multi-year capsule filling technology, featuring self-developed design for hard capsule liquid filling and sealing. The system holds exclusive proprietary intellectual property rights and numerous technical invention patents.
⚙️ Key Characteristics
🖥️
Adopts man-machine interface control system; automatically alarms for lack of capsules or materials.
🎯
Capsule feeding machine with vacuum positioning and separating mechanism (probability over 99%).
📏

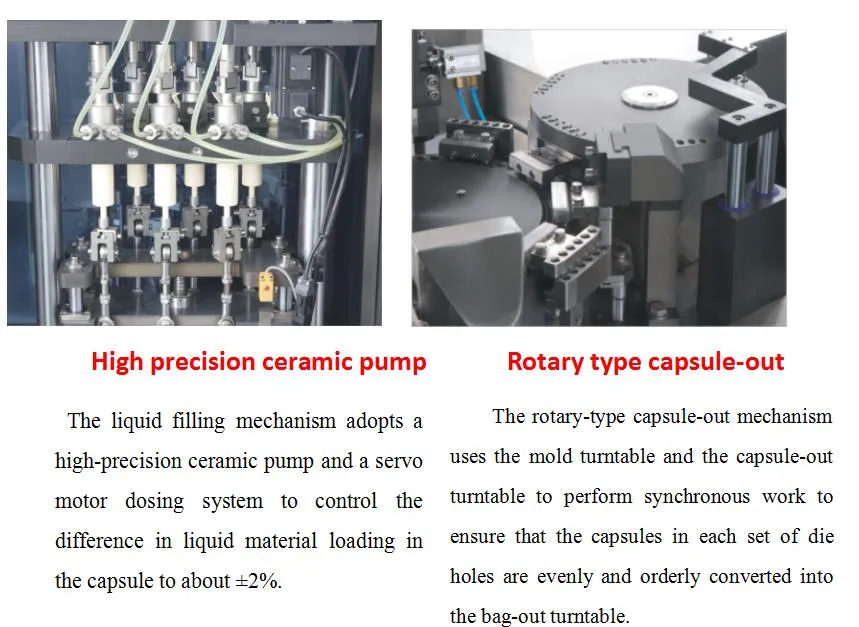

High-precision ceramic pump and servo motor dosing system; loading accuracy controlled to ±2%.
🔄

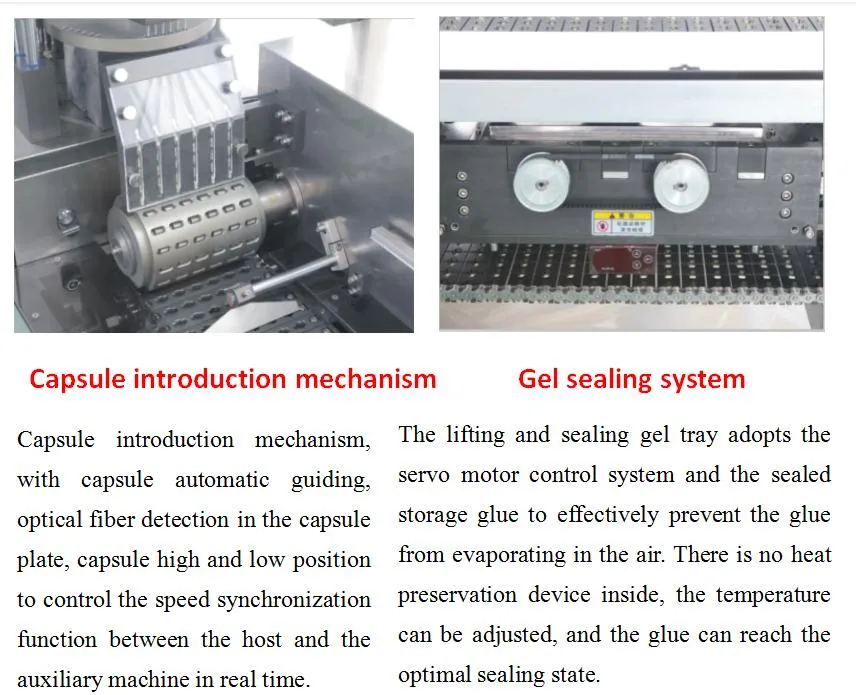

Sealing mechanism uses servo motor lifting device for fine-tuning rubber wheels to achieve optimal sealing.
🌡️
Sealing liquid tank includes a heating and heat preservation system to maintain glue viscosity.
🧼

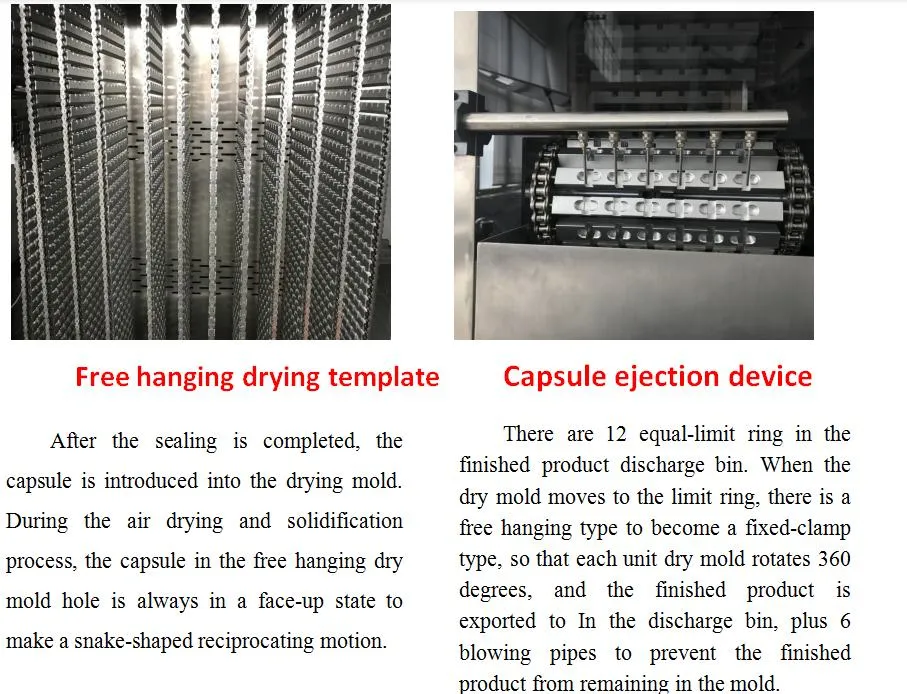

Hanging type finished dry curing mold with free rotation structure for easy disassembly and cleaning.
🖼️ Technical Display

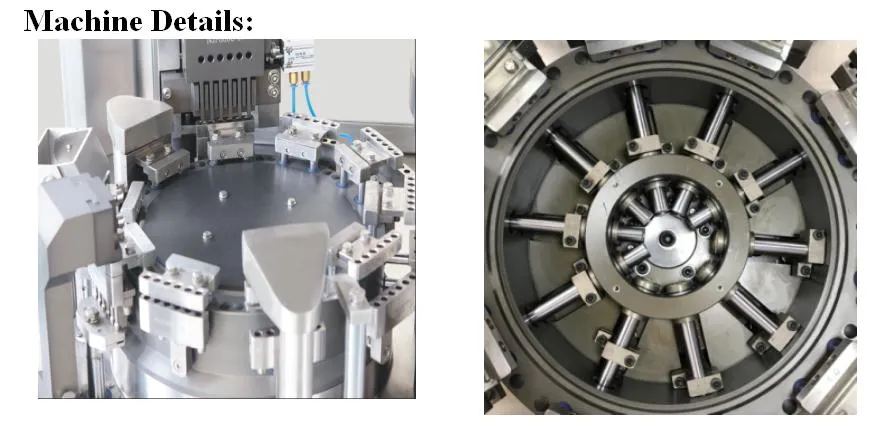

The 10-station rotary disc adopts integrated processing to achieve compact structure, no splicing gap, good sealing, and separate movement for upper and lower modules.
💊 Finished Products
Compatible Filling Types:
Oily solution capsules, Solution capsules, Suspension capsules, and Paste capsules.
❓ Frequently Asked Questions
What is the production capacity of the NJYF-300C?
The machine is capable of processing up to 18,000 tablets or capsules per hour, making it suitable for medium to large-scale pharmaceutical production.
How accurate is the liquid filling dosing system?
By utilizing a high-precision ceramic pump and servo motor dosing system, the loading volume difference is controlled within approximately ±2%.
What types of liquids can be filled using this machine?
This equipment is designed to fill a variety of substances including oily solutions, standard solutions, suspensions, and paste-like materials into hard capsules.
Does the machine meet international manufacturing standards?
Yes, the NJYF-300C is manufactured according to GMP (Good Manufacturing Practice) specifications, ensuring high safety and quality standards for pharmaceutical use.
Is the machine easy to clean and maintain?
Absolutely. The machine features an integrated 10-station rotary disc with no splicing gaps and a hanging curing mold structure, which significantly simplifies the disassembly and cleaning process.
What happens if the machine runs out of capsules or material?

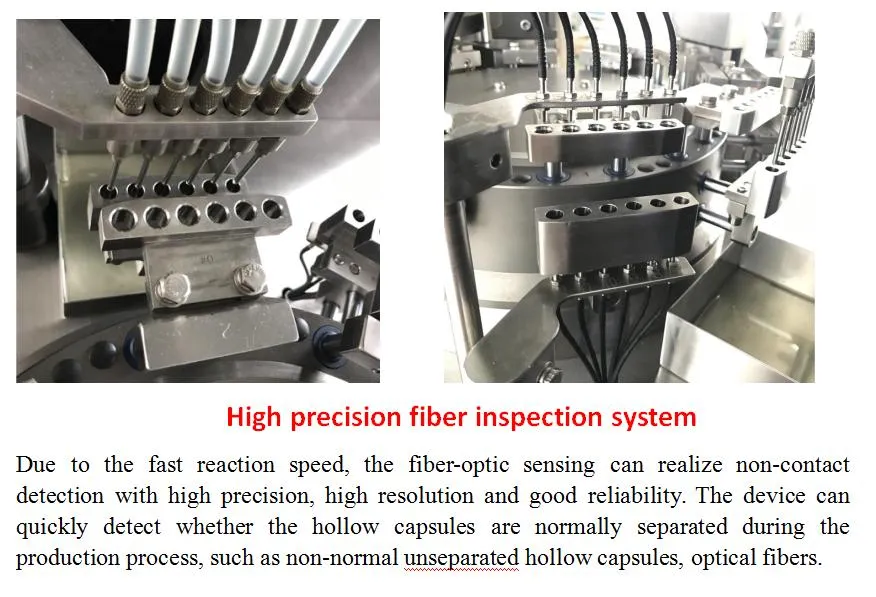

The equipment is equipped with an intelligent man-machine interface that includes automatic alarms for material shortages and fiber detection to identify missing capsules in mold holes.
